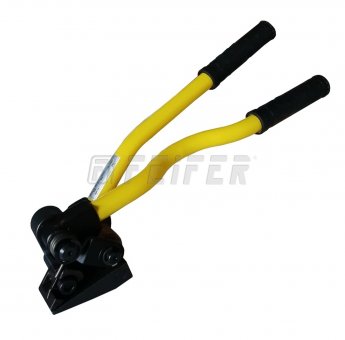

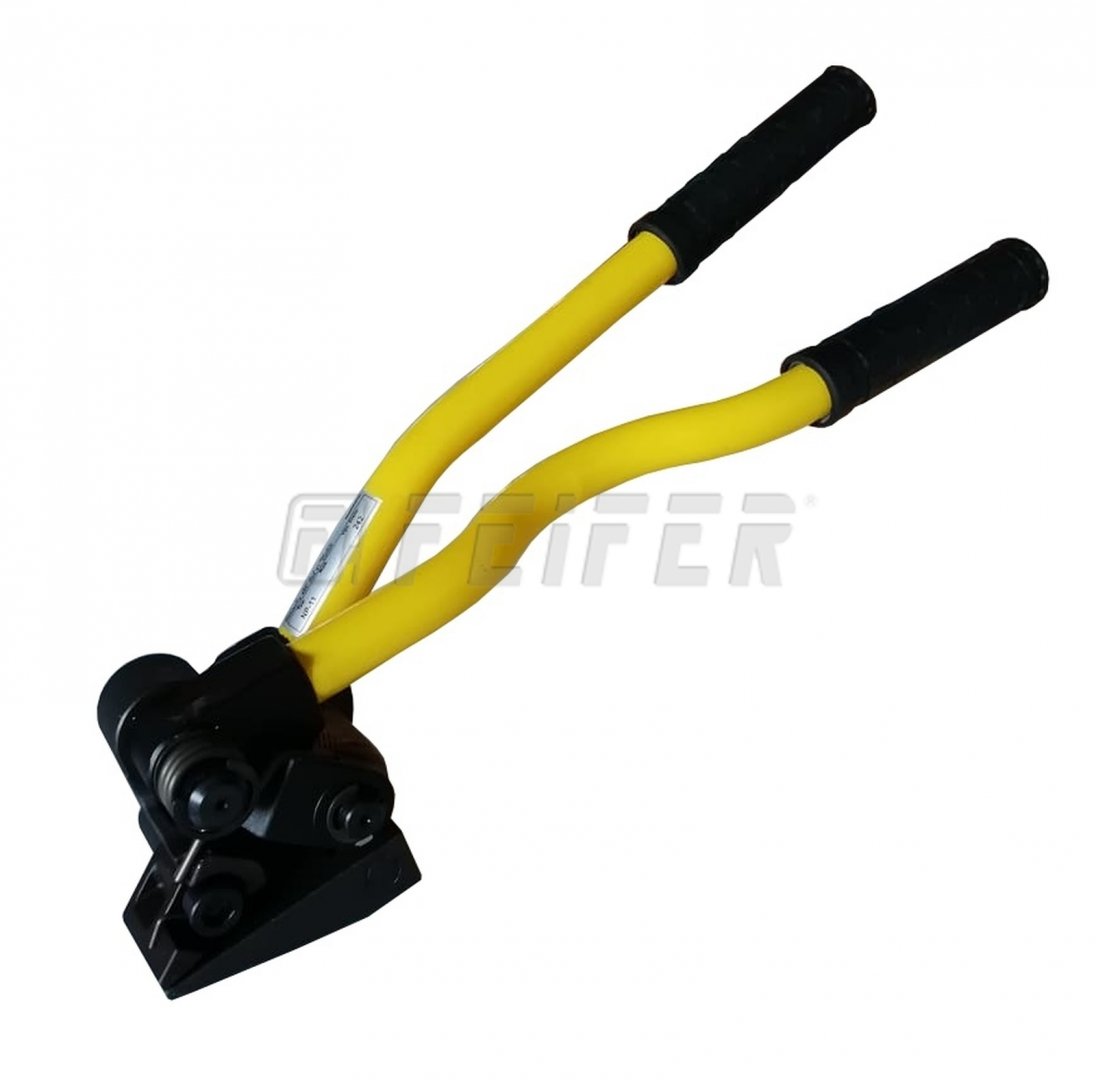

NP-11 - tensioner for steel straps

This tensioner NP-11 is intended for strapping heavy objects e.g. steel profile, wood bundles, etc. and is especially used for strapping round or irregularly shaped objects. This tensioner is used only together with a suitable sealer (e.g. type UK-1). Steel strap of the width of 13 - 19 mm with seal type FP are used for strapping.



  • for strapping eg. bundles of tubes, timber products as well as assembly of traffic signs, waste baskets on stands, etc.
  • in case of a double notching the seal strength of the joint can reach up to 5 000 N
  • is used only in combination with appropriate closing sealers (eg. UK-1)
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry

Technical parameters

ordering code 600 000237
strap width 13 - 19 mm
strap thickness 0,6 - 0,8 mm
weight 2,6 kg
dimension (l x w x h) 420 x 120 x 100 mm
tightening power 5000 N

Standard modifications

NP-21 - tensioner for steel straps

NP-21 - tensioner for steel straps
  • strap width - 19 - 32 mm
  • used together with a sealer UK
  • for heavy irregular objects
  • max. strength of joint 15000 N

NP-21PN - pneumatic tensioner for steel straps

NP-21PN - pneumatic tensioner for steel straps
  • strap width - 19 - 32 mm
  • using with sealer FZ or UK
  • for heavy irregular objects
  • tightening power up to 9000N

Recommended accessories

UK-1/10 - strapping sealer for steel seals

UK-1/10 - strapping sealer for steel seals
  • strap width - 10 mm
  • sealing method - seal type FP
  • for heavy irregular objects
  • using with suitable tensioner

UK-1/13 - strapping sealer for steel seals

UK-1/13 - strapping sealer for steel seals
  • strap width - 13 mm
  • sealing method - seal type FP
  • for heavy irregular objects using with suitable tensioner

UK-1/16 - steel strapping sealer for steel seals 16 mm

UK-1/16 - steel strapping sealer for steel seals 16 mm
  • strap width - 16 mm
  • sealing method - seal type FP
  • for heavy irregular objects
  • using with suitable tensioner

UK-1/19 - strapping sealer for steel seals

UK-1/19 - strapping sealer for steel seals
  • strap width - 19 mm
  • sealing method - seal type FP
  • for heavy irregular objects
  • using with suitable tensioner

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-5 - decoiler for ribbon steel straps

OP-5 - decoiler for ribbon steel straps
  • strap width 13-20 mm
  • spring brake of strap
  • inner diameter 260-310 mm
  • robust construction

OP-7 - decoiler for oscillated steel straps

OP-7 - decoiler for oscillated steel straps
  • strap width - 13 - 20 mm
  • spring brake of strap
  • for oscillated winding
  • robust construction

OP-21 - decoiler for ribbon steel straps

OP-21 - decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 610 mm
  • unsuitable for low quality straps

OP-26 decoiler for ribbon steel straps

OP-26 decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • unsuitable for low quality straps

OP-26E decoiler for ribbon steel straps

OP-26E decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • for low frequency jobs

OP-26W decoiler for ribbon steel straps

OP-26W decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 790 mm
  • unsuitable for low quality straps

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4485 N
  • roll weight approx. 17 kgs
  • inside diam. 280 mm

13 x 0,5 mm - steel strap (zinc coated, ribbon)

13 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4388 N
  • roll weight approx. 20 kgs
  • inside diam. 286 mm

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5520 N
  • roll weight approx. 20 kgs
  • inside diam. 280 mm

16 x 0,5 mm - steel strap (zinc coated, ribbon)

16 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5400 N
  • roll weight approx. 25 kgs
  • inside diam. 286 mm

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
  • width 16 mm, thickness 0,4 mm
  • strenght 5120 N
  • roll weight approx. 24 kgs
  • inside diam. 406 mm

16 x 0,4 mm - steel strap - stainless steel, 30 m

16 x 0,4 mm - steel strap - stainless steel, 30 m
  • width 16 mm, thickness 0,4 mm
  • strenght 3840 N
  • roll weight approx. 1,55 kg
  • roll lenght 30 m

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 19 mm, thickness 0,5 mm
  • strenght 7000 N
  • roll weight approx. 27 kgs
  • inside diam. 300 mm

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
  • width 19 mm, thickness 0,6 mm
  • strenght 9120 N
  • roll weight approx. 50 kgs
  • inside diam. 406 (±5) mm
