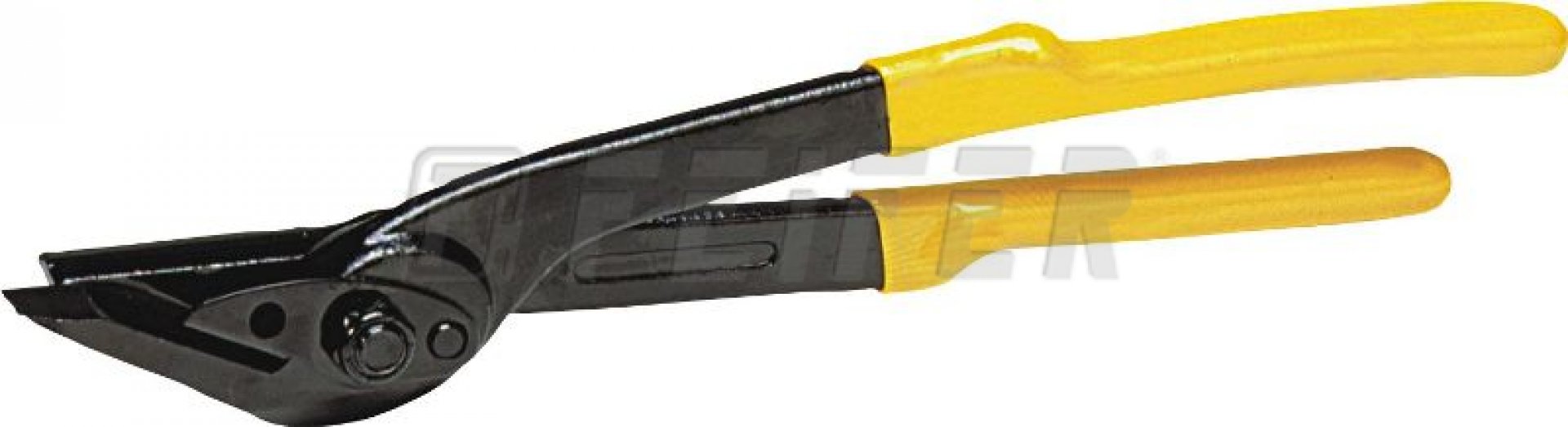

KL-1 - steel strap cutter
Robust steel strap cutter KL-1 for cutting of steel strap with max. dimension 32 x 1 mm. Holder for precise cut.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 001157 |
| strap - material |
steel |
| strap width | 32 mm |
| strap thickness | 1 mm |
| weight | 0,8 kg |
Standard modifications
KL-2 - heavy duty steel strap cutter
- for steel straps
- max. strap size 50 x 1,2 mm
- robust lever cutter
KL-3 - steel strap cutter
- for steel straps
- max. strap size 50 x 1,2 mm
- high carbon steel, drop forged
- reversing exchangeable blade
Recommended accessories
UK-1/10 - strapping sealer for steel seals
- strap width - 10 mm
- sealing method - seal type FP
- for heavy irregular objects
- using with suitable tensioner
UK-1/13 - strapping sealer for steel seals
- strap width - 13 mm
- sealing method - seal type FP
- for heavy irregular objects using with suitable tensioner
UK-1/16 - steel strapping sealer for steel seals 16 mm
- strap width - 16 mm
- sealing method - seal type FP
- for heavy irregular objects
- using with suitable tensioner
UK-1/19 - strapping sealer for steel seals
- strap width - 19 mm
- sealing method - seal type FP
- for heavy irregular objects
- using with suitable tensioner
UK-2/19 - strapping sealer for steel seals
- strap width - 19 mm
- sealing method - seal type F
- for heavy irregular objects
- using with suitable tensioner
UK-2/32 - strapping sealer for steel seals
- strap width - 32 mm
- sealing method - seal type F
- for heavy irregular objects
- using with suitable tensioner
OP-5 - decoiler for ribbon steel straps
- strap width 13-20 mm
- spring brake of strap
- inner diameter 260-310 mm
- robust construction
OP-7 - decoiler for oscillated steel straps
- strap width - 13 - 20 mm
- spring brake of strap
- for oscillated winding
- robust construction
OP-21 - decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 610 mm
- unsuitable for low quality straps
OP-24 - decoiler for ribbon steel straps
- strap width - 10 - 13 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26 decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26E decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- for low frequency jobs
OP-26W decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 790 mm
- unsuitable for low quality straps
OP-28 decoiler for ribbon steel straps
- strap width - 25 - 32 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- robust construction
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4485 N
- roll weight approx. 17 kgs
- inside diam. 300 mm
13 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4388 N
- roll weight approx. 20 kgs
- inside diam. 286 mm
16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5520 N
- roll weight approx. 20 kgs
- inside diam. 300 mm
16 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 16 mm, thickness 0,5 mm
- strength 5400 N
- roll weight approx. 25 kgs
- inside diam. 286 mm
16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
- width 16 mm, thickness 0,4 mm
- strenght 5120 N
- roll weight approx. 24 kgs
- inside diam. 406 mm
16 x 0,4 mm - steel strap - stainless steel, 30 m
- width 16 mm, thickness 0,4 mm
- strength 3840 N
- roll weight approx. 1,55 kg
- roll lenght 30 m
16 x 0,75 mm - steel strap - stainless steel, 30 m
- width 16 mm, thickness 0,75 mm
- strenght 7200 N
- roll weight approx. 2,95 kg
- roll lenght 30 m
19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 19 mm, thickness 0,5 mm
- strength 7000 N
- roll weight approx. 27 kgs
- inside diam. 300 mm
19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
- width 19 mm, thickness 0,6 mm
- strength 9120 N
- roll weight approx. 50 kgs
- inside diam. 406 (±5) mm
19 x 0,75 mm - steel strap, painted, PRIMA, oscillated winding, 2Q
- width 19 mm, thickness 0,8 mm
- strength 12160 N
- roll weight 50 kgs
- inside diam. 406 (±5) mm
32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon)
- width 32 mm, thickness 1,0 mm
- strength 22080 N
- roll weight approx. 41 kgs
- inside diam. 280 mm
