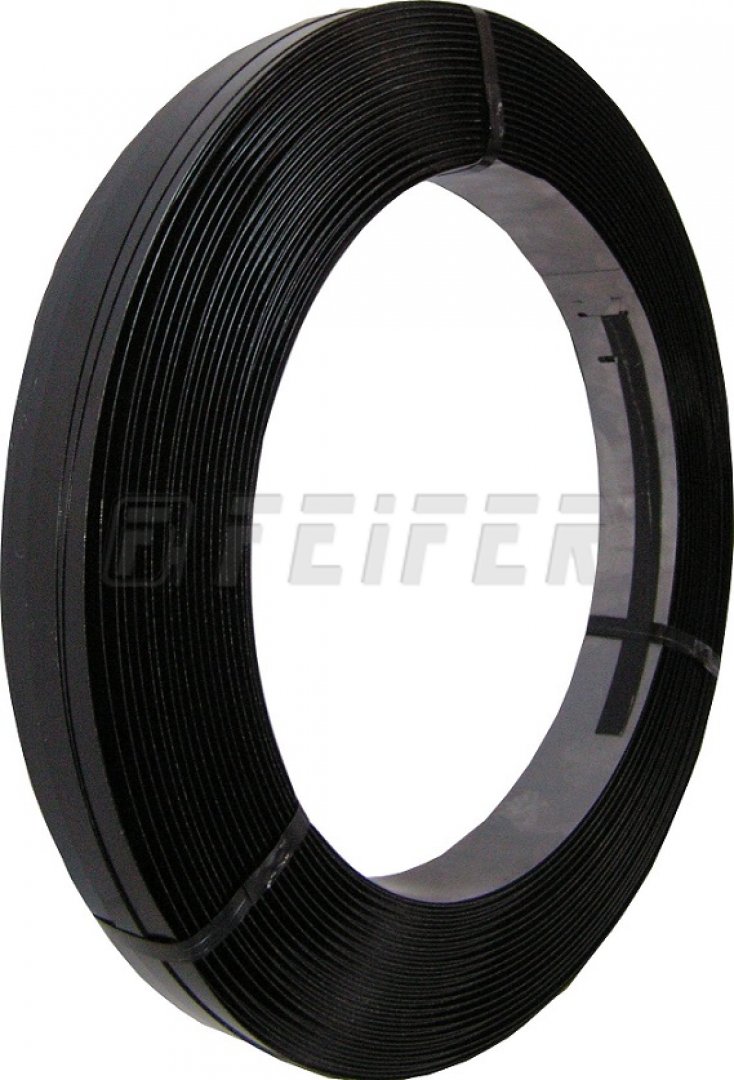

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
Painted steel straps PRIMA are suitable for automatic or manual strapping of heavy products. They are used especially in steel and wood processing industry but also in other industries, for example for palletizing. Painted steel straps show very stable characteristics with minimal tolerances and are primarily intended for strapping of products of medium height.
Utility characteristics of these straps due to high resistance to weathering and perfectly smooth surface highly exceeding characteristics of standard steel strap without surface treatment.
Width of oscillated roll is 66-68 mm, weight of roll is approx. 50 kgs, inner diam. is 406 ± 5 mm, outer diam. of a oscillated roll is max. 580 mm.
ATTENTION: The weight of roll is only indicative. We charge real weight on removal from storage.
|ordering code||700 009695|
|strap - material||
|strap width||19 mm|
|strap thickness||0,6 mm|
|break Strength||9120 N|
|outer diameter of roll||580 mm|
|inner diameter of roll||406 (+- 5) mm|
|coil width||66 - 68 mm|
|kg/m conversion||11,2 m/kg|
|elongation||min. 6 %|
|weight||cca 50 kg|
