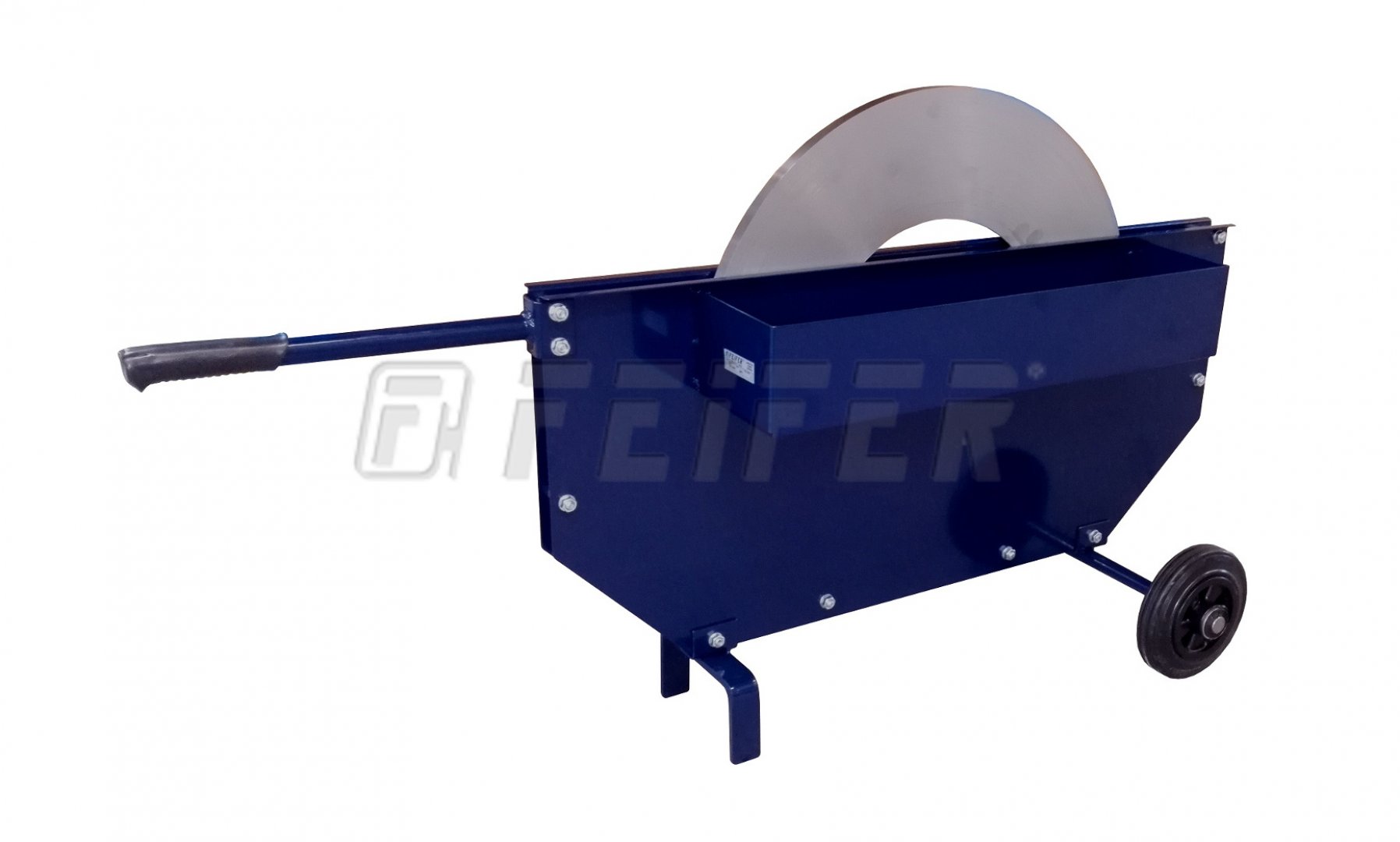

OP-26W decoiler for ribbon steel straps

Type OP-26W is intended for unwinding steel strap of the width of 13-20 mm. Inner diameter of coil is not limited, max. outer diameter of coil is 790 mm. This type is not suitable for steel strap of low quality (strength <690MPa).

Technical parameters
Modification
Accessories
Packing material
Inquiry

Technical parameters

ordering code 600 001709
strap - material steel
strap width 13 - 20 mm
outer diameter of roll 790 mm
brake no
weight 13,5 kg

Standard modifications

OP-26 decoiler for ribbon steel straps

OP-26 decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • unsuitable for low quality straps

OP-26E decoiler for ribbon steel straps

OP-26E decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • for low frequency jobs

Recommended accessories

BO-51 - sealless steel strapping tool

BO-51 -  sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • very popular type
  • attractive price
  • tensioning power - 4000 N

BO-6F - sealless steel strapping tool

BO-6F - sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • perfect for vertical strapping
  • robust tightening system
  • tensioning power - 5000 N

BO-7 SWING - sealless steel strapping tool

BO-7 SWING - sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • patented system of punching
  • robust tightening system
  • tensioning power - 5000 N

BO-7PN - pneumatic sealless steel strapping tool

BO-7PN - pneumatic sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • pneumatic tightening
  • patented system of punching

NP-11 - tensioner for steel straps

NP-11 - tensioner for steel straps
  • strap width 13 - 19 mm
  • used together with a sealer UK
  • for heavy irregular objects
  • max. strength of joint 5000 N

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

Binding and packaging materials

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4485 N
  • roll weight approx. 17 kgs
  • inside diam. 280 mm

13 x 0,5 mm - steel strap (zinc coated, ribbon)

13 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4388 N
  • roll weight approx. 20 kgs
  • inside diam. 286 mm

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5520 N
  • roll weight approx. 20 kgs
  • inside diam. 280 mm

16 x 0,5 mm - steel strap (zinc coated, ribbon)

16 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5400 N
  • roll weight approx. 25 kgs
  • inside diam. 286 mm

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
  • width 16 mm, thickness 0,4 mm
  • strenght 5120 N
  • roll weight approx. 24 kgs
  • inside diam. 406 mm

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 19 mm, thickness 0,5 mm
  • strenght 7000 N
  • roll weight approx. 27 kgs
  • inside diam. 300 mm
