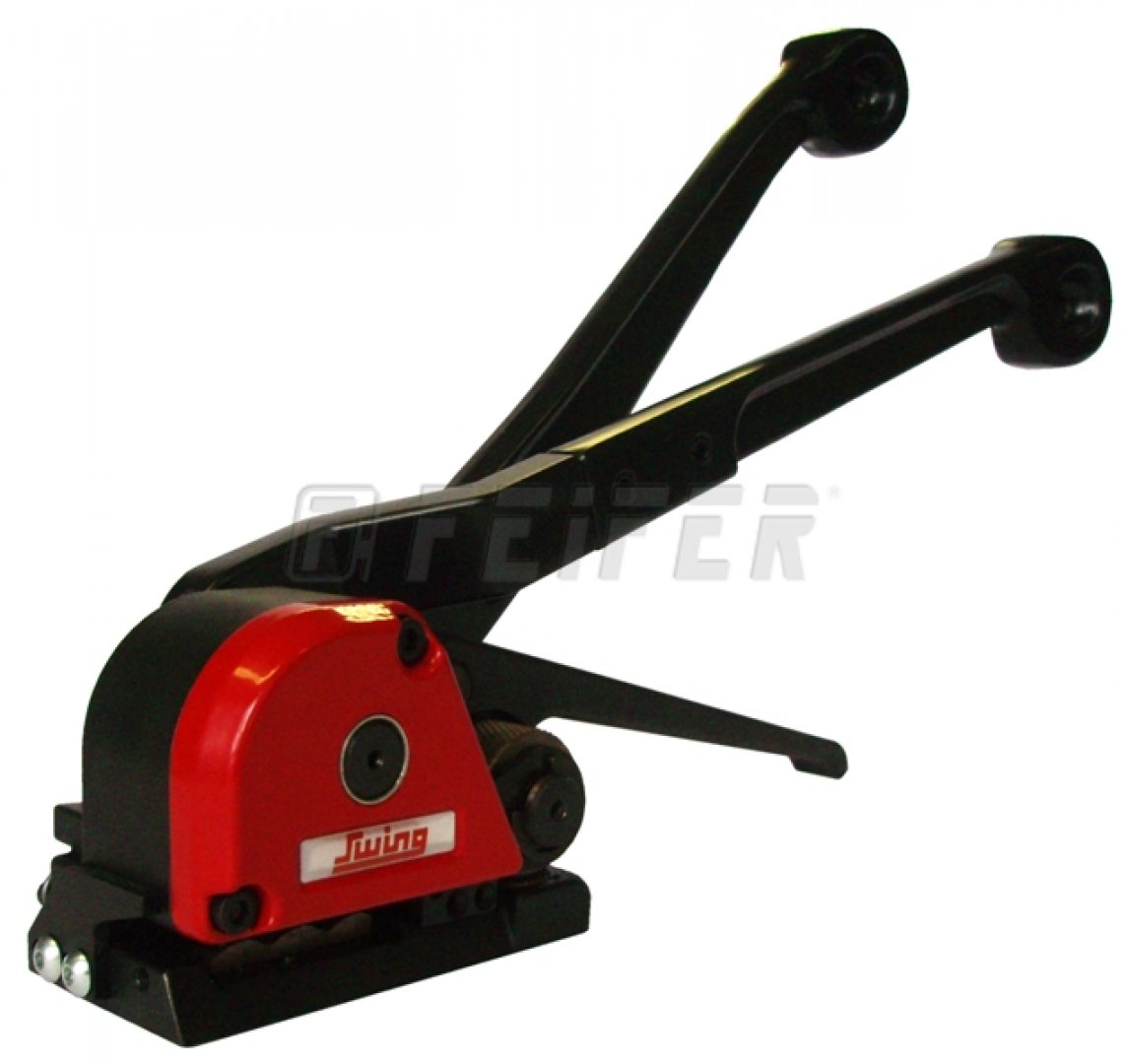

BO-7 SWING - sealless steel strapping tool

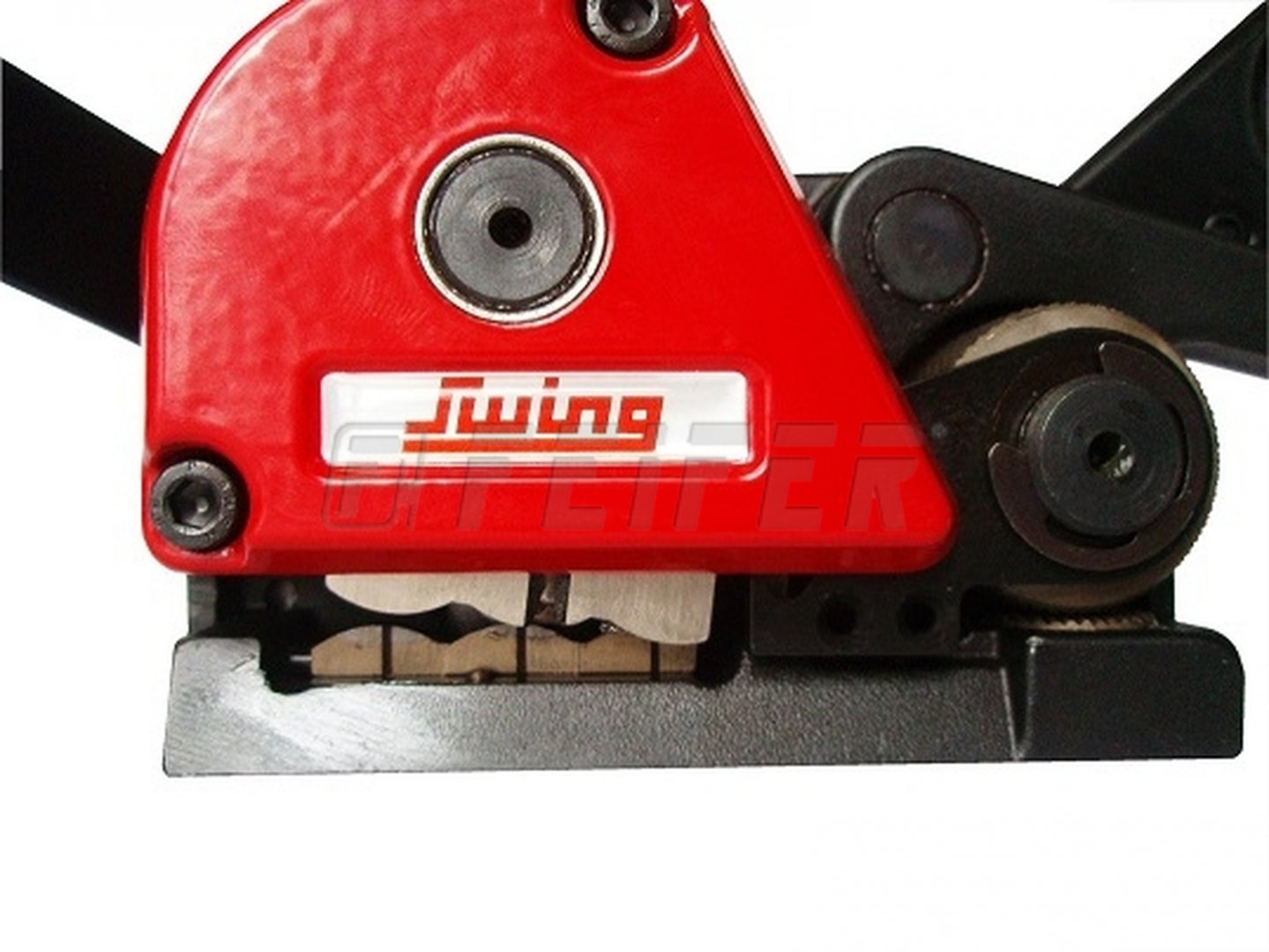

Strapping tool BO- 7 SWING is intended for strapping with steel strap of the width of 13 - 20 mm, the thickness of 0,4 - 0,8 mm. This strapping tool has a unique patented system of gradual strap punching SWING, which notably declines the effort of an operator. The joint is made by triple punching, cutting of the strap end is done at the same time as punching. This strapping tool is especially intended for strapping flat objects e.g. boxes, bricks, timber products, goods stacked on pallets etc.

The main features of the tool are:

  • advanced heavy duty metal construction
  • very small weight (only 3,8 kg)

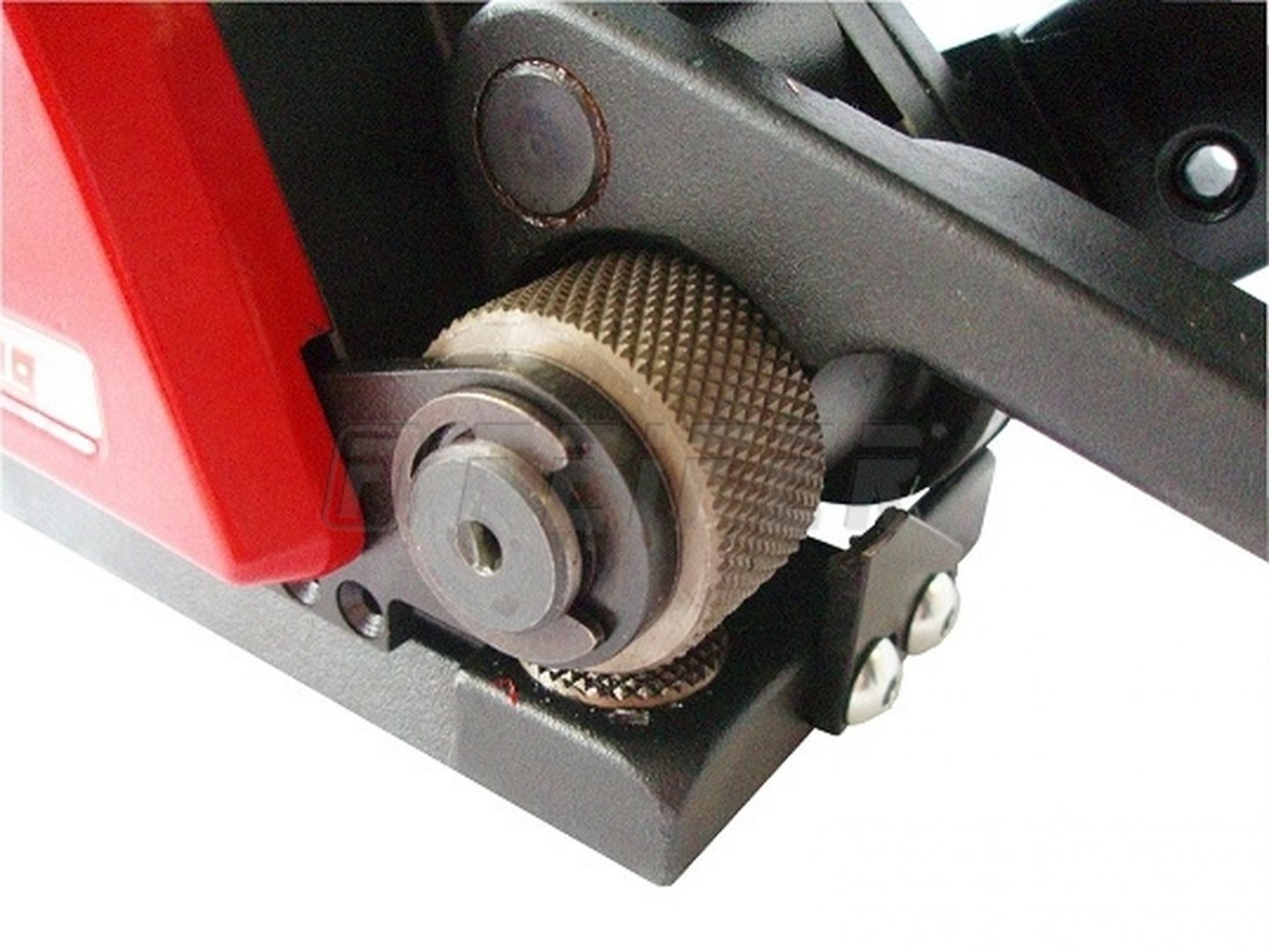

  • robust tightening system
  • excellent ergonomics
  • possibility of use with straps of strength up to 1050 MPa (valid for straps of thickness up to 0,63 mm)
Technical parameters
Modification
Accessories
Packing material
Spare part
Product videos
Inquiry

Technical parameters

ordering code 600 000294
strap - material steel
sealing method sealless
strap width 13 - 20 mm
strap thickness 0,4 - 0,8 mm
weight 3,7 kg
tightening power 5000 N

Standard modifications

BO-7PN - pneumatic sealless steel strapping tool

BO-7PN - pneumatic sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • pneumatic tightening
  • patented system of punching

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-5 - decoiler for ribbon steel straps

OP-5 - decoiler for ribbon steel straps
  • strap width 13-20 mm
  • spring brake of strap
  • inner diameter 260-310 mm
  • robust construction

OP-7 - decoiler for oscillated steel straps

OP-7 - decoiler for oscillated steel straps
  • strap width - 13 - 20 mm
  • spring brake of strap
  • for oscillated winding
  • robust construction

OP-26 decoiler for ribbon steel straps

OP-26 decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • unsuitable for low quality straps

OP-26E decoiler for ribbon steel straps

OP-26E decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • for low frequency jobs

OP-26W decoiler for ribbon steel straps

OP-26W decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 790 mm
  • unsuitable for low quality straps

NP-11 - tensioner for steel straps

NP-11 - tensioner for steel straps
  • strap width 13 - 19 mm
  • used together with a sealer UK
  • for heavy irregular objects
  • max. strength of joint 5000 N

OP-21 - decoiler for ribbon steel straps

OP-21 - decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 610 mm
  • unsuitable for low quality straps

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strength 4485 N
  • roll weight approx. 17 kgs
  • inside diam. 300 mm

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strength 5520 N
  • roll weight approx. 20 kgs
  • inside diam. 300 mm

13 x 0,5 mm - steel strap (zinc coated, ribbon)

13 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strength 4388 N
  • roll weight approx. 20 kgs
  • inside diam. 286 mm

16 x 0,5 mm - steel strap (zinc coated, ribbon)

16 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strength 5400 N
  • roll weight approx. 25 kgs
  • inside diam. 286 mm

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
  • width 16 mm, thickness 0,4 mm
  • strenght 5120 N
  • roll weight approx. 24 kgs
  • inside diam. 406 mm

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 19 mm, thickness 0,5 mm
  • strength 7000 N
  • roll weight approx. 27 kgs
  • inside diam. 300 mm

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
  • width 19 mm, thickness 0,6 mm
  • strength 9120 N
  • roll weight approx. 50 kgs
  • inside diam. 406 (±5) mm

19 x 0,75 mm - steel strap, painted, PRIMA, oscillated winding, 2Q

19 x 0,75 mm - steel strap, painted, PRIMA, oscillated winding, 2Q
  • width 19 mm, thickness 0,8 mm
  • strength 12160 N
  • roll weight 50 kgs
  • inside diam. 406 (±5) mm
