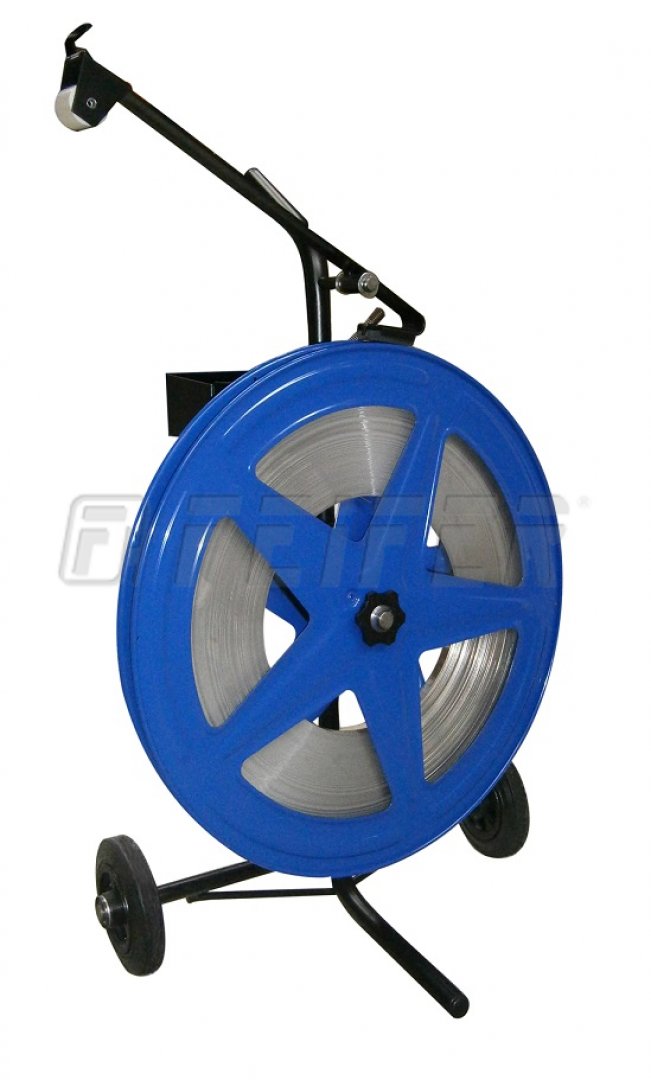

OP-5 - decoiler for ribbon steel straps

Type OP-5 is intended for unwinding steel strap of the width of 13-20 mm with coil of inner diameter of 260-310 mm. This type is equipped with a special extensible star for centering coil in decoiler, with spring brake of strap and with robust construction, which is suitable for high frequency jobs.

Technical parameters
Accessories
Packing material
Inquiry

Technical parameters

ordering code 600 000082
strap - material steel
strap width 13 - 20 mm
inner diameter of roll 260 - 310 mm
outer diameter of roll 600 mm
brake yes
weight 13,5 kg

Standard modifications

Recommended accessories

BO-51 - sealless steel strapping tool

BO-51 -  sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • very popular type
  • attractive price
  • tensioning power - 4000 N

BO-6F - sealless steel strapping tool

BO-6F - sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • perfect for vertical strapping
  • robust tightening system
  • tensioning power - 5000 N

BO-7 SWING - sealless steel strapping tool

BO-7 SWING - sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • patented system of punching
  • robust tightening system
  • tensioning power - 5000 N

BO-7PN - pneumatic sealless steel strapping tool

BO-7PN - pneumatic sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • pneumatic tightening
  • patented system of punching

Binding and packaging materials

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4485 N
  • roll weight approx. 17 kgs
  • inside diam. 280 mm

13 x 0,5 mm - steel strap (zinc coated, ribbon)

13 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4388 N
  • roll weight approx. 20 kgs
  • inside diam. 286 mm

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5520 N
  • roll weight approx. 20 kgs
  • inside diam. 280 mm

16 x 0,5 mm - steel strap (zinc coated, ribbon)

16 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5400 N
  • roll weight approx. 25 kgs
  • inside diam. 286 mm

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 19 mm, thickness 0,5 mm
  • strenght 7000 N
  • roll weight approx. 27 kgs
  • inside diam. 300 mm
