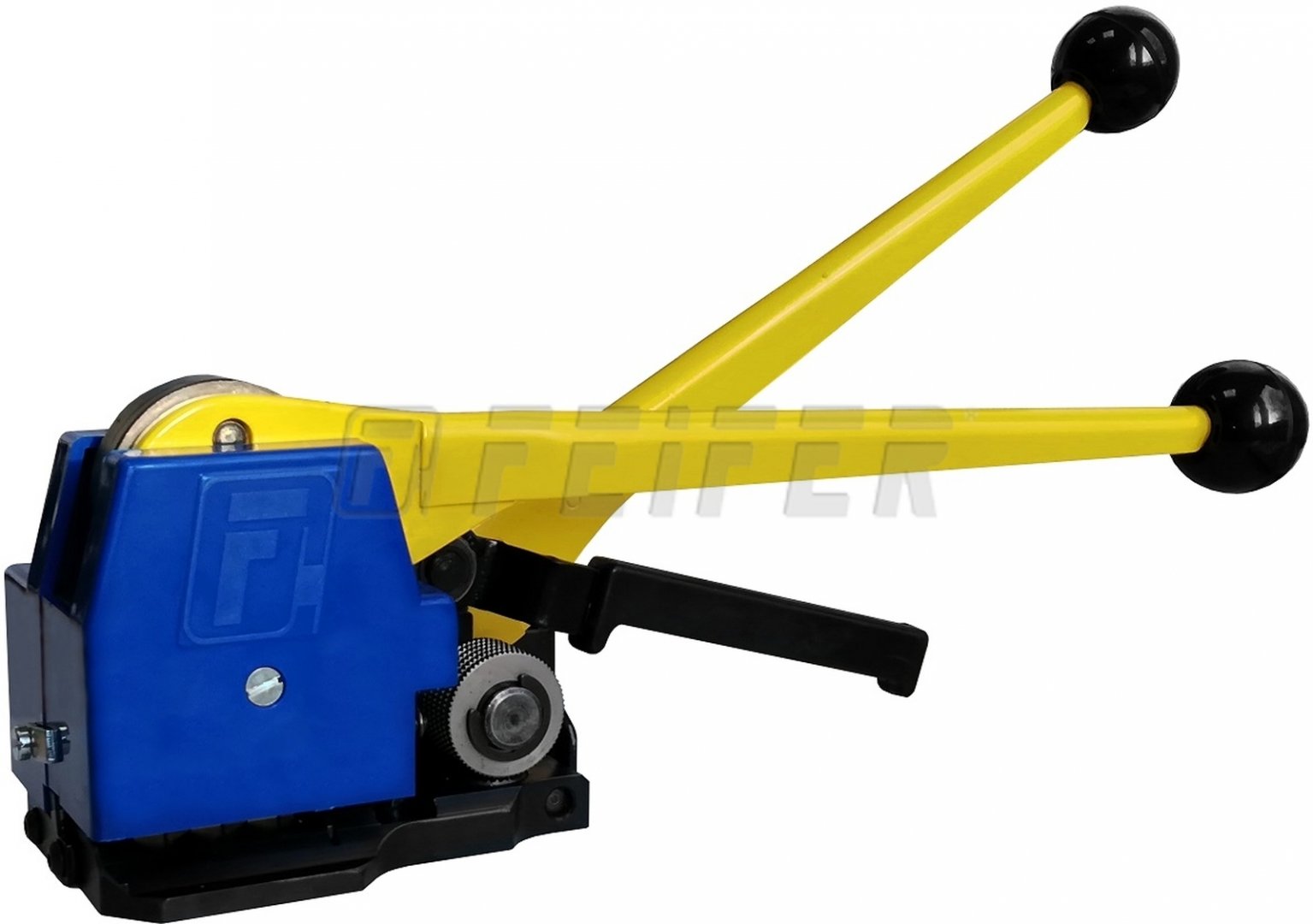

BO-51 - sealless steel strapping tool

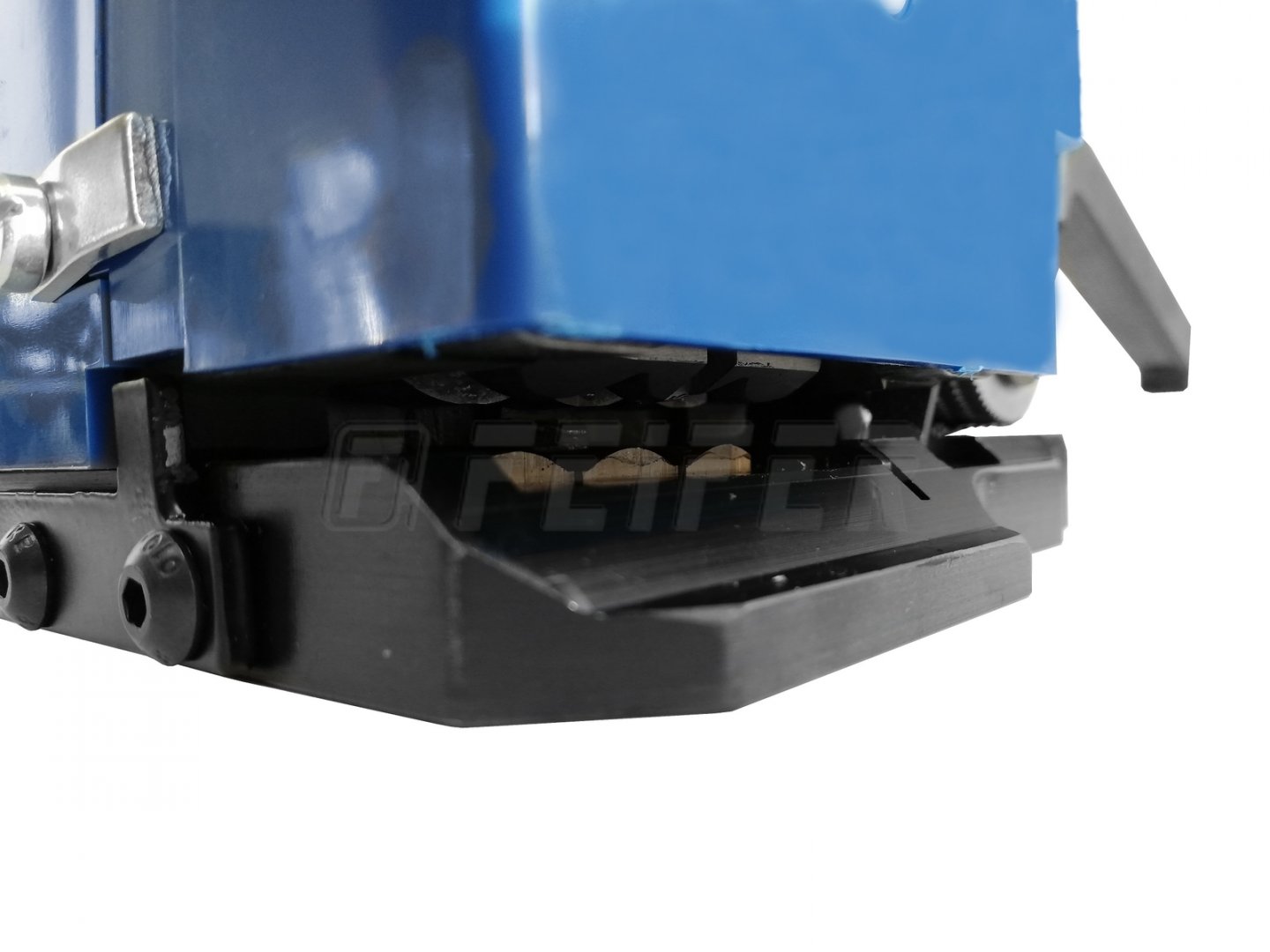

The strapping tool BO-51 is designed for work with steel strap without usage of steel seal. The joint is made by punching straps (strength of the joint is up to 8 000 N). The tool is adjustable for straps of the width of 13-20 mm and the thickness of 0,4-0,63 mm.
BO-51 is especially intended for strapping flat objects e.g. boxes, bricks, timber products, goods stacked on pallets, etc. .
This is a very popular model of hand strapping tool with very attractive price.
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
ordering code | 600 000024 |
strap - material |
steel |
sealing method | sealless |
strap width | 13 - 20 mm |
strap thickness | 0,4 - 0,63 mm |
weight | 4,25 kg |
tightening power | 4000 N |
Recommended accessories
KL-1 - steel strap cutter
![KL-1 - steel strap cutter KL-1 - steel strap cutter](/www/productImages/13085/13085_main.300x200.fit.q85.s1.jpg)
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-5 - decoiler for ribbon steel straps
![OP-5 - decoiler for ribbon steel straps OP-5 - decoiler for ribbon steel straps](/www/productImages/11864/11864_main.300x200.fit.q85.s1.jpg)
- strap width 13-20 mm
- spring brake of strap
- inner diameter 260-310 mm
- robust construction
OP-7 - decoiler for oscillated steel straps
![OP-7 - decoiler for oscillated steel straps OP-7 - decoiler for oscillated steel straps](/www/productImages/11870/11870_main.300x200.fit.q85.s1.jpg)
- strap width - 13 - 20 mm
- spring brake of strap
- for oscillated winding
- robust construction
OP-26 decoiler for ribbon steel straps
![OP-26 decoiler for ribbon steel straps OP-26 decoiler for ribbon steel straps](/www/productImages/11868/11868_main.300x200.fit.q85.s1.jpg)
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26E decoiler for ribbon steel straps
![OP-26E decoiler for ribbon steel straps OP-26E decoiler for ribbon steel straps](/www/productImages/32709/32709_main.300x200.fit.q85.s1.jpg)
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- for low frequency jobs
OP-26W decoiler for ribbon steel straps
![OP-26W decoiler for ribbon steel straps OP-26W decoiler for ribbon steel straps](/www/productImages/57572/57572_main.300x200.fit.q85.s1.jpg)
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 790 mm
- unsuitable for low quality straps
OP-8 - decoiler for PP, PET, oscillated steel straps
![OP-8 - decoiler for PP, PET, oscillated steel straps OP-8 - decoiler for PP, PET, oscillated steel straps](/www/productImages/77430/1_164137988777.300x200.fit.q85.s1.png)
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
![13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon) 13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)](/www/productImages/12779/12779_main.300x200.fit.q85.s1.jpg)
- width 13 mm, thickness 0,5 mm
- strength 4485 N
- roll weight approx. 17 kgs
- inside diam. 300 mm
16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
![16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon) 16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)](/www/productImages/12780/12780_main.300x200.fit.q85.s1.jpg)
- width 16 mm, thickness 0,5 mm
- strength 5520 N
- roll weight approx. 20 kgs
- inside diam. 300 mm
13 x 0,5 mm - steel strap (zinc coated, ribbon)
![13 x 0,5 mm - steel strap (zinc coated, ribbon) 13 x 0,5 mm - steel strap (zinc coated, ribbon)](/www/productImages/12792/12792_main.300x200.fit.q85.s1.jpg)
- width 13 mm, thickness 0,5 mm
- strength 4388 N
- roll weight approx. 20 kgs
- inside diam. 286 mm
16 x 0,5 mm - steel strap (zinc coated, ribbon)
![16 x 0,5 mm - steel strap (zinc coated, ribbon) 16 x 0,5 mm - steel strap (zinc coated, ribbon)](/www/productImages/12782/12782_main.300x200.fit.q85.s1.jpg)
- width 16 mm, thickness 0,5 mm
- strength 5400 N
- roll weight approx. 25 kgs
- inside diam. 286 mm
16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
![16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa) 16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)](/www/productImages/12801/12801_main.300x200.fit.q85.s1.jpg)
- width 16 mm, thickness 0,4 mm
- strenght 5120 N
- roll weight approx. 24 kgs
- inside diam. 406 mm
19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
![19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon) 19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)](/www/productImages/57694/57694_main.300x200.fit.q85.s1.jpg)
- width 19 mm, thickness 0,5 mm
- strength 7000 N
- roll weight approx. 27 kgs
- inside diam. 300 mm
19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
![19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding 19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding](/www/productImages/32114/32114_main.300x200.fit.q85.s1.jpg)
- width 19 mm, thickness 0,6 mm
- strength 9120 N
- roll weight approx. 50 kgs
- inside diam. 406 (±5) mm
