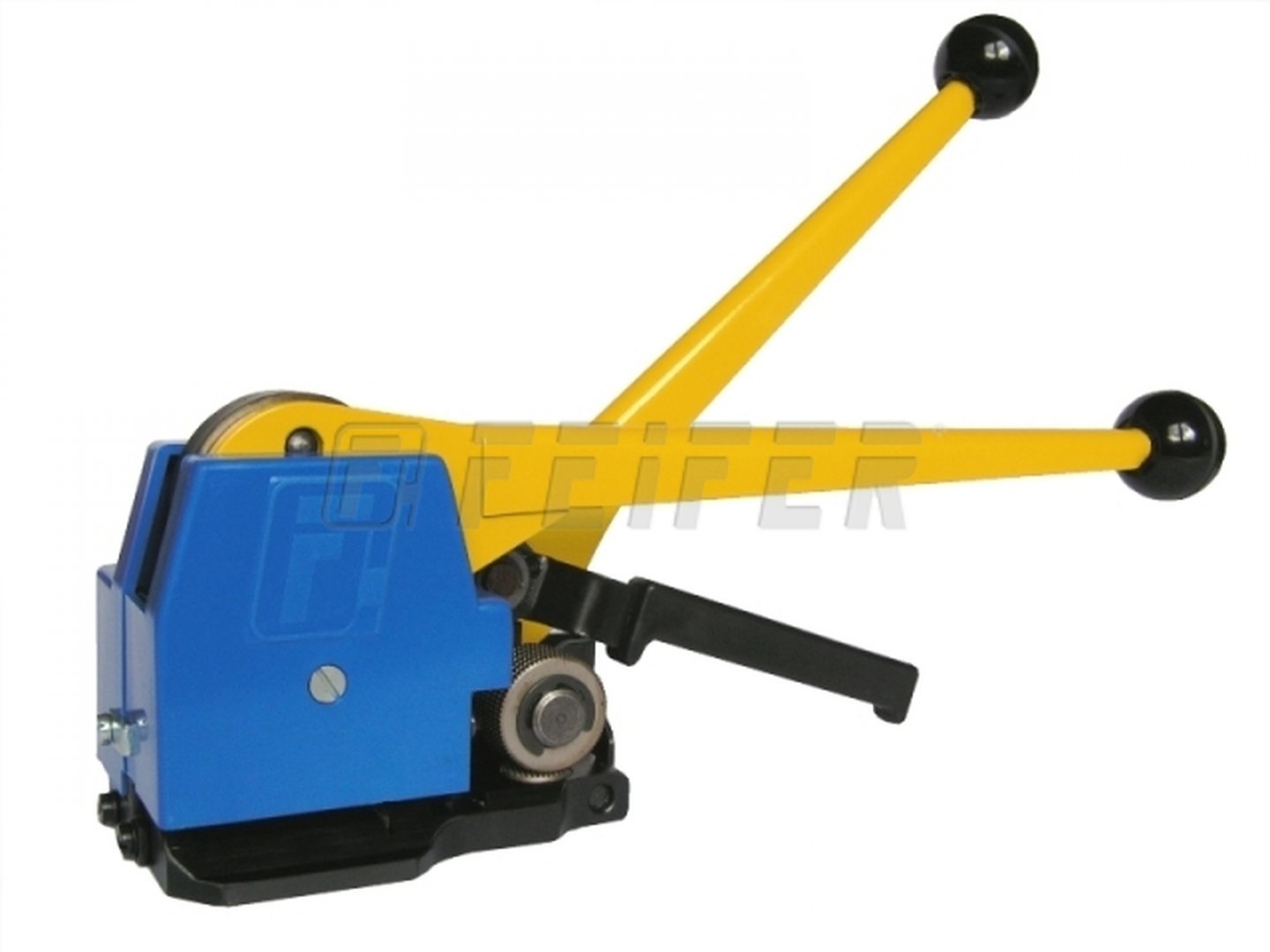

BO-51 sealless steel strapping tool (extra strong tightening wheel, metal cover)

The strapping tool BO-51 is designed for work with steel strap without usage of steel seal. The joint is made by punching straps (strength of the joint is up to 8 000 N). The tool is adjustable for straps of the width of 13-20 mm and the thickness of 0,4-0,63 mm.

BO-51 is especially intended for strapping flat objects e.g. boxes, bricks, timber products, goods stacked on pallets, etc. .

This model is equipped with metal cover and extra strong tightening wheel with cross tooth system.

Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry

Technical parameters

ordering code 600 000258
sealing method sealless
strap width 13 - 20 mm
strap thickness 0,4 - 0,63 mm
weight 4,25 kg
tightening power 4000 N

Standard modifications

BO-51 - sealless steel strapping tool

BO-51 -  sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • very popular type
  • attractive price
  • tensioning power - 4000 N

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-5 - decoiler for ribbon steel straps

OP-5 - decoiler for ribbon steel straps
  • strap width 13-20 mm
  • spring brake of strap
  • inner diameter 260-310 mm
  • robust construction

OP-7 - decoiler for oscillated steel straps

OP-7 - decoiler for oscillated steel straps
  • strap width - 13 - 20 mm
  • spring brake of strap
  • for oscillated winding
  • robust construction

OP-26 decoiler for ribbon steel straps

OP-26 decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • unsuitable for low quality straps

OP-26E decoiler for ribbon steel straps

OP-26E decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • for low frequency jobs

OP-26W decoiler for ribbon steel straps

OP-26W decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 790 mm
  • unsuitable for low quality straps

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4485 N
  • roll weight approx. 17 kgs
  • inside diam. 280 mm

13 x 0,5 mm - steel strap (zinc coated, ribbon)

13 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4388 N
  • roll weight approx. 20 kgs
  • inside diam. 286 mm

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5520 N
  • roll weight approx. 20 kgs
  • inside diam. 280 mm

16 x 0,5 mm - steel strap (zinc coated, ribbon)

16 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5400 N
  • roll weight approx. 25 kgs
  • inside diam. 286 mm

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
  • width 16 mm, thickness 0,4 mm
  • strenght 5120 N
  • roll weight approx. 24 kgs
  • inside diam. 406 mm

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 19 mm, thickness 0,5 mm
  • strenght 7000 N
  • roll weight approx. 27 kgs
  • inside diam. 300 mm

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
  • width 19 mm, thickness 0,6 mm
  • strenght 9120 N
  • roll weight approx. 50 kgs
  • inside diam. 406 (±5) mm
