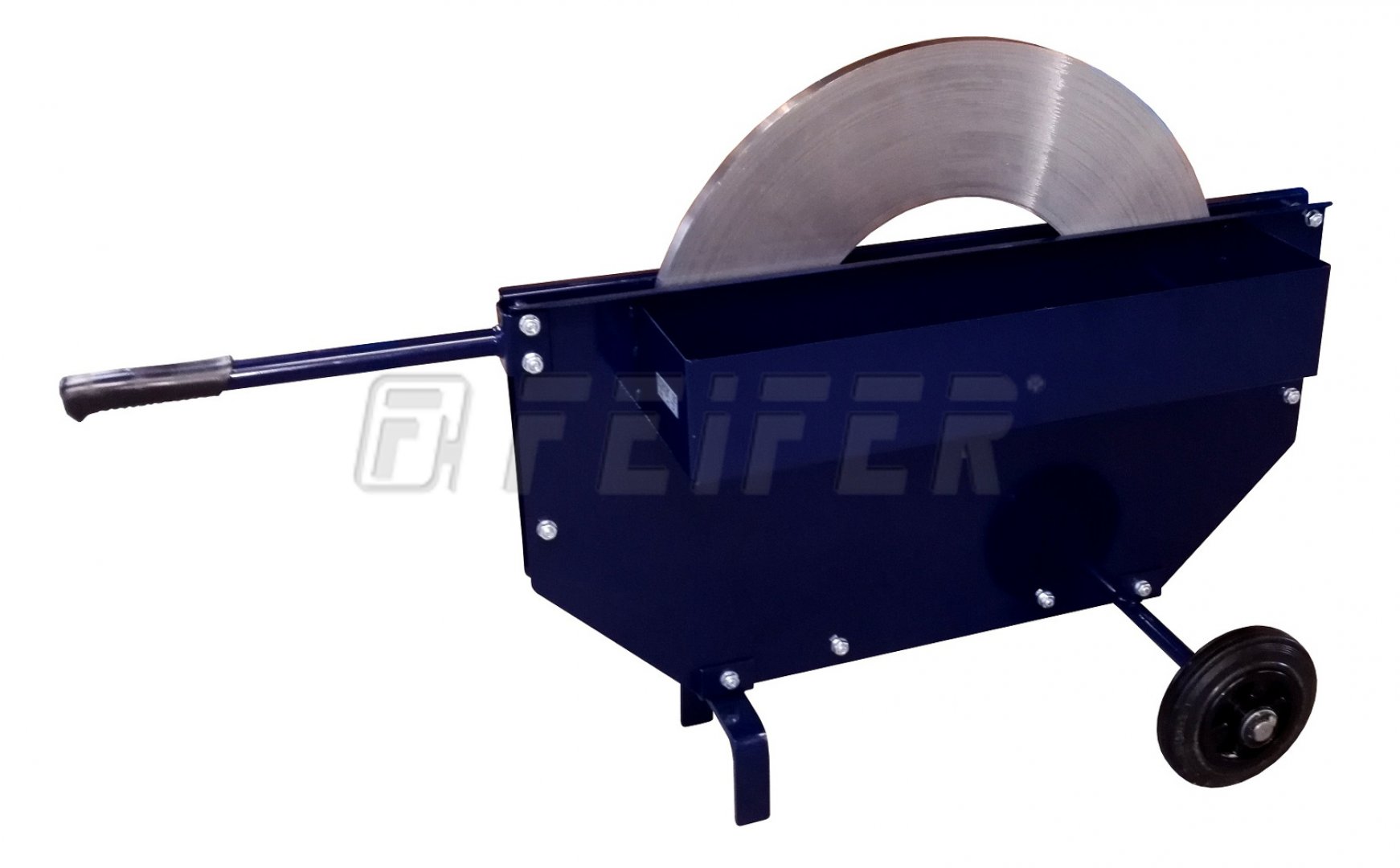

OP-24 - decoiler for ribbon steel straps
Type OP-24 is intended for unwinding steel strap of the width of 10-13 mm. Inner diameter of coil is not limited, max. outer diameter of coil is 700 mm. This type is not suitable for steel strap of low quality (strength <690MPa).
Technical parameters
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 600 000085 |
| strap - material |
steel |
| strap width | 10 - 13 mm |
| outer diameter of roll | 700 mm |
| inner diameter of roll | bez omezení |
| brake | no |
| weight | 12,5 kg |
Standard modifications
Recommended accessories
NP-11 - tensioner for steel straps
- strap width 13 - 19 mm
- used together with a sealer UK
- for heavy irregular objects
- max. strength of joint 5000 N
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
Binding and packaging materials
13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4485 N
- roll weight approx. 17 kgs
- inside diam. 300 mm
13 x 0,5 mm - steel strap (zinc coated, ribbon)
- width 13 mm, thickness 0,5 mm
- strength 4388 N
- roll weight approx. 20 kgs
- inside diam. 286 mm
