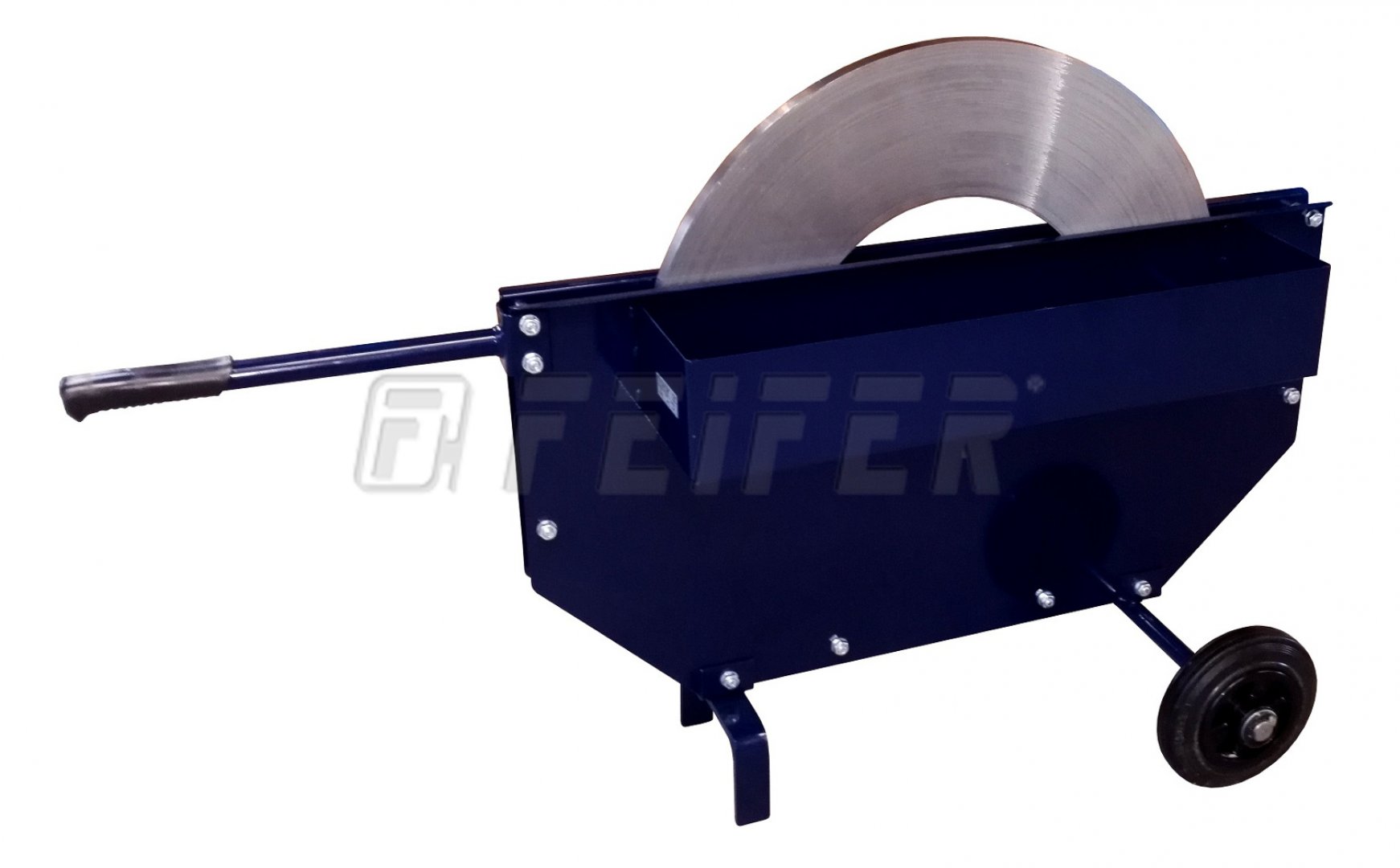

OP-28 decoiler for ribbon steel straps
Type OP-28 is intended for unwinding steel strap of the width of 25-32 mm. Inner diameter of coil is not limited, max. outer diameter of coil is 700 mm.
Technical parameters
Accessories
Packing material
Inquiry
Technical parameters
ordering code | 600 000087 |
strap - material |
steel |
strap width | 25 - 32 mm |
outer diameter of roll | 700 mm |
inner diameter of roll | bez omezení |
brake | no |
weight | 12,5 kg |
Standard modifications
Recommended accessories
NP-21 - tensioner for steel straps
![NP-21 - tensioner for steel straps NP-21 - tensioner for steel straps](/www/productImages/11353/2_157235365032.300x200.fit.q85.s1.jpg)
- strap width - 19 - 32 mm
- used together with a sealer UK
- for heavy irregular objects
- max. strength of joint 15000 N
UK-2/32 - strapping sealer for steel seals
![UK-2/32 - strapping sealer for steel seals UK-2/32 - strapping sealer for steel seals](/www/productImages/11944/11944_main.300x200.fit.q85.s1.jpg)
- strap width - 32 mm
- sealing method - seal type F
- for heavy irregular objects
- using with suitable tensioner
NP-21PN - pneumatic tensioner for steel straps
![NP-21PN - pneumatic tensioner for steel straps NP-21PN - pneumatic tensioner for steel straps](/www/productImages/40444/40444_main.300x200.fit.q85.s1.jpg)
- strap width - 19 - 32 mm
- using with sealer FZ or UK
- for heavy irregular objects
- tightening power up to 9000N
FPZL-32 - pneumatic tensioner for steel straps
![FPZL-32 - pneumatic tensioner for steel straps FPZL-32 - pneumatic tensioner for steel straps](/www/productImages/33709/33709_main.300x200.fit.q85.s1.jpg)
- strap width 19 - 32 mm
- using with sealer FZ or UK
- for heavy irregular objects
- tightening power up to 9800N
FZ-32 - steel strapping sealer
![FZ-32 - steel strapping sealer FZ-32 - steel strapping sealer](/www/productImages/23170/23170_main.300x200.fit.q85.s1.jpg)
- strap width 32 mm
- sealing method - seal type F
- for heavy irrelugar objects
- for using with suitable tensioner
FPZ-32 pneumatic strapping tool
![FPZ-32 pneumatic strapping tool FPZ-32 pneumatic strapping tool](/www/productImages/54648/54648_main.300x200.fit.q85.s1.jpg)
- strap width - 32 mm
- sealing method - seal type F
- double notching of the seal
- max. strength of joint 15000N
FP-25S pneumatic strapping tool
![FP-25S pneumatic strapping tool FP-25S pneumatic strapping tool](/www/productImages/13045/13045_main.300x200.fit.q85.s1.jpg)
- strap width - 25 mm
- sealing method - seal type F
- double notching of the seal
- max. strength of joint 12000N
FP-32S pneumatic strapping tool
![FP-32S pneumatic strapping tool FP-32S pneumatic strapping tool](/www/productImages/13037/13037_main.300x200.fit.q85.s1.jpg)
- strap width - 32 mm
- sealing method - seal type F
- double notching of the seal
- max. strength of joint 15000N
Binding and packaging materials
32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon)
![32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon) 32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon)](/www/productImages/12784/12784_main.300x200.fit.q85.s1.jpg)
- width 32 mm, thickness 1,0 mm
- strength 22080 N
- roll weight approx. 41 kgs
- inside diam. 280 mm
