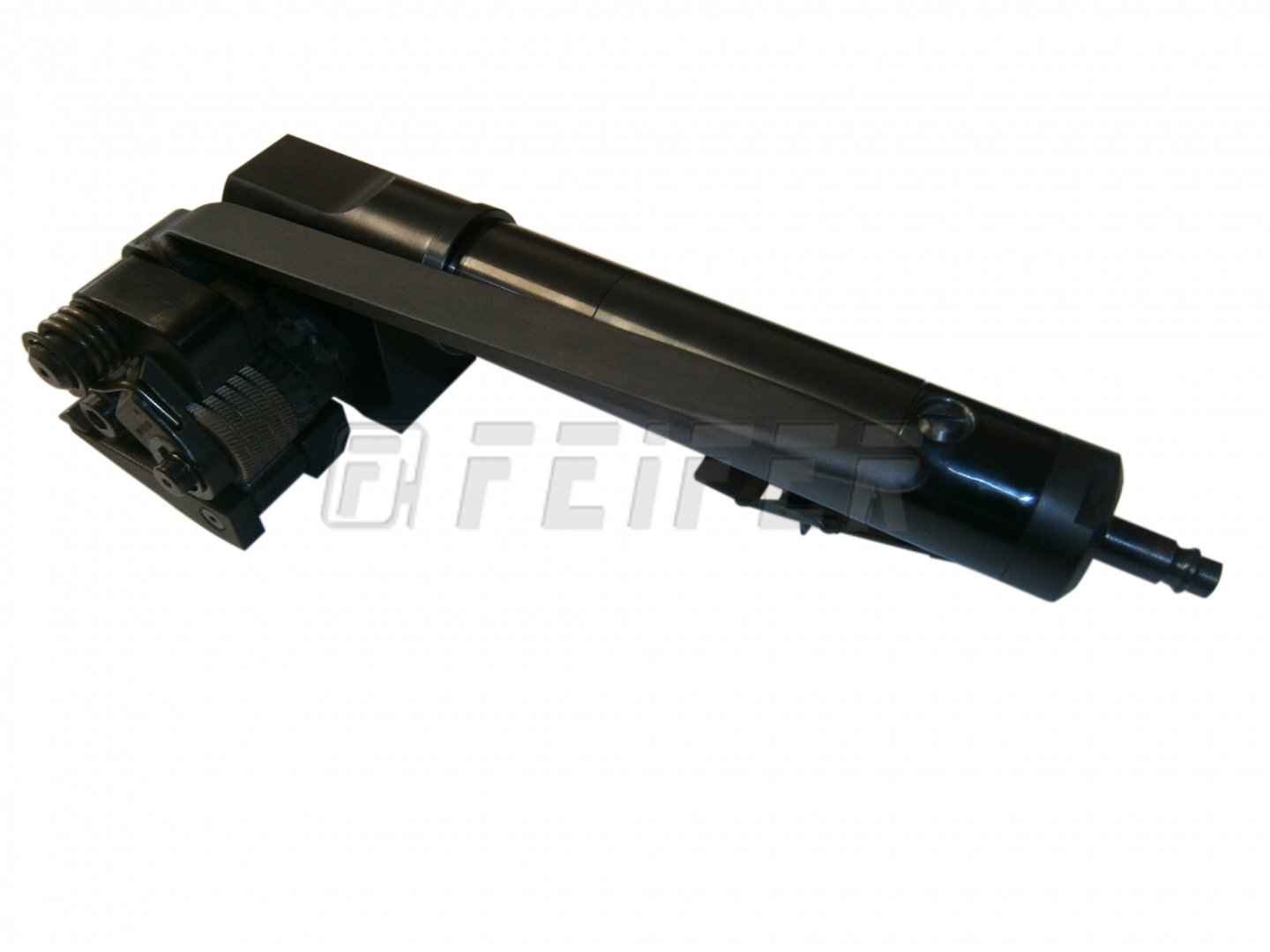

NP-21PN - pneumatic tensioner for steel straps
This pneumatic tensioner NP-21PN is intended for strapping heavy round or irregularly shaped objects. It is suitable for places, where it is not possible to use balancer for hanging the strapping tool. It can be used only together with a suitable sealer (e.g. type FZ). Steel strap of the width of 19, 25 and 32 mm (according to modification) and seal type F are used for strapping. It is indended for medium or high frequency jobs.
- suitable for vertical strapping, resp. in places where is not possible to use the combined hand strapping tool suspended on the balancer
- hight tightening power
- the joint is made by buckle notching - single or double notching with sealers FZ, UK-2/19 or UK-2/32
Operation: The operator passes the strap through the buckle, then around the packaged item and again through the buckle. The end of the strap from the decoiler is inserted into the tensioner NP-21PN, by pressing of the button the motor tightens the strap and then uses other tools (manual or pneumatic closing sealers) the buckle is once or twice notched. Reciprocating motion with the tensioner is the excess strap broken off.
|ordering code||600 000855|
|strap - material||
|strap width||19 - 32 mm|
|strap thickness||0,8 - 1,2 mm|
|compressed air||5 - 7 bar|
|air consumption/cycle||9 l/sec.|
|tightening power||9000 N|
