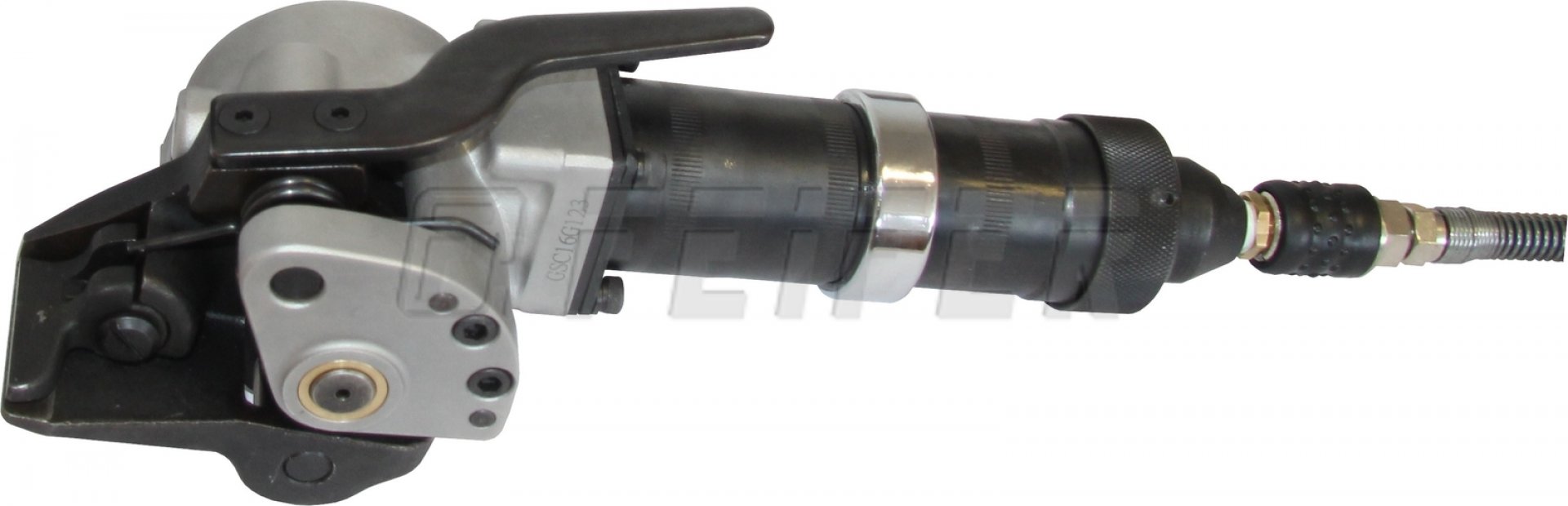

FPZL-32 - pneumatic tensioner for steel straps

This pneumatic tensioner FPZL-32 is intended for strapping heavy round or irregularly shaped objects. It is suitable for places, where it is not possible to use balancer for hanging the strapping tool. It can be used only together with a suitable sealer (e.g. type FZ). Steel strap of the width of 32 mm (according to modification) and seal type F are used for strapping. It is indended for medium or high frequency jobs.



  • suitable for vertical strapping, resp. in places where is not possible to use the combined hand strapping tool suspended on the balancer
  • hight tightening power
  • the joint is made by buckle notching - single or double notching with sealers FZ, UK-2/19 or UK-2/32



Operation: The operator passes the strap through the buckle, then around the packaged item and again through the buckle. The end of the strap from the decoiler is inserted into the tensioner FPZL-32, by pressing of the button the motor tightens the strap and then uses other tools (manual or pneumatic closing sealers) the buckle is once or twice notched. Reciprocating motion with the tensioner is the excess strap broken off.

Technical parameters
Modification
Accessories
Packing material
Product videos
Inquiry

Technical parameters

ordering code 700 010080
strap - material steel
strap width 19 - 32 mm
strap thickness 0,8 - 1,2 mm
weight 4,8 kg
compressed air 6 - 8 bar
air consumption/cycle 9 l/sec.
tightening method pneumatic
tightening power 9000 N

Standard modifications

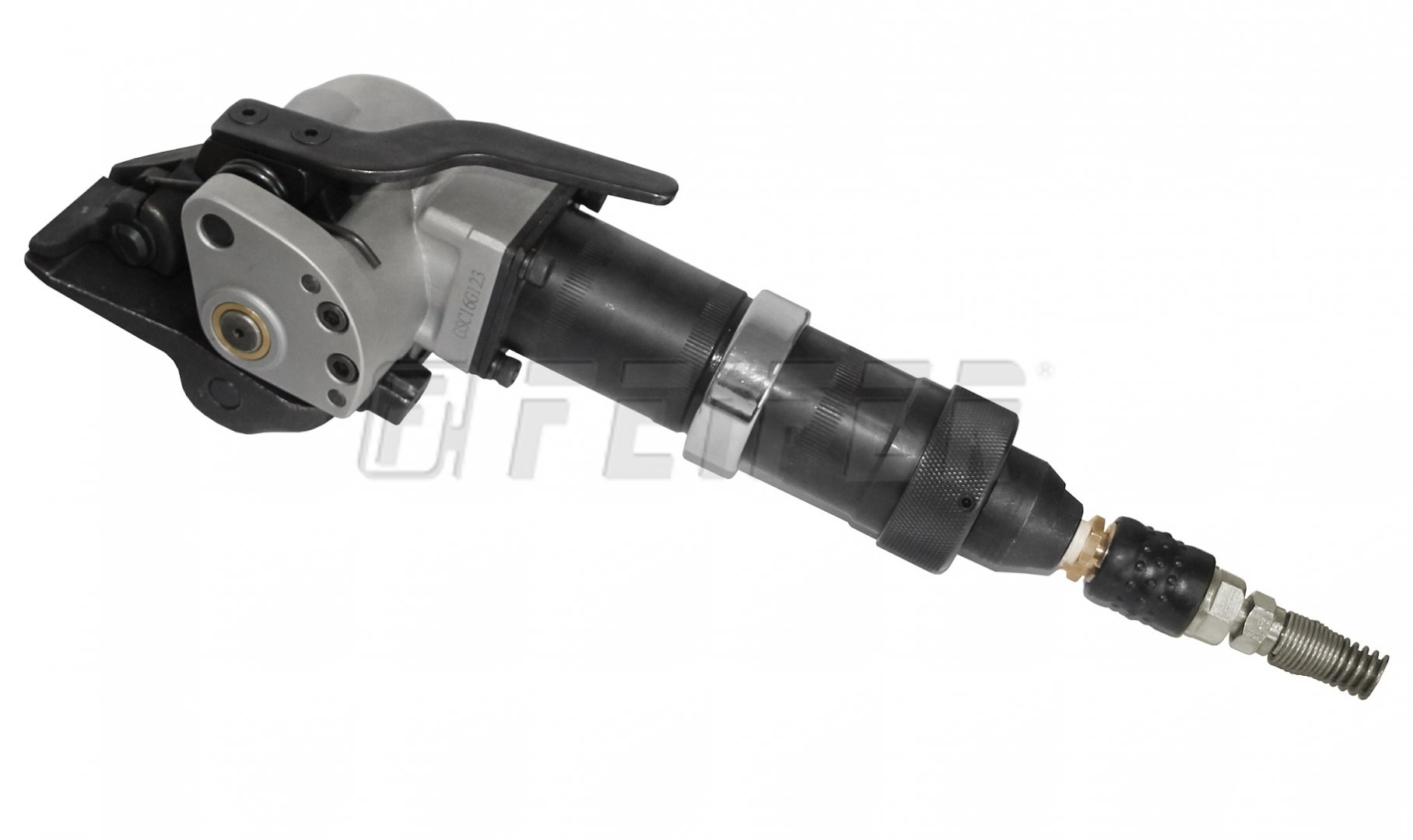

NP-21PN - pneumatic tensioner for steel straps

NP-21PN - pneumatic tensioner for steel straps
  • strap width - 19 - 32 mm
  • using with sealer FZ or UK
  • for heavy irregular objects
  • tightening power up to 9000N

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

KL-2 - heavy duty steel strap cutter

KL-2 - heavy duty steel strap cutter
  • for steel straps
  • max. strap size 50 x 1,2 mm
  • robust lever cutter

FZ-32 - steel strapping sealer

FZ-32 - steel strapping sealer
  • strap width 32 mm
  • sealing method - seal type F
  • for heavy irrelugar objects
  • for using with suitable tensioner

UK-2/19 - strapping sealer for steel seals

UK-2/19 - strapping sealer for steel seals
  • strap width - 19 mm
  • sealing method - seal type F
  • for heavy irregular objects
  • using with suitable tensioner

UK-2/32 - strapping sealer for steel seals

UK-2/32 - strapping sealer for steel seals
  • strap width - 32 mm
  • sealing method - seal type F
  • for heavy irregular objects
  • using with suitable tensioner

OP-5 - decoiler for ribbon steel straps

OP-5 - decoiler for ribbon steel straps
  • strap width 13-20 mm
  • spring brake of strap
  • inner diameter 260-310 mm
  • robust construction

OP-7 - decoiler for oscillated steel straps

OP-7 - decoiler for oscillated steel straps
  • strap width - 13 - 20 mm
  • spring brake of strap
  • for oscillated winding
  • robust construction

OP-21 - decoiler for ribbon steel straps

OP-21 - decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 610 mm
  • unsuitable for low quality straps

OP-26 decoiler for ribbon steel straps

OP-26 decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • unsuitable for low quality straps

OP-26E decoiler for ribbon steel straps

OP-26E decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • for low frequency jobs

OP-26W decoiler for ribbon steel straps

OP-26W decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 790 mm
  • unsuitable for low quality straps

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 19 mm, thickness 0,5 mm
  • strenght 7000 N
  • roll weight approx. 27 kgs
  • inside diam. 300 mm

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
  • width 19 mm, thickness 0,6 mm
  • strenght 9120 N
  • roll weight approx. 50 kgs
  • inside diam. 406 (±5) mm
Sale

19 x 0,75 mm - steel strap, painted, PRIMA, oscillated winding, 2Q

19 x 0,75 mm - steel strap, painted, PRIMA, oscillated winding, 2Q
  • width 19 mm, thickness 0,8 mm
  • strenght 12160 N
  • roll weight 50 kgs
  • inside diam. 406 (±5) mm

32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon)

32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon)
  • width 32 mm, thickness 1,0 mm
  • strenght 22080 N
  • roll weight approx. 41 kgs
  • inside diam. 280 mm
