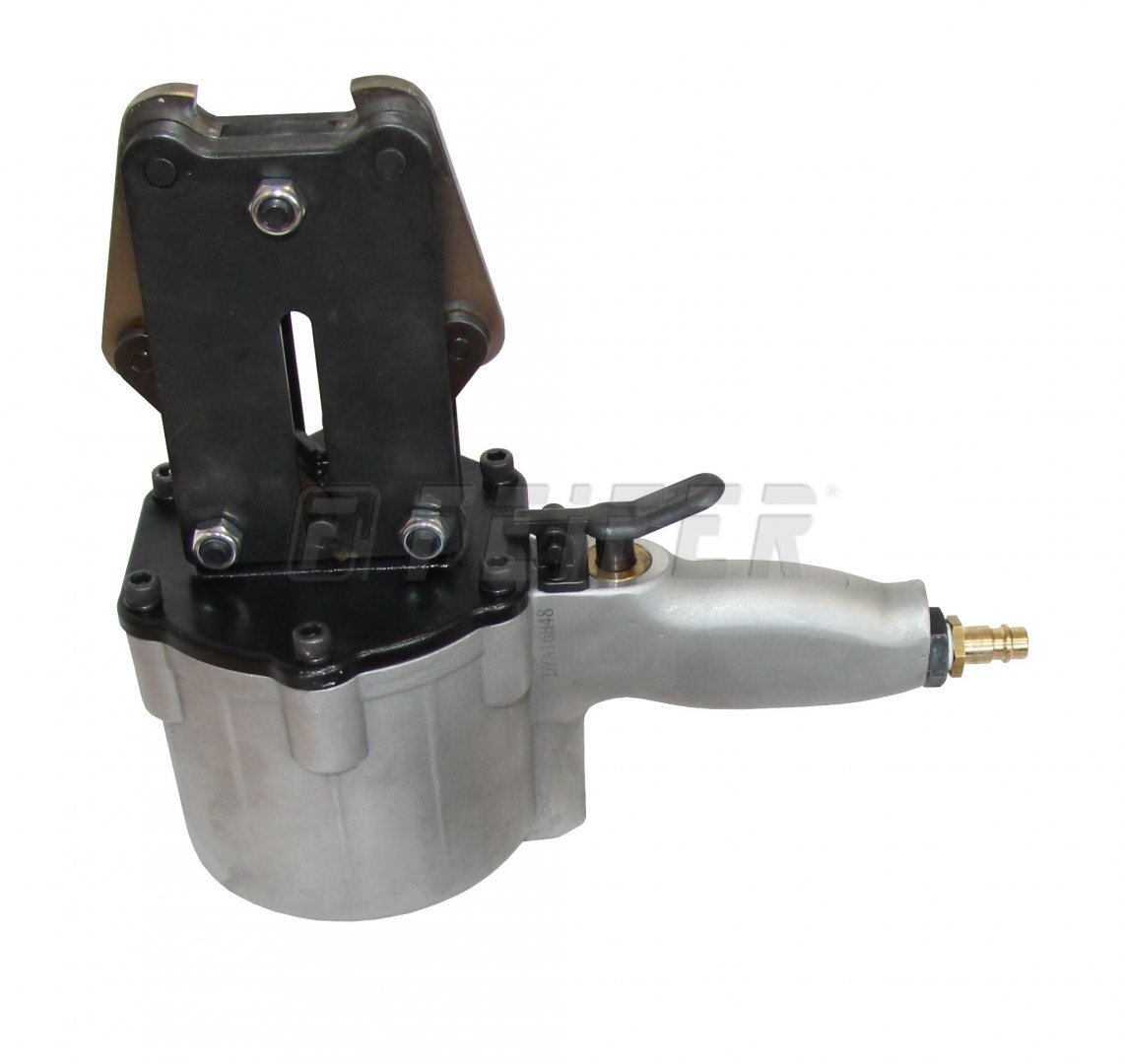

FZ-32 - steel strapping sealer

This sealer FZ-32 is intended for strapping of heavy, round or irregularly shaped objects. The sealer can be used only together with a suitable tensioner (e.g. type NP-21PN), with steel strap of 32 mm and seal type F.

Technical parameters
Accessories
Packing material
Product videos
Inquiry

Technical parameters

ordering code 700 008607
sealing method seal type F
strap - material steel
strap width 32 mm
strap thickness 0,8 - 1,2 mm
weight 4 kg
compressed air 6 - 8 bar
air consumption/cycle 3 l/sec.

Standard modifications

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

KL-2 - heavy duty steel strap cutter

KL-2 - heavy duty steel strap cutter
  • for steel straps
  • max. strap size 50 x 1,2 mm
  • robust lever cutter

NP-21PN - pneumatic tensioner for steel straps

NP-21PN - pneumatic tensioner for steel straps
  • strap width - 19 - 32 mm
  • using with sealer FZ or UK
  • for heavy irregular objects
  • tightening power up to 9000N

FPZL-32 - pneumatic tensioner for steel straps

FPZL-32 - pneumatic tensioner for steel straps
  • strap width 19 - 32 mm
  • using with sealer FZ or UK
  • for heavy irregular objects
  • tightening power up to 9800N

OP-28 decoiler for ribbon steel straps

OP-28 decoiler for ribbon steel straps
  • strap width - 25 - 32 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • robust construction

Binding and packaging materials

32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon)

32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon)
  • width 32 mm, thickness 1,0 mm
  • strenght 22080 N
  • roll weight approx. 41 kgs
  • inside diam. 280 mm

Steel seals F-32 (32 mm, 207500)

Steel seals F-32 (32 mm, 207500)
  • seal width - 32 mm
  • for steel strap
  • packaging - 300 pcs
