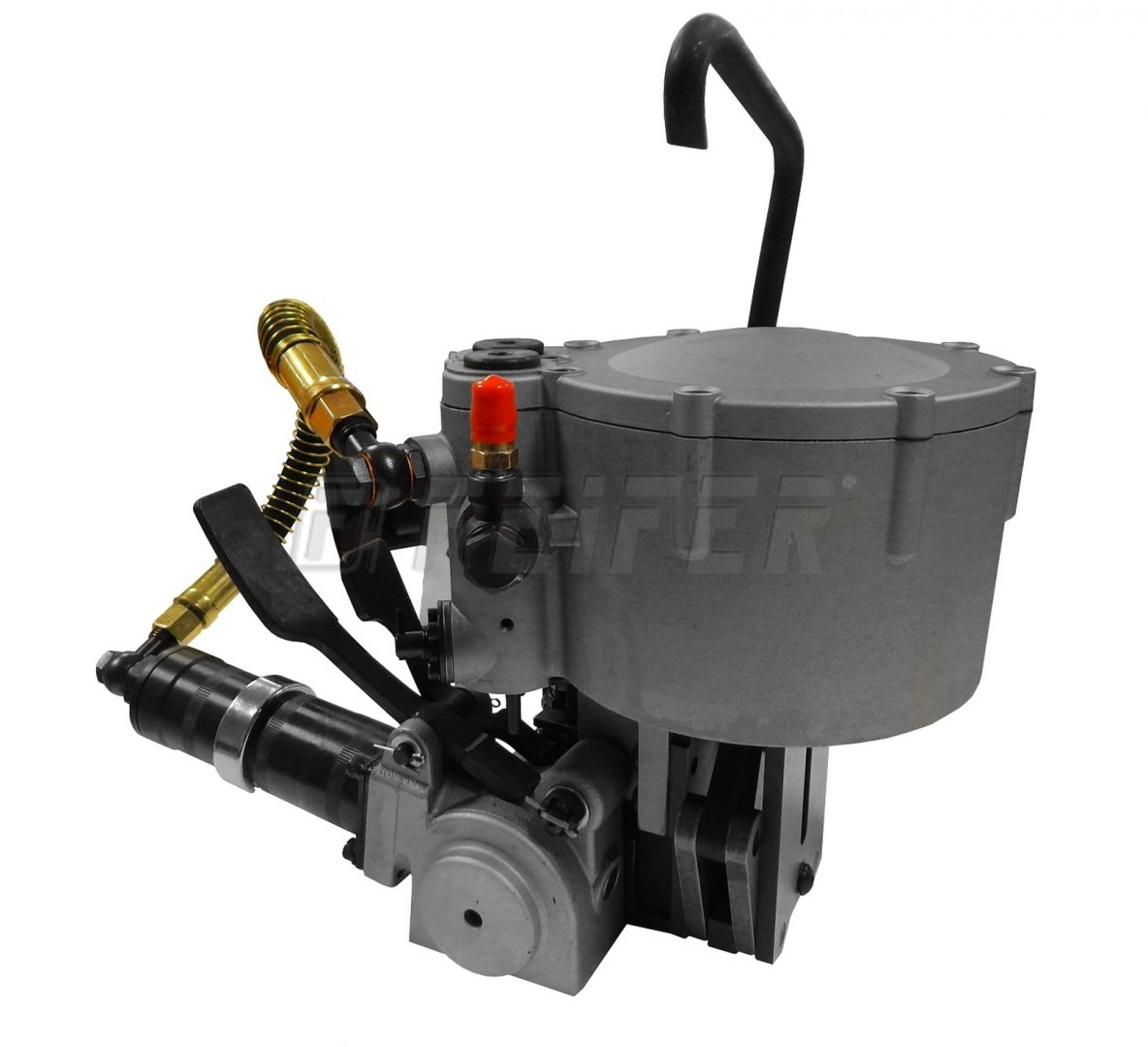

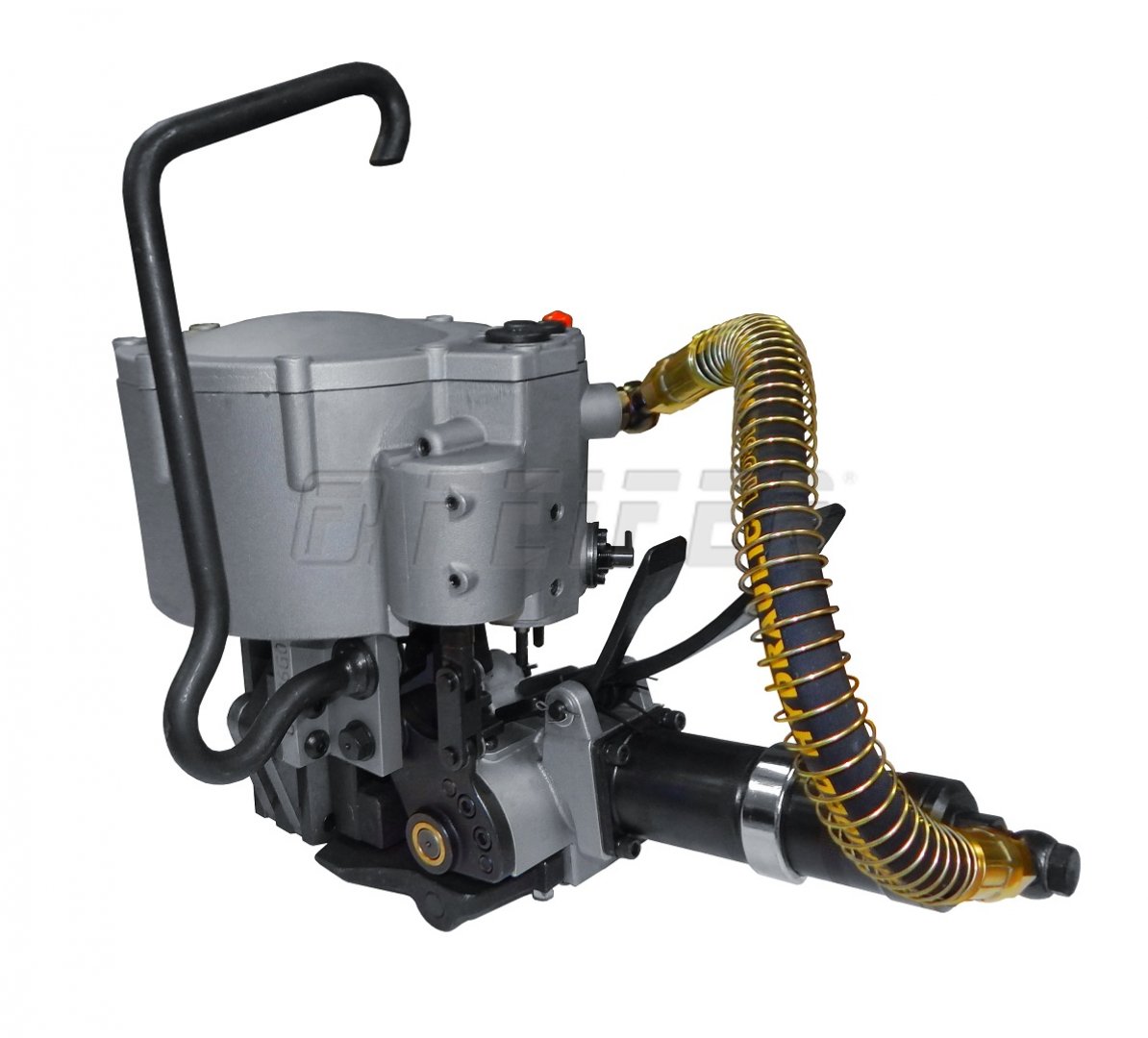

FPZ-32 pneumatic strapping tool

This pneumatic strapping tool FPZ-32 is designed for strapping round or irregularly shaped objects with steel strap. The joint is made by double notching the seal. The strapping tool works with strap and steel seal of the widht of 32 mm. Tightening power of this strapping tool is up to 9 800 N and strength of the joint reaches up to 15 000 N. The tool is equipped with pneumatic opening and closing of the sealing slot.

Technical parameters
Modification
Accessories
Packing material
Inquiry

Technical parameters

ordering code 700 022126
sealing method seal type F
strap - material steel
strap width 32 mm
strap thickness 0,8 - 1,2 mm
weight 15 kg
dimension (l x w x h) 420 x 260 x 190 mm
compressed air 6-7 bar
air consumption/cycle 9 l/sec.
tightening power 9800 N

Standard modifications

FPZ-16 - pneumatic sealless steel strapping tool

FPZ-16 - pneumatic sealless steel strapping tool
  • strap width - 16 mm
  • sealing method - seal type FP
  • one notching of the seal
  • for irregular or round objects

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

KL-2 - heavy duty steel strap cutter

KL-2 - heavy duty steel strap cutter
  • for steel straps
  • max. strap size 50 x 1,2 mm
  • robust lever cutter

OP-28 decoiler for ribbon steel straps

OP-28 decoiler for ribbon steel straps
  • strap width - 25 - 32 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • robust construction

Binding and packaging materials

32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon)

32 x 1,0 mm - steel strap (blank, metallic lustre, ribbon)
  • width 32 mm, thickness 1,0 mm
  • strenght 22080 N
  • roll weight approx. 41 kgs
  • inside diam. 280 mm

Steel seals F-32 (32 mm, 207500)

Steel seals F-32 (32 mm, 207500)
  • seal width - 32 mm
  • for steel strap
  • packaging - 300 pcs
