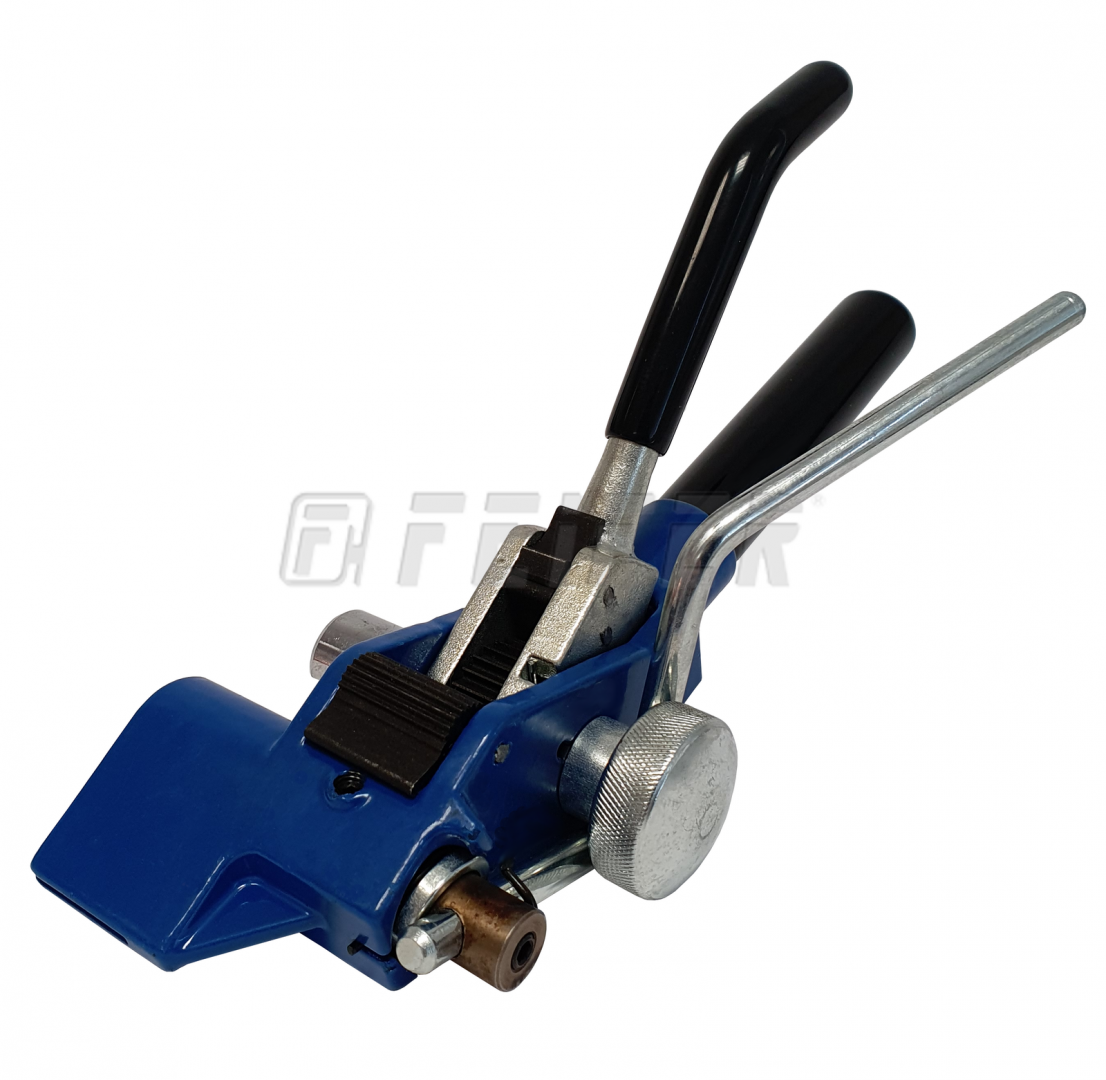

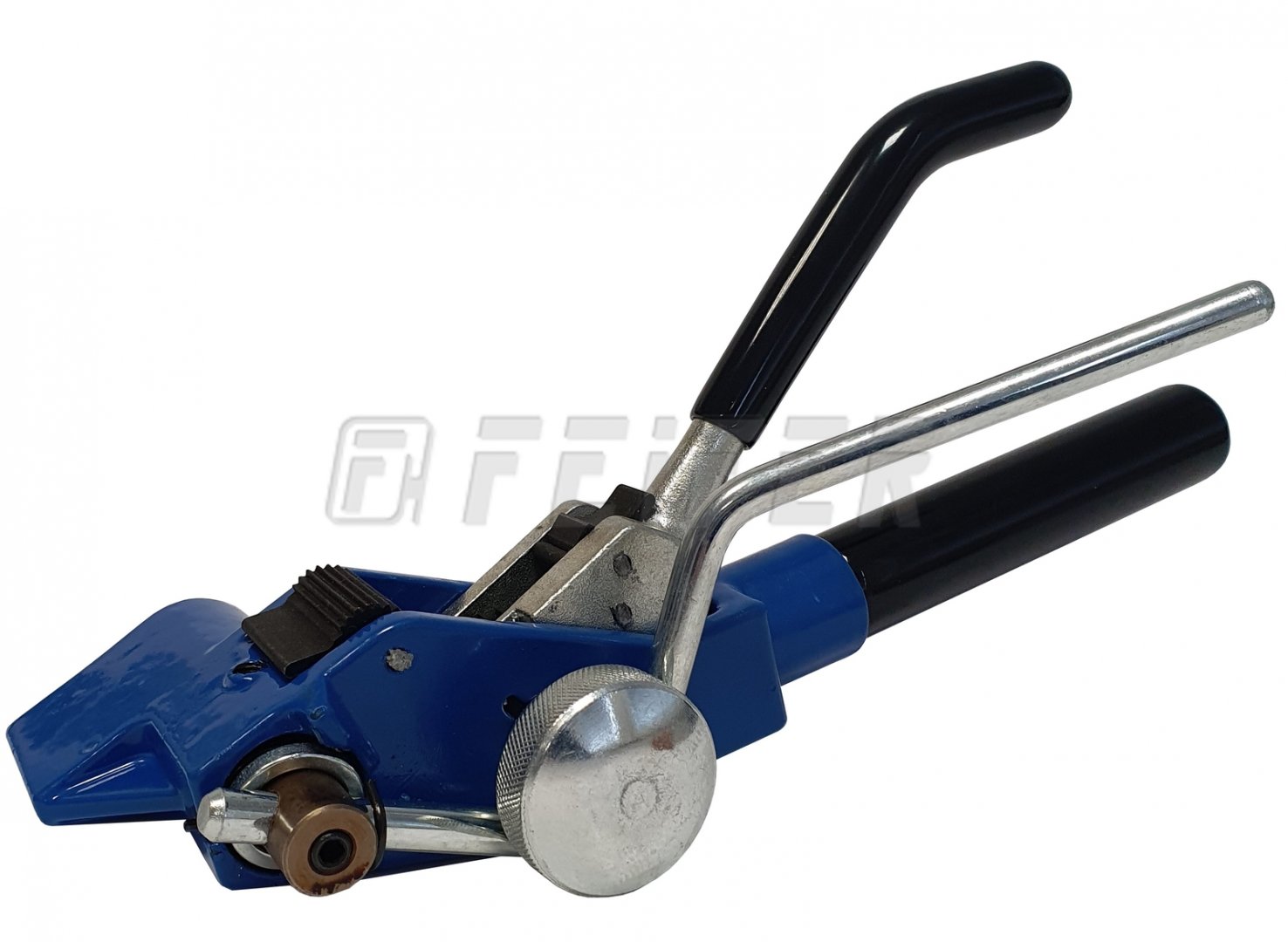

RM-E - strapping tool for steel straps

The strapping tool RM-E is designed for strapping round or irregularly shaped objects. The joint is made with seal (type „R“). This strapping tool is adjustable for straps of the width of 10, 13, 16, 20mm and the thickness of 0,4 - 0,6mm.

Technical parameters
Accessories
Packing material
Spare part
Inquiry

Technical parameters

ordering code 700 001112
strap - material steel
sealing method seal type R
strap width 10 - 20 mm
strap thickness 0,4 - 0,76 mm
weight 1,5 kg
tightening power 2000 N
dimension (l x w x h) 300 x 90 x 60 mm

Standard modifications

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-5 - decoiler for ribbon steel straps

OP-5 - decoiler for ribbon steel straps
  • strap width 13-20 mm
  • spring brake of strap
  • inner diameter 260-310 mm
  • robust construction

OP-7 - decoiler for oscillated steel straps

OP-7 - decoiler for oscillated steel straps
  • strap width - 13 - 20 mm
  • spring brake of strap
  • for oscillated winding
  • robust construction

OP-21 - decoiler for ribbon steel straps

OP-21 - decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 610 mm
  • unsuitable for low quality straps

OP-26 decoiler for ribbon steel straps

OP-26 decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • unsuitable for low quality straps

OP-26E decoiler for ribbon steel straps

OP-26E decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • for low frequency jobs

OP-26W decoiler for ribbon steel straps

OP-26W decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 790 mm
  • unsuitable for low quality straps

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strength 4485 N
  • roll weight approx. 17 kgs
  • inside diam. 300 mm

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strength 5520 N
  • roll weight approx. 20 kgs
  • inside diam. 300 mm

16 x 0,5 mm - steel strap (zinc coated, ribbon)

16 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strength 5400 N
  • roll weight approx. 25 kgs
  • inside diam. 286 mm

16 x 0,4 mm - steel strap - stainless steel, 30 m

16 x 0,4 mm - steel strap - stainless steel, 30 m
  • width 16 mm, thickness 0,4 mm
  • strength 3840 N
  • roll weight approx. 1,55 kg
  • roll lenght 30 m

16 x 0,75 mm - steel strap - stainless steel, 30 m

16 x 0,75 mm - steel strap - stainless steel, 30 m
  • width 16 mm, thickness 0,75 mm
  • strenght 7200 N
  • roll weight approx. 2,95 kg
  • roll lenght 30 m

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 19 mm, thickness 0,5 mm
  • strength 7000 N
  • roll weight approx. 27 kgs
  • inside diam. 300 mm

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
  • width 19 mm, thickness 0,6 mm
  • strength 9120 N
  • roll weight approx. 50 kgs
  • inside diam. 406 (±5) mm

Steel seals R-13 (13 mm, 202400)

Steel seals R-13 (13 mm, 202400)
  • seal width - 13 mm
  • for steel strap
  • packaging - 2000 pcs

Steel seals R-16 (16 mm, 202700)

Steel seals R-16 (16 mm, 202700)
  • seal width - 16 mm
  • for steel strap
  • packaging - 1800 pcs

Stainless steel seals R-16

Stainless steel seals R-16
  • seal width - 16 mm
  • for steel strap
  • packaging - 100 pcs

Steel seals R-20 (20 mm, 203000)

Steel seals R-20 (20 mm, 203000)
  • seal width - 20 mm
  • for steel strap
  • packaging - 1300 pcs
