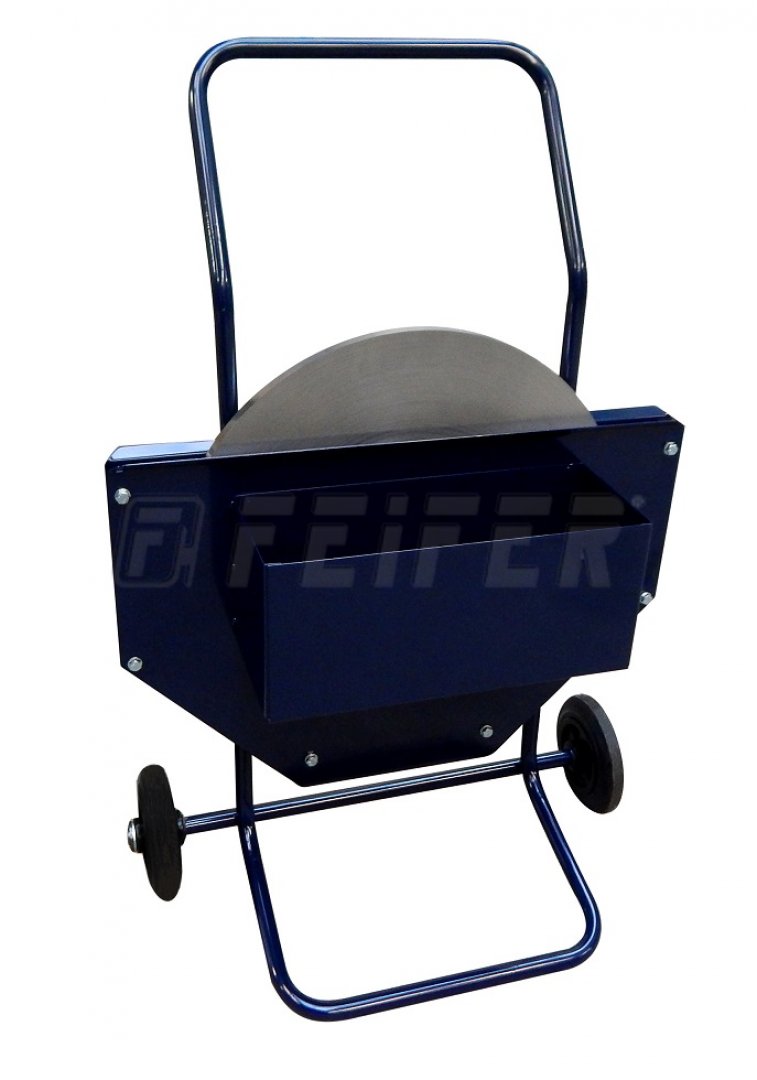

OP-22 - decoiler for ribbon steel straps 13-20 mm, for 2 rolls

Type OP-22 is intended for unwinding steel strap of the width of 13-20 mm. Inner diameter of coil is not limited, max. outer diameter of coil is 700 mm. It is possible to place two coils of strap at the same time on this decoiler. This type is not suitable for steel strap of low quality (strength <690MPa).

Technical parameters
Modification
Accessories
Packing material
Inquiry

Technical parameters

ordering code 600 000090
strap - material steel
strap width 13 - 20 mm
outer diameter of roll 700 mm
inner diameter of roll bez omezení
brake no

Standard modifications

OP-21 - decoiler for ribbon steel straps

OP-21 - decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 610 mm
  • unsuitable for low quality straps

Recommended accessories

BO-51 - sealless steel strapping tool

BO-51 -  sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • very popular type
  • attractive price
  • tensioning power - 4000 N

BO-6F - sealless steel strapping tool

BO-6F - sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • perfect for vertical strapping
  • robust tightening system
  • tensioning power - 5000 N

BO-7 SWING - sealless steel strapping tool

BO-7 SWING - sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • patented system of punching
  • robust tightening system
  • tensioning power - 5000 N

BO-7PN - pneumatic sealless steel strapping tool

BO-7PN - pneumatic sealless steel strapping tool
  • strap width - 13 - 20 mm
  • sealing method - sealless
  • pneumatic tightening
  • patented system of punching

NP-11 - tensioner for steel straps

NP-11 - tensioner for steel straps
  • strap width 13 - 19 mm
  • used together with a sealer UK
  • for heavy irregular objects
  • max. strength of joint 5000 N

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

Binding and packaging materials

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strength 4485 N
  • roll weight approx. 17 kgs
  • inside diam. 280 mm

13 x 0,5 mm - steel strap (zinc coated, ribbon)

13 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strength 4388 N
  • roll weight approx. 20 kgs
  • inside diam. 286 mm

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strength 5520 N
  • roll weight approx. 20 kgs
  • inside diam. 280 mm

16 x 0,5 mm - steel strap (zinc coated, ribbon)

16 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strength 5400 N
  • roll weight approx. 25 kgs
  • inside diam. 286 mm

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
  • width 16 mm, thickness 0,4 mm
  • strenght 5120 N
  • roll weight approx. 24 kgs
  • inside diam. 406 mm

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 19 mm, thickness 0,5 mm
  • strength 7000 N
  • roll weight approx. 27 kgs
  • inside diam. 300 mm
