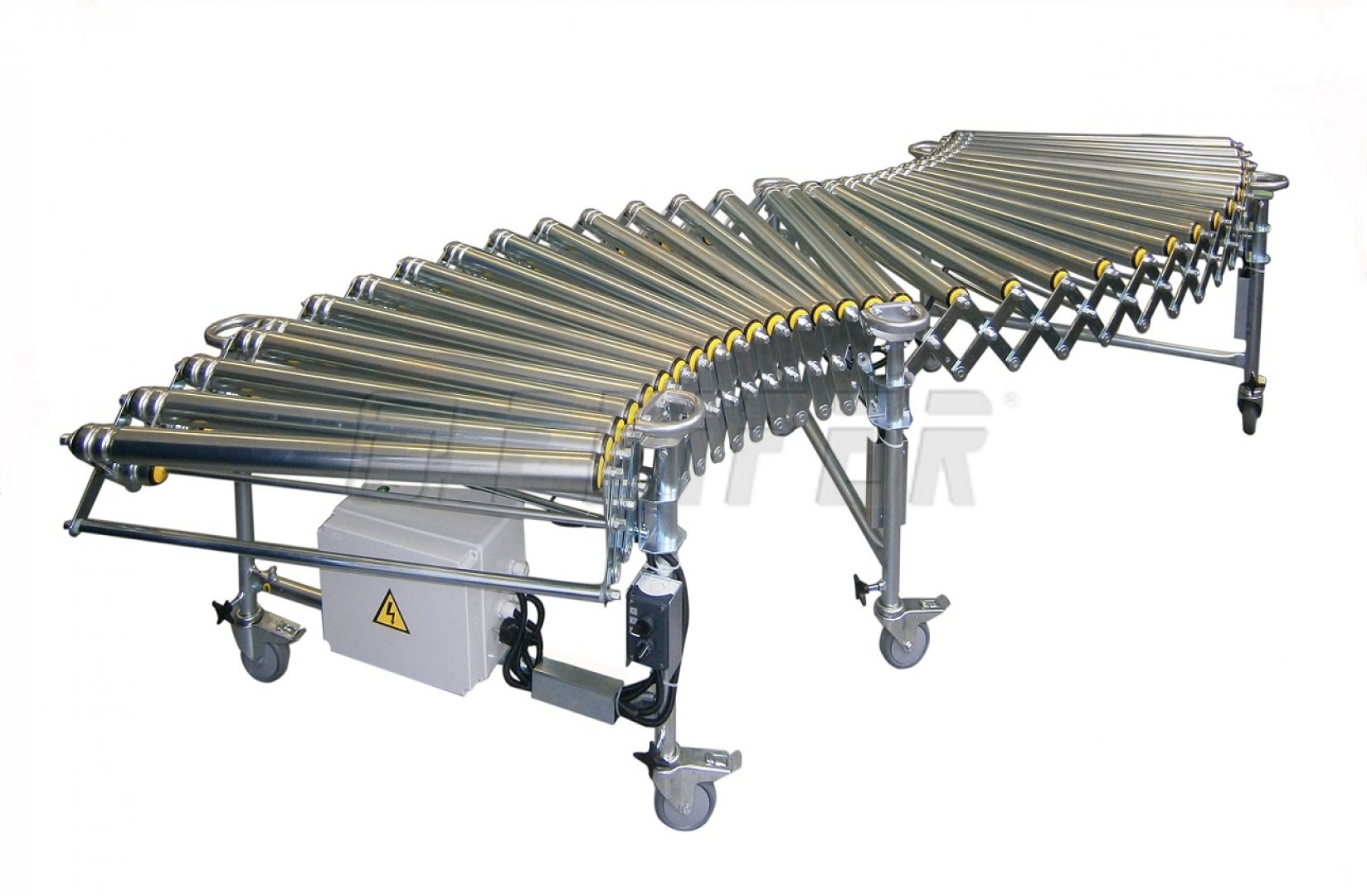

DH - driven extensible roller conveyor 800mm, track 1650-3570 mm

The extensible roller conveyor is suitable for building straight and curved conveyor routes, both gradient and plain. The machine is especially intended for transporting cartons as well as other goods, it is excellent for quick truck loading and unloading. Slope of the conveyor can be modified by adjusting of conveyor legs height. Height of the conveyor is adjustable from 655 to 1000 mm. The conveyor can form curves of 180°.

The conveyor is characterized by soft slip of rollers, which enables fluent speed compensation among individual technical operations with different working speed or in clock mode.

Among other advantages belongs:

  • high quality side plates for heavy duty usage
  • possibility of mobile use (wheels with a brake on each wheel)
  • easy storage - conveyors can be compact to a quarter of their extended length.

The conveyor can be equipped with brushless 36W, 24VDC motor for 10 - 12 rollers. Fluent speed regulation from 0 - 15 m/min. The conveyor is standardly delivered with steel rollers, at customer´s request can be delivered also with stainless steel rollers or steel rollers with PVC sleeve

Technical parameters
Modification
Accessories
Spare part
Inquiry

Technical parameters

ordering code 600 000988
supply voltage 230V/240V
max. loading between 2 legs 50 kg
track version steel rollers
roller diameter 50 mm
transporting speed 0 - 15 m/min.
conveyor height 665 - 1000 mm
conveyor length 1650-3570 mm
working conveyor width 800 mm
number of rollers 32
number of legs 3

Standard modifications

DH - driven extensible roller conveyor 500mm, track 1050-2200 mm

DH - driven extensible roller conveyor 500mm, track 1050-2200 mm
  • track width - 500 mm
  • extensible, track -1050-2200 mm
  • 20 rollers

DH - driven extensible roller conveyor 500mm, track 1650-3570 mm

DH - driven extensible roller conveyor 500mm, track 1650-3570 mm
  • track width - 500 mm
  • extensible, track -1650-3570 mm
  • 32 rollers

DH - driven extensible roller conveyor 500mm, track 2250-4950 mm

DH - driven extensible roller conveyor 500mm, track 2250-4950 mm
  • track width - 500 mm
  • extensible, track -2250-4950 mm
  • 44 rollers

DH - driven extensible roller conveyor 600mm, track 1050-2200 mm

DH - driven extensible roller conveyor 600mm, track 1050-2200 mm
  • track width - 600 mm
  • extensible, track -1050-2200 mm
  • 20 rollers

DH - driven extensible roller conveyor 600mm, track 1650-3570 mm

DH - driven extensible roller conveyor 600mm, track 1650-3570 mm
  • track width - 600 mm
  • extensible, track -1650-3570 mm
  • 32 rollers

DH - driven extensible roller conveyor 600mm, track 2250-4950 mm

DH - driven extensible roller conveyor 600mm, track 2250-4950 mm
  • track width - 600 mm
  • extensible, track -2250-4950 mm
  • 44 rollers

DH - driven extensible roller conveyor 800mm, track=1050-2200 mm

DH - driven extensible roller conveyor 800mm, track=1050-2200 mm
  • track width - 800 mm
  • extensible, track -1050-2200 mm
  • 20 rollers

DH - driven extensible roller conveyor 800mm, track=2250-4950 mm

DH - driven extensible roller conveyor 800mm, track=2250-4950 mm
  • track width - 800 mm
  • extensible, track -2250-4950 mm
  • 44 rollers

Recommended accessories

NP-11 - tensioner for steel straps

NP-11 - tensioner for steel straps
  • strap width 13 - 19 mm
  • used together with a sealer UK
  • for heavy irregular objects
  • max. strength of joint 5000 N

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-5 - decoiler for ribbon steel straps

OP-5 - decoiler for ribbon steel straps
  • strap width 13-20 mm
  • spring brake of strap
  • inner diameter 260-310 mm
  • robust construction

OP-7 - decoiler for oscillated steel straps

OP-7 - decoiler for oscillated steel straps
  • strap width - 13 - 20 mm
  • spring brake of strap
  • for oscillated winding
  • robust construction
