Motor driven conveyors

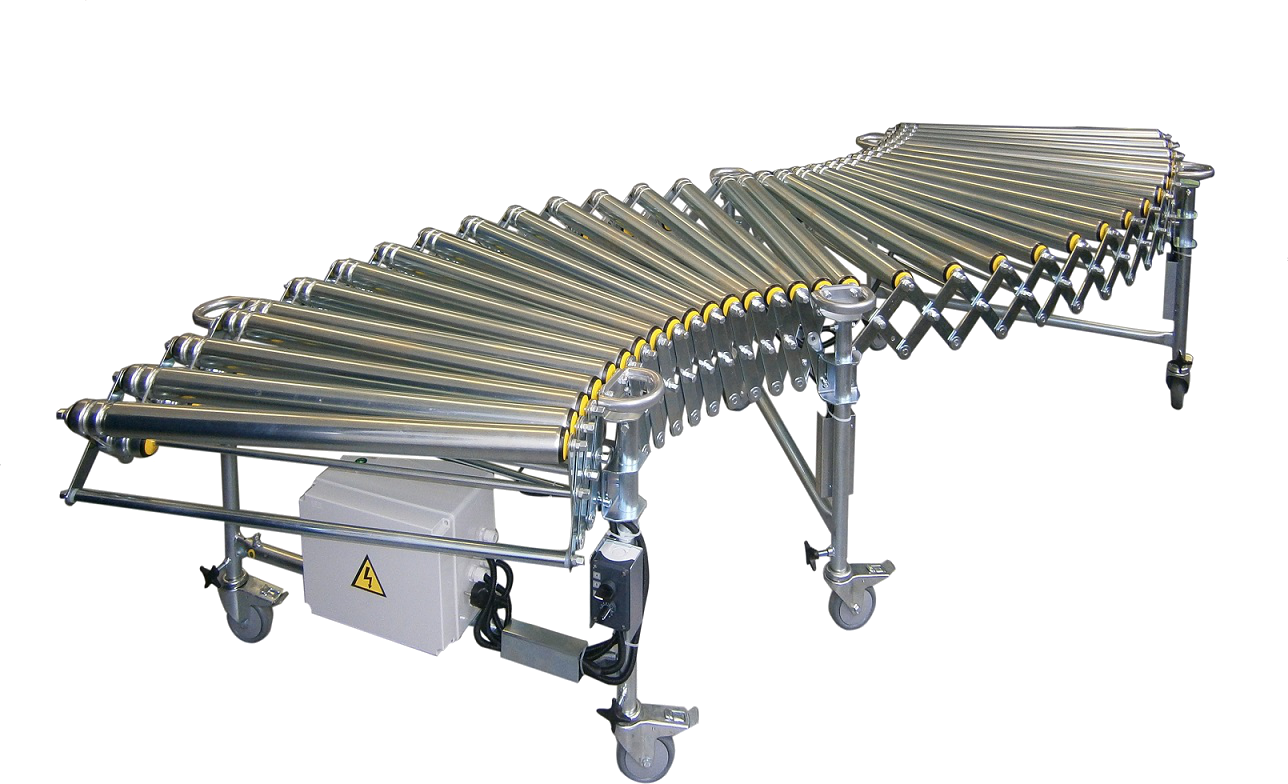

Extensible driven conveyors DHM

  • surface treatment - galvanic zinc
  • low space requirement in folded state
  • supply voltage 230V/240V
  • fluent speed regulation from 0 - 15 m/min
  • conveyor can be formed to curves up to 180°
  • conveyor height is adjustable from 655 to 1000 mm
  • brushless motor 36W, 24VDC for each 10 - 12 rollers
  • suitable for building straight and curved conveyor tracks, both gradient and straight
  • usable mainly for transportation of cartons and similar goods with a smooth bottom part, ideal for loading (and unloading) trucks in storage centers
  • gradient of conveyors can be modified by height adjustable legs of the conveyor
  • possibility of mobile use - equipped with wheels (with a brake on each wheel)
  • is characterized with a soft slip of rollers which enables fluent speed compensation among each technological operations with different working speed or in timing mode
  • 1 roller (with diameter of 50 mm) on each axis - modifications:
  • steel, zinc coated roller - standard
  • stainless steel roller - on customer's request
  • steel roller with PVC sleeve (2 or 5 mm) - on request
  • high quality side plates made of strength steel for heavy duty use
  • 3 conveyor working widths - 500, 600 and 800 mm (total conveyor length is about 120 mm wider)

More information

Driven roller conveyor 2000x400 mm

Driven roller conveyor 2000x400 mm
  • motor driven with soft slip of rollers
  • track width - 400 mm
  • conveyor length - 2 m
  • standardly with plastic rollers

Driven belt conveyor 4000x400 mm

Driven belt conveyor 4000x400 mm
  • fluent speed regulation
  • track width - 400 mm
  • conveyor length - 4 m

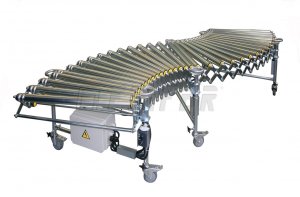

DH - driven extensible roller conveyor 600mm, track 2250-4950 mm

DH - driven extensible roller conveyor 600mm, track 2250-4950 mm
  • track width - 600 mm
  • extensible, track -2250-4950 mm
  • 44 rollers

Driven roller conveyor 5000x400 mm

Driven roller conveyor 5000x400 mm
  • motor driven with soft slip of rollers
  • track width - 400 mm
  • conveyor length - 5 m
  • standardly with plastic rollers

DH - driven extensible roller conveyor 500mm, track 2250-4950 mm

DH - driven extensible roller conveyor 500mm, track 2250-4950 mm
  • track width - 500 mm
  • extensible, track -2250-4950 mm
  • 44 rollers

DH - driven extensible roller conveyor 800mm, track=2250-4950 mm

DH - driven extensible roller conveyor 800mm, track=2250-4950 mm
  • track width - 800 mm
  • extensible, track -2250-4950 mm
  • 44 rollers

DH - driven extensible roller conveyor 500mm, track 1050-2200 mm

DH - driven extensible roller conveyor 500mm, track 1050-2200 mm
  • track width - 500 mm
  • extensible, track -1050-2200 mm
  • 20 rollers

DH - driven extensible roller conveyor 800mm, track=1050-2200 mm

DH - driven extensible roller conveyor 800mm, track=1050-2200 mm
  • track width - 800 mm
  • extensible, track -1050-2200 mm
  • 20 rollers

DH - driven extensible roller conveyor 500mm, track 1650-3570 mm

DH - driven extensible roller conveyor 500mm, track 1650-3570 mm
  • track width - 500 mm
  • extensible, track -1650-3570 mm
  • 32 rollers

DH - driven extensible roller conveyor 600mm, track 1650-3570 mm

DH - driven extensible roller conveyor 600mm, track 1650-3570 mm
  • track width - 600 mm
  • extensible, track -1650-3570 mm
  • 32 rollers

DH - driven extensible roller conveyor 800mm, track 1650-3570 mm

DH - driven extensible roller conveyor 800mm, track 1650-3570 mm
  • track width - 800 mm
  • extensible, track -1650-3575 mm
  • 32 rollers

DH - driven extensible roller conveyor 600mm, track 1050-2200 mm

DH - driven extensible roller conveyor 600mm, track 1050-2200 mm
  • track width - 600 mm
  • extensible, track -1050-2200 mm
  • 20 rollers
