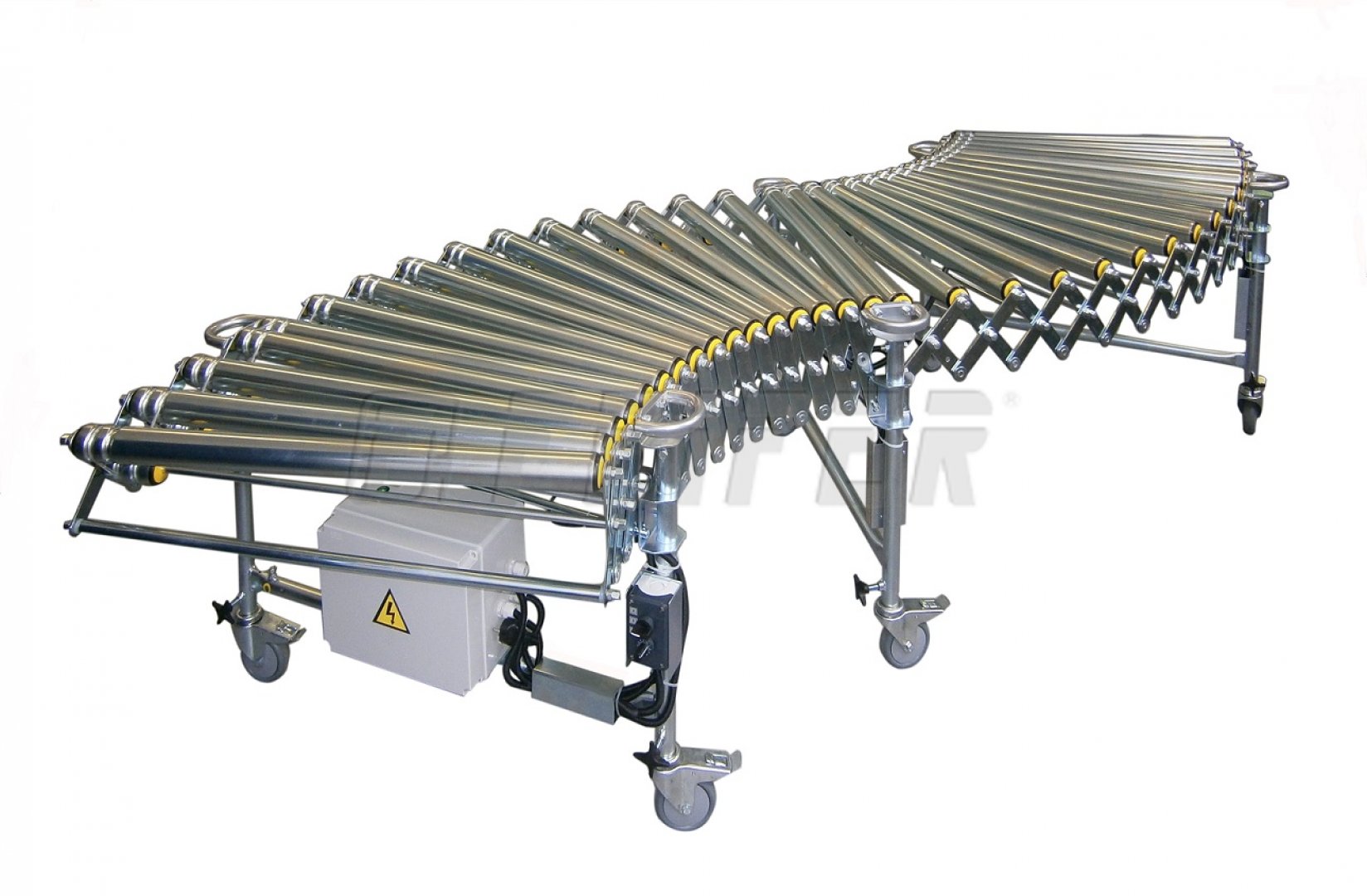

DH - driven extensible roller conveyor 800mm, track=1050-2200 mm

The extensible roller conveyor is suitable for building straight and curved conveyor routes, both gradient and plain. The machine is especially intended for transporting cartons as well as other goods, it is excellent for quick truck loading and unloading. Slope of the conveyor can be modified by adjusting of conveyor legs height. Height of the conveyor is adjustable from 655 to 1000 mm. The conveyor can form curves of 180°.

The conveyor is characterized by soft slip of rollers, which enables fluent speed compensation among individual technical operations with different working speed or in clock mode.

Among other advantages belongs:

  • high quality side plates for heavy duty usage
  • possibility of mobile use (wheels with a brake on each wheel)
  • easy storage - conveyors can be compact to a quarter of their extended length.

The conveyor can be equipped with brushless 36W, 24VDC motor for 10 - 12 rollers. Fluent speed regulation from 0 - 15 m/min. The conveyor is standardly delivered with steel rollers, at customer´s request can be delivered also with stainless steel rollers or steel rollers with PVC sleeve

Technical parameters
Inquiry

Technical parameters

ordering code 600 000985
supply voltage 230V/240V
max. loading between 2 legs 50 kg
track version steel rollers
roller diameter 50 mm
transporting speed 0 - 15 m/min.
conveyor height 665 - 1000 mm
conveyor length 1050-2200 mm
working conveyor width 800 mm
number of rollers 20
number of legs 2
