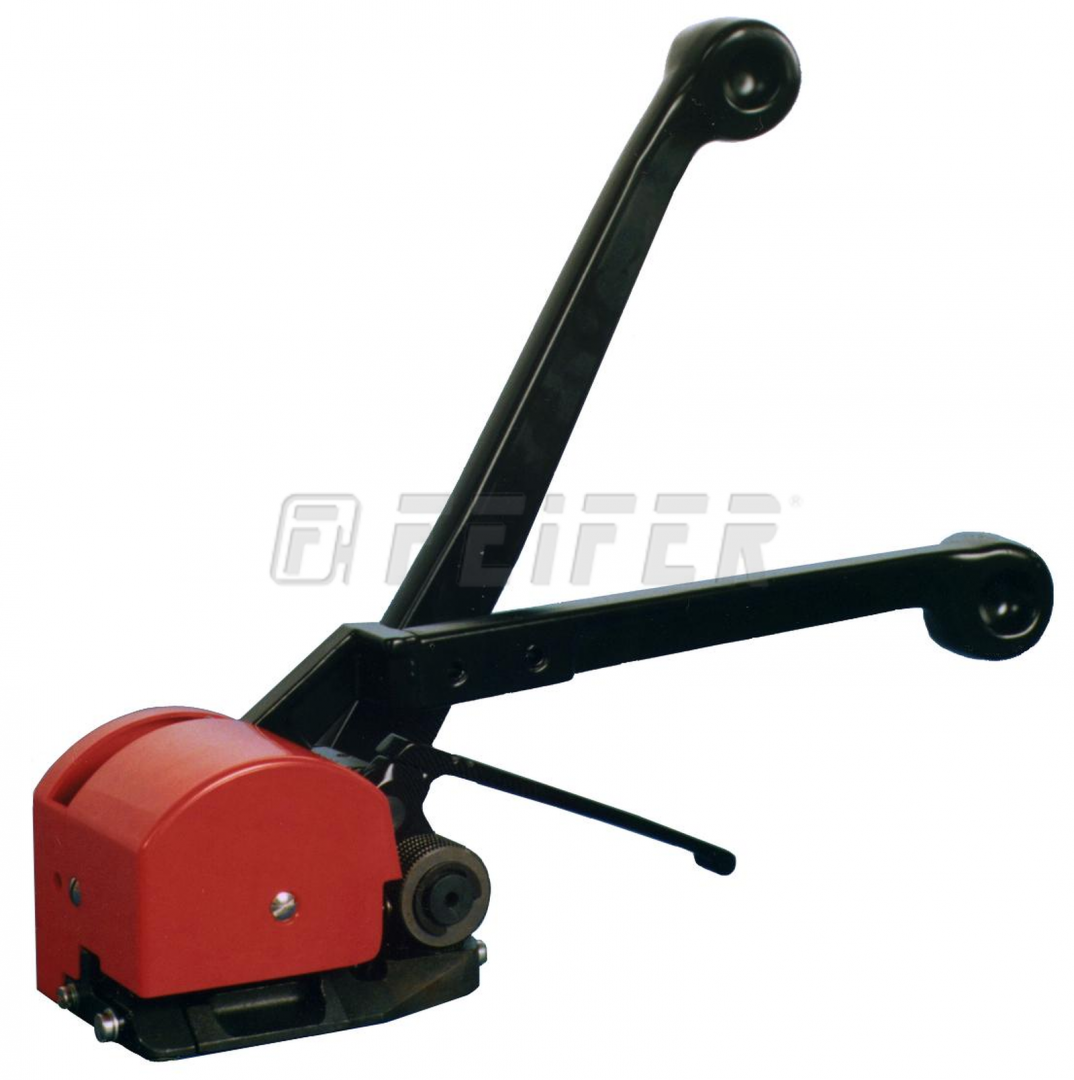

BO-6F - sealless steel strapping tool (ABS, cross tooth system)

The strapping tool BO-6F is advanced type based on BO-51. It is 0,75kg lighter, operation is easier and better ergonomic shape of levers enables to work easier also in vertical position. Improved body design increases its lifetime. New tightening mechanism of strap reaches higher tightening power up to 5 000 N. Other technical parameters are similar to BO-51.

  • ideal for vertical strapping
  • robust tensioning system
  • higher durability thanks to modern design
  • higher tightening power up to 5 000 N

This model is equipped with extra strong tightening wheel with cross tooth system.

Technical parameters
Modification
Accessories
Packing material
Inquiry

Technical parameters

ordering code 600 000029
sealing method sealless
strap width 13 - 20 mm
strap thickness 0,4 - 0,63 mm
weight 3,80 kg
tightening power 5000 N

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-5 - decoiler for ribbon steel straps

OP-5 - decoiler for ribbon steel straps
  • strap width 13-20 mm
  • spring brake of strap
  • inner diameter 260-310 mm
  • robust construction

OP-7 - decoiler for oscillated steel straps

OP-7 - decoiler for oscillated steel straps
  • strap width - 13 - 20 mm
  • spring brake of strap
  • for oscillated winding
  • robust construction

OP-26 decoiler for ribbon steel straps

OP-26 decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • unsuitable for low quality straps

OP-26E decoiler for ribbon steel straps

OP-26E decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • for low frequency jobs

OP-26W decoiler for ribbon steel straps

OP-26W decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 790 mm
  • unsuitable for low quality straps

OP-21 - decoiler for ribbon steel straps

OP-21 - decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 610 mm
  • unsuitable for low quality straps

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4485 N
  • roll weight approx. 17 kgs
  • inside diam. 280 mm

13 x 0,5 mm - steel strap (zinc coated, ribbon)

13 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strenght 4388 N
  • roll weight approx. 20 kgs
  • inside diam. 286 mm

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

16 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5520 N
  • roll weight approx. 20 kgs
  • inside diam. 280 mm

16 x 0,5 mm - steel strap (zinc coated, ribbon)

16 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 16 mm, thickness 0,5 mm
  • strenght 5400 N
  • roll weight approx. 25 kgs
  • inside diam. 286 mm

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)

16 x 0,4 mm - steel strap (black painted, ribbon, 800 MPa)
  • width 16 mm, thickness 0,4 mm
  • strenght 5120 N
  • roll weight approx. 24 kgs
  • inside diam. 406 mm

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

19 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 19 mm, thickness 0,5 mm
  • strenght 7000 N
  • roll weight approx. 27 kgs
  • inside diam. 300 mm

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding

19 x 0,6 mm - steel strap, painted, PRIMA, oscillated winding
  • width 19 mm, thickness 0,6 mm
  • strenght 9120 N
  • roll weight approx. 50 kgs
  • inside diam. 406 (±5) mm
