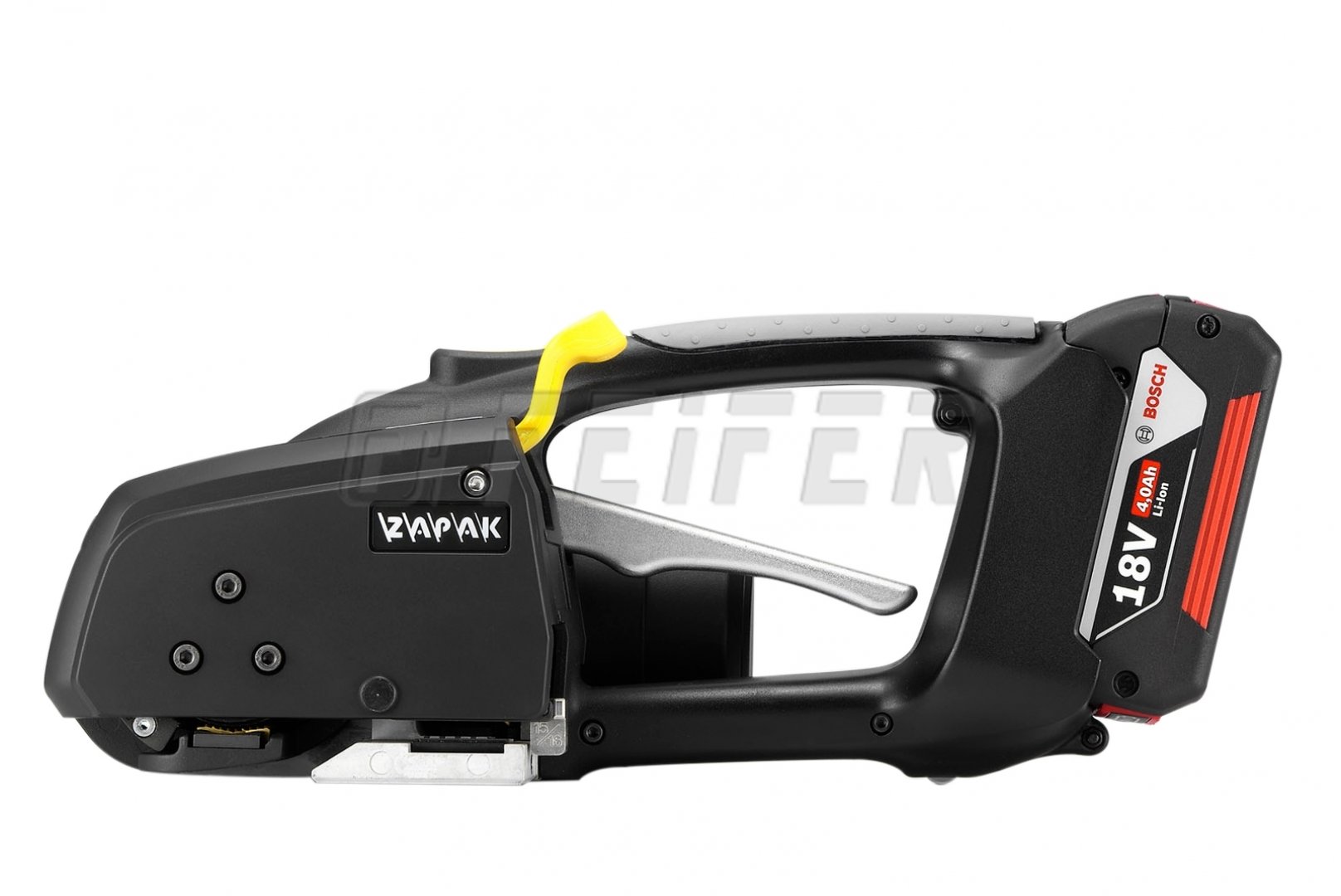

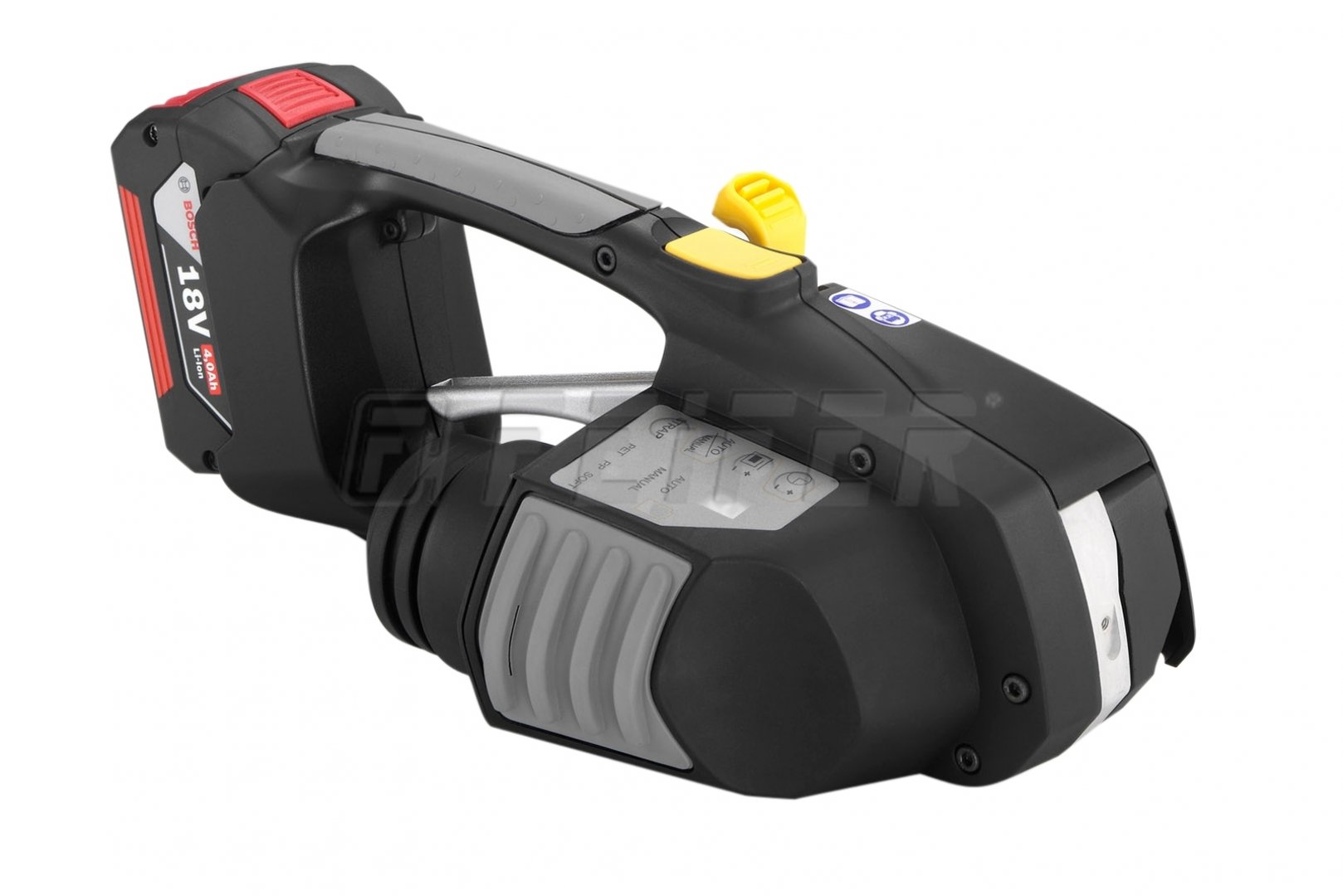

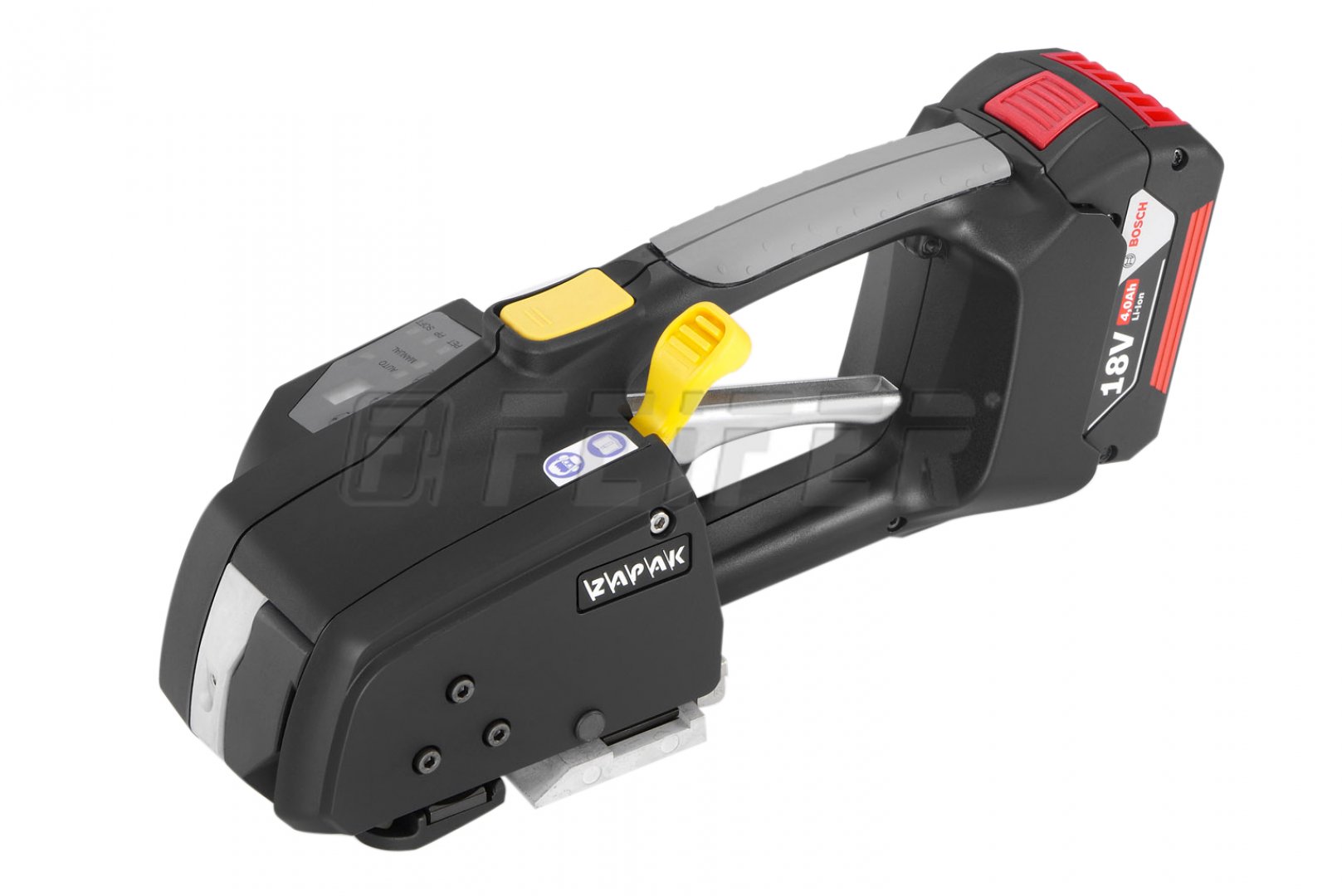

ZAPAK ZP93 - battery strapping tool for PP, PET

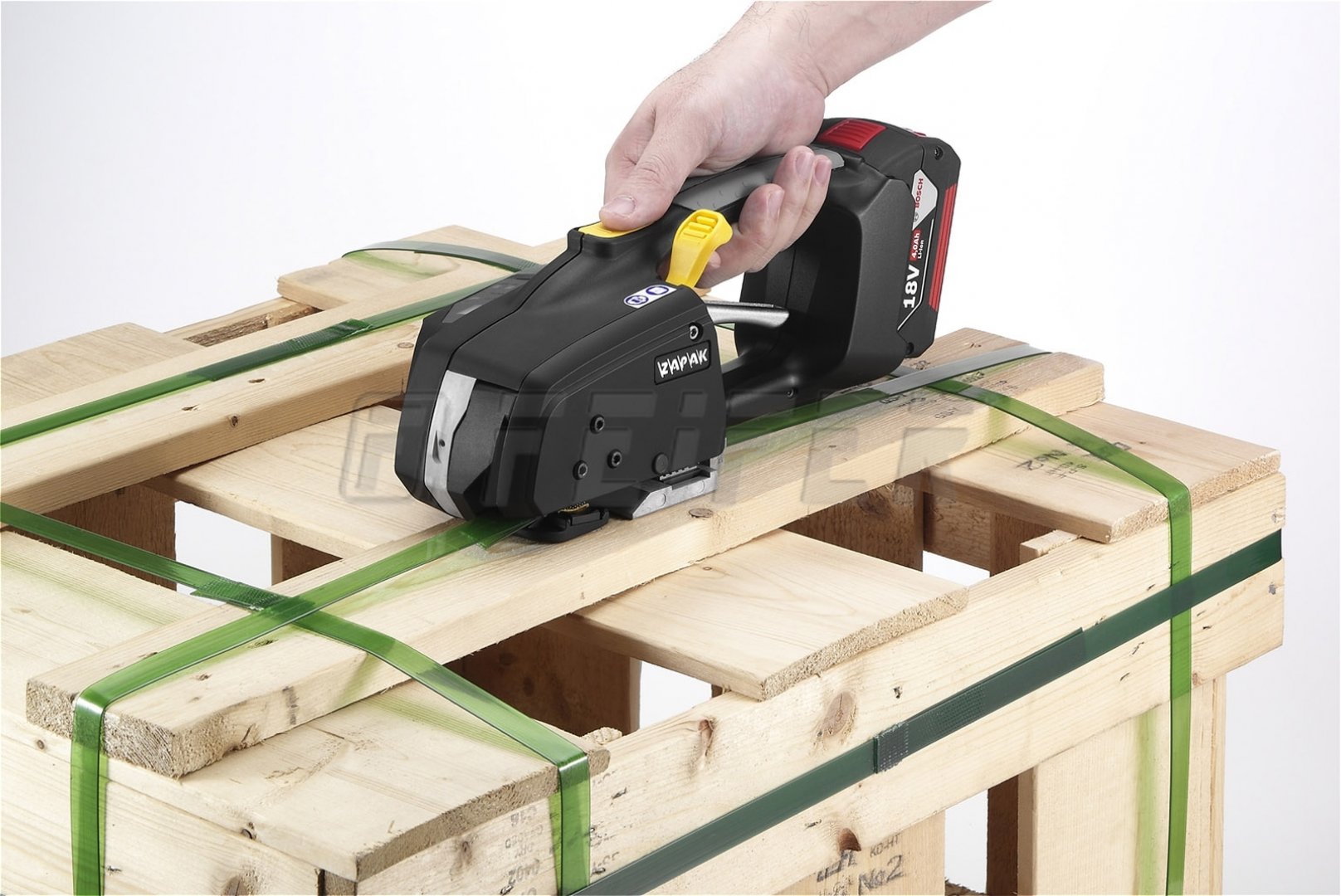

Hand-operated battery strapping tool ZAPAK ZP93 which is suitable for strapping pallets or groups of goods. PP and PET straps are used for strapping. This strapping tool is suitable for places, where it is not possible to connect to power supply, and is equipped with automatic tightening and sealing straps.



Among main advantages of this strapping tool belong:

  • high tightening power
  • extremely low weight
  • ergonomic design
  • excellent value for money
  • fluently adjustable tightening power

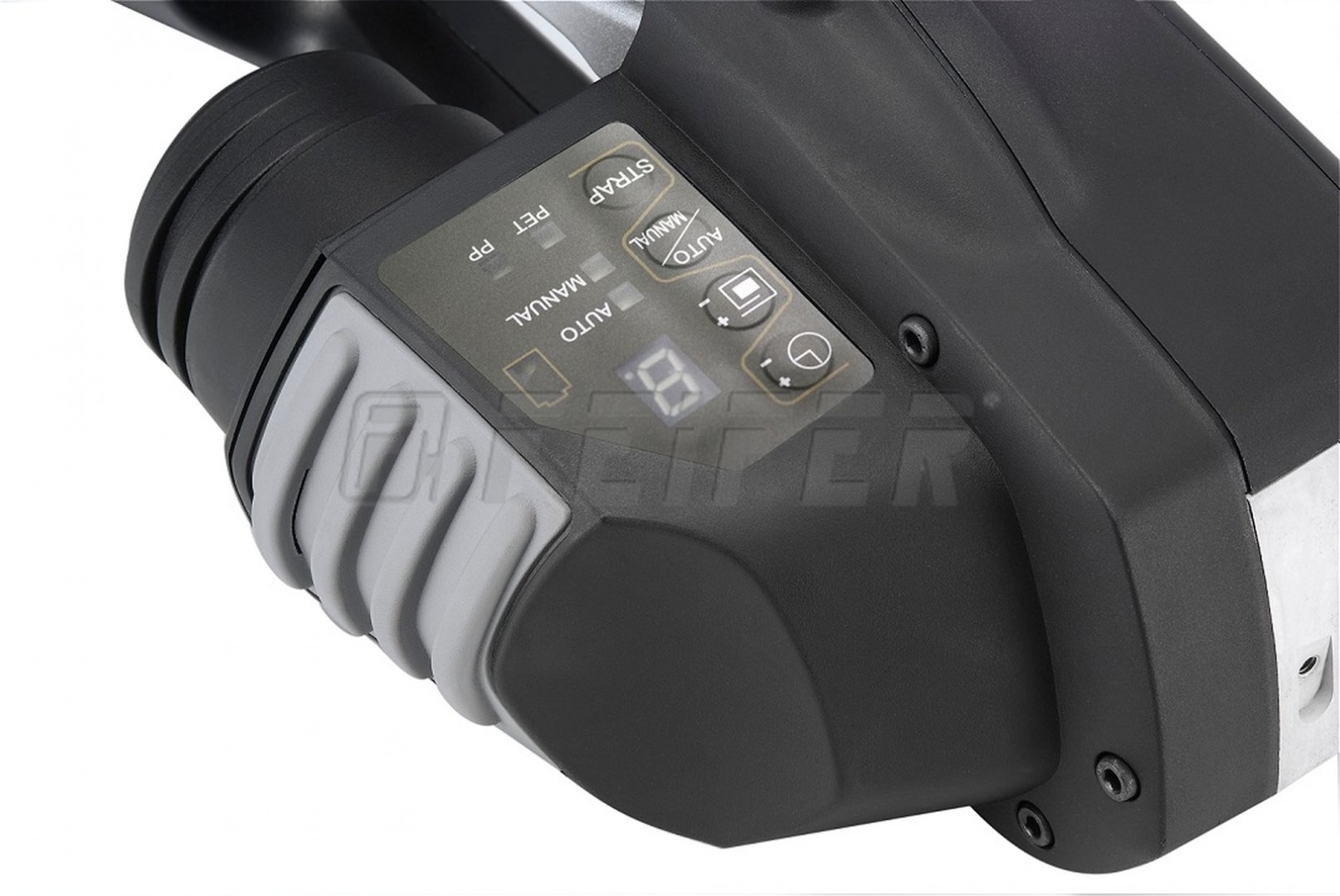

Productivity is improved by one-hand operating strapping tool. The new unique brushless motor assures longer battery and motor service life. Operation touch panel with digital light is served for intuitive setting according to required conditions.



Differences between ZP92/96 (original) a ZP93/97 (new)

  • more stable tension and tightening
  • more efficient, with charge level indicator device
  • number of strapping cycles increased up to 40%, battery power consumption decreased and battery service life is prolonged
  • lower battery weight
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry

Technical parameters

ordering code 700 012523
supply voltage aku 18V
sealing method sealless
strap - material PP
strap width 9 - 16 mm
strap thickness 0,60 - 1,27 (PP) 0,55 - 1,27 (PET) mm
weight 2,84 + 0,60 (bat.) kg
tightening power 2500 N
qty of strapping cycles with 1 charge 440 (PET 16x1,0)
battery charge time 30 min.

Standard modifications

ZAPAK ZP90 - battery strapping tool for PP, PET

ZAPAK ZP90 - battery strapping tool for PP, PET
  • strap width 9 - 13 mm
  • 18V Li-Ion battery
  • more efficient brushless motor
  • higher battery capacity

ZAPAK ZP97 - battery strapping tool for PP, PET

ZAPAK ZP97 - battery strapping tool for PP, PET
  • strap width 15 - 19 mm
  • 18V Li-Ion battery
  • more efficient brushless motor
  • higher battery capacity

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-6 - decoiler for PP straps

OP-6 - decoiler for PP straps
  • inner diameter - 400 mm
  • spring brake of strap
  • extra robust construction
  • for high frequency jobs

OP-6E - decoiler for PP straps

OP-6E - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • simple screw brake on axis
  • for low frequency jobs

OP-6EB - decoiler for PP straps

OP-6EB - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • spring brake of strap
  • for low frequency jobs

OP-10EB - decoiler for PP straps

OP-10EB - decoiler for PP straps
  • inner diameter - 200 mm
  • spring brake of strap
  • for low frequency jobs

Strap lance

Strap lance
  • max. strap width - 35 mm
  • easy strap threading under pallet
  • for plastic and textile strap

ZP-5 - spring balancer for loading

ZP-5  - spring balancer for loading
  • max. loading - 1-5 kg
  • robust metal model (alloy)
  • pre-tensioning by ergonom. rose
  • safety device in case of break

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black

PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
  • width 12 mm, thickness 0,70 mm
  • black color
  • strenght 2200 N
  • tube 200 mm, roll 2500 m

PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black

PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black
  • width 12 mm, thickness 0,70 mm
  • black color
  • strenght 2000N
  • tube 406 mm, roll 2200 m

PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black

PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black
  • width 12 mm, thickness 0,70 mm
  • black color
  • strenght 1850 N
  • tube 406 mm, roll 2000 m

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
  • width 15 mm, thickness 0,65 mm
  • black color
  • strenght 2200 N
  • tube 200, roll 2000 m

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
  • width 15 mm, thickness 0,65 mm
  • white, cross strapped
  • strenght 2200 N
  • tube 200, roll 2000 m

PP strap 15 x 0,65 mm, 400/180 - 1500 m, 2200 N, black

PP strap 15 x 0,65 mm, 400/180 - 1500 m, 2200 N, black
  • width 15 mm, thickness 0,65 mm
  • black color
  • strenght 2200 N
  • tube 400, roll 1500 m

PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black

PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
  • width 15 mm, thickness 0,80 mm
  • black color
  • strenght 2700 N
  • tube 400 mm, roll 1500 m

PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green

PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green
  • width 12 mm, thickness 0,60 mm
  • green color
  • strenght 2600 N
  • tube 406 mm, roll 2500 m

PET strap 15,5 x 0,70 mm, 406/145 - 1750 m, 3860 N, green

PET strap 15,5 x 0,70 mm, 406/145 - 1750 m, 3860 N, green
  • width 15,5 mm, thickness 0,70 mm
  • green color
  • strenght 4500 N
  • tube 406 mm, roll 1750 m

PET strap 16 x 0,80 mm, 406/145 - 1200 m, 5200 N, EMBOSS 20%

PET strap 16 x 0,80 mm, 406/145 - 1200 m, 5200 N, EMBOSS 20%
  • width 16 mm, thickness 0,80 mm
  • green color
  • strenght 5200 N
  • tube 406 mm, roll 1200 m

PET strap 16 x 1,00 mm, 406/145 - 1200 m, 5700 N, green, EMBOSS 15%

PET strap 16 x 1,00 mm, 406/145 - 1200 m, 5700 N, green, EMBOSS 15%
  • width 16 mm, thickness 1,00 mm
  • green color
  • strenght 5700 N
  • tube 406 mm, roll 1200 m
