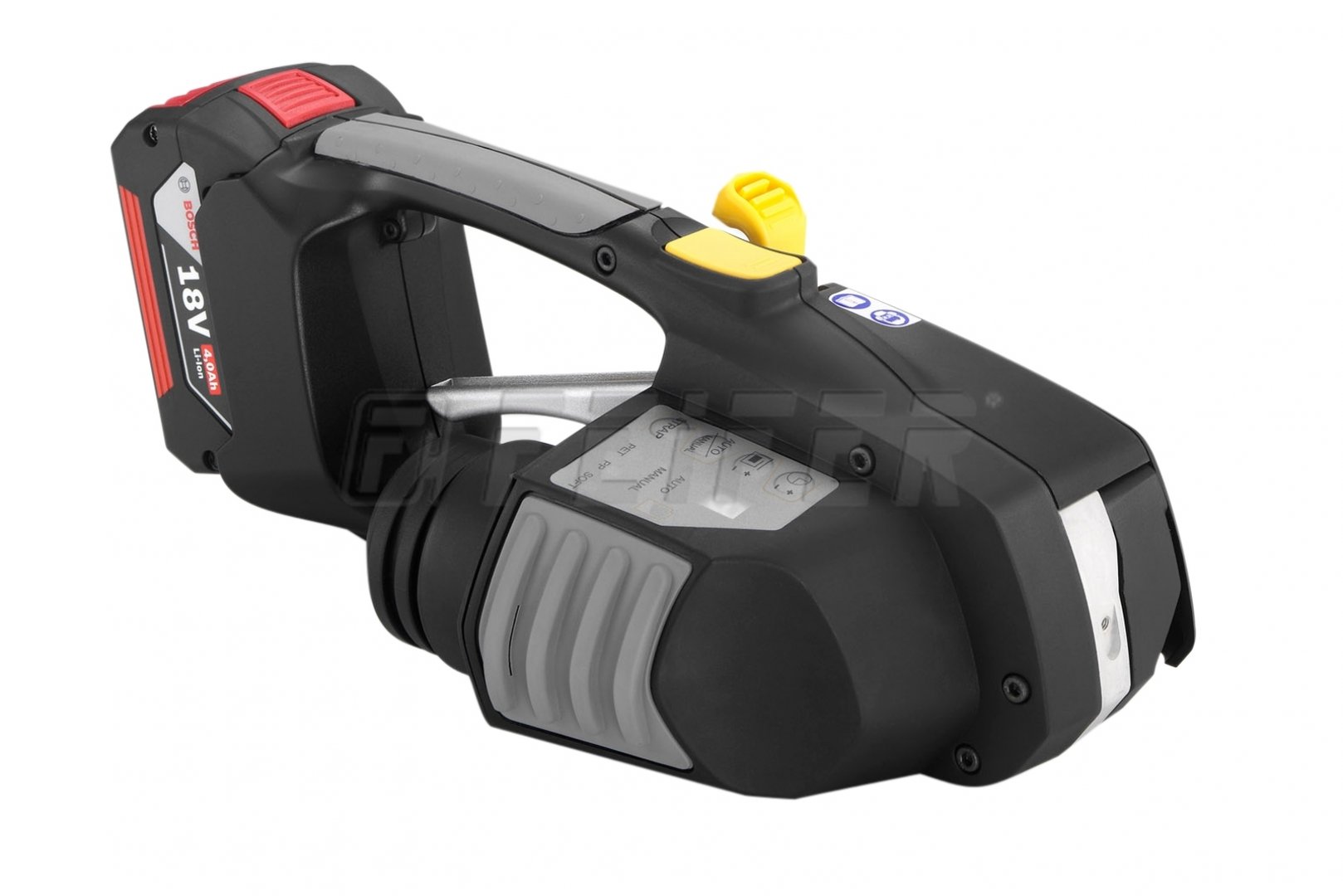

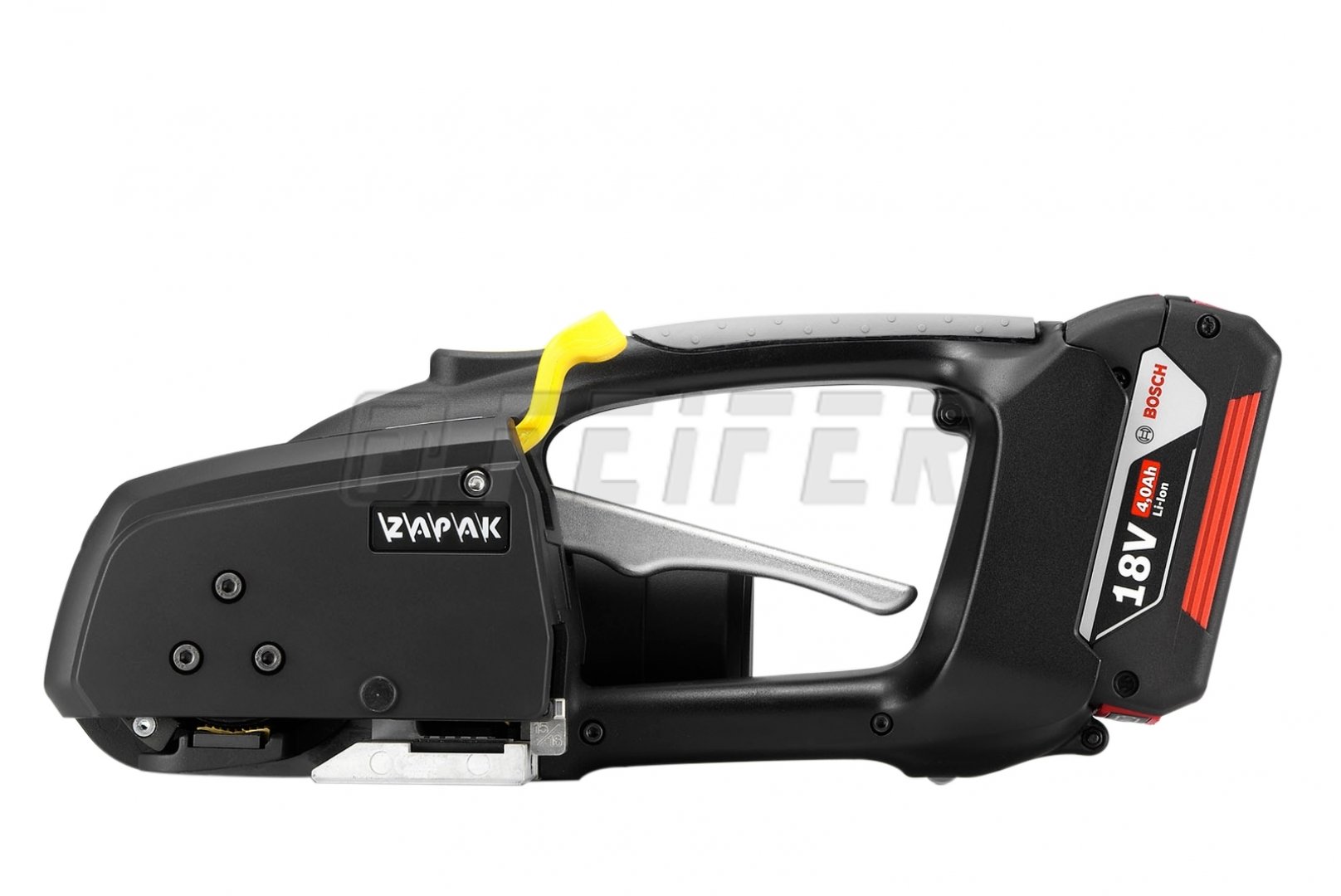

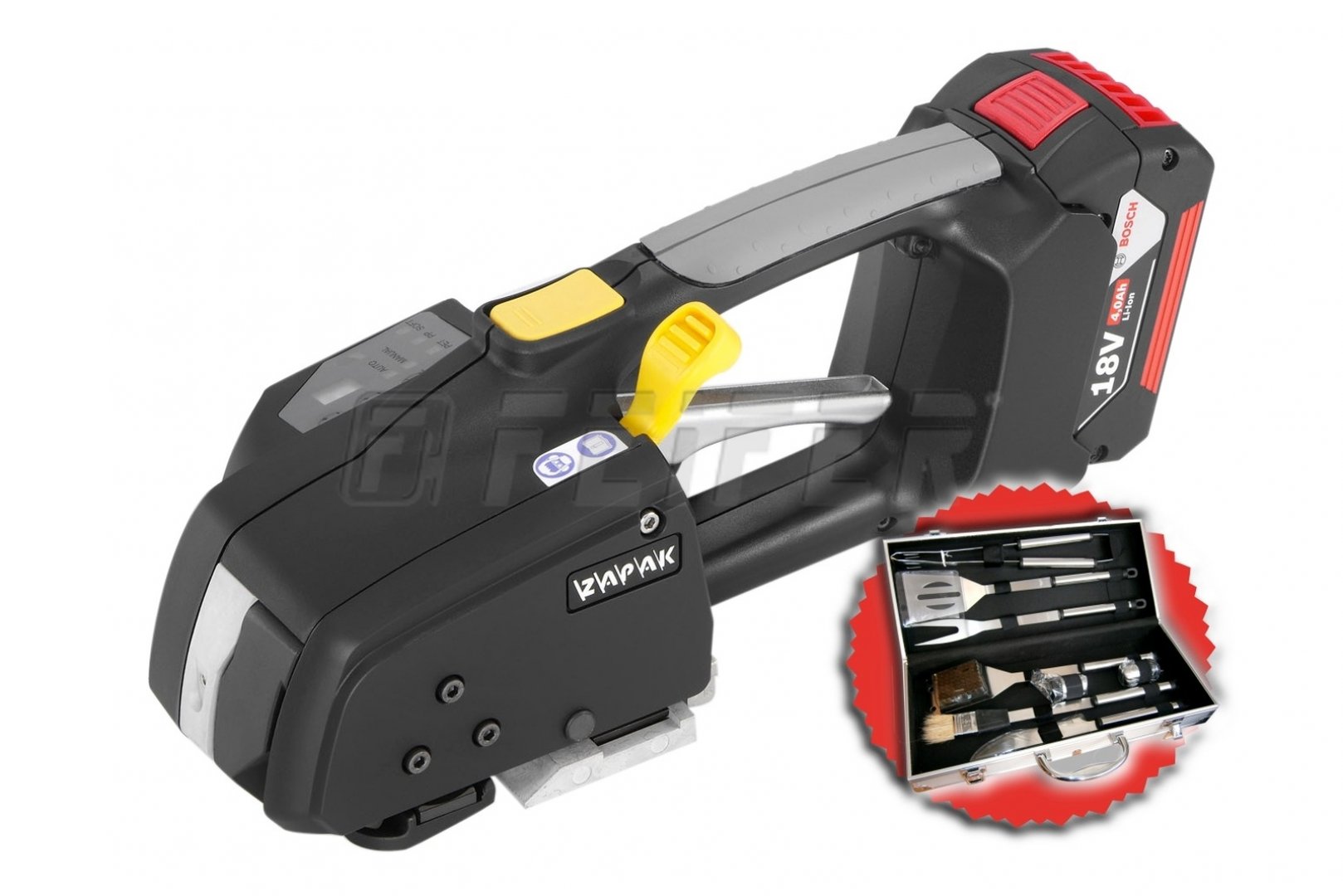

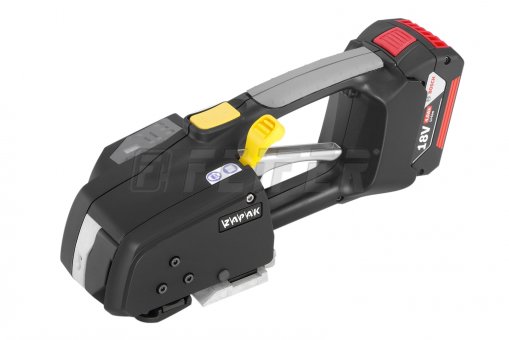

ZAPAK ZP90 - battery strapping tool for PP, PET

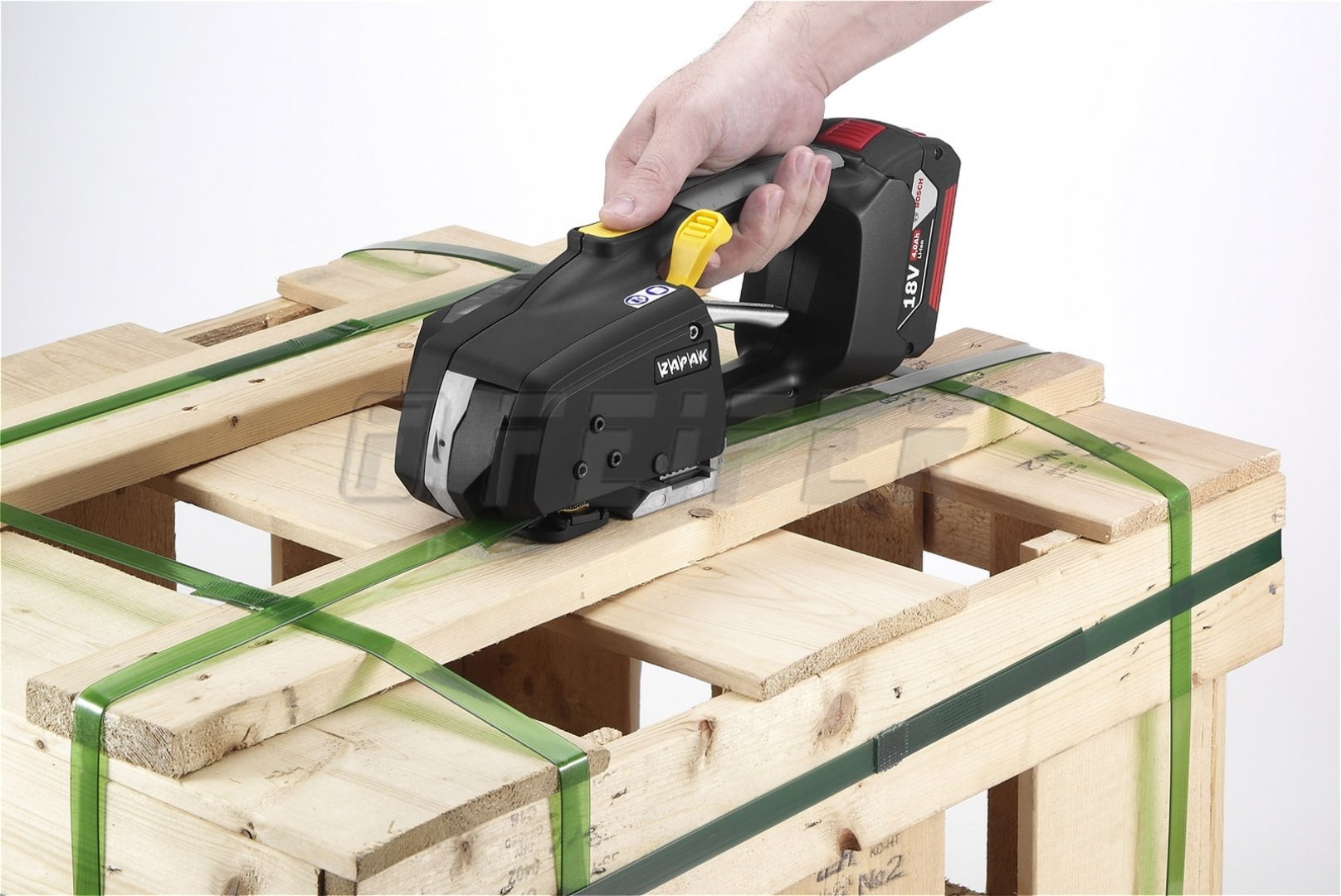

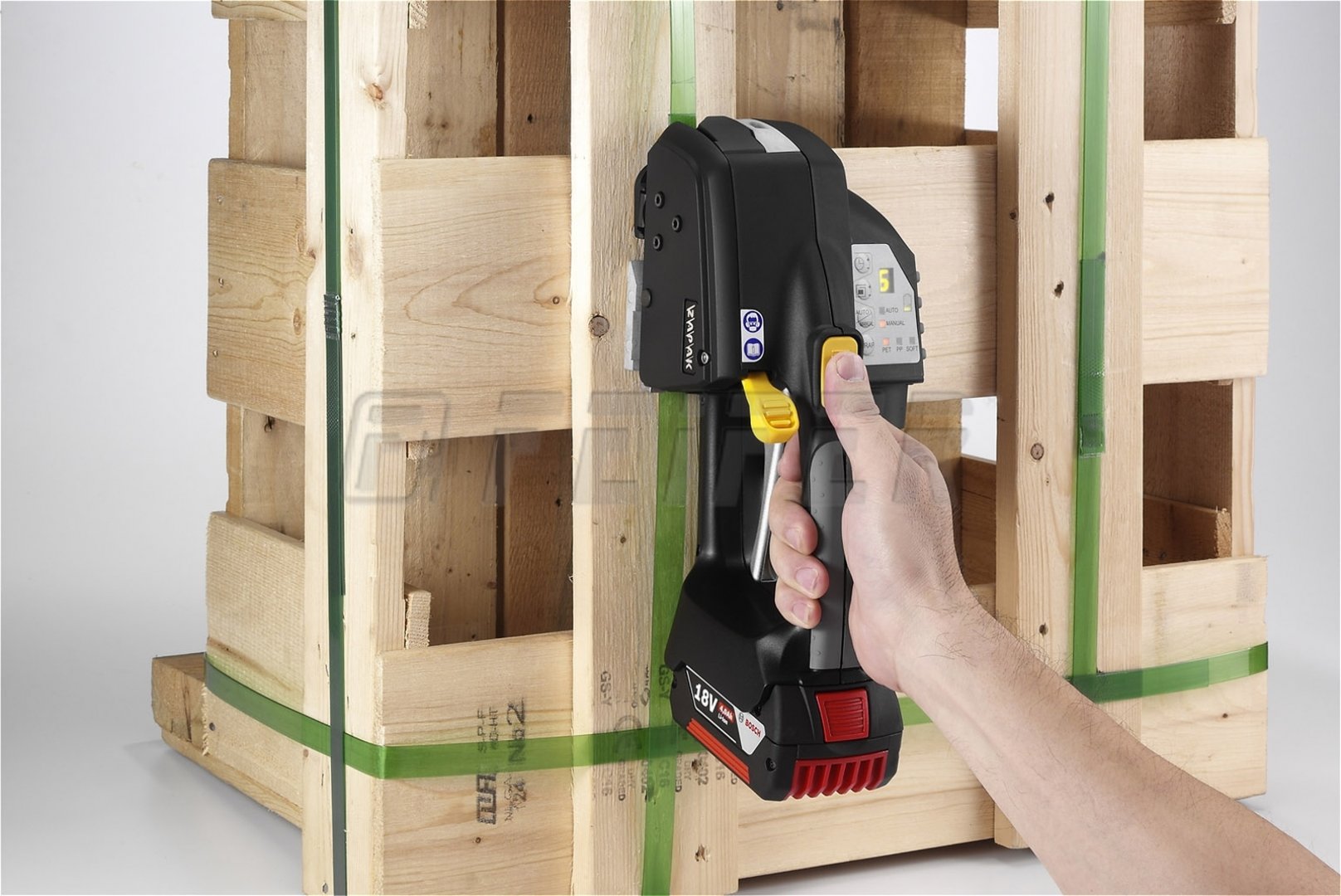

Hand-operated battery strapping tool ZAPAK ZP90 which is suitable for strapping pallets or groups of goods. PP and PET straps are used for strapping. This strapping tool is suitable for places, where it is not possible to connect to power supply, and is equipped with automatic tightening and sealing straps.



Among main advantages of this strapping tool belong:

  • highly adjustable range of tightening power (150 – 1200 N)
  • extremely low weight
  • ergonomic design
  • fluently adjustable tightening power

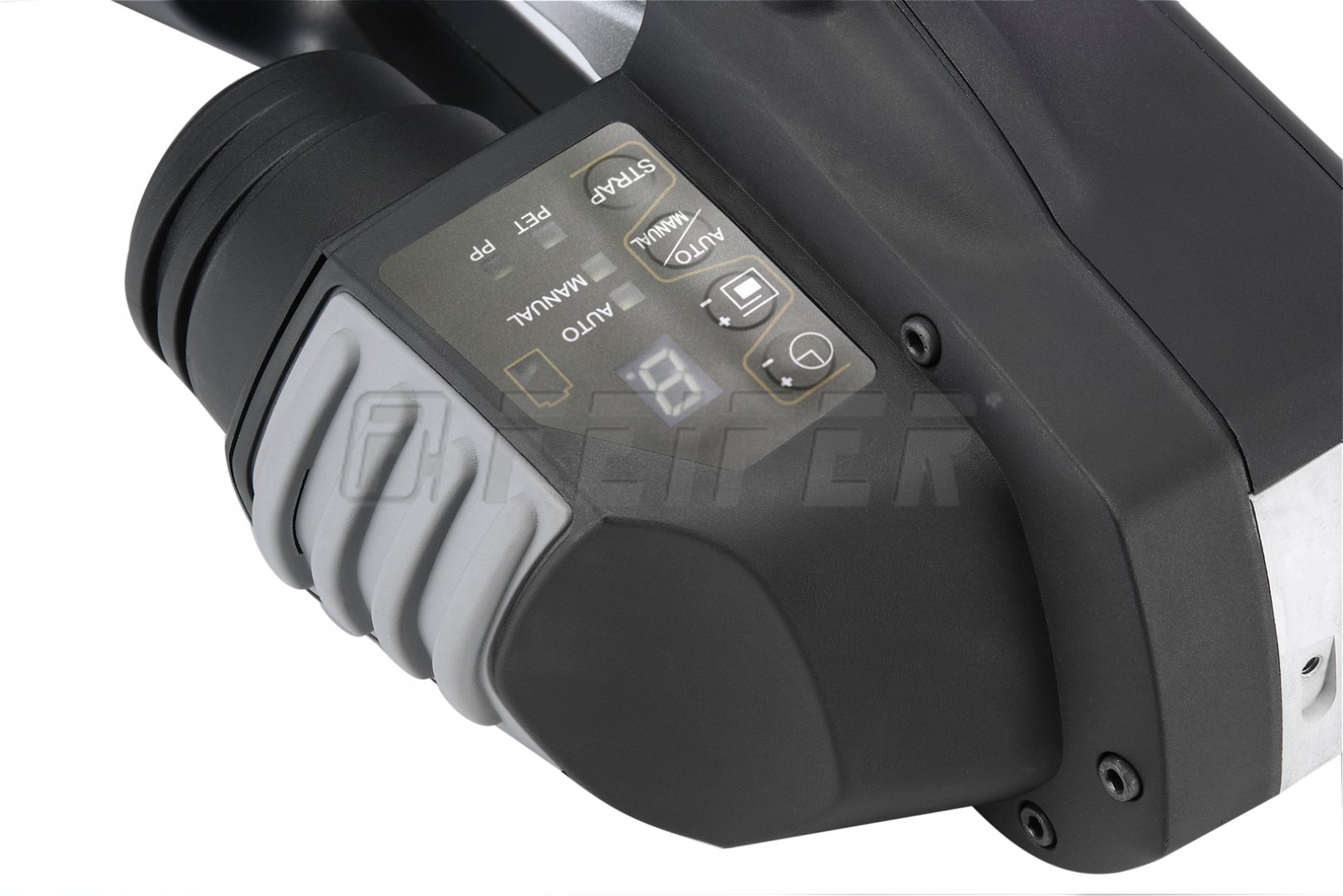

Productivity is improved by one-hand operating strapping tool. The new unique brushless motor assures longer battery and motor service life. Operation touch panel with digital lights is served for intuitive setting according to required conditions.

Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry

Technical parameters

ordering code 700 021895
strap - material PP
strap width 9 - 13 mm
strap thickness 0,45 - 0,85 mm
tightening power 150 - 1200 N
sealing method sealless
supply voltage aku 18V
weight 2,84 + 0,60 (bat.) kg
qty of strapping cycles with 1 charge 650 (PP 12 x 0,7)
battery charge time 30 min.

Standard modifications

ZAPAK ZP93 - battery strapping tool for PP, PET

ZAPAK ZP93 - battery strapping tool for PP, PET
  • strap width 9 - 16 mm
  • 18V Li-Ion battery
  • more efficient brushless motor
  • higher battery capacity

ZAPAK ZP97 - battery strapping tool for PP, PET

ZAPAK ZP97 - battery strapping tool for PP, PET
  • strap width 15 - 19 mm
  • 18V Li-Ion battery
  • more efficient brushless motor
  • higher battery capacity

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-6 - decoiler for PP straps

OP-6 - decoiler for PP straps
  • inner diameter - 400 mm
  • spring brake of strap
  • extra robust construction
  • for high frequency jobs

OP-6E - decoiler for PP straps

OP-6E - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • simple screw brake on axis
  • for low frequency jobs

OP-6EB - decoiler for PP straps

OP-6EB - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • spring brake of strap
  • for low frequency jobs

OP-10EB - decoiler for PP straps

OP-10EB - decoiler for PP straps
  • inner diameter - 200 mm
  • spring brake of strap
  • for low frequency jobs

OP-1 - decoiler for PP straps

OP-1 - decoiler for PP straps
  • inner diameter - 60 mm
  • simple screw brake on axis
  • light and portable

Strap lance

Strap lance
  • max. strap width - 35 mm
  • easy strap threading under pallet
  • for plastic and textile strap

ZP-5 - spring balancer for loading

ZP-5  - spring balancer for loading
  • max. loading - 1-5 kg
  • robust metal model (alloy)
  • pre-tensioning by ergonom. rose
  • safety device in case of break

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black

PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
  • width 12 mm, thickness 0,50 mm
  • black color
  • strenght 1300 N
  • tube 200 mm, roll 3100 m

PP (polypropylen) strap 12 x 0,50 mm, 400/180 - 3000 m, 1300 N, black

PP (polypropylen) strap 12 x 0,50 mm, 400/180 - 3000 m, 1300 N, black
  • width 12 mm, thickness 0,50 mm
  • black color
  • strenght 1300 N
  • tube 400 mm, roll 3000 m

PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black

PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
  • width 12 mm, thickness 0,55 mm
  • black color
  • strenght 1500 N
  • tube 200 mm, roll 3000 m

PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white

PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
  • width 12 mm, thickness 0,55 mm
  • natural color (white)
  • strenght 1500 N
  • tube 200 mm, roll 3000 m

PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black

PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
  • width 12 mm, thickness 0,70 mm
  • black color
  • strenght 2200 N
  • tube 200 mm, roll 2500 m

PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black

PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black
  • width 12 mm, thickness 0,70 mm
  • black color
  • strenght 2000N
  • tube 406 mm, roll 2200 m

PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black

PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black
  • width 12 mm, thickness 0,70 mm
  • black color
  • strenght 1850 N
  • tube 406 mm, roll 2000 m

PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green

PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green
  • width 12 mm, thickness 0,60 mm
  • green color
  • strenght 2600 N
  • tube 406 mm, roll 2500 m
