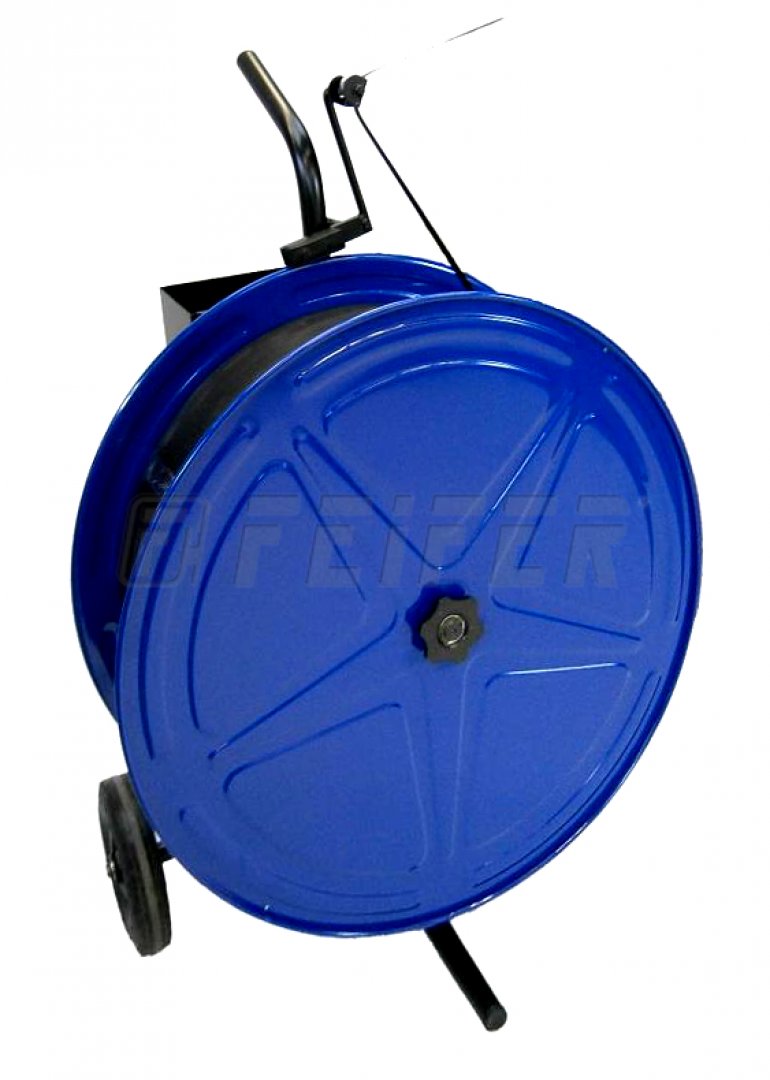

OP-6 - decoiler for PP straps

Type OP-6 is intended for unwinding PP and PET strap with the coil of inner diameter of 400 mm. This type is equipped with a spring brake of strap and with robust construction, which is suitable for high frequency jobs.

Technical parameters
Modification
Accessories
Packing material
Inquiry

Technical parameters

ordering code 600 000093
inner diameter of roll 400 mm
brake yes
outer diameter of roll 600 mm
weight 17,0 kg

Standard modifications

OP-6E - decoiler for PP straps

OP-6E - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • simple screw brake on axis
  • for low frequency jobs

OP-6EB - decoiler for PP straps

OP-6EB - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • spring brake of strap
  • for low frequency jobs

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

OP-10EB - decoiler for PP straps

OP-10EB - decoiler for PP straps
  • inner diameter - 200 mm
  • spring brake of strap
  • for low frequency jobs

Recommended accessories

PP-12F strapping tool for PP straps

PP-12F strapping tool for PP straps
  • strap width - 12 mm
  • sealing method - seal type PP-12
  • reliable, lightweight
  • easy operation

XL-13 - strapping tool for PP straps

XL-13 - strapping tool for PP straps
  • strap width - 12 (13) mm
  • sealing method - seal type PP-13
  • for light goods on pallets
  • robust design

XL-16 - strapping tool for PP straps

XL-16 - strapping tool for PP straps
  • strap width - 15 (16) mm
  • sealing method - seal type PP-16
  • for light goods on pallets
  • robust design

XL-19 - strapping tool for PP straps

XL-19 - strapping tool for PP straps
  • strap width - 19 mm
  • sealing method - seal type PP-19
  • for light goods on pallets
  • robust design

PLY-13 - strapping tool for PP straps

PLY-13 - strapping tool for PP straps
  • strap width - 12 (13) mm
  • sealing method - seal type PP-13
  • for low frequency jobs
  • economical model to XL

PLY-16 - strapping tool for PP straps

PLY-16 - strapping tool for PP straps
  • strap width - 15 (16) mm
  • sealing method - seal type PP-16
  • for low frequency jobs
  • economical model to XL

PPX-13 - strapping tool for PP straps

PPX-13 - strapping tool for PP straps
  • strap width - 12 mm
  • sealing method -seal type PPX-13
  • triple strength of the join
  • robust, easy operation

PPX-16 - strapping tool for PP straps

PPX-16 - strapping tool for PP straps
  • strap width - 15 (16) mm
  • sealing method -seal type PPX-16
  • powerful tightening mechanism
  • robust, easy operation

H-21R(C) - tensioner for PP, PET straps

H-21R(C) - tensioner for PP, PET straps
  • strap width - 8 - 19 mm
  • for steel, wire and plastic buckles
  • for strapping timbers, pallets..
  • suitable for vertical strapping

ZAPAK ZP90 - battery strapping tool for PP, PET

ZAPAK ZP90 - battery strapping tool for PP, PET
  • strap width 9 - 13 mm
  • 18V Li-Ion battery
  • more efficient brushless motor
  • higher battery capacity

ZAPAK ZP93 - battery strapping tool for PP, PET

ZAPAK ZP93 - battery strapping tool for PP, PET
  • strap width 9 - 16 mm
  • 18V Li-Ion battery
  • more efficient brushless motor
  • higher battery capacity

ZAPAK ZP97 - battery strapping tool for PP, PET

ZAPAK ZP97 - battery strapping tool for PP, PET
  • strap width 15 - 19 mm
  • 18V Li-Ion battery
  • more efficient brushless motor
  • higher battery capacity

Strap lance

Strap lance
  • max. strap width - 35 mm
  • easy strap threading under pallet
  • for plastic and textile strap

Binding and packaging materials

PP (polypropylen) strap 12 x 0,50 mm, 400/180 - 3000 m, 1300 N, black

PP (polypropylen) strap 12 x 0,50 mm, 400/180 - 3000 m, 1300 N, black
  • width 12 mm, thickness 0,50 mm
  • black color
  • strenght 1300 N
  • tube 400 mm, roll 3000 m

PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black

PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black
  • width 12 mm, thickness 0,70 mm
  • black color
  • strenght 2000N
  • tube 406 mm, roll 2200 m

PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black

PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black
  • width 12 mm, thickness 0,70 mm
  • black color
  • strenght 1850 N
  • tube 406 mm, roll 2000 m

PP strap 15 x 0,65 mm, 400/180 - 1500 m, 2200 N, black

PP strap 15 x 0,65 mm, 400/180 - 1500 m, 2200 N, black
  • width 15 mm, thickness 0,65 mm
  • black color
  • strenght 2200 N
  • tube 400, roll 1500 m

PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black

PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
  • width 15 mm, thickness 0,80 mm
  • black color
  • strenght 2700 N
  • tube 400 mm, roll 1500 m

PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green

PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green
  • width 12 mm, thickness 0,60 mm
  • green color
  • strenght 2600 N
  • tube 406 mm, roll 2500 m

PET strap 15,5 x 0,70 mm, 406/145 - 1750 m, 3860 N, green

PET strap 15,5 x 0,70 mm, 406/145 - 1750 m, 3860 N, green
  • width 15,5 mm, thickness 0,70 mm
  • green color
  • strenght 4500 N
  • tube 406 mm, roll 1750 m

PET strap 19 x 1,00 mm, 406/145 - 850 m, 8000 N, green, EMBOSS 20%

PET strap 19 x 1,00 mm, 406/145 - 850 m, 8000 N, green, EMBOSS 20%
  • width 19 mm, thickness 1,00 mm
  • green color
  • strenght 8000 N
  • tube 406 mm, roll 850 m

Steel seals PP-12 (12 mm, 205200)

Steel seals PP-12 (12 mm, 205200)
  • seal width - 12 mm
  • for PP strap
  • packaging 2500 pcs

Steel seals PP-13 (13 mm)

Steel seals PP-13 (13 mm)
  • seal width - 12 mm
  • for PP strap
  • packaging - 2500 pcs

Steel seals PP-16 (16 mm, 200400)

Steel seals PP-16 (16 mm, 200400)
  • seal width - 16 mm
  • for PP strap
  • packaging - 1600 pcs

Steel seals PP-19 (19 mm, 200500)

Steel seals PP-19 (19 mm, 200500)
  • seal width - 19 mm
  • for PP strap
  • packaging - 1300 pcs

Steel seals PPX-13 (13 mm)

Steel seals PPX-13 (13 mm)
  • seal width - 13 mm
  • for PP and PET strap
  • packaging - 1000 pcs

Steel seals PPX-16 (16 mm)

Steel seals PPX-16 (16 mm)
  • seal width - 16 mm
  • for PP and PET strap
  • packaging - 1000 pcs

PP B5XHG 16 g steel buckles 16 mm

PP B5XHG 16 g steel buckles 16 mm
  • seal width - 16 mm
  • surface coating - phospate
  • for PP and PES strap
  • packaging - 1000 pcs
