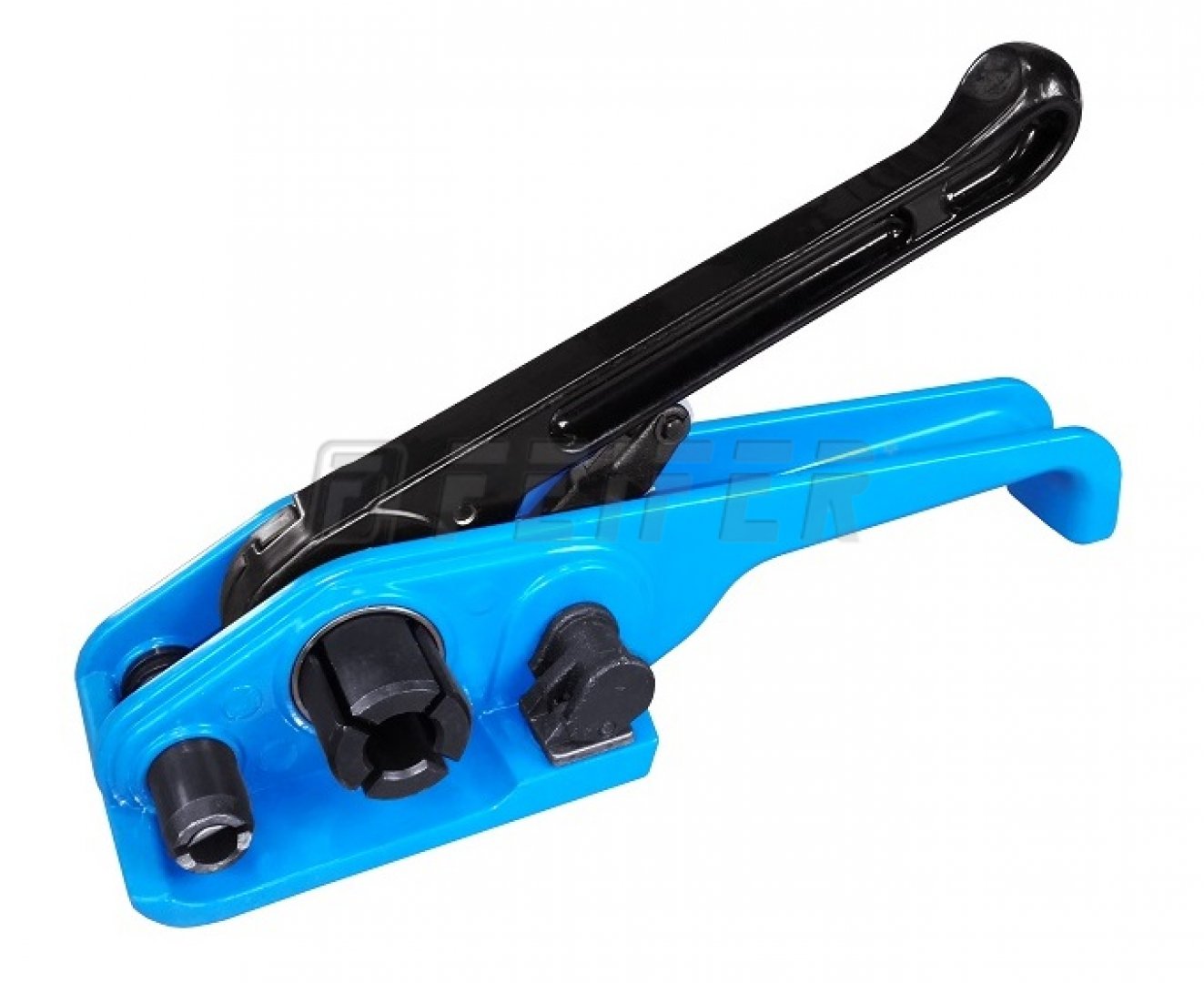

H-21R(C) - tensioner for PP, PET straps

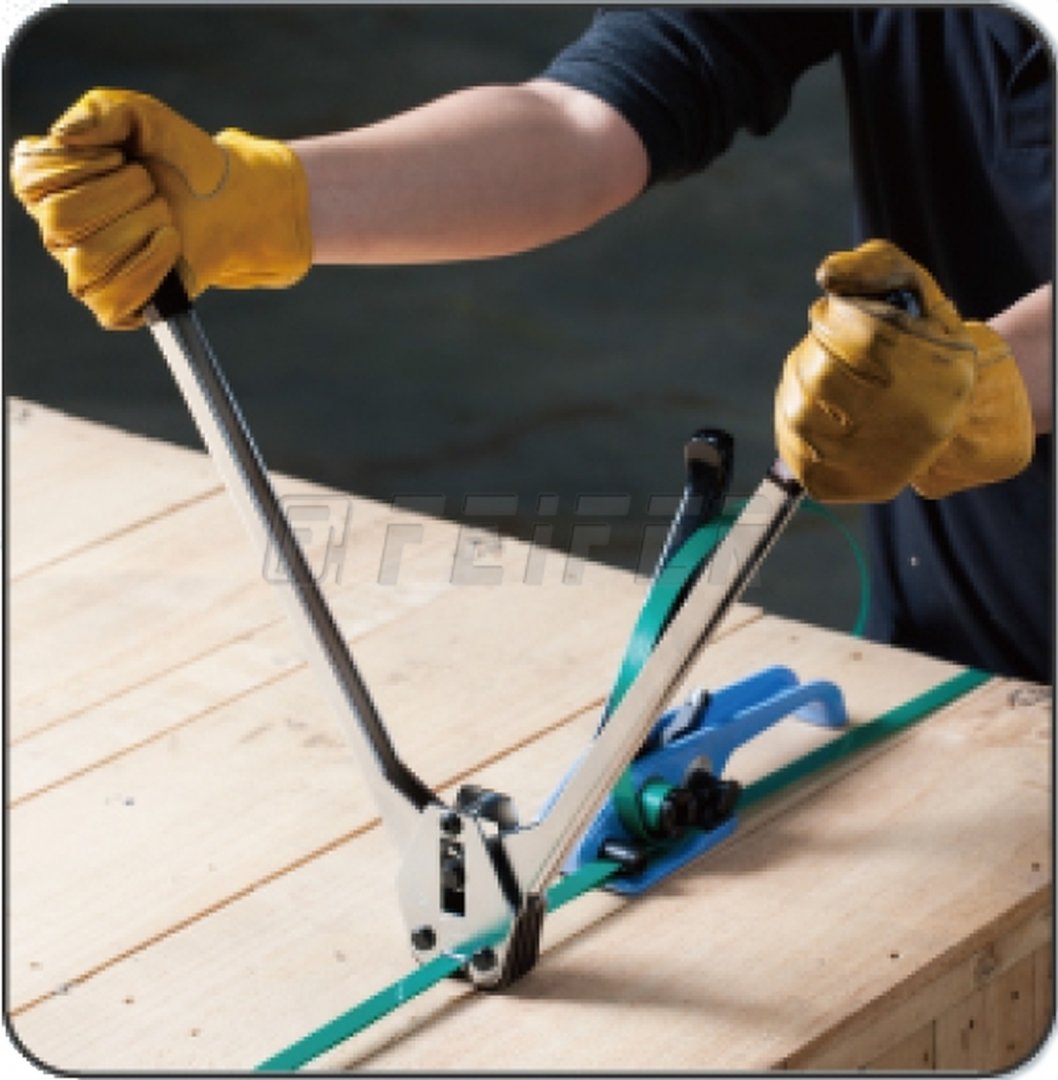

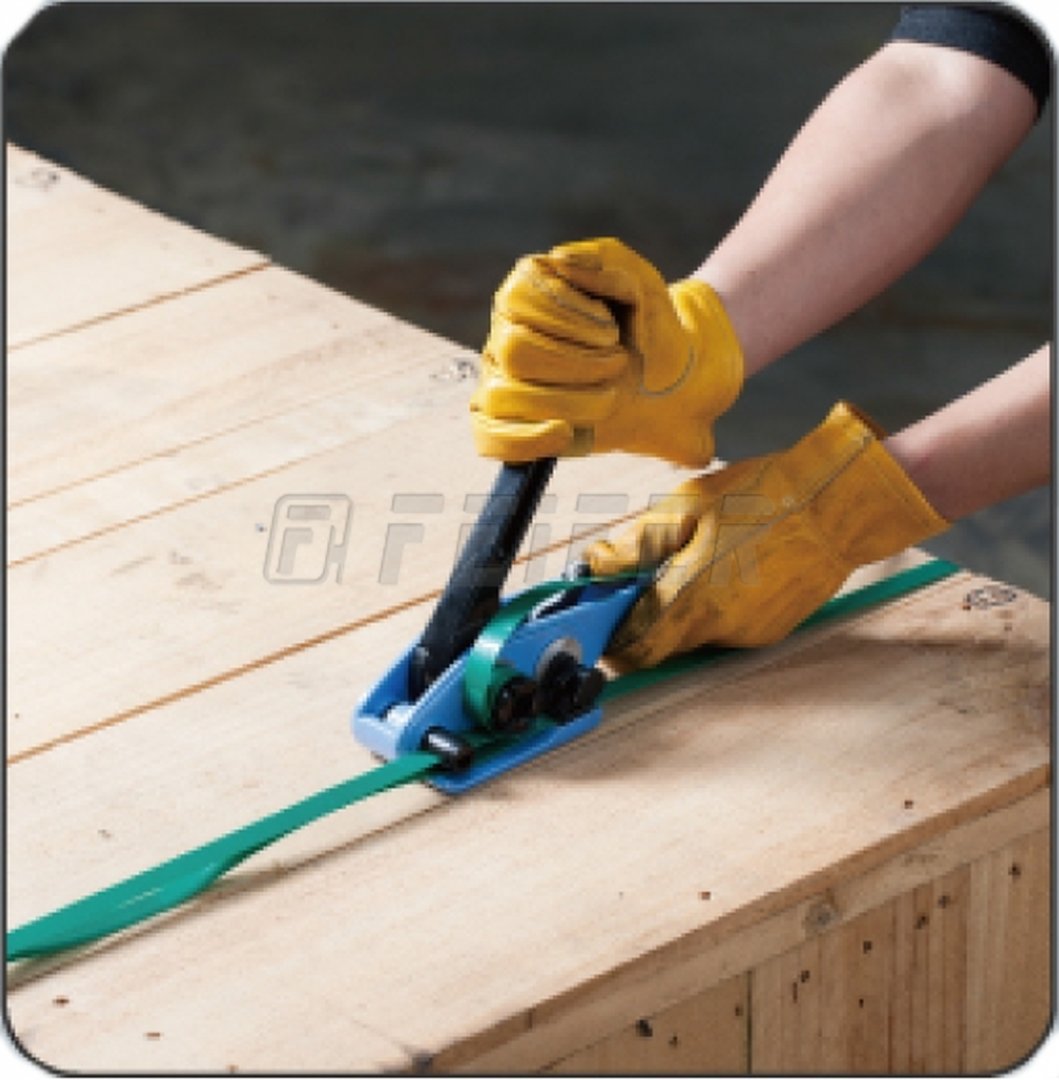

Tensioner H-21R(C) is intended for tensioning PP strap and PET strap of the width of 8 -19 mm. The joint can be made with steel or plastic buckle, or steel seal with the same width as the width of the used strap.
The steel buckle (e.g. type B5XHG) is especially suitable for strapping wood bundles, the plastic buckle (e.g. type B-12 or B-16) is suitable for lighter products, where it is not possible to use steel seal.
The steel seal (e.g. type PP-13 or PP-16) is mainly used for strapping pallets, where the joint is made in vertical position. When using steel seals it is necessary to close the seal with sealer H-35.
Technical parameters
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 012240 |
| strap - material |
PP PET |
| strap width | 8 - 19 mm |
| strap thickness | 0,5 - 0,9 mm |
| weight | 1,4 kg |
| seal - type | B-12, B-16 |
Standard modifications
Recommended accessories
H-35/12(C) - PP strapping sealer for steel seals
- strap width - 12 mm
- joint - steel seal PP-13
- for strapping of cartons on pallets
- using together with the tensioner (H-21R)
H-35/16(C) - PP strapping sealer for steel seals
- strap width - 16 mm
- joint - steel seal PP-16
- for strapping of cartons on pallets
- using together with the tensioner (H-21R)
H-35/19(C) - PP strapping sealer for steel seals
- strap width - 19 mm
- joint - steel seal PP-19
- for strapping of cartons on pallets
- using together with the tensioner (H-21R)
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
Binding and packaging materials
PP (polypropylen) strap 12 x 0,50 mm, 400/180 - 3000 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 400 mm, roll 3000 m
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP strap 15 x 0,65 mm, 400/180 - 1500 m, 2200 N, black
- width 15 mm, thickness 0,65 mm
- black color
- strength 2200 N
- tube 400, roll 1500 m
PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
- width 15 mm, thickness 0,80 mm
- black color
- strength 2700 N
- tube 400 mm, roll 1500 m
PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green
- width 12 mm, thickness 0,60 mm
- green color
- strength 2600 N
- tube 406 mm, roll 2500 m
PET strap 15,5 x 0,70 mm, 406/145 - 1750 m, 3860 N, green
- width 15,5 mm, thickness 0,70 mm
- green color
- strength 4500 N
- tube 406 mm, roll 1750 m
PP B5XHG 16 g steel buckles 16 mm
- seal width - 16 mm
- surface coating - phospate
- for PP and PES strap
- packaging - 1000 pcs
B-12 plastic buckles 12 mm
- seal width - 12 mm
- for PP strap
- packaging - 1000 pcs
B-16 plastic buckles 16 mm
- seal width - 16 mm
- for PP strap
- packaging - 1000 pcs
Steel seals PP-13 (13 mm)
- seal width - 12 mm
- for PP strap
- packaging - 2500 pcs
Steel seals PP-16 (16 mm, 200400)
- seal width - 16 mm
- for PP strap
- packaging - 1600 pcs
Steel seals PP-19 (19 mm, 200500)
- seal width - 19 mm
- for PP strap
- packaging - 1300 pcs
