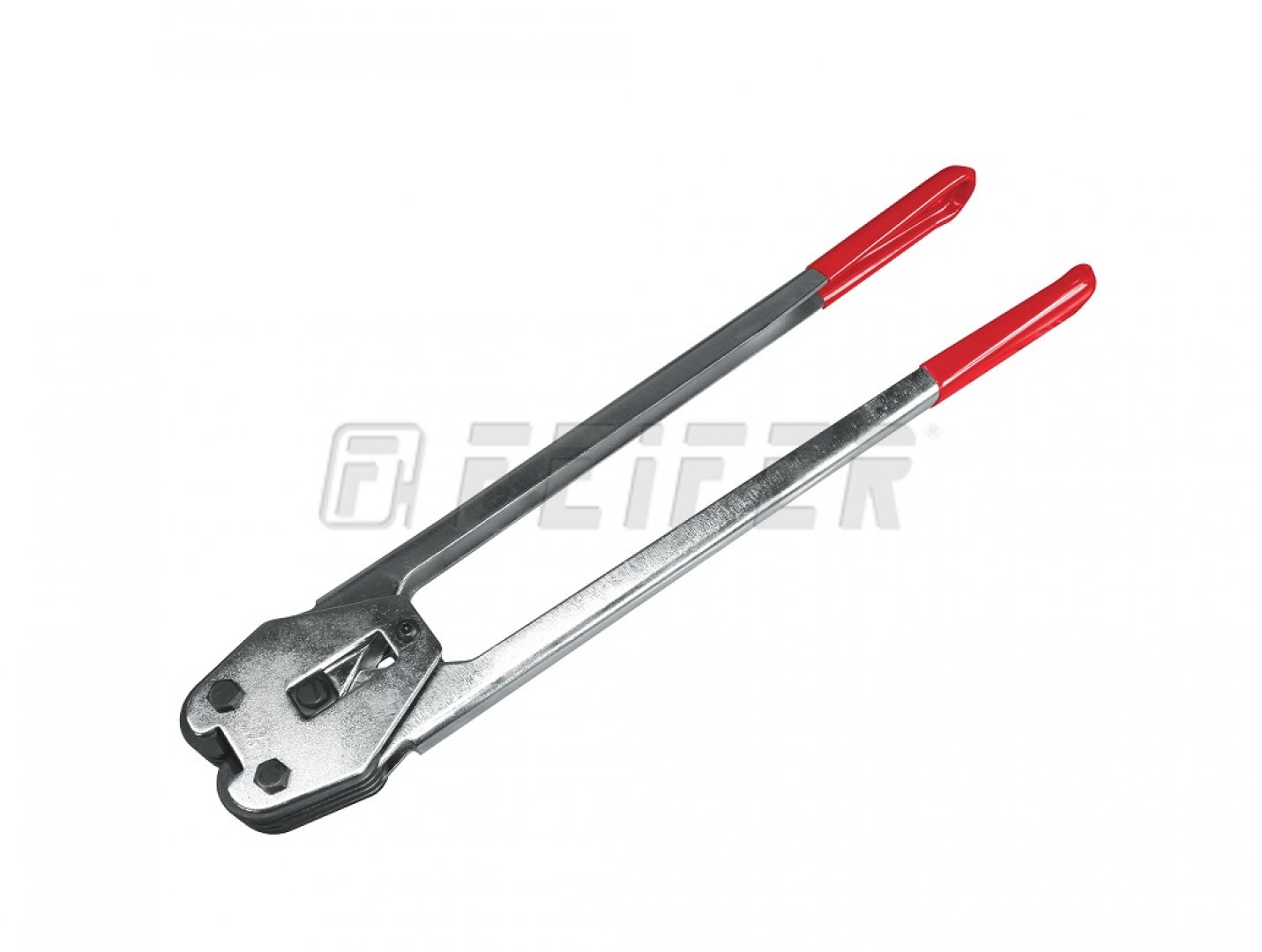

H-35/19(C) - PP strapping sealer for steel seals

H-35/19(C) - PP strapping sealer is used for transport strapping of cartons or lighter items on pallets. It is especially suitable for strapping in vertical position.

There is used polypropylene (PP) strap with width of 19 mm and with steel seal PP-19.

Strapping sealers are used only in combination with a suitable tensioner (e.g. type H-21R).

Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry

Technical parameters

ordering code 700 022688
strap - material PP
strap width 19 mm
strap thickness 0,5 - 0,9 mm
seal - type PP-19
weight 1,1 kg

Standard modifications

H-35/12(C) - PP strapping sealer for steel seals

H-35/12(C) - PP strapping sealer for steel seals
  • strap width - 12 mm
  • joint - steel seal PP-13
  • for strapping of cartons on pallets
  • using together with the tensioner (H-21R)

H-35/16(C) - PP strapping sealer for steel seals

H-35/16(C) - PP strapping sealer for steel seals
  • strap width - 16 mm
  • joint - steel seal PP-16
  • for strapping of cartons on pallets
  • using together with the tensioner (H-21R)

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-6 - decoiler for PP straps

OP-6 - decoiler for PP straps
  • inner diameter - 400 mm
  • spring brake of strap
  • extra robust construction
  • for high frequency jobs

OP-6E - decoiler for PP straps

OP-6E - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • simple screw brake on axis
  • for low frequency jobs

OP-6EB - decoiler for PP straps

OP-6EB - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • spring brake of strap
  • for low frequency jobs

OP-10EB - decoiler for PP straps

OP-10EB - decoiler for PP straps
  • inner diameter - 200 mm
  • spring brake of strap
  • for low frequency jobs

Strap lance

Strap lance
  • max. strap width - 35 mm
  • easy strap threading under pallet
  • for plastic and textile strap

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

Steel seals PP-19 (19 mm, 200500)

Steel seals PP-19 (19 mm, 200500)
  • seal width - 19 mm
  • for PP strap
  • packaging - 1300 pcs

PP strap 19 x 0,90 mm, 200/190 - 1200 m, 4050 N, black

PP strap 19 x 0,90 mm, 200/190 - 1200 m, 4050 N, black
  • width 19 mm, thickness 0,90 mm
  • black color
  • strenght 4050 N
  • tube 200 mm, roll 1200 m
