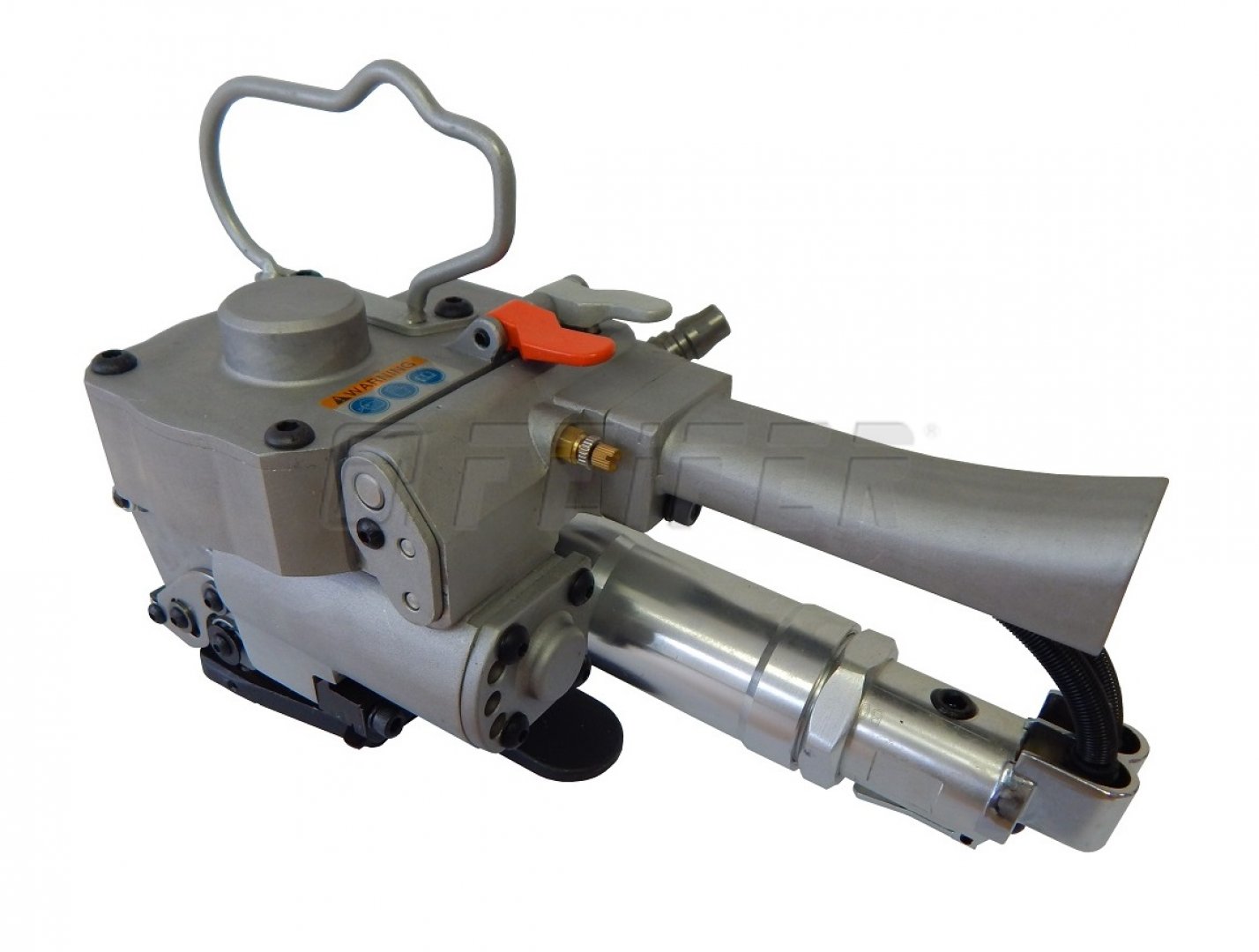

PNP-19 - pneumatic strapping tool

Hand-operated strapping tools PNP with a pneumatic drive, which is suitable for strapping pallets or groups of goods with polypropylene or polyester strap. Against electric drive the pneumatic drive is advantageous especially because of its stable working, high level of safety and also because of ideal shock absorbing this tool has high lifetime. This strapping tool is equipped with automatic strap tensioning and sealing.



Among main features of the tool belong:

  • high tightening power
  • ergonomic design
  • high reliability
  • excellent rate price / performance
Technical parameters
Accessories
Packing material
Inquiry

Technical parameters

ordering code 700 022127
strap - material PP
PET
strap width 13 - 19 mm
strap thickness (PP) 0,7 - 1,5 | (PET) 0,5 - 1,5 mm
weight 3,9 kg
dimension (l x w x h) 279 x 150 x 173 mm
compressed air 5 - 7 bar
air consumption/cycle 9 l/cyklus
tightening power max. 2750 N

Standard modifications

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-6 - decoiler for PP straps

OP-6 - decoiler for PP straps
  • inner diameter - 400 mm
  • spring brake of strap
  • extra robust construction
  • for high frequency jobs

OP-6E - decoiler for PP straps

OP-6E - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • simple screw brake on axis
  • for low frequency jobs

OP-6EB - decoiler for PP straps

OP-6EB - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • spring brake of strap
  • for low frequency jobs

OP-10EB - decoiler for PP straps

OP-10EB - decoiler for PP straps
  • inner diameter - 200 mm
  • spring brake of strap
  • for low frequency jobs

Strap lance

Strap lance
  • max. strap width - 35 mm
  • easy strap threading under pallet
  • for plastic and textile strap

ZP-5 - spring balancer for loading

ZP-5  - spring balancer for loading
  • max. loading - 1-5 kg
  • robust metal model (alloy)
  • pre-tensioning by ergonom. rose
  • safety device in case of break

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black

PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
  • width 15 mm, thickness 0,80 mm
  • black color
  • strenght 2700 N
  • tube 400 mm, roll 1500 m

PP strap 19 x 0,90 mm, 200/190 - 1200 m, 4050 N, black

PP strap 19 x 0,90 mm, 200/190 - 1200 m, 4050 N, black
  • width 19 mm, thickness 0,90 mm
  • black color
  • strenght 4050 N
  • tube 200 mm, roll 1200 m

PET strap 15,5 x 0,70 mm, 406/145 - 1750 m, 3860 N, green

PET strap 15,5 x 0,70 mm, 406/145 - 1750 m, 3860 N, green
  • width 15,5 mm, thickness 0,70 mm
  • green color
  • strenght 4500 N
  • tube 406 mm, roll 1750 m

PET strap 16 x 0,80 mm, 406/150 - 1200 m, 5200 N, EMBOSS 20%

PET strap 16 x 0,80 mm, 406/150 - 1200 m, 5200 N, EMBOSS 20%
  • width 16 mm, thickness 0,80 mm
  • green color
  • strenght 5200 N
  • tube 406 mm, roll 1200 m

PET strap 16 x 1,00 mm, 406/145 - 1200 m, 5700 N, green, EMBOSS 15%

PET strap 16 x 1,00 mm, 406/145 - 1200 m, 5700 N, green, EMBOSS 15%
  • width 16 mm, thickness 1,00 mm
  • green color
  • strenght 5700 N
  • tube 406 mm, roll 1200 m

PET strap 19 x 1,00 mm, 406/145 - 850 m, 8000 N, green, EMBOSS 20%

PET strap 19 x 1,00 mm, 406/145 - 850 m, 8000 N, green, EMBOSS 20%
  • width 19 mm, thickness 1,00 mm
  • green color
  • strenght 8000 N
  • tube 406 mm, roll 850 m
