Gravity conveyors

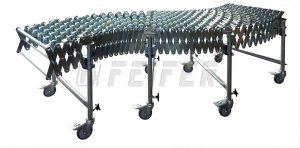

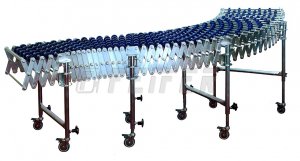

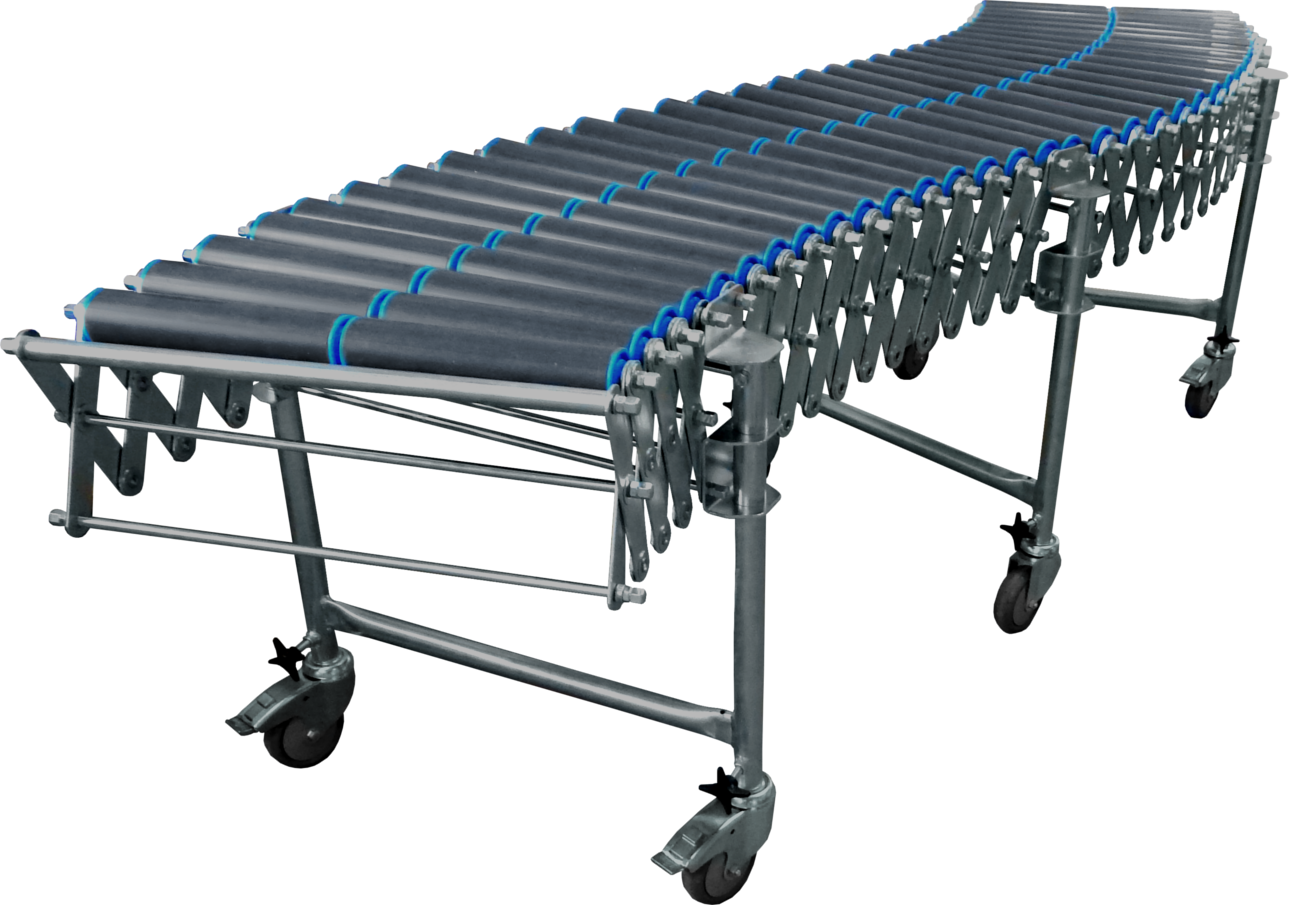

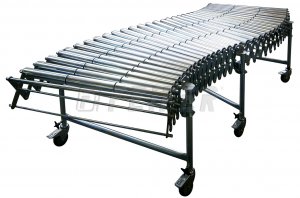

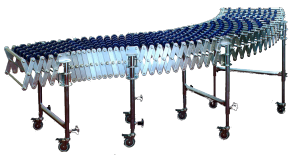

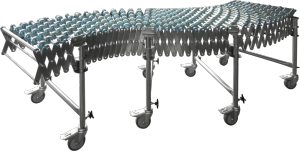

Extensible conveyors DH

  • suitable for building straight and curved conveyor tracks, both gradient and straight
  • usable mainly for transportation of cartons and similar goods with a smooth bottom part, ideal for loading (and unloading) trucks in storage centers
  • gradient of a conveyor can be modified by height adjustable legs of the conveyor
  • conveyor height is adjustable from 655 to 1000 mm
  • conveyor can be formed to curves up to 180°
  • possibility of mobile use - with wheels (with a brake on each wheel)
  • surface treatment - galvanic zinc
  • low space requirement in folded state
  • construction of the conveyor enables a safe guidance of transported goods in turns (side guidance is not necessary)
  • high quality side plates made of strength steel for heavy duty use
  • two conveyor working widths - 500 and 800 mm (total conveyor width is about 120 mm wider)
  • there are 5 - 8 skate wheels or 1 - 3 rollers (with diameter of 50 mm) on one axis
  • possible modifications:
    • polyamide skate wheels - resistant to abrasion, usable in food industry
    • steel zinc-chromate skate wheels - with high resistance, heavy duty use
    • plastic rollers - equipped with the bearing which is placed in the polyamide distance ring, body of the roller is made of PVC
    • metal rollers - equipped with the bearing, the roller is made of steel and with zinc-chromate surface

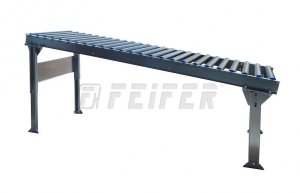

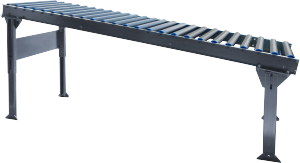

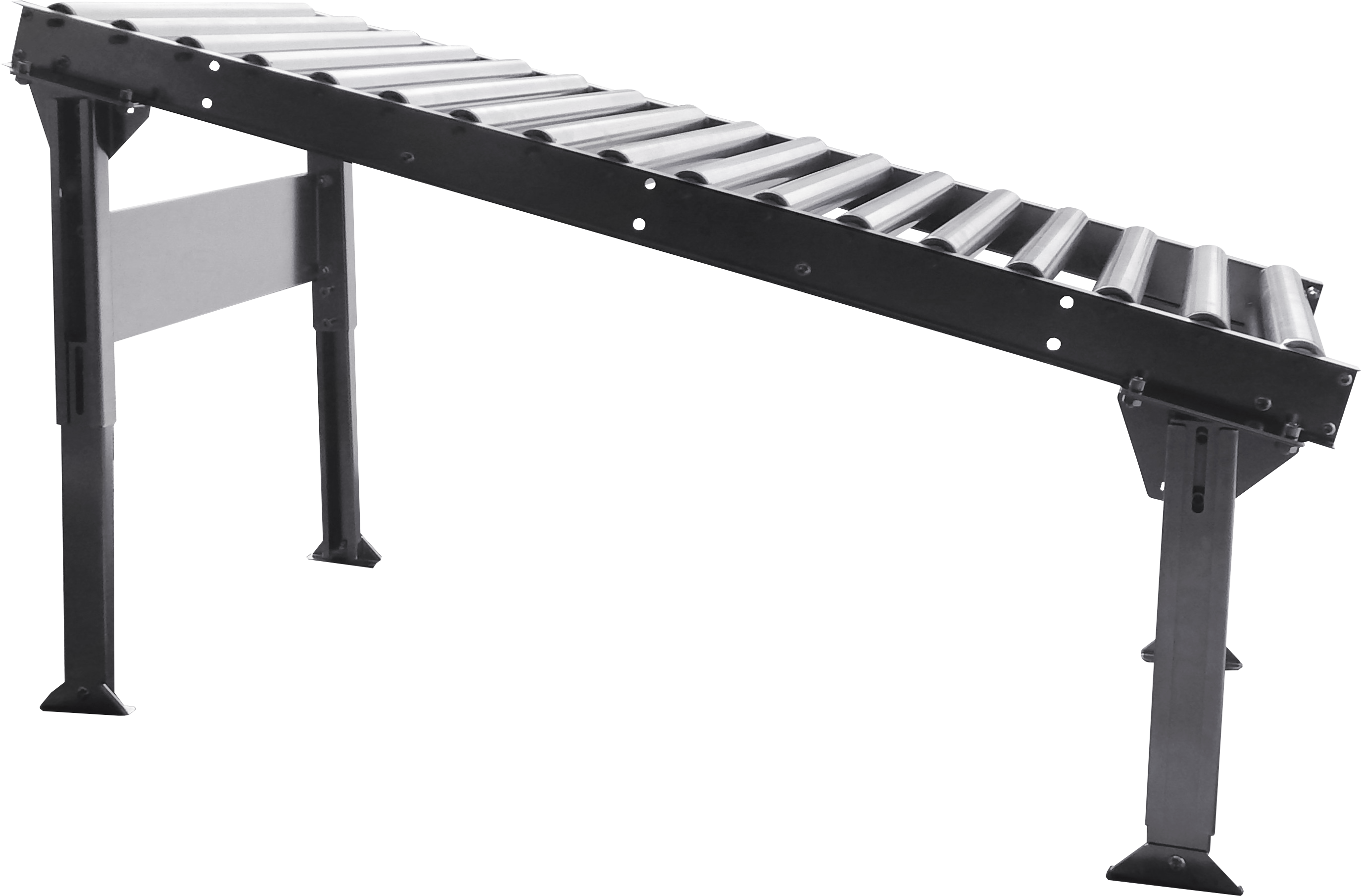

Modular conveyor system DP

  • suitable for building conveyor tracks from straight and curved modules
  • usable mainly for transportation of cartons as well as other goods with a smooth bottom part
  • the conveyor is possible to combine with other modules to make conveyor tracks according to requirements
  • large range of accessories available
  • possibility of height adjustment for setting required gradient - 580 - 920 mm
  • 3 conveyor working widths (300, 500 and 800 mm) and modules with 3 different lengths (1000, 1500 and 2000 mm)
  • design with plastic or metal rollers - with diameter of 50 mm
  • stable side profiles for high load capacity
  • surface treatment - galvanic zinc






More information

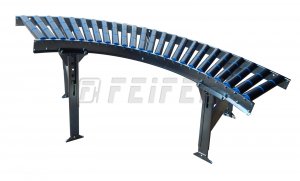

DR500 conveyor - plastic rollers, curved module 90°, R=800 mm, A=80 mm

DR500 conveyor - plastic rollers, curved module 90°, R=800 mm, A=80 mm
  • turn 90°
  • plastic rollers
  • width - 580 mm, R=800 mm
  • roller axis pitch - 80 mm

DR500 conveyor - plastic rollers, curved module 90°, R=800 mm, A=100 mm

DR500 conveyor - plastic rollers, curved module 90°, R=800 mm, A=100 mm
  • turn 90°
  • plastic rollers
  • width - 580 mm, R=800 mm
  • roller axis pitch - 100 mm

DP300 conveyor - steel rollers, L=1500 mm, A=60 mm

DP300 conveyor - steel rollers, L=1500 mm, A=60 mm
  • for straight routes
  • steel rollers
  • width - 380 mm, length - 1,5 m
  • roller axis pitch - 60 mm

DH500 conveyor - 5 plastic skate wheels, extensible 0,76-2,68 m

DH500 conveyor - 5 plastic skate wheels, extensible 0,76-2,68 m
  • for straight and curved routes
  • 5 plastic skate wheels on axis
  • conveyor length - 0,76 - 2,68 m
  • conveyor width - 500 mm

DP800 conveyor - steel rollers, L=1500 mm, A=80 mm

DP800 conveyor - steel rollers, L=1500 mm, A=80 mm
  • for straight routes
  • steel rollers
  • width - 880 mm, length - 1,5 m
  • roller axis pitch - 80 mm

DP800 conveyor - plastic rollers, L=1500 mm, A=80 mm

DP800 conveyor - plastic rollers, L=1500 mm, A=80 mm
  • for straight routes
  • plastic rollers
  • width - 880 mm, length - 1,5 m
  • roller axis pitch - 80 mm

DP300 conveyor - steel rollers, L=2000 mm, A=80 mm

DP300 conveyor - steel rollers, L=2000 mm, A=80 mm
  • for straight routes
  • steel rollers
  • width - 380 mm, length - 2 m
  • roller axis pitch - 80 mm

DP800 conveyor - steel rollers, L=1000 mm, A=100 mm

DP800 conveyor - steel rollers, L=1000 mm, A=100 mm
  • for straight routes
  • steel rollers
  • width - 880 mm, length - 1 m
  • roller axis pitch - 100 mm

DH500 conveyor - 2 plastic rollers, extensible 1,10 - 2,68m

DH500 conveyor - 2 plastic rollers, extensible 1,10 - 2,68m
  • for straight and curved routes
  • 2 plastic rollers on axis
  • conveyor length - 1,10 - 2,68 m
  • conveyor width - 500 mm

DH800 conveyor - 1 steel roller, extensible 2,31 - 5,80m

DH800 conveyor - 1 steel roller, extensible 2,31 - 5,80m
  • for straight and curved routes
  • 1 steel roller on axis
  • conveyor length - 2,31 - 5,80 m
  • conveyor width - 800 mm

DH500 conveyor - 2 steel rollers, extensible 1,10 - 2,68m

DH500 conveyor - 2 steel rollers, extensible 1,10 - 2,68m
  • for straight and curved routes
  • 2 steel rollers on axis
  • conveyor length - 1,10 - 2,68 m
  • conveyor width - 500 mm

DH500 conveyor - 5 steel skate wheels, extensible 0,76 - 2,68 m

DH500 conveyor - 5 steel skate wheels, extensible 0,76 - 2,68 m
  • for straight and curved routes
  • 5 steel skate wheels on axis
  • conveyor length - 0,76 - 2,68 m
  • conveyor width - 500 mm

DH800 conveyor - 1 steel roller, extensible 1,70 - 4,24m

DH800 conveyor - 1 steel roller, extensible 1,70 - 4,24m
  • for straight and curved routes
  • 1 steel roller on axis
  • conveyor length - 1,70 - 4,24 m
  • conveyor width - 800 mm

DH500 conveyor - 5 steel skate wheels, extensible 1,16 - 4,24m

DH500 conveyor - 5 steel skate wheels, extensible 1,16 - 4,24m
  • for straight and curved routes
  • 5 steel skate wheels on axis
  • conveyor length - 1,16 - 4,24 m
  • conveyor width - 500 mm

DP300 conveyor - plastic rollers, L=1500 mm, A=60 mm

DP300 conveyor - plastic rollers, L=1500 mm, A=60 mm
  • for straight routes
  • plastic rollers
  • width - 380 mm, length - 1,5 m
  • roller axis pitch - 60 mm
