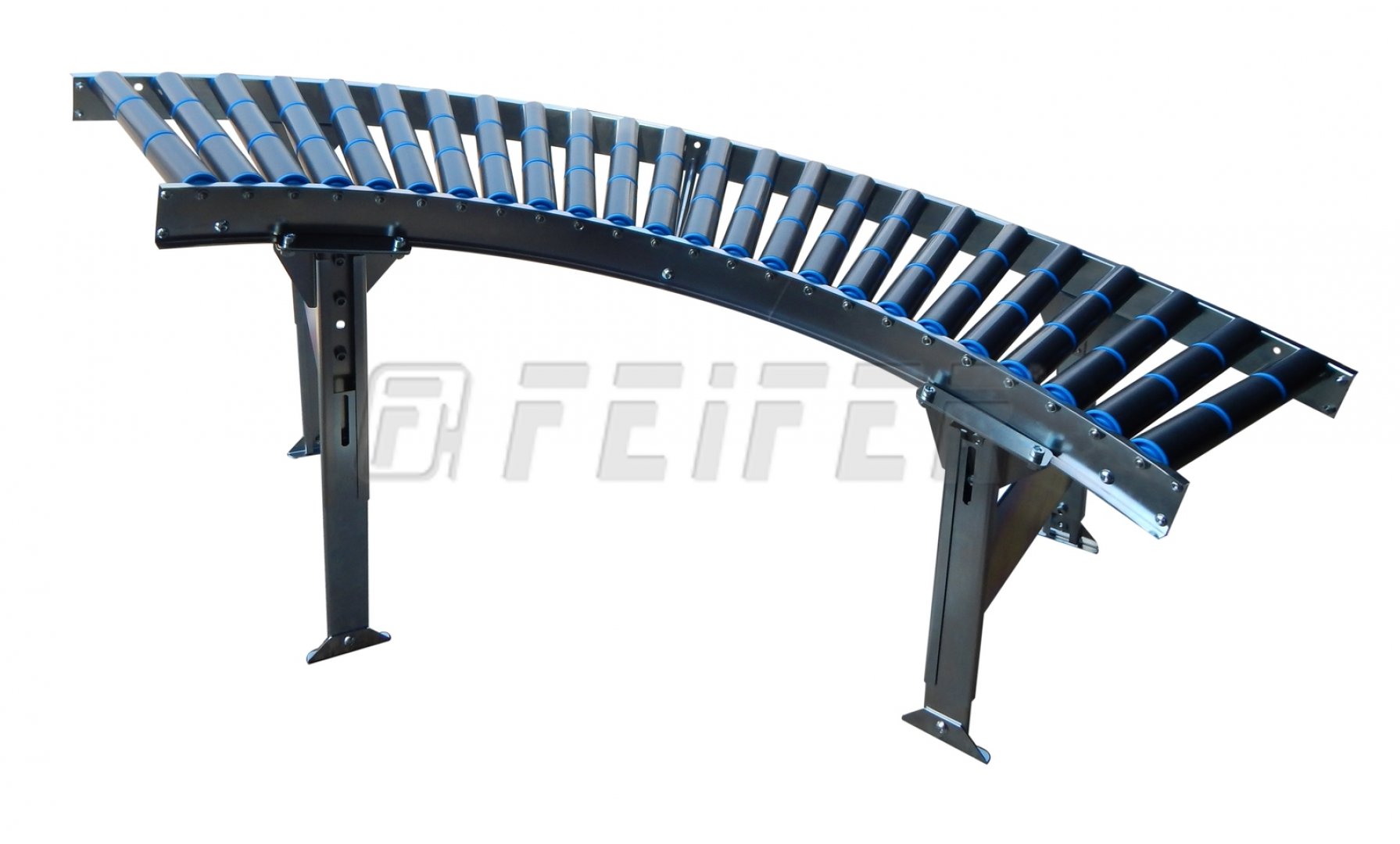

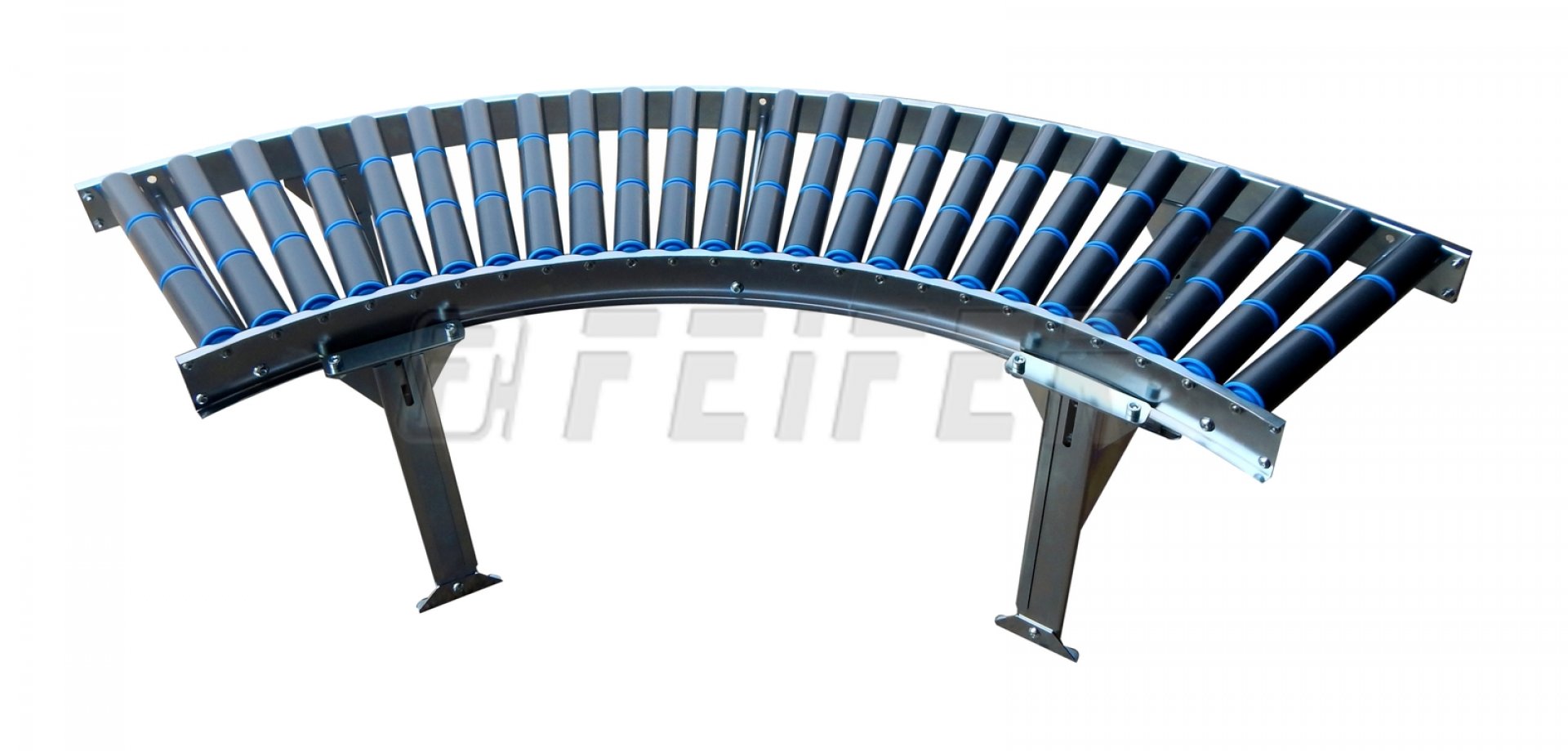

DR500 conveyor - plastic rollers, curved module 90°, R=800 mm, A=80 mm
Non-driven gravity roller conveyor DR curved module 90° is suitable for building conveyor routes from straight and curved modules. This conveyor is intended for transporting cartons as well as other goods with a flat and firm bottom part. This conveyor can be combined into an infinite number of functional modules which again can be combined endlessly.
- possibility of height adjustment for setting required slope - 580-920 mm
- 3 working conveyor widths (300, 500 and 800 mm)
- with plastic or metal rollers – with diameter of 50 mm
- stable side profiles for high load capacity
- surface treatment – galvanic zinc
This model is equipped with plastic rollers, width of the track is 580 mm, curved module 90° - inner diameter-800 mm, axis distance is 80 mm.
Maximum load = max. allowed steady conveyor loading in kg.
Max. load capacity for plastic roller conveyors is expressed in kg/1m regardless of the conveyor length.
Technical parameters
Inquiry
Technical parameters
| ordering code | 600 001418 |
| track version | plastic rollers |
| working conveyor width | 500 mm |
| conveyor width | 580 mm |
| roller axis pitch | 80 mm |
| min. length of a product | 225 mm |
| max. width of a product | 600 mm |
| conveyor height | 580-920 mm |
| max. loading (kg/m) | 180 kg |
| roller diameter | 50 mm |
| inner diameter | 800 mm |
