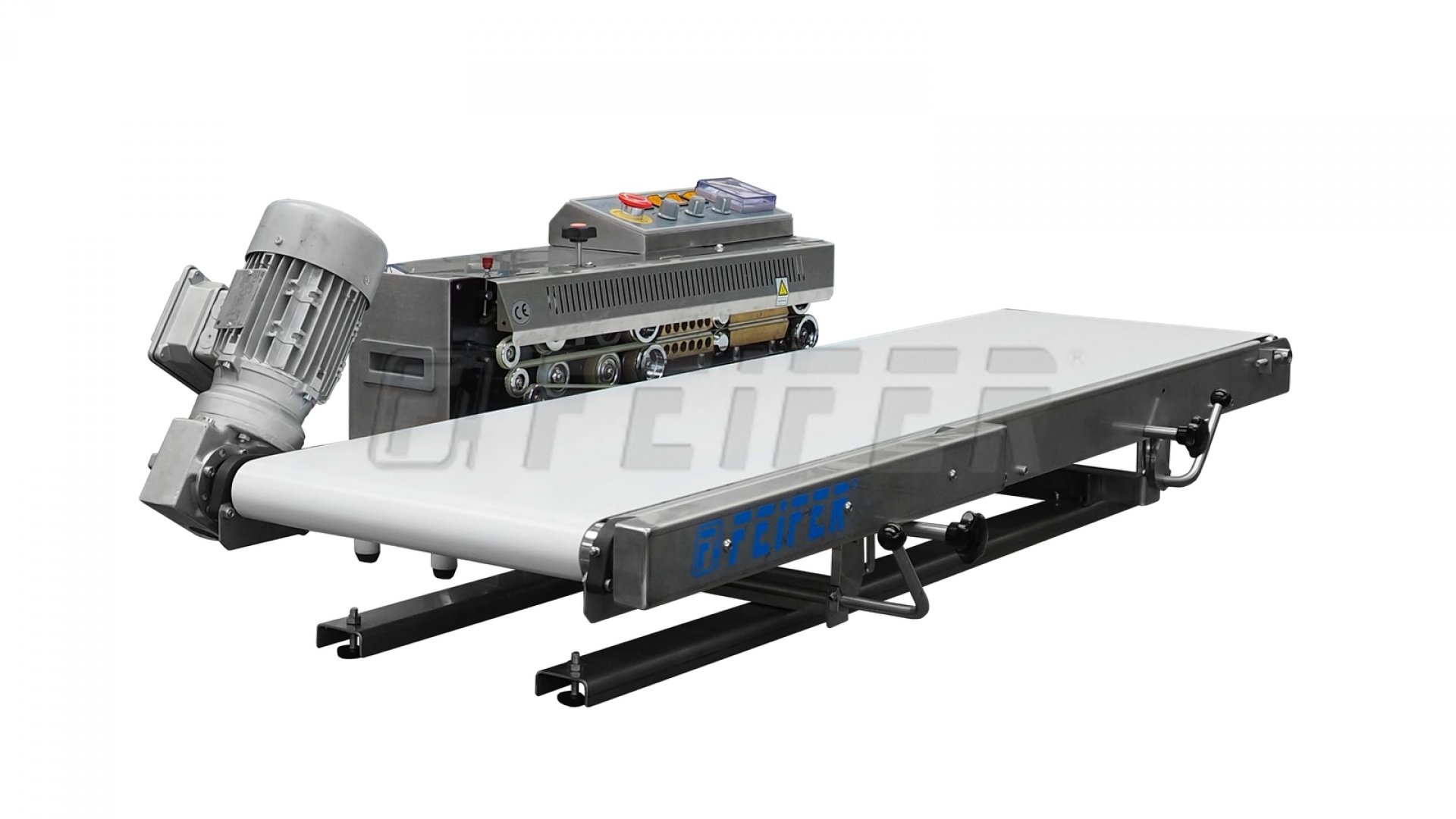

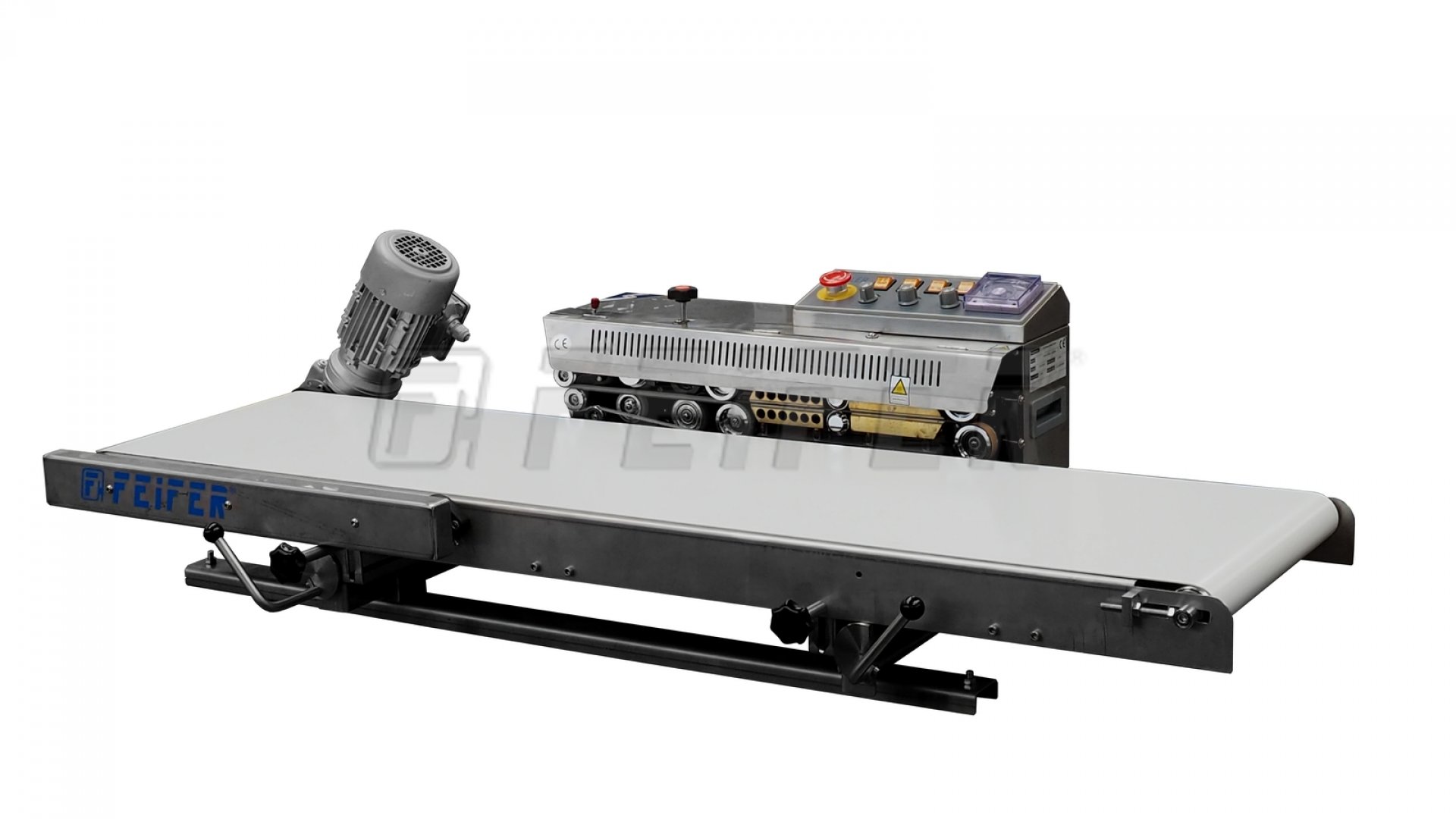

BS-881 XXL - band sealer

  • suitable for large bags
  • electronic control unit of welding speed and welding temperature
  • printing of alphanumeric core with dry ink
  • adjustable conveyor height
  • a rugged conveyo with a load capaity of 25 kg
  • conveyor size 1500 x 400 mm (L x W)
  • equipped with a cooling fan for welding in standard
  • stainless steel design
Technical parameters
Modification
Inquiry

Technical parameters

ordering code 600 000376
supply voltage 230V/50Hz
power input 0,85 kW
recommended material for sealing PE
PP
PS
PVC
paper
alu with painting
sealing width 10 mm
sealing speed adjustment 1 - 12 m/min.
sealing temperature adjustment 30 - 300 °C
machine length 1500 mm
machine width 680 mm
machine height 450 mm
weight 62 kg
conveyor length 1500 mm
total track width 400 mm
max. loading 25 kg

Standard modifications

BS-871 - band sealer

BS-871 - band sealer
  • horizontal continuous sealer
  • for short and wide bags
  • sealing width - 10 mm
  • for high frequency jobs

BS-872 - band sealer

BS-872 - band sealer
  • vertical continuous sealer
  • for powdery or liquid materials
  • sealing width - 10 mm
  • for high frequency jobs

BS-881 - band sealer

BS-881 - band sealer
  • horizontal continuous sealer
  • for short and wide bags
  • sealing width - 10 mm
  • for high frequency jobs

BS-882 - band sealer

BS-882 - band sealer
  • vertical continuous sealer
  • for powdery or liquid materials
  • sealing width - 10 mm
  • for high frequency jobs

BS-882 II. XXL - band sealer

BS-882 II. XXL - band sealer
  • vertical continuous sealer
  • for powdery or liquid materials
  • sealing width 10 mm
  • max. conveyor‘s loading capacity up to 25 kg
