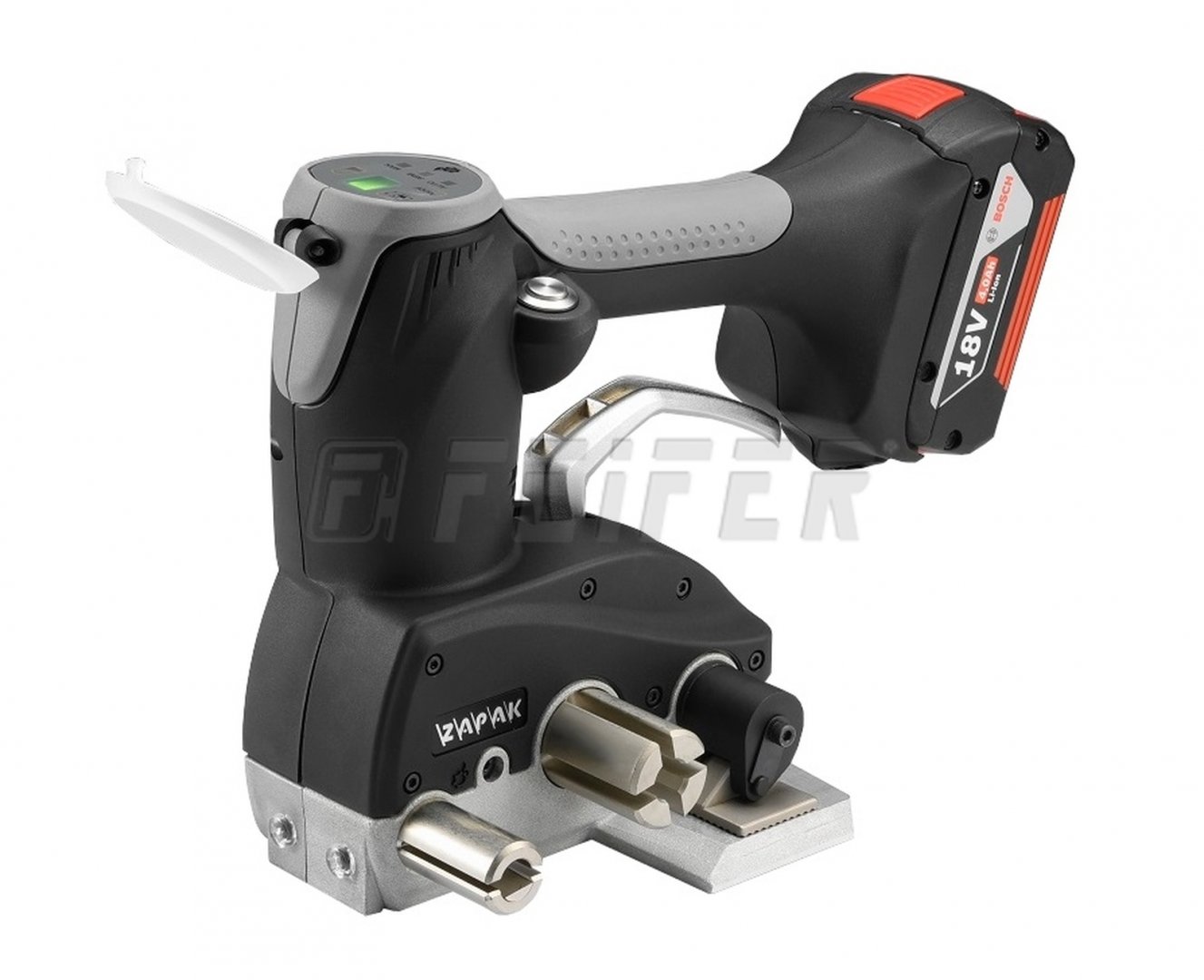

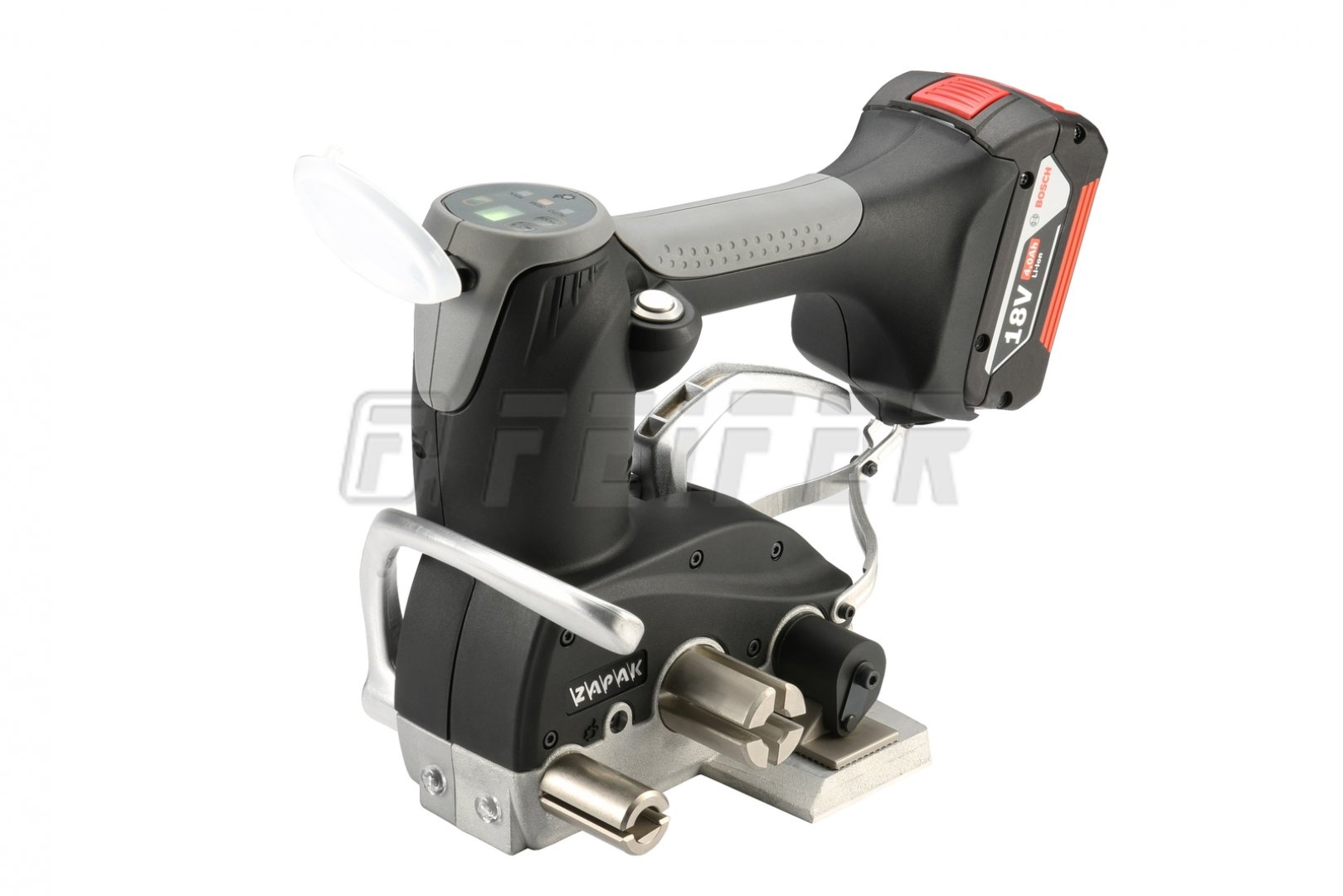

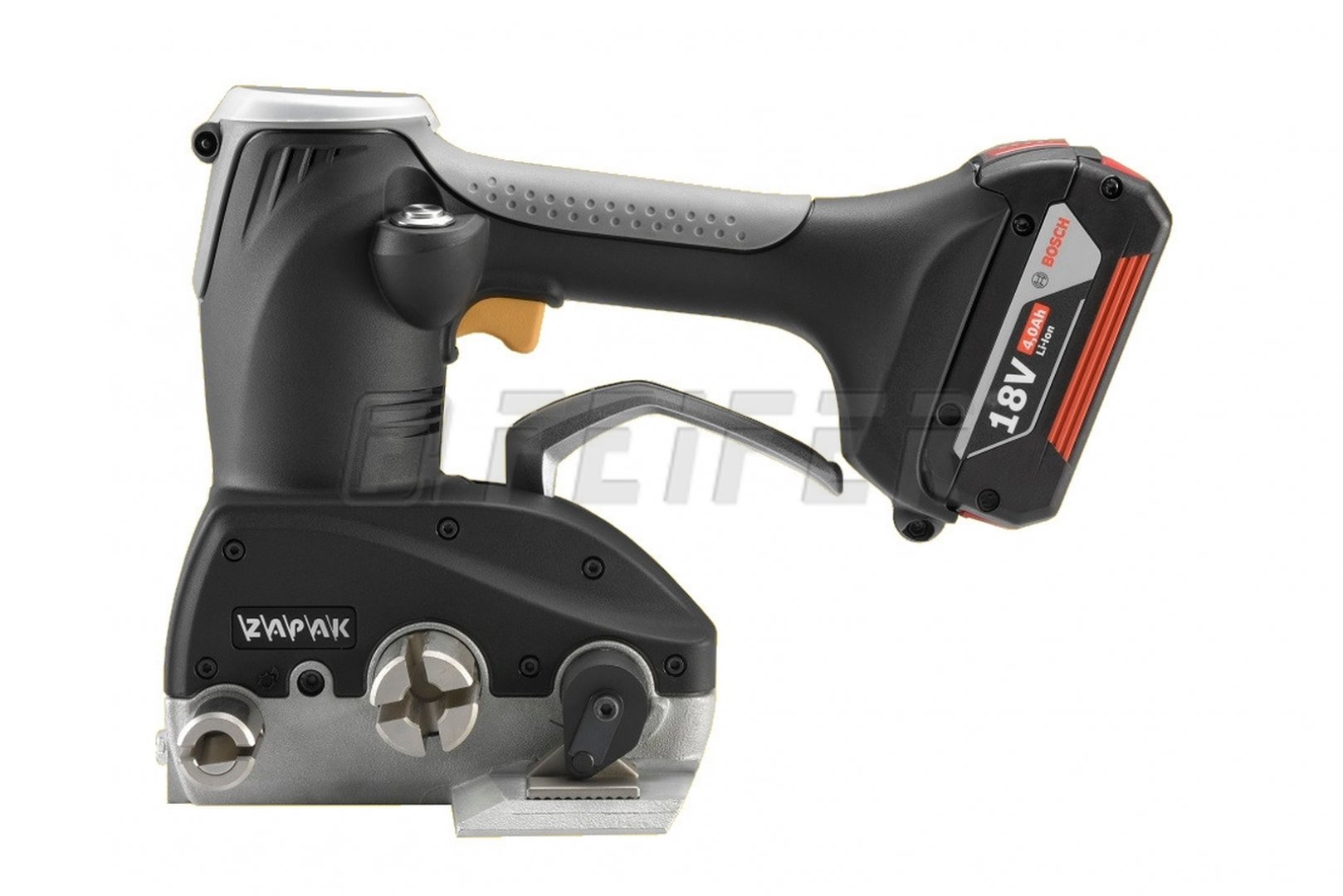

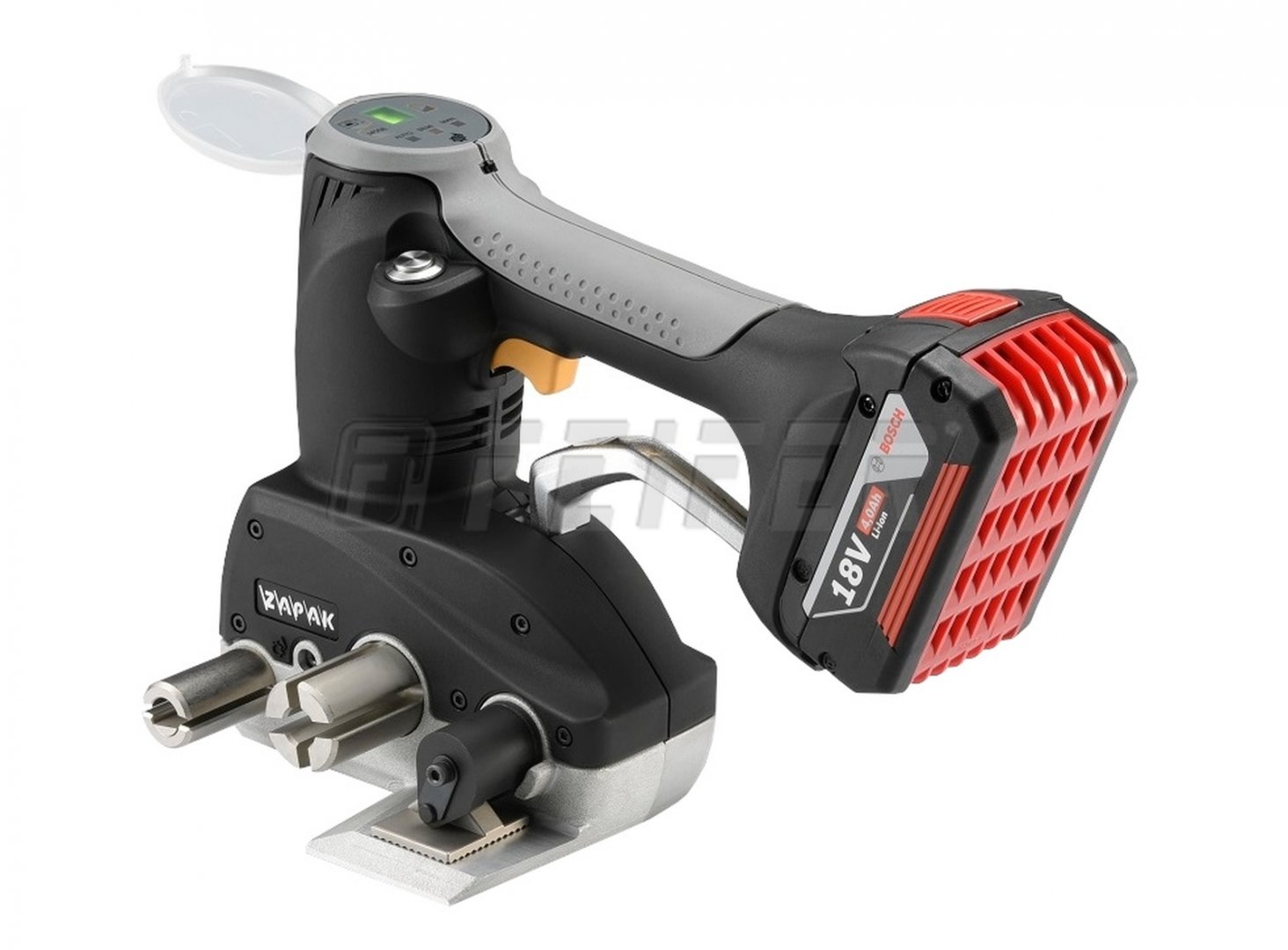

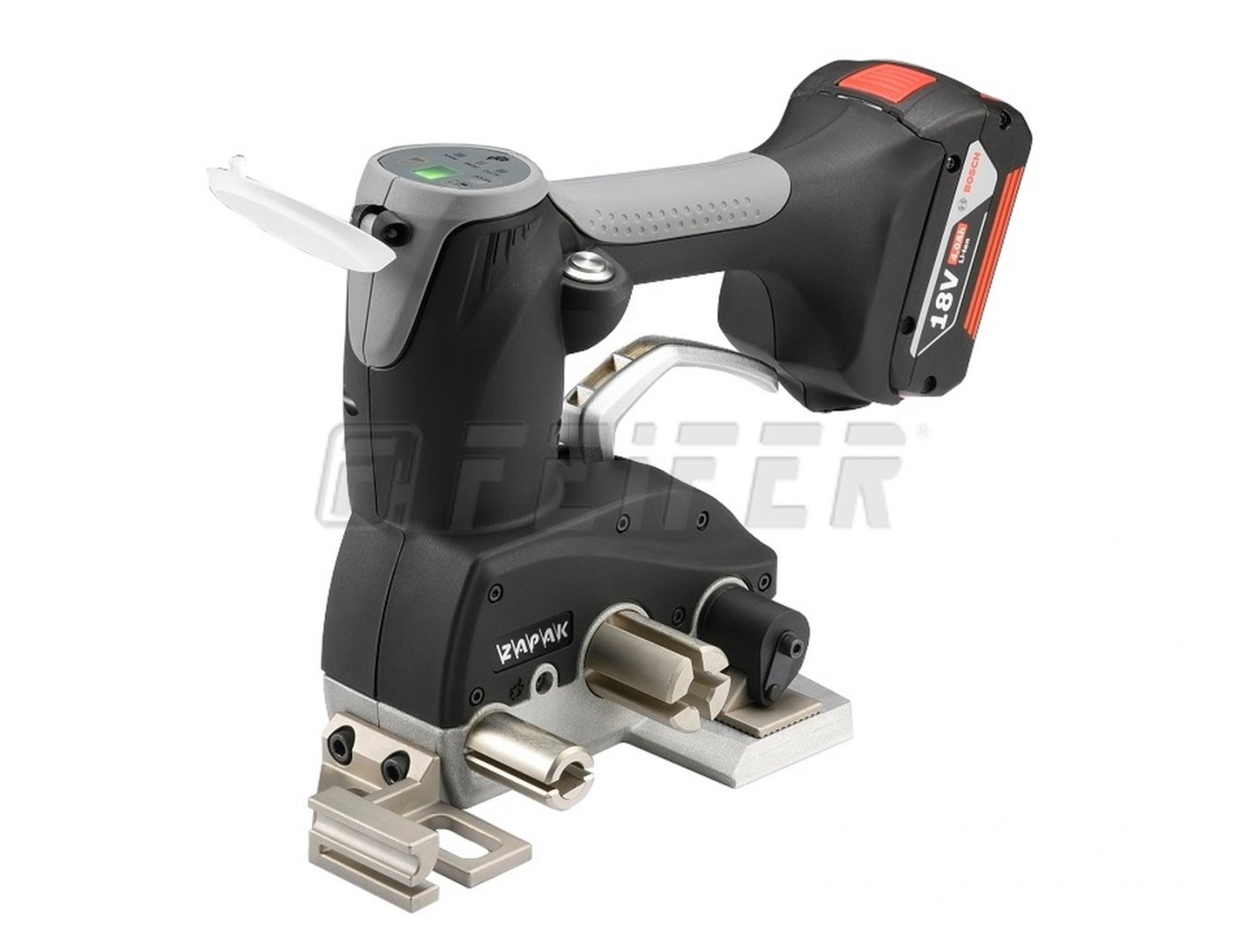

ZAPAK ZP-CT32A - ACU Li-Ion 18V tensioner for PES (cord) straps

Hand-operated battery tensioner which is suitable for strapping pallets or groups of goods. This tensioner is suitable for places where it is not possible to connect to power or compressed air supply. This type has pre-programmed auto reverse button allows for easy reverse turning of the windlass for quick tool removal after tightening and electronic control unit with three pre-programmed tension modes. Among main advantages of this tensioner belong: high tightening power, ergonomic design and great price for excellent power.

  • Automatic tightening
  • Bosch 18V 4.0Ah Li-Ion Battery
  • High-performance brushless motor
  • Quick Reverse Button
Technical parameters
Accessories
Inquiry

Technical parameters

ordering code 700 023546
strap - material PES
strap width 19 - 32 mm
strap thickness 0,85-1,65 mm
tightening power 3000 - 8000 N
supply voltage aku 18V 4,0Ah Li-Ion
weight 3+0,6 (bat.) kg
qty of strapping cycles with 1 charge 350 (PES 32 x 1,6 mm)
battery charge time 35 min.

Standard modifications

Recommended accessories

OP-13 - decoiler for PES strap

OP-13 - decoiler for PES strap
  • inner diameter - 75 mm
  • light and portable

OP-14 - decoiler for PES strap

OP-14 - decoiler for PES strap
  • inner diameter - 35 or 75 mm
  • spring brake of strap

OP-6EB - decoiler for PP straps

OP-6EB - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • spring brake of strap
  • for low frequency jobs

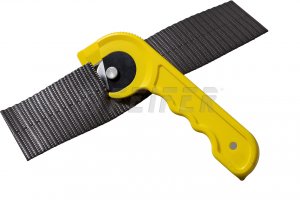

CN-180 cutter for PES strap

CN-180 cutter for PES strap
  • suitable for PES straps
  • cuts in any angle
  • circular knife
  • ergonomic design

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

Strap lance

Strap lance
  • max. strap width - 35 mm
  • easy strap threading under pallet
  • for plastic and textile strap

ZP-5 - spring balancer for loading

ZP-5  - spring balancer for loading
  • max. loading - 1-5 kg
  • robust metal model (alloy)
  • pre-tensioning by ergonom. rose
  • safety device in case of break
