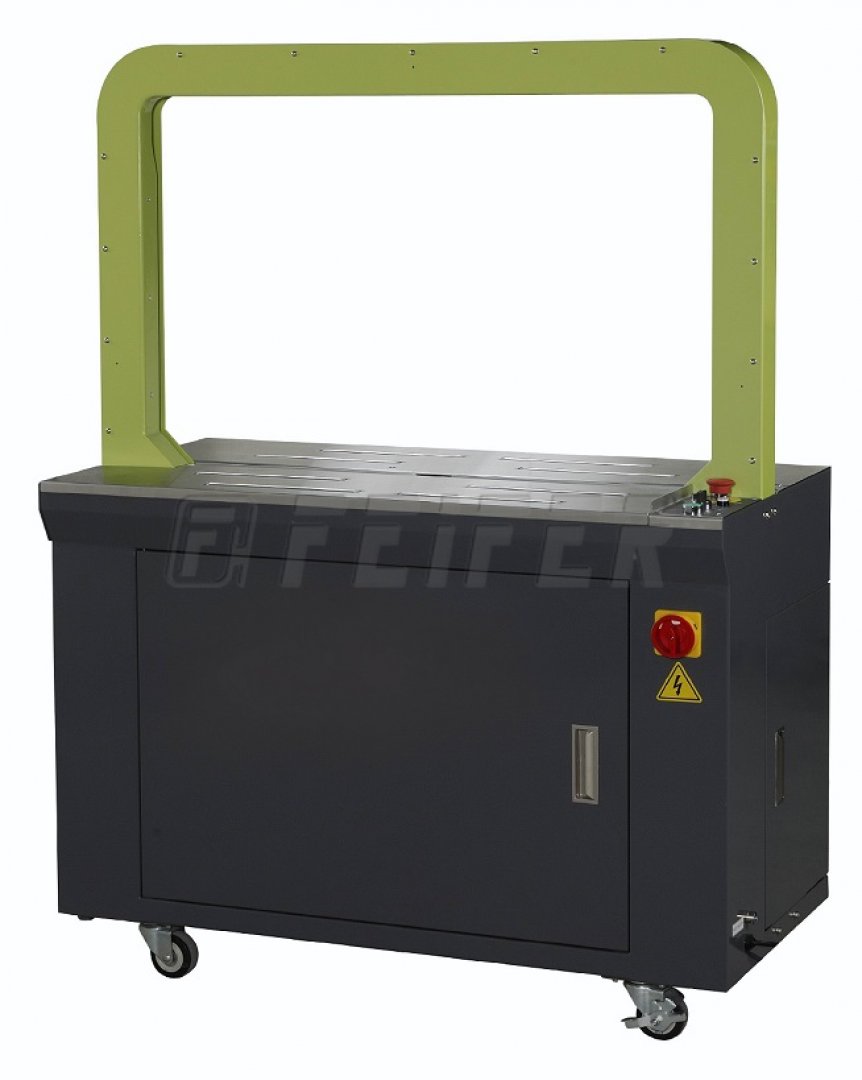

TP-128 FORTE - automatic PP strapping machine - archives
This strapping machine TP-128 FORTE is intended for strapping (with PP strap) e.g. cartons, textile products. It is designed for medium or high frequency strapping jobs.
Among main advantages of this strapping machine belong:
- good strapping frequency
- easy operation
- reliability
- excelent value for money
- semi-automatic or automatic working mode
- a compact arch
- equipped with working table with built-in rollers, which make easy operation with strapping object
The machine works with strap of the width of 10 - 15 mm with thickness 0,5 – 0,75 mm. Tightening power is adjustable. Acoustic signal informs the operator about depletion of tape on spool. In standard version is equipped with fully covered strap decoiler.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 010860 |
| supply voltage | 230V/50Hz |
| power input | 0,4 kW |
| strap - material |
PP |
| strap width | 10 - 15 mm |
| strap thickness | 0,5 - 0,75 mm |
| weight | 142 kg |
| inner diameter of roll | 200 mm |
| packing rate | 28 straps/min. |
| arch width | 850 mm |
| arch height | 600 mm |
| machine length | 1110 mm |
| machine width | 550 mm |
| machine height | 1480 mm |
Standard modifications
TP-702 MERCURY - automatic strapping machine
- strap width - 5,5 / 9 / 12 mm
- max. packing rate 65 straps/min.
- high level of automation
- excelent reliability
Recommended accessories
DP500 conveyor - plastic rollers, L=1000 mm, A=80 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 80 mm
DH500 conveyor - 2 plastic rollers, extensible 2,92 - 7,36m
- for straight and curved routes
- 2 plastic rollers on axis
- conveyor length - 2,92 - 7,36 m
- conveyor width - 500 mm
DH500 conveyor - 2 plastic rollers, extensible 2,31 - 5,80m
- for straight and curved routes
- 2 plastic rollers on axis
- conveyor length - 2,31 - 5,80 m
- conveyor width - 500 mm
DH500 conveyor - 2 plastic rollers, extensible 1,70 - 4,24m
- for straight and curved routes
- 2 plastic rollers on axis
- conveyor length - 1,70 - 4,24 m
- conveyor width - 500 mm
DH500 conveyor - 2 plastic rollers, extensible 1,10 - 2,68m
- for straight and curved routes
- 2 plastic rollers on axis
- conveyor length - 1,10 - 2,68 m
- conveyor width - 500 mm
DH500 conveyor - 2 steel rollers, extensible 2,92 - 7,36m
- for straight and curved routes
- 2 steel rollers on axis
- conveyor length - 2,92 - 7,36 m
- conveyor width - 500 mm
DH500 conveyor - 2 steel rollers, extensible 2,31 - 5,80m
- for straight and curved routes
- 2 steel rollers on axis
- conveyor length - 2,31 - 5,80 m
- conveyor width - 500 mm
DH500 conveyor - 2 steel rollers, extensible 1,70 - 4,24m
- for straight and curved routes
- 2 steel rollers on axis
- conveyor length - 1,70 - 4,24 m
- conveyor width - 500 mm
DP500 conveyor - plastic rollers, L=2000 mm, A=100 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 100 mm
DP500 conveyor - plastic rollers, L=2000 mm, A=80 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 80 mm
DP500 conveyor - plastic rollers, L=2000 mm, A=60 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 60 mm
DP500 conveyor - plastic rollers, L=1500 mm, A=100 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 100 mm
DP500 conveyor - plastic rollers, L=1500 mm, A=80 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 80 mm
DP500 conveyor - plastic rollers, L=1500 mm, A=60 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 60 mm
DP500 conveyor - plastic rollers, L=1000 mm, A=100 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 100 mm
DH - driven extensible roller conveyor 500mm, track 1050-2200 mm
- track width - 500 mm
- extensible, track -1050-2200 mm
- 20 rollers
DP500 conveyor - plastic rollers, L=1000 mm, A=60 mm
- for straight routes
- plastic rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 60 mm
DP500 conveyor - steel rollers, L=2000 mm, A=100 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 100 mm
DP500 conveyor - steel rollers, L=2000 mm, A=80 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 80 mm
DP500 conveyor - steel rollers, L=2000 mm, A=60 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 2 m
- roller axis pitch - 60 mm
DP500 conveyor - steel rollers, L=1500 mm, A=100 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 100 mm
DP500 conveyor - steel rollers, L=1500 mm, A=80 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 80 mm
DP500 conveyor - steel rollers, L=1500 mm, A=60 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1,5 m
- roller axis pitch - 60 mm
DP500 conveyor - steel rollers, L=1000 mm, A=100 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 100 mm
DP500 conveyor - steel rollers, L=1000 mm, A=80 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 80 mm
DP500 conveyor - steel rollers, L=1000 mm, A=60 mm
- for straight routes
- steel rollers
- width - 580 mm, length - 1 m
- roller axis pitch - 60 mm
Driven belt conveyor 4000x400 mm
- fluent speed regulation
- track width - 400 mm
- conveyor length - 4 m
DH - driven extensible roller conveyor 500mm, track 2250-4950 mm
- track width - 500 mm
- extensible, track -2250-4950 mm
- 44 rollers
DH - driven extensible roller conveyor 500mm, track 1650-3570 mm
- track width - 500 mm
- extensible, track -1650-3570 mm
- 32 rollers
Binding and packaging materials
PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, black
- width 10 mm, thickness 0,40 mm
- black color
- strenght 1160 N
- tube 200 mm, roll 3500 m
PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, natural (white)
- width 10 mm, thickness 0,40 mm
- natural color (white)
- strenght 1160 N
- tube 200 mm, roll 3500 m
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
- width 12 mm, thickness 0,55 mm
- black color
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
- width 12 mm, thickness 0,55 mm
- natural color (white)
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2200 N
- tube 200 mm, roll 2500 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
- width 15 mm, thickness 0,65 mm
- black color
- strength 2200 N
- tube 200, roll 2000 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
- width 15 mm, thickness 0,65 mm
- white, cross strapped
- strength 2200 N
- tube 200, roll 2000 m
