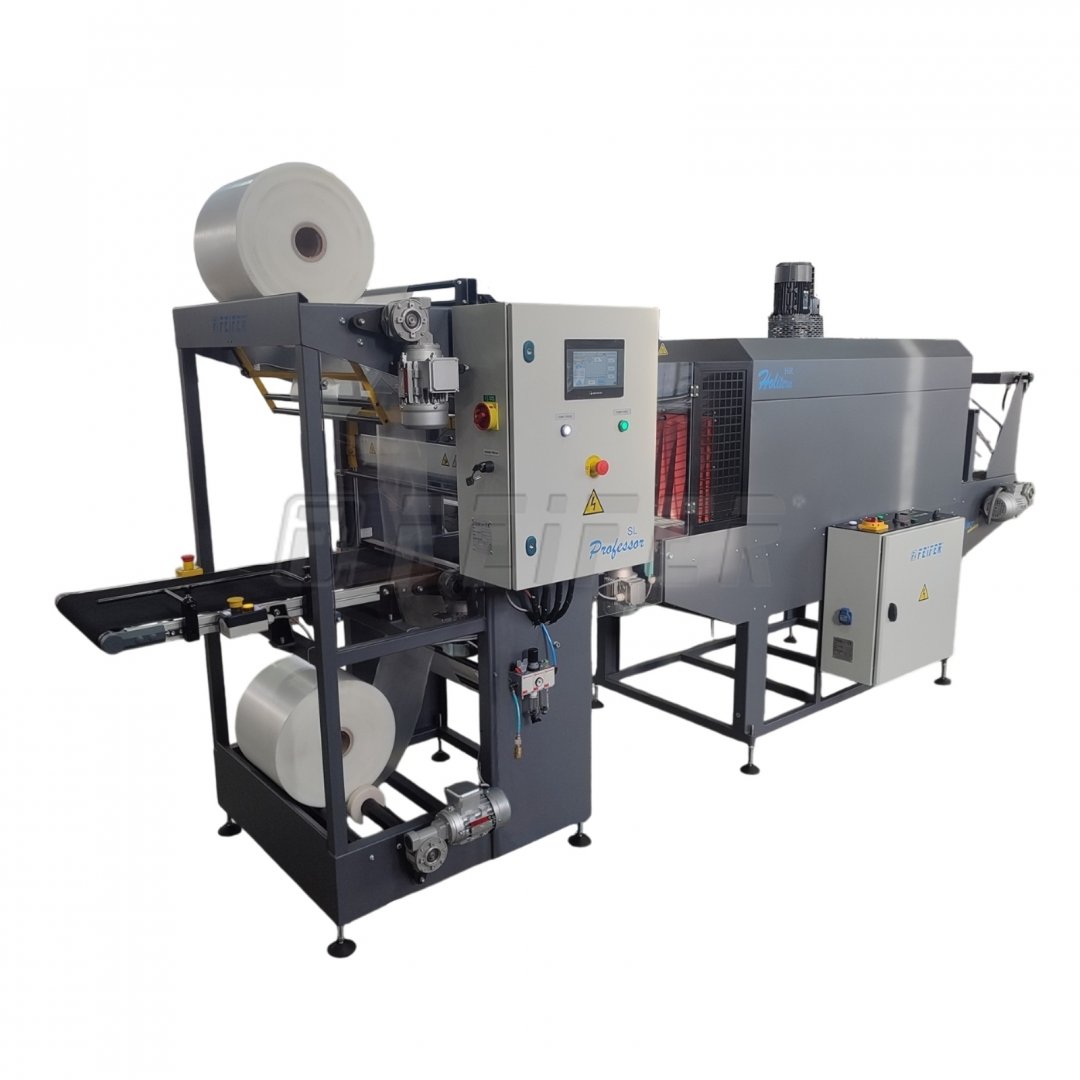

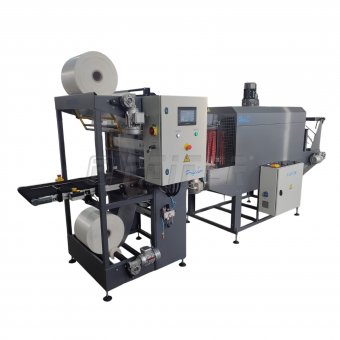

SL-90 AD PROFESSOR - automatic film wrapping machine
Semi-automatic foil wrapping machine SL-90 AD PROFESSOR is designed for medium or small frequency wrapping jobs (up to 10 cycles / min.). The machine has universal use – thanks to manual load of goods, the machine can be used for single as well as for group wrapping. It is suitable for PE foils (LDPE). The machine has manual load into infeed area, the whole wrapping cycle is performed automatically.
Among other advantages of this tool belong:
- maintenance-free, constantly heated sealing jaw
- electronic sealing temperature control
- pneumatic input to seal
- sealing time controller
- automatic foil unwinding with brake
- minimal outside dimensions, left or right version.
The wrapping machine can be used only with shrink tunnel (optional change of wrapping height is free of charge).
Technical parameters
Modification
Accessories
Spare part
Inquiry
Technical parameters
| ordering code | 600 000057 |
| conveyor height | 890-990 mm |
| transporting speed | 2 - 11 m/min. |
| film thickness | 90 µm |
| max. size of wrapped object | 850 x 400 mm |
| supply voltage | 400 V / 50 Hz |
| power input | 2,5 kW |
| max. machine capacity | 10 - 16 cycles/min. |
| machine length | 1450 mm |
| machine width | 1350 mm |
| machine height | 2250 mm |
| machine weight | 300 kg |
Standard modifications
SL-70 AD PROFESSOR - automatic film wrapping machine
- for wrapping goods (cartons,…)
- suitable for flat LDPE films
- fully modular type
- max. capacity 10 - 16 cycles/min.
Recommended accessories
HR-5023 HOLITERM - industrial shrink tunnel
- passage size - 500 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-5040 HOLITERM - industrial shrink tunnel
- passage size - 500 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-6823 HOLITERM - industrial shrink tunnel
- passage size - 680 x 230 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
HR-6840 HOLITERM - industrial shrink tunnel
- passage size - 680 x 400 mm
- EXTRAJET technology - significantly lower energy consumption
- for high frequency jobs
