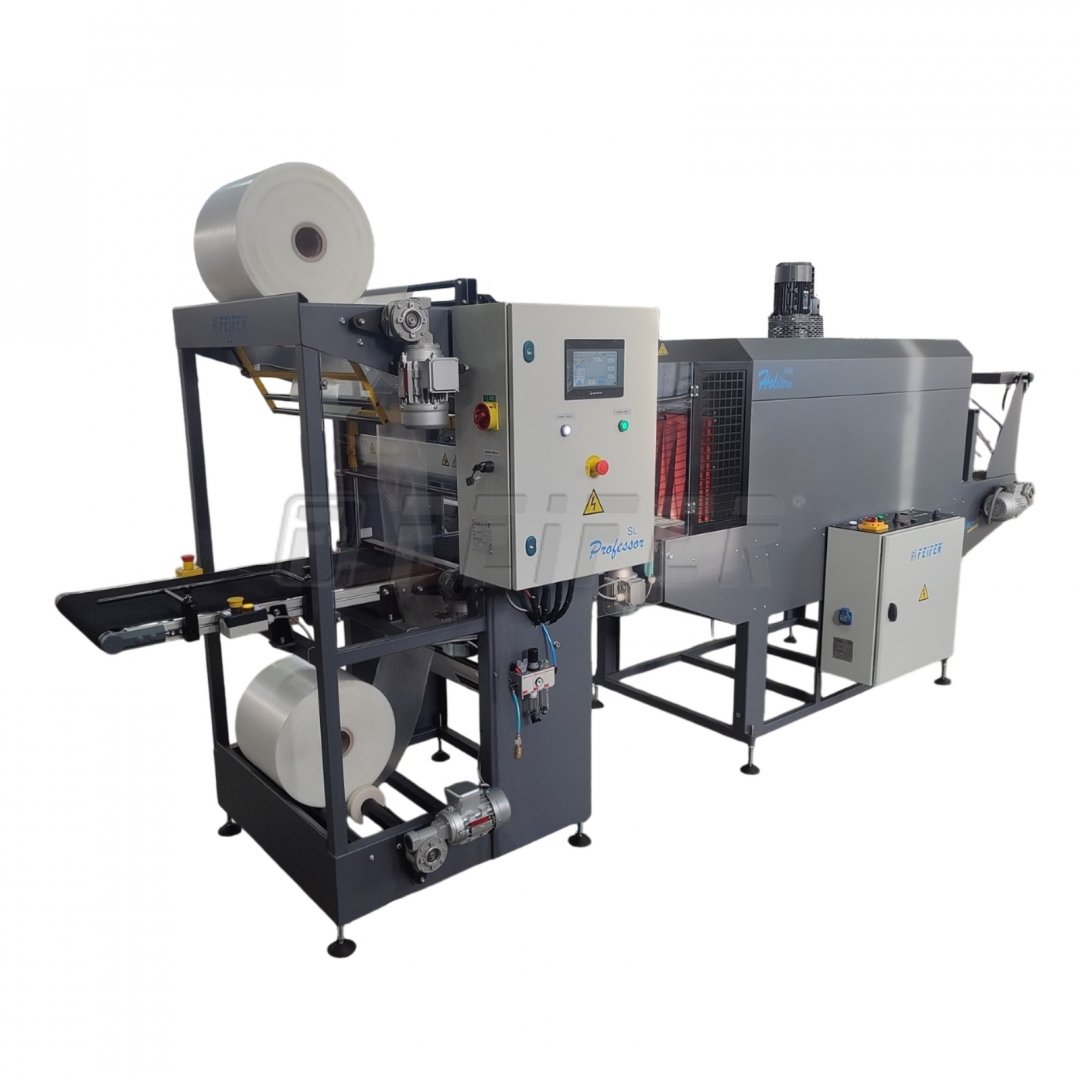

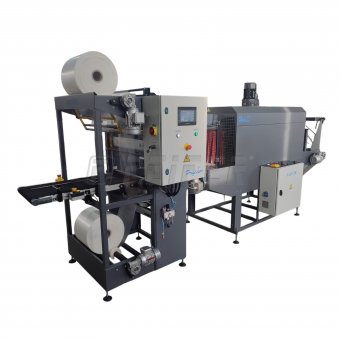

SL-70 AD PROFESSOR - automatic film wrapping machine
Foil wrapping machines SL-70 AD PROFESSOR series „SL-AD PROFESSOR“ in a base modification are intended mainly for wrapping goods, e.g. books, magazines, cartons, cables, textiles, etc. They are suitable for LDPE foils. Maximal operation rate is 10 - 16 cycles/min. The wrapping machines in a base modification are equipped with a pneumatic holder, which fixes wrapped package during sealing time. That is suitable for unsteady goods.
Due to a fully electronic control it is possible to use these machines both in a full-automatic process with conveyors and also for manual wrapping. The machines are also equipped with a maintenance-free sealing jaw with a digital temperature regulation. Wrapping machines series SL-AD PROFESSOR are fully modular and can be customized according to customer needs.
The wrapping machine can be used with shrink tunnel (e.g. HR-Holiterm).
Technical parameters
Modification
Spare part
Inquiry
Technical parameters
| ordering code | 600 000058 |
| conveyor height | 890-990 mm |
| transporting speed | 2 - 11 m/min. |
| material - foil |
LDPE |
| film thickness | 90 µm |
| max. size of wrapped object | 650 x 100-6000 mm |
| supply voltage | 400 V / 50 Hz |
| power input | 2,5 kW |
| compressed air | 4 - 6,5 bar |
| max. machine capacity | 10-16 cycles/min. |
| machine length | 1450 mm |
| machine width | 1150 mm |
| machine height | 2250 mm |
| weight | 250 kg |
Standard modifications

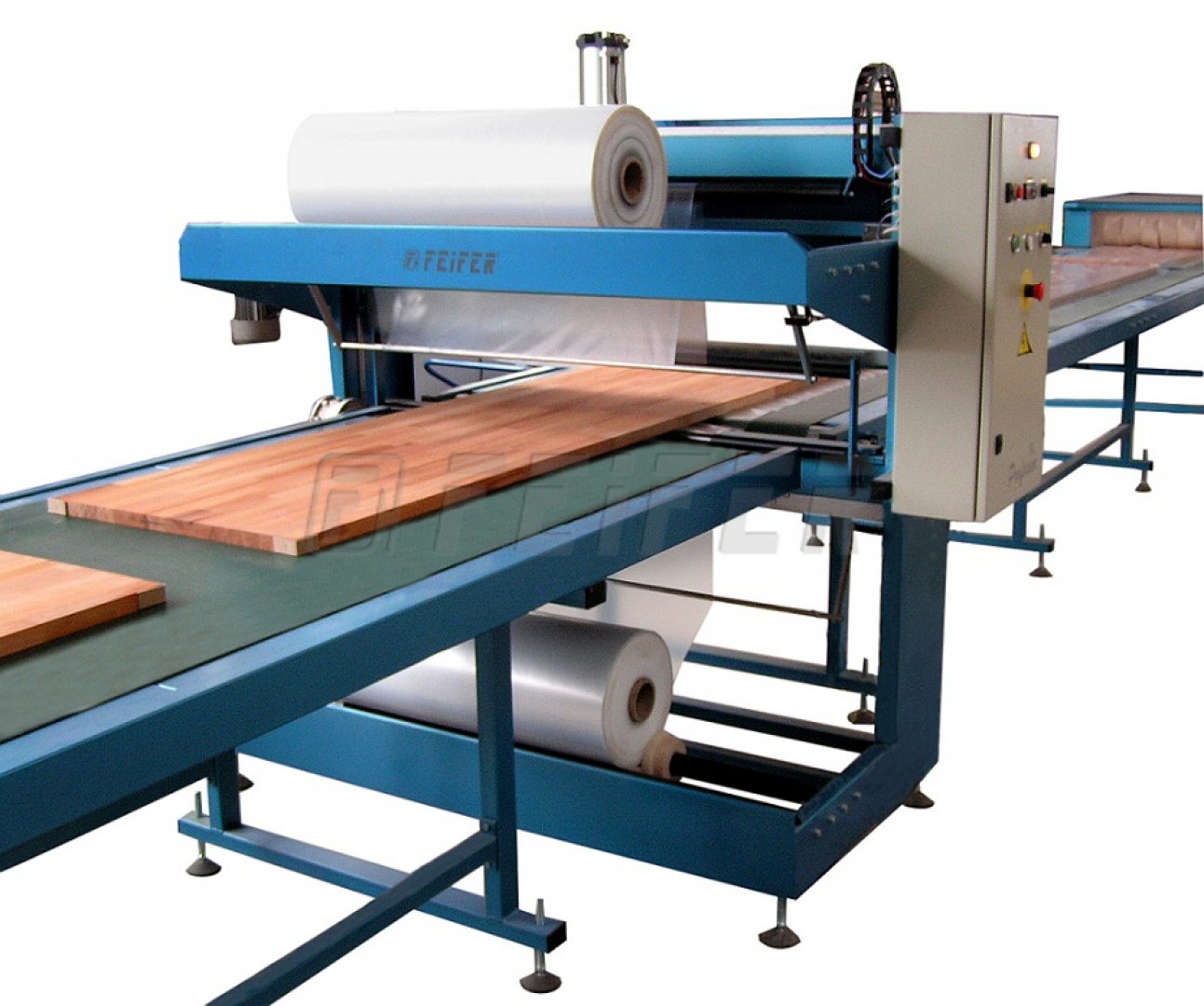

SL-90 AD PROFESSOR - automatic film wrapping machine
- for wrapping goods
- suitable for flat LDPE films
- fully modular type
- max. capacity 10 cycles/min.
