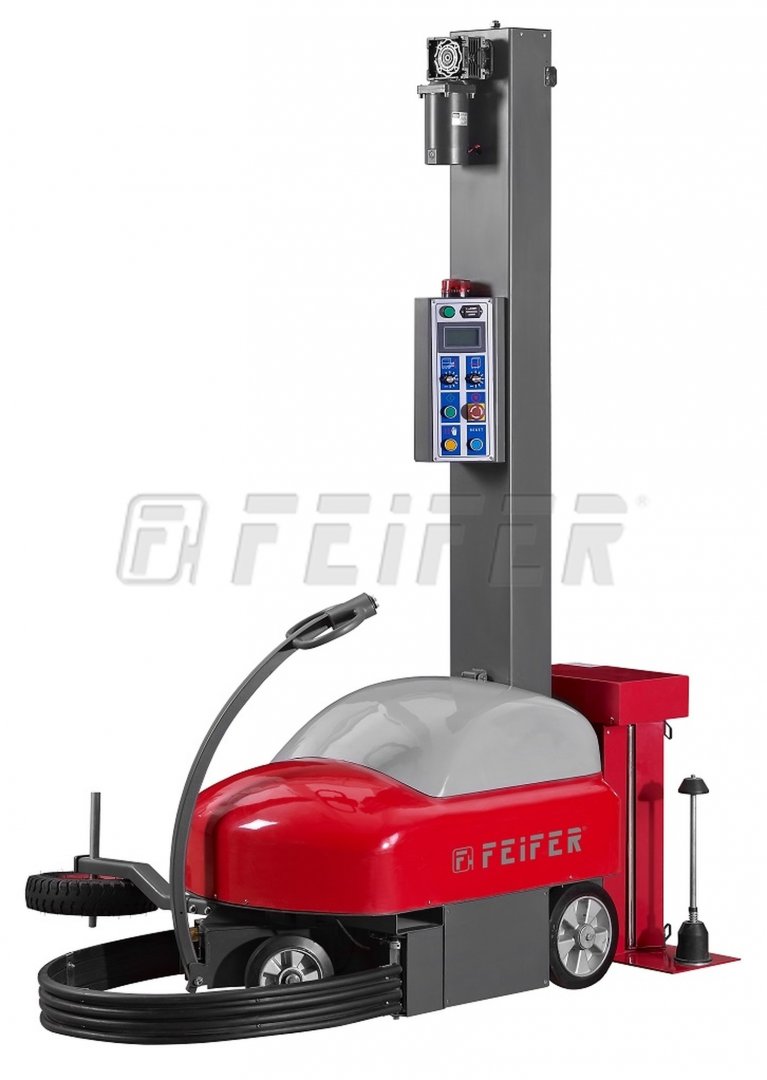

ROBO WRAPPER "P" - pallet stretch wrapping machine

Wrapping robots are appropriate solution for operations with not enough space to set up a stationary wrapping machine. With these robots it is not necessary to transfer pallets to the machine, just to move the robot to the pallet and wrap it. These robots are not limited by pallet dimensions and they are able to wrap also atypical pallet dimension (that was a limitation of wrapping machines with a turntable). For these robots the whole weight of the pallet is not important, settings can be adjusted for both heavy objects on the pallet and also for lightweight objects with little stability.



Advantages of ROBO WRAPPER:

  • wrapping of atypical and large pallets
  • unlimited pallet weight
  • power pre-stretch system – 250% (300% or 360%)
  • 5 default wrapping programs
  • automatic pallet height seeking by photo sensor
  • adjustable number of film turns
  • fluently adjustable film tension
  • electromagnetic control system of pre-stretch force and winding speed
  • integrated battery with up to 8 hours of continuous operation
  • high safety – real-time hardware checking, safety switch, safety perimeter belt – the robot automatically stops when something contact the belt
  • battery and charger included
  • external battery charger connector
  • battery charger indicator
  • acoustic and light signal
Technical parameters
Modification
Packing material
Spare part
Inquiry

Technical parameters

ordering code 700 023173
film pre-stretch yes
battery Olověný 2x 100Ah / 12V
battery charge time 10-12 hodin
battery working time 8 hours
battery charger 24V
power input 1,55 kW
supply voltage 230V/50Hz
control unit PLC Panasonic
min. pallet dimension 600 x 600 mm
min. pallet height 700 mm
max. pallet height 2100 mm
min. package weight 100 kg
max. winding speed 60 m/min.
max. diameter of roll 250 mm
inner diameter of roll 75 mm
roll width 500 mm
film thickness 0,023-0,030 µm
weight of roll 15-18 kg

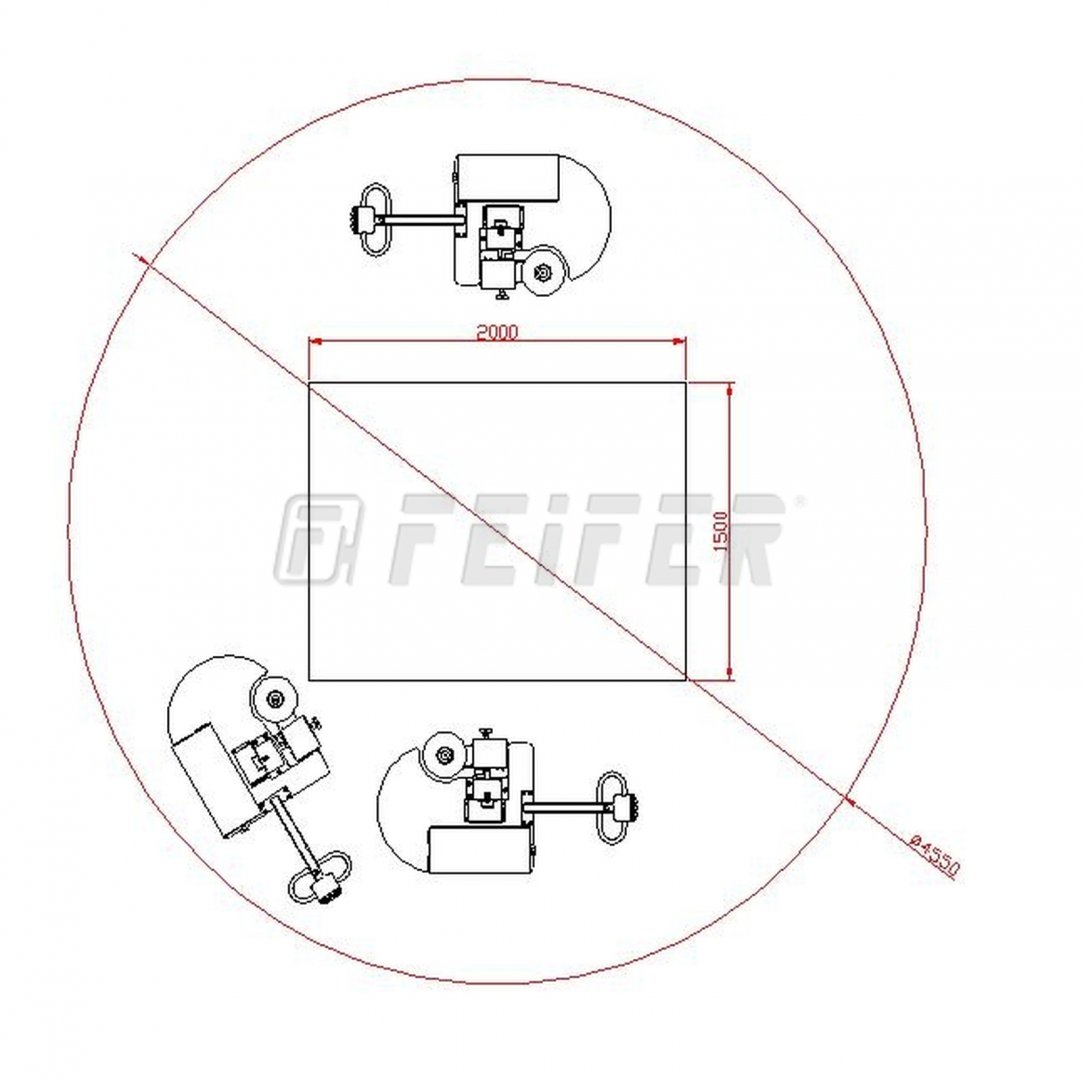

required space around the pallet 1180 mm
machine length 1480 mm
machine width 780 mm
machine height 2224 mm
weight 320 kg

Standard modifications

ROBO WRAPPER "B" - pallet stretch wrapping machine

ROBO WRAPPER "B" - pallet stretch wrapping machine
  • 5 configurable programs
  • flexibility
  • high security
  • for small and medium packaging capacity

Binding and packaging materials

500 x 0,023 mm - machine stretch foil, elongation 150%

500 x 0,023 mm - machine stretch foil, elongation 150%
  • width - 500 mm
  • thickness - 23 my
  • elongation 150%
  • weight of roll approx. 18 kgs

500 x 0,023 mm - machine stretch foil, elongation 220%

500 x 0,023 mm - machine stretch foil, elongation 220%
  • width - 500 mm
  • thickness - 23 my
  • elongation 220%
  • weight of roll approx. 18 kgs

500 x 0,030 mm - machine stretch foil, elongation 150%

500 x 0,030 mm - machine stretch foil, elongation 150%
  • width - 500 mm
  • thickness - 30 my
  • elongation 150%
  • weight of roll approx. 18 kgs

500 x 0,023 mm - machine stretch foil, elongation 220%

500 x 0,023 mm - machine stretch foil, elongation 220%
  • width - 500 mm
  • thickness - 23 my
  • elongation 220%
  • weight of roll approx. 18 kgs
