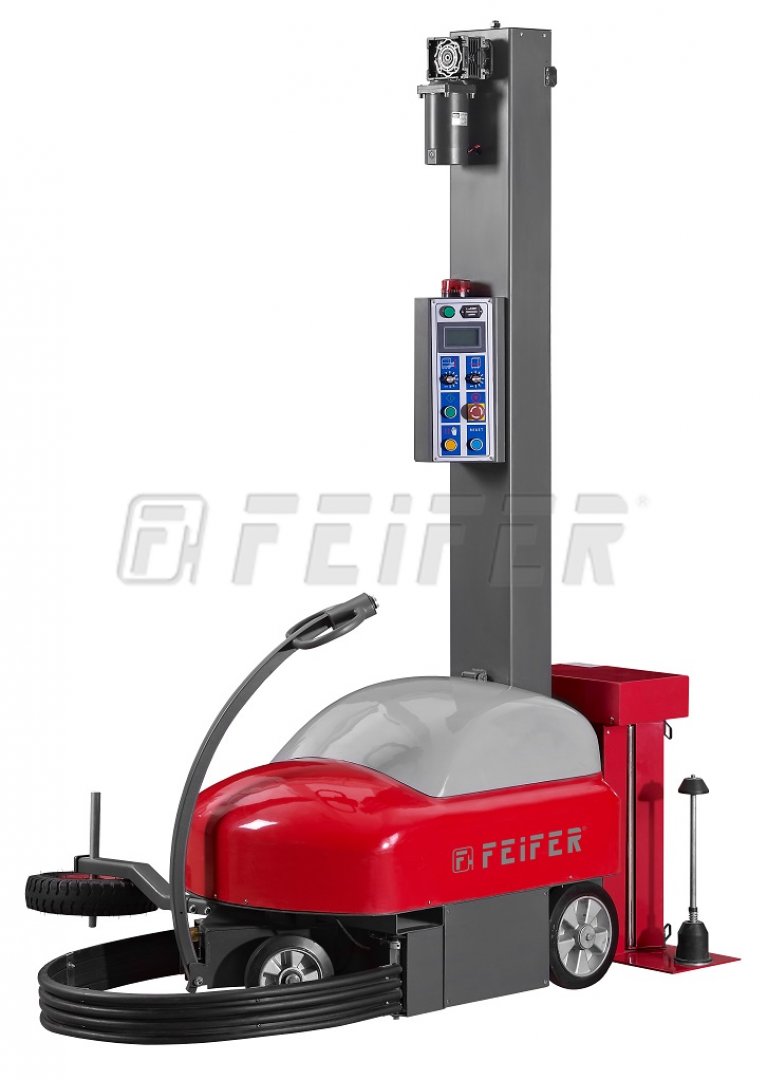

ROBO WRAPPER "B" - pallet stretch wrapping machine
Wrapping robots are appropriate solution for operations with not enough space to set up a stationary wrapping machine. With these robots it is not necessary to transfer pallets to the machine, just to move the robot to the pallet and wrap it. These robots are not limited by pallet dimensions and they are able to wrap also atypical pallet dimension (that was a limitation of wrapping machines with a turntable). For these robots the whole weight of the pallet is not important, settings can be adjusted for both heavy objects on the pallet and also for lightweight objects with little stability.
Advantages of ROBO WRAPPER:
- wrapping of atypical and large pallets
- unlimited pallet weight
- 5 default wrapping programs
- automatic pallet height seeking by photo sensor
- adjustable number of film turns
- fluently adjustable film tension
- electromagnetic control system of pre-stretch force and winding speed
- integrated battery with up to 8 hours of continuous operation
- high safety – real-time hardware checking, safety switch, safety perimeter belt – the robot automatically stops when something contact the belt
- battery and charger included
- external battery charger connector
- battery charger indicator
- acoustic and light signal
Technical parameters
Modification
Packing material
Spare part
Product videos
Inquiry
Technical parameters
| ordering code | 700 023172 |
| max. pallet height | 2100 mm |
| supply voltage | 230V/50Hz |
| power input | 1,55 kW |
| battery charger | 24V |
| battery | Pb 2x 100Ah / 12V |
| battery charge time | 10-12 hodin hour |
| battery working time | 8 hours |
| min. pallet dimension | 600 x 600 mm |
| min. pallet height | 700 mm |
| brake | yes |
| control unit | PLC Panasonic |
| min. package weight | 100 kg |
| max. winding speed | 60 m/min. |
| max. diameter of roll | 250 mm |
| inner diameter of roll | 75 mm |
| roll width | 500 mm |
| film thickness | 0,023-0,030 µm |
| weight of roll | 15-18 kg |

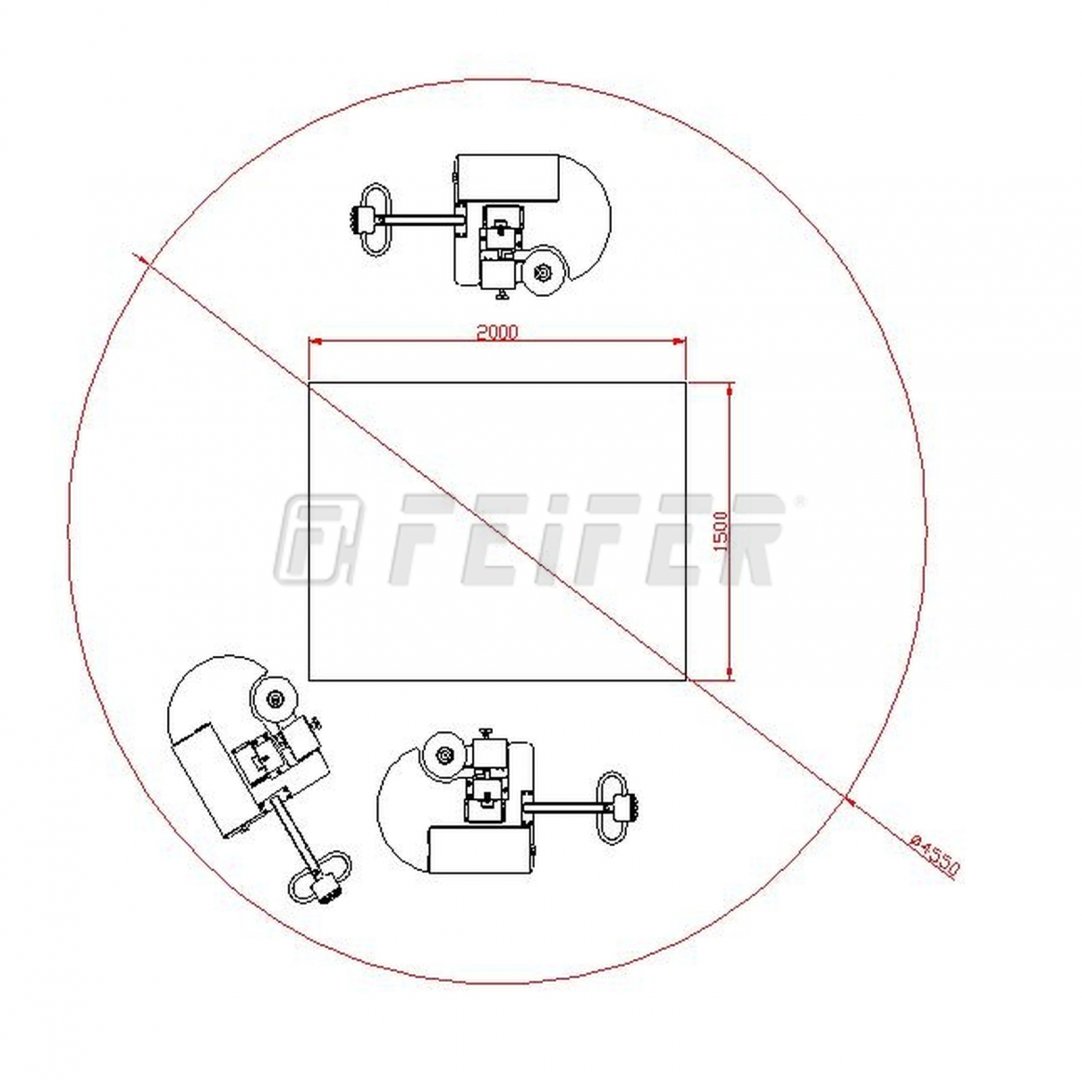

| required space around the pallet | 1180 mm |
| machine length | 1480 mm |
| machine width | 780 mm |
| machine height | 2224 mm |
| weight | 320 kg |
