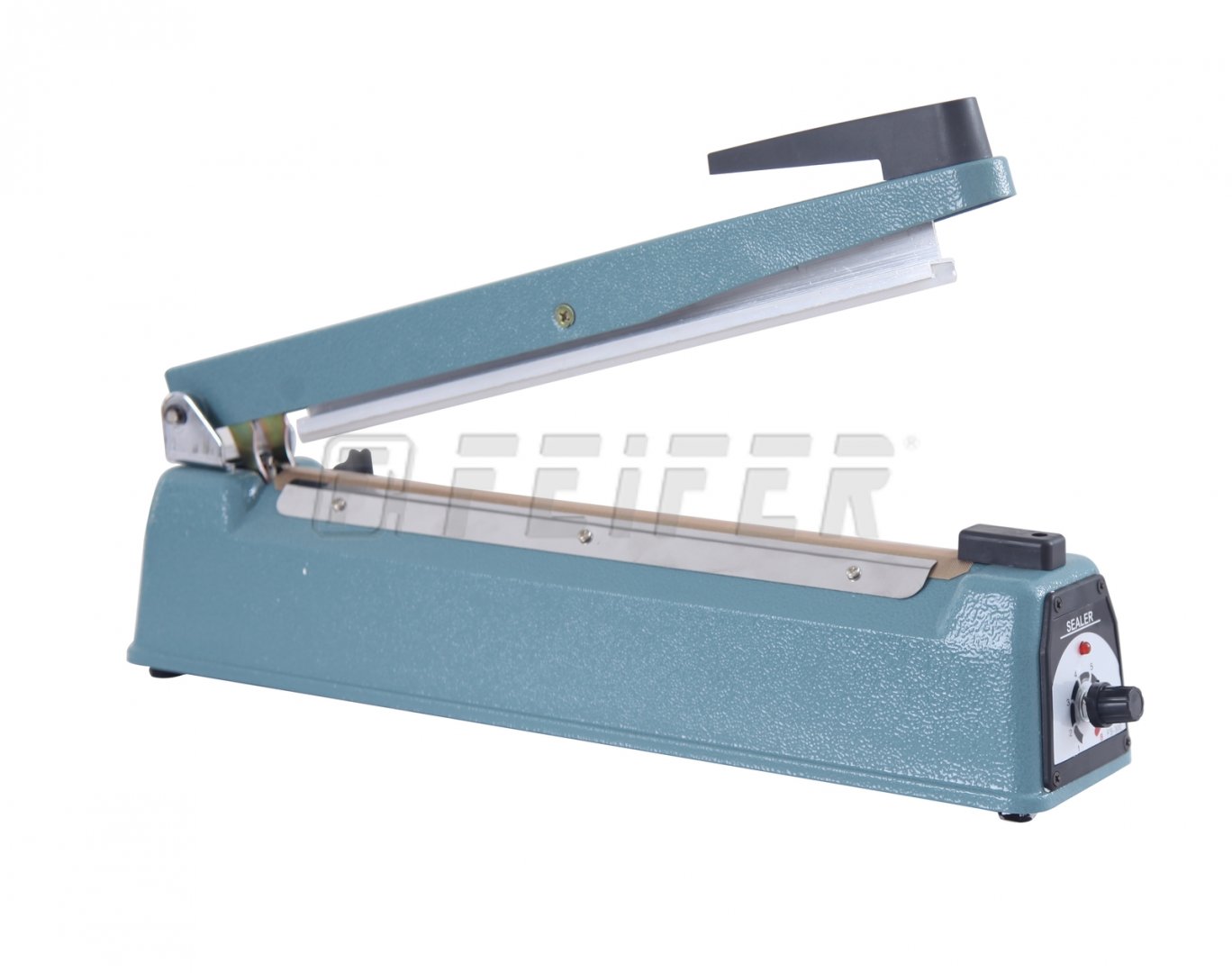

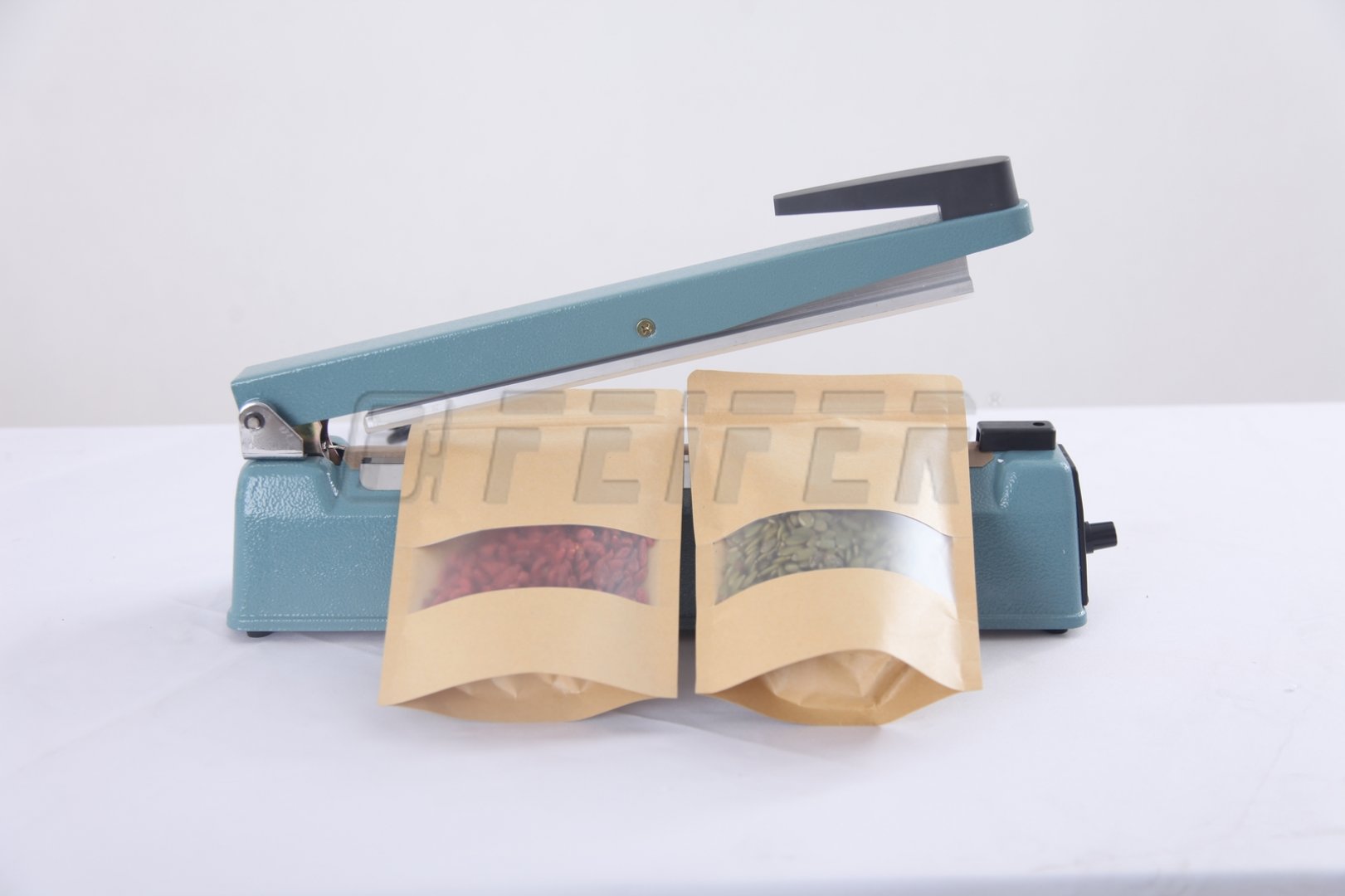

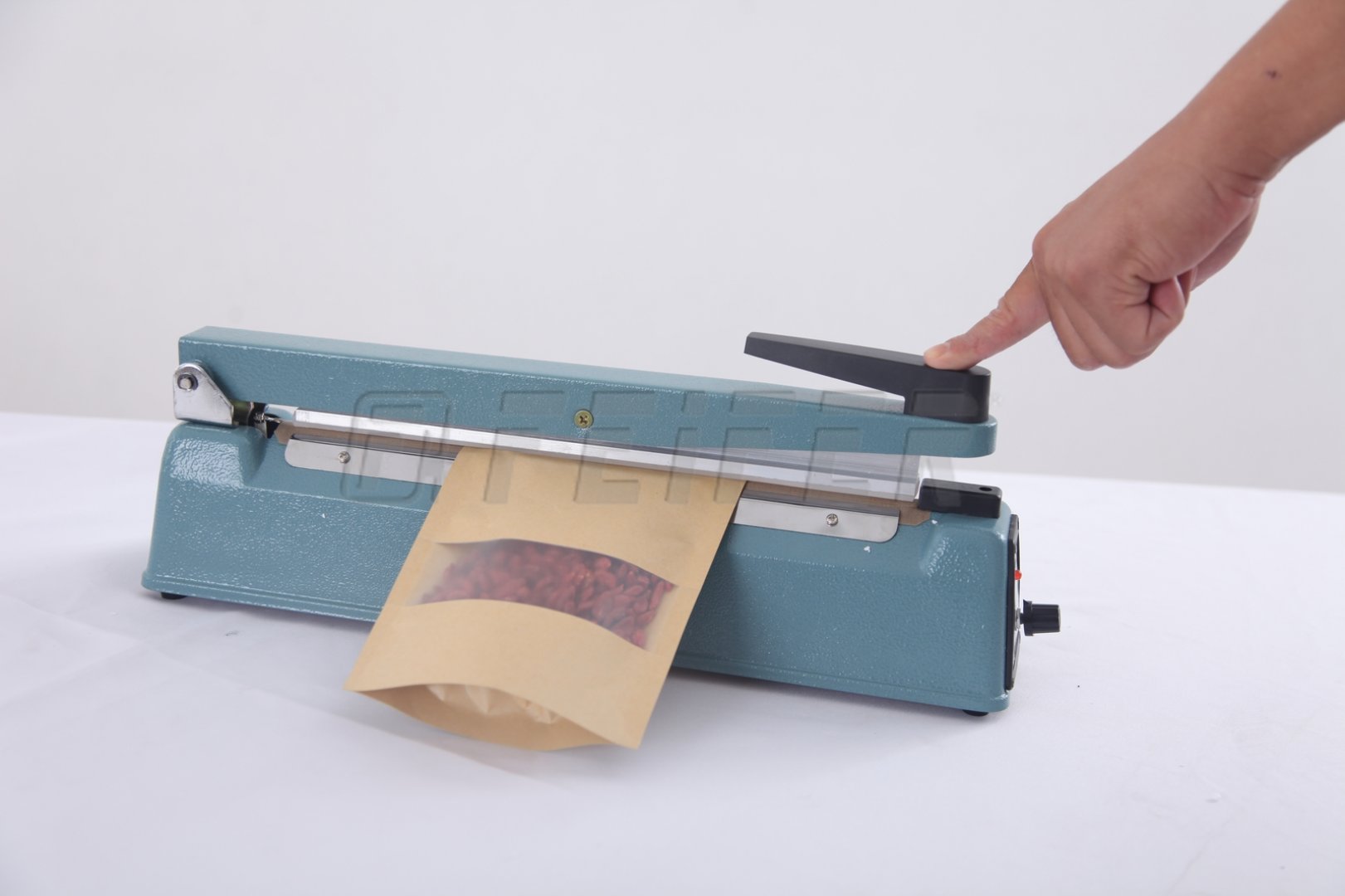

HI-300 (FS-300) - impulse sealer
Table model HI-300 intended only for closing foil bags. This model is intended for seals of length of 300 mm. Seal is performed by kanthal sealing element of the width of 2 mm. This sealer is suitable for non-series usage.
Modifications of this impulse sealer are HI-200 with sealing lenght to 200 mm and HI-500 with sealing lenght to 500 mm.
Technical parameters
Modification
Accessories
Inquiry
Technical parameters
ordering code | 700 023992 |
power input | 0,54 kW |
sealing arm holding | manual |
weight | 4,35 kg |
max. film thickness | 100 µm |
max. sealing length | 300 mm |
sealing width | 2 mm |
built-in blade | no |
Standard modifications
HI-400 (FS-400) - impulse sealer
![HI-400 (FS-400) - impulse sealer HI-400 (FS-400) - impulse sealer](/www/productImages/83607/4_16070734582.300x200.fit.q85.s1.jpg)
- sealing length 400 mm
- for closing film bags
- sealing width 2 mm
- suitable for non-series usage
HI-500 (FS-500) - impulse sealer
![HI-500 (FS-500) - impulse sealer HI-500 (FS-500) - impulse sealer](/www/productImages/83606/4_160707360567.300x200.fit.q85.s1.jpg)
- sealing length 500 mm
- for closing film bags
- sealing width 2 mm
- suitable for non-series usage
HI-600 (FS-600H) - impulse sealer
![HI-600 (FS-600H) - impulse sealer HI-600 (FS-600H) - impulse sealer](/www/productImages/83609/1_160447992481.300x200.fit.q85.s1.jpg)
- sealing length 600 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
HI-800 (FS-800H) - impulse sealer
![HI-800 (FS-800H) - impulse sealer HI-800 (FS-800H) - impulse sealer](/www/productImages/83660/1_160448780228.300x200.fit.q85.s1.jpg)
- sealing length 800 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
HI-800IP - impulse sealer
![HI-800IP - impulse sealer HI-800IP - impulse sealer](/www/productImages/13126/13126_main.300x200.fit.q85.s1.jpg)
- sealing length 800 mm
- built-in decoiler
- sealing wire
- built-in thermistor
HI-1000 (FS-1000H) - impulse sealer
![HI-1000 (FS-1000H) - impulse sealer HI-1000 (FS-1000H) - impulse sealer](/www/productImages/83612/1_16044825226.300x200.fit.q85.s1.jpg)
- sealing length 1000 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
HC-300 (FS-300M) - impulse sealer with built-in-blade
![HC-300 (FS-300M) - impulse sealer with built-in-blade HC-300 (FS-300M) - impulse sealer with built-in-blade](/www/productImages/83610/1_160448972706.300x200.fit.q85.s1.jpg)
- sealing length 300 mm
- table model with cutting blade
- sealing width 2 mm
- for production and closing bags
HC-400 (FS-400C) - impulse sealer with built-in-blade
![HC-400 (FS-400C) - impulse sealer with built-in-blade HC-400 (FS-400C) - impulse sealer with built-in-blade](/www/productImages/83611/1_160706791276.300x200.fit.q85.s1.jpg)
- sealing length 400 mm
- table model with cutting blade
- sealing width 2 mm
- for production and closing bags
HC-500 - impulse sealer with built-in-blade
![HC-500 - impulse sealer with built-in-blade HC-500 - impulse sealer with built-in-blade](/www/productImages/31842/31842_main.300x200.fit.q85.s1.jpg)
- sealing length 500 mm
- table model with cutting blade
- sealing width 2 mm
- for production and closing bags
