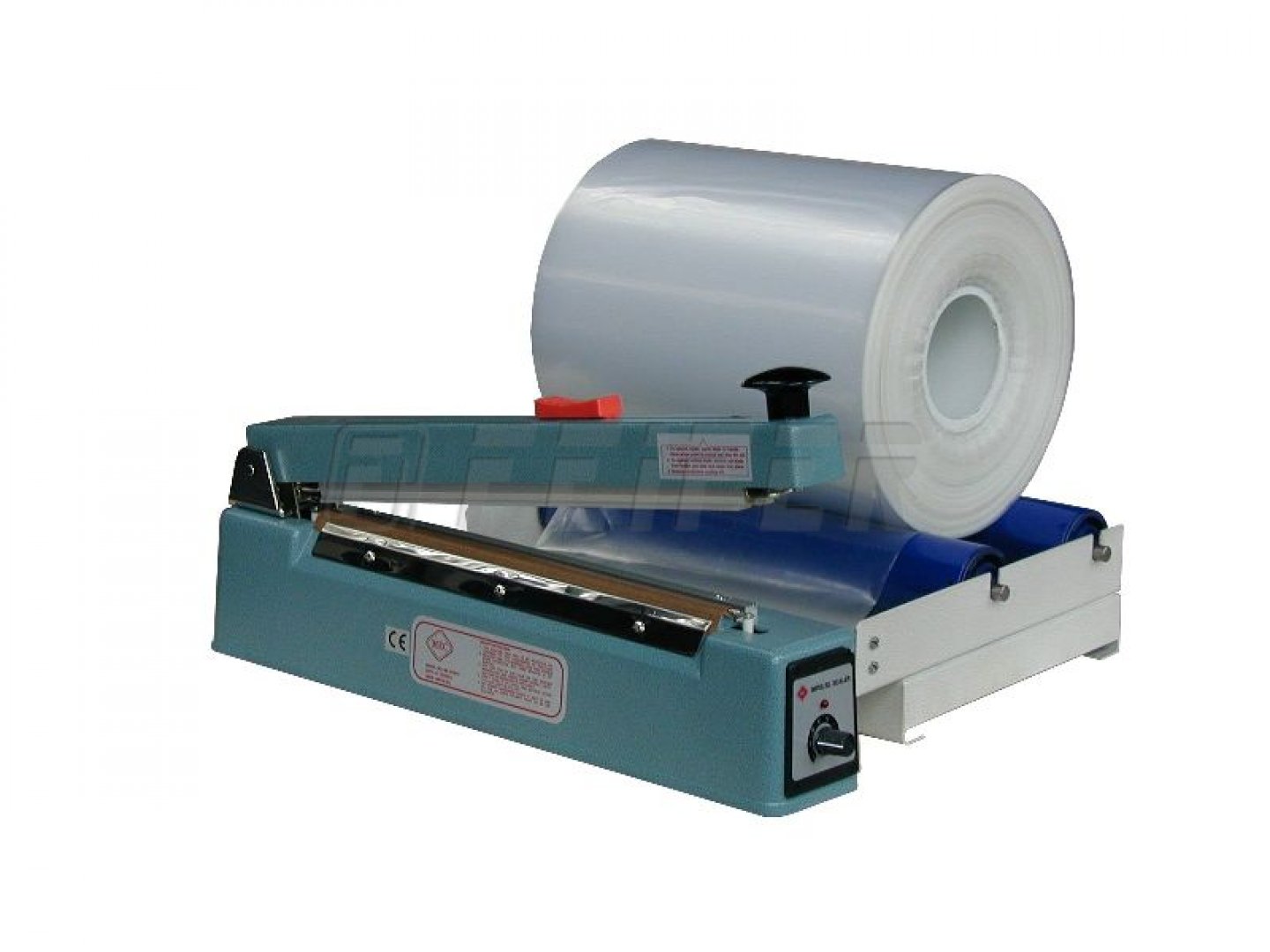

HC-500 - impulse sealer with built-in-blade

Impulce sealer HC-500 is a table model with cutting blade suitable for production and closing foil bags. Seal length is up to 500 mm. Seal is performed by kanthal sealing element of the width up to 2 mm. These sealers feature with high safety of an operator - the cutting blade is pushed out after pressing the upper sealing arm towards the lower sealing arm. Foil is cut approx. 6 mm behind the performed seal.

Table foil decoilers up to width of 300 or 600 mm are optional accessories for these sealers.

This model is intended for seals of length of 500 mm.

Technical parameters
Modification
Accessories
Spare part
Inquiry

Technical parameters

ordering code 700 009640
power input 0,8 kW
sealing arm holding manual
weight 8,25 kg
max. film thickness 120 µm
max. sealing length 500 mm
sealing width 2 mm
built-in blade yes

Standard modifications

HC-300 - impulse sealer with built-in-blade

HC-300 - impulse sealer with built-in-blade
  • sealing length 300 mm
  • table model with cutting blade
  • sealing width 2 mm
  • for production and closing bags

HC-400 - impulse sealer with built-in-blade

HC-400 - impulse sealer with built-in-blade
  • sealing length 400 mm
  • table model with cutting blade
  • sealing width 2 mm
  • for production and closing bags

Recommended accessories

OF-300 - PE film decoiler

OF-300 - PE film decoiler
  • for film width up to 300 mm
  • fluent unwinding guide
  • accessory for impulse sealers
