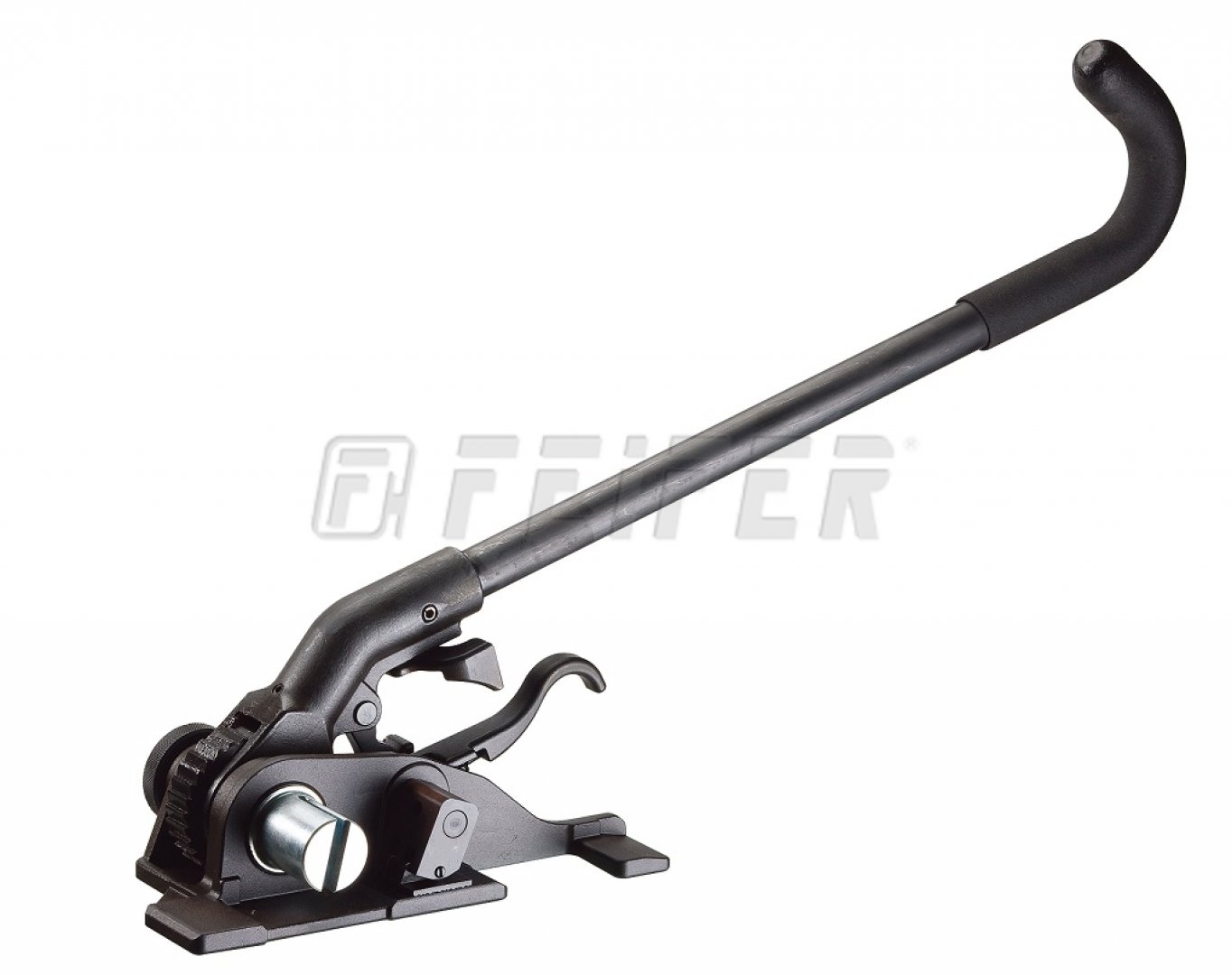

H-28 JUMBO - tensioner for PES straps

This heavy duty windlass tensioner H-28 JUMBO is intended for strapping heavy objects. Only polyester cord straps (PES) with width of 25 - 50 mm are used for strapping. A strap cutter CN-180 is used for strap cutting.

Technical parameters
Modification
Accessories
Packing material
Inquiry

Technical parameters

ordering code 700 011327
strap - material PES
strap width 25 - 50 mm
weight 5,3 kg

Standard modifications

H-22R(C) - tensioner for PES straps

H-22R(C) - tensioner for PES straps
  • strap width - 9 - 19 mm
  • sealing method - steel buckles
  • for heavy objects

H-22RS - tensioner for PES straps

H-22RS - tensioner for PES straps
  • strap width - 9 - 19 mm
  • sealing method - steel buckles
  • for heavy objects
  • robust construction

H-22(C) Round - tensioner for PES straps

H-22(C) Round - tensioner for PES straps
  • strap width - 9 - 19 mm
  • sealing method - steel buckles
  • for heavy round/irregular objects
  • extension for small diameters

H-26 JUMBO - tensioner for PES straps

H-26 JUMBO - tensioner for PES straps
  • strap width - 13 - 32 mm
  • sealing method - steel buckles
  • for heavy objects

H-27(C) JUMBO - tensioner for PES straps

H-27(C) JUMBO - tensioner for PES straps
  • strap width 32 - 50 mm
  • sealing method - steel buckles
  • for heavy objects

Recommended accessories

OP-14 - decoiler for PES strap

OP-14 - decoiler for PES strap
  • inner diameter - 35 or 75 mm
  • spring brake of strap

Strap lance

Strap lance
  • max. strap width - 35 mm
  • easy strap threading under pallet
  • for plastic and textile strap

Binding and packaging materials

PES 25 85EX polyester cord straps (cross woven) 500 m/coil - printed

PES 25 85EX polyester cord straps (cross woven) 500 m/coil - printed
  • width 25 mm
  • extra super strong strap
  • strength 9500 N
  • tube 76 mm, roll 500 m

PES 32 105EX polyester cord straps (cross woven) 150 m/coil

PES 32 105EX polyester cord straps (cross woven) 150 m/coil
  • width 32 mm
  • extra super strong strap
  • strength 13800 N
  • tube 90 mm, roll 150 m

PES 38 105HD polyester cord straps (cross woven) 100 m/coil - printed

PES 38 105HD polyester cord straps (cross woven) 100 m/coil - printed
  • width 38 mm
  • extra super strong strap
  • strength 20000 N
  • tube 90 mm, roll 100 m

PES B9HG 25 g steel buckles 25 mm

PES B9HG 25 g steel buckles 25 mm
  • seal width - 25 mm
  • surface coating - phosphate
  • for PES strap
  • packaging 500 pcs

PES B10HG 35-38 g steel buckles 35-38 mm

PES B10HG 35-38 g steel buckles 35-38 mm
  • seal width - 35-38 mm
  • surface coating - phosphate
  • for PES strap
  • packaging - 250 pcs
