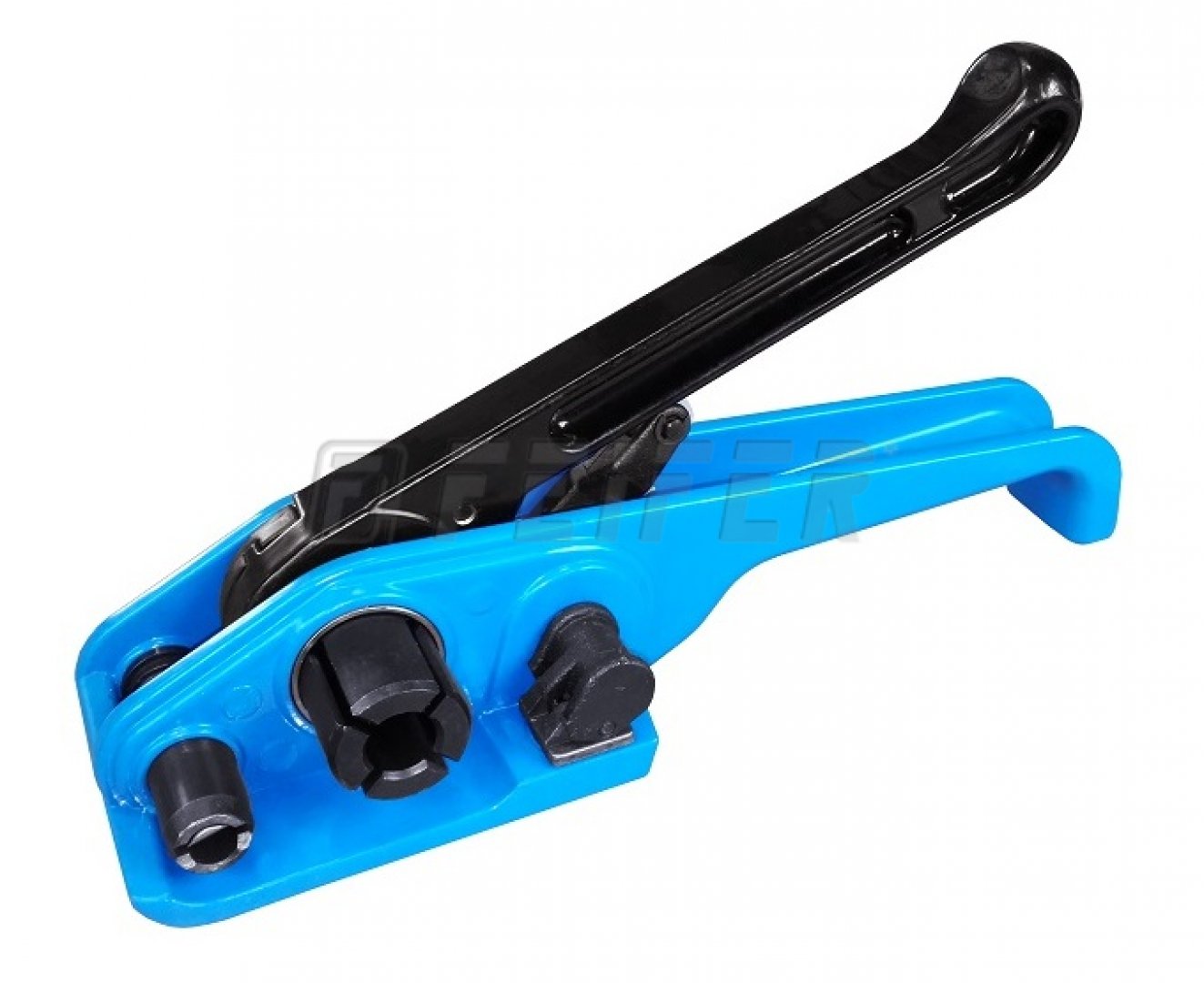

H-22R(C) - tensioner for PES straps
This tensioner H-22R(C) is intended for strapping heavy objects. Polyester cord strap (PES) and steel buckles of the width of 9 - 19 mm are used for strapping.
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 700 022683 |
| strap - material |
PES |
| strap width | 9 - 19 mm |
| weight | 1,2 kg |
Standard modifications
H-22RS - tensioner for PES straps
- strap width - 9 - 19 mm
- sealing method - steel buckles
- for heavy objects
- robust construction
H-22(C) Round - tensioner for PES straps
- strap width - 9 - 19 mm
- sealing method - steel buckles
- for heavy round/irregular objects
- extension for small diameters
Recommended accessories
OP-13 - decoiler for PES strap
- inner diameter - 75 mm
- light and portable
OP-14 - decoiler for PES strap
- inner diameter - 35 or 75 mm
- spring brake of strap
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
Binding and packaging materials
PES 9 30PB polyester cord straps (cross woven) 500 m/coil
- width 9 mm
- suitable for bundling presses
- strength 2550 N
- tube 60 mm, roll 500 m
PES 13 40NWPB polyester cord straps (cross woven) 500 m/coil
- width 13 mm
- suitable for bundling presses
- strength 3060 N
- tube 60 mm, roll 500 m
PES 13 40S polyester cord straps (cross woven) 1100 m/coil
- width 13 mm
- super strong strap
- strength 4100 N
- tube 76 mm, roll 1100 m
PES 16 55EX polyester cord straps (cross woven) 600 m/coil
- width 16 mm
- extra super strong strap
- strength 6300 N
- tube 76 mm, roll 600 m
PES 16 50S polyester cord straps (cross woven) 850 m/coil
- width 16 mm
- super strong strap
- strength 4600 N
- tube 76 mm, roll 850 m
Action
PES 16 polyester cord straps (standard bonded), 850 m/coil, HM glued, white
- width 16 mm
- HM glued
- strenght 4500 N
- tube 76 mm, roll 850 m
PES 19 65EX polyester cord straps (cross woven) 500 m/coil
- width 19 mm
- extra super strong strap
- strength 7650 N
- tube 76 mm, roll 500 m
PES 19 60S polyester cord straps (cross woven) 600 m/coil
- width 19 mm
- super strong strap
- strength 5920 N
- tube 76 mm, roll 600 m
