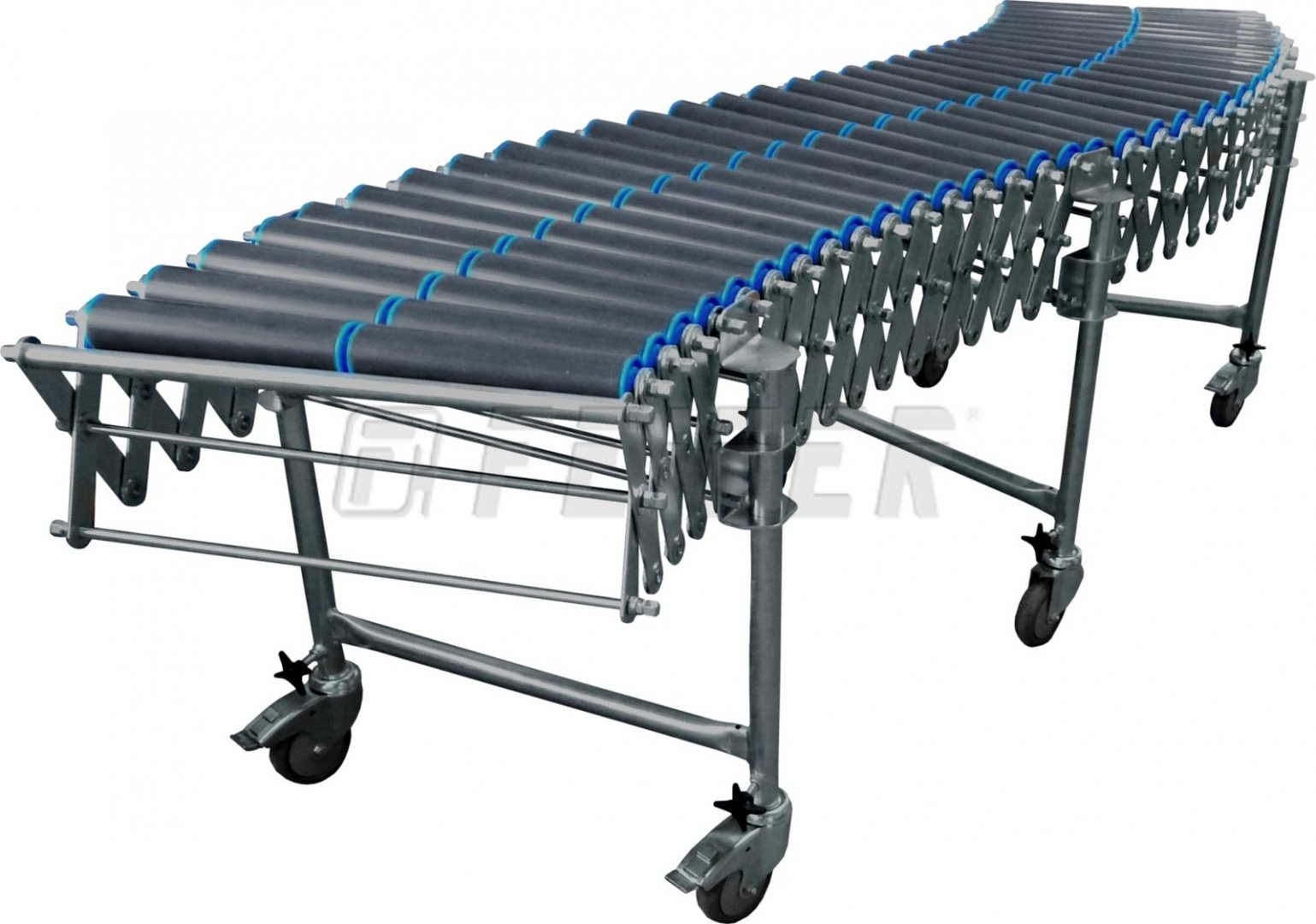

DH800 conveyor - 3 plastic rollers, extensible 1,10 - 2,68m
This conveyor is suitable for building straight and curved conveyor routes, both gradient and plain. It is mainly used for transporting cartons and similar goods. Height of conveyors legs is adjustable, which enables to adjust quickly slope of the conveyor. The construction of the conveyor enables a safe guidance of transported goods in curves (security side guiding bar is not necessary).
Width of the track is 800 mm, total width of the conveyor is 920 mm. Height of the conveyor is adjustable from 655 to 1000 mm. The conveyor can form curves of 180°. There are placed 3 plastic rollers on one axis. The conveyor is movable (equipped with wheels with brakes). Total length of the track is 1,10 - 2,68 m.
Conveyors can be joined and so it is possible to create even longer routes.
|ordering code||600 000391|
|track version||plastic rollers|
|conveyor width||920 mm|
|roller diameter||50 mm|
|max. loading between 2 legs||40 kg|
|number of legs||2|
|conveyor height||665 - 1000 mm|
|conveyor length||1100 - 2680 mm|
|number of rollers on axis||3|
|number of axis||20|
