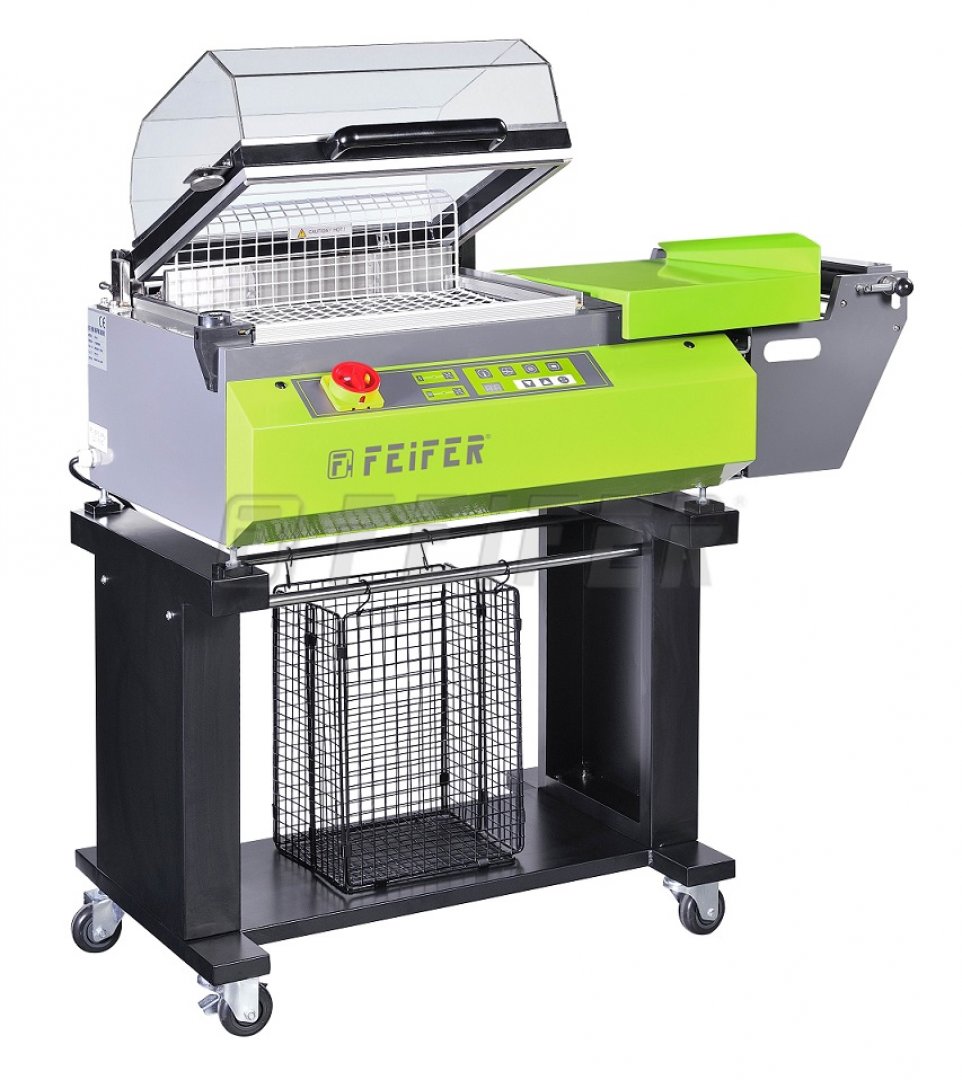

APH-346 - chamber wrapping machine

Chamber wrapping machines are designed for wrapping consumer goods, printed materials, textile products as well as food, etc. Shrink foil half tube (PVC, POF,…) is used for wrapping.



Among main advantages of this wrapping machine belong:

  • minimal external dimensions
  • low investment and operation costs
  • favourable price
  • sealing time, shrinking time and temperature inside the chamber are digitally adjustable

These machines are standardly equipped with:

  • timer controlled holding electromagnet
  • triple foil perforator for easy shrinking (including adjustable power of perforation)
  • adjustable height of the bottom pad in the chamber
  • wheels with brakes



Easy operation: An operator places the wrapped objects between foils, moves the objects into the shrinking chamber and closes the chamber hood. Sealing and shrinking is performed automatically. When the hood is held by electromagnet, the operator can prepare further objects for wrapping.



Type APH-346 is equipped with sealers of dimensions 460 x 320 mm.

Technical parameters
Modification
Packing material
Inquiry

Technical parameters

ordering code 700 008250
supply voltage 230V/50Hz
sealing dimension 460 x 320 mm
max. wrapping height 120 mm
power input 3,2 kW
average power consumption 1,3 - 1,9 kW/hour
max. film dimension (width x diameter) 400 x 250 mm
machine length 1120 mm
machine width 660 mm
machine height 1190 mm
weight 120 kg

Standard modifications

APH-238 - chamber wrapping machine

APH-238 - chamber wrapping machine
  • sealing jaw - 380 x 280 mm
  • for POF and PVC films
  • easy operation
  • excelent value for money

APH-455 - chamber wrapping machine

APH-455 - chamber wrapping machine
  • sealing jaw - 550 x 420 mm
  • for POF and PVC films
  • easy operation
  • excelent value for money

APH-680 - chamber wrapping machine

APH-680 - chamber wrapping machine
  • sealing jaw - 800 x 620 mm
  • for POF and PVC films
  • easy operation
  • excelent value for money

Binding and packaging materials

POF 200 x 0,015 mm, 1250 m - shrink foil, half tube

POF 200 x 0,015 mm, 1250 m - shrink foil, half tube
  • width - 200 mm
  • thickness - 0,015 mm
  • design half-tube/half-sleeve

POF 250 x 0,019 mm, 1000 m - shrink foil, half tube

POF 250 x 0,019 mm, 1000 m - shrink foil, half tube
  • width - 250 mm
  • thickness - 0,019 mm
  • design half-tube/half-sleeve

POF 300 x 0,019 mm, 1000 m - shrink foil, half tube

POF 300 x 0,019 mm, 1000 m - shrink foil, half tube
  • width - 300 mm
  • thickness - 0,019 mm
  • design half-tube/half-sleeve

POF 350 x 0,015 mm, 1250 m - shrink foil, half tube

POF 350 x 0,015 mm, 1250 m - shrink foil, half tube
  • width - 350 mm
  • thickness - 0,015 mm
  • design half-tube/half-sleeve

POF 350 x 0,019 mm, 1000 m - shrink foil, half tube

POF 350 x 0,019 mm, 1000 m - shrink foil, half tube
  • width - 350 mm
  • thickness - 0,019 mm
  • design half-tube/half-sleeve

POF 350 x 0,025 mm, 750 m - shrink foil, half tube

POF 350 x 0,025 mm, 750 m - shrink foil, half tube
  • width - 350 mm
  • thickness - 0,025 mm
  • design half-tube/half-sleeve

POF 400 x 0,019 mm, 1000 m - shrink foil, half tube

POF 400 x 0,019 mm, 1000 m - shrink foil, half tube
  • width - 400 mm
  • thickness - 0,019 mm
  • design half-tube/half-sleeve

POF 400 x 0,025 mm, 750 m - shrink foil, half tube

POF 400 x 0,025 mm, 750 m - shrink foil, half tube
  • width - 400 mm
  • thickness - 0,025 mm
  • design half-tube/half-sleeve

PVC 400 x 0,025 mm - shrink foil, half tube

PVC 400 x 0,025 mm - shrink foil, half tube
  • width - 400 mm
  • thickness - 0,025 mm
  • design half-tube/half-sleeve
