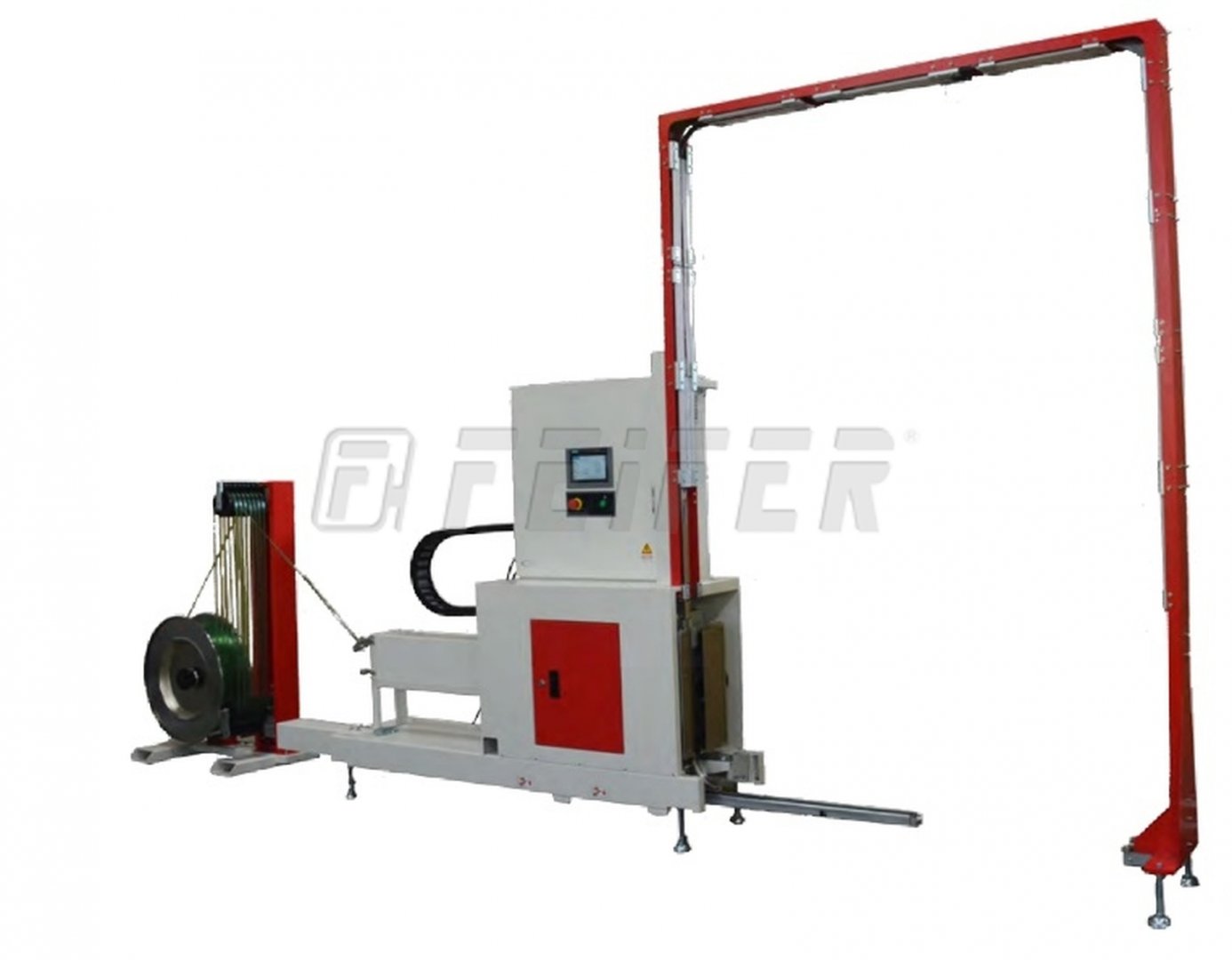

TP-733VLM POLLUX - vertical fully-automatic strapping machine

This automatic strapping machine is intended for strapping with PP and PET strap and is usable for wide spectre of goods which is put on pallets. The machine is user-friendly, has a modern design.



Among main advantages of this strapping machine belong:

  • user friendly and state-of-the-art design, excellent performance, easy operation and low maintenance, low packaging costs
  • suitable for wide variety of products
  • easily integrated with new or existing product lines
  • high engineering standard strapping head with extremely reliable robust mechanism design, variety of features for easy operation and maintenance
  • Siemens PLC control with touch panel – easy adjustment, operating instructions and troubleshooting guide, user friendly TEACH-IN program
  • movable strapping head with stroke of max.
  • 500 mm for optimal strap tightening
  • friction weld sealing technology – guarantee reliable joint, high sealing efficiency, tension up to 3200 N (320 kg)
  • movable strap lance in basic equipment
  • adjustable sealing and cooling time – high sealing efficiency
  • options – floating head, top press, failure indicator, free standing operation desk, HMI on the opposite side, lower tension
  • 200-1200 N (20-120 kg)

Options:

  • Appoint colour
  • Free standing operation desk
  • Lower tension (200-1200 N)
  • Floating head
  • Top press up to 200 kg (press width 410 mm)
  • Top press up to 200 kg (with extended device to 900 mm wide)
  • Top press up to 500 kg (press width 410 mm)
  • Top press up to 500 kg (with extended device to 900 mm wide)
  • HMI on the opposite side
  • Uplifted support for appointed conveyor height (under 429 mm)
  • Uplifted support for appointed conveyor height (430~829 mm)
  • Uplifted support for top press to meet appointed conveyor height (under 429 mm)
  • Uplifted support for top press to meet appointed conveyor height (430~829 mm)
  • Index head stroke up to 700 mm
Technical parameters
Inquiry

Technical parameters

ordering code 700 023808
strap - material PP
PET
strap width 12, 15,5, 19 mm
strap thickness 0,5 - 1 mm
inner diameter of roll 406 mm
arch width 1400 mm
arch height 2450 mm
tightening power 3200 N
packing rate 72 pallets/hour
supply voltage 230 V/50Hz/3f
power input 0,8 kW
noise level of machine 85 dB
min. packing width 450 mm
max. packing width 1300 mm
min. packing height (incl. pallet) 662 mm
max. packing height 2300 mm
dimension (l x w x h) 4937 x 685 x 2549 mm
weight 445 kg
