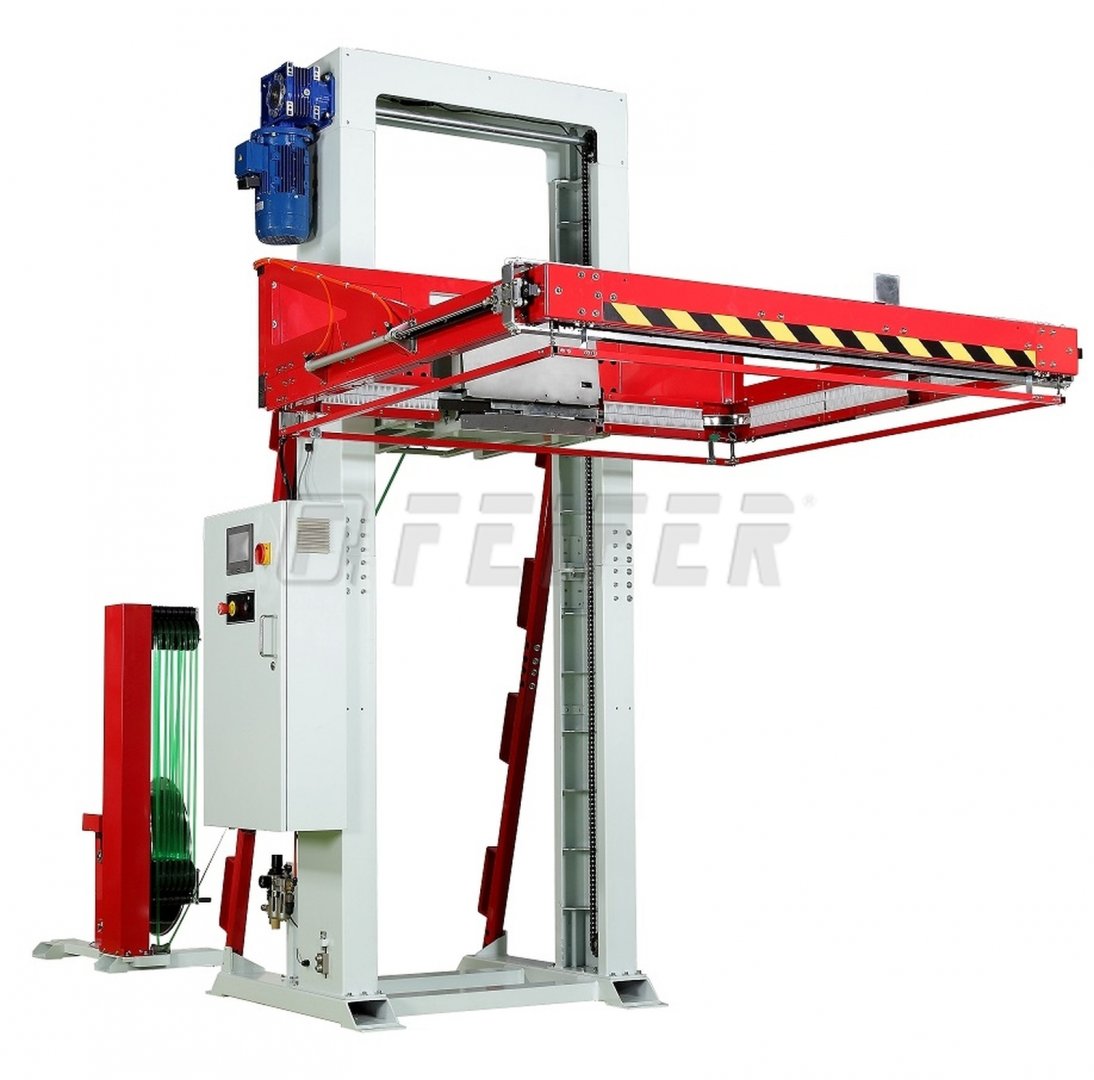

TP-733H CASTOR III - horizontal fully-automatic strapping machine

This automatic strapping machine is intended for strapping with PP and PET strap and is usable for wide spectre of goods which is put on pallets - for example bricks, fruits, cans, bottles, drinks and all kinds of goods on pallets.



Among main advantages of this strapping machine belong:

  • user-friendly and modern design
  • low packaging costs
  • robust and compact friction welding head
  • Siemens PLC Control and touch panel - easy setup, operating instructions, guide for defects removal
  • user-friendly TEACH-IN program
  • movable strapping head with max. eject of 300 mm for the best strap tensioning
  • possibility of friction welding - high-quality weld with high strenght
  • high tightening power to 3200N (320 kg) which allows to using of a wide range of PP and PET straps
  • max. capacity 60 pallets / hour



Fluently movement of strap feeder is controlled by a frequency converter which prevents vibration. This machine has a robust design with double-stanchion board - for better reliability and safety and adjustable cooling and welding time - for optimal weld. Easy integration into new or existing packaging lines.



Options:

  • movable head
  • indicator of error status (signal light)
  • freestanding control panel
  • HMI control on the other side
  • strapping head with less tensioning power of 200 - 1200 N (20 - 120 kg)
Technical parameters
Inquiry

Technical parameters

ordering code 700 024725
strap - material PP
PET
strap width 12, 15,5, 19 mm
inner diameter of roll 200/230/280/406 mm
packing rate 60 pallets/hour
arch height 1450 mm
arch width 1400 mm
tightening power 1100-3200 (standard); 200-1200 (volitelné) N
min. size of wrapped object 750 x 700 mm
max. size of wrapped object 1360 x 1200 x 2200 mm
supply voltage 400 V/50 Hz 3 f
dimension (l x w x h) 1900 x 2830 x 3275 mm
weight 680 kg

Standard modifications
