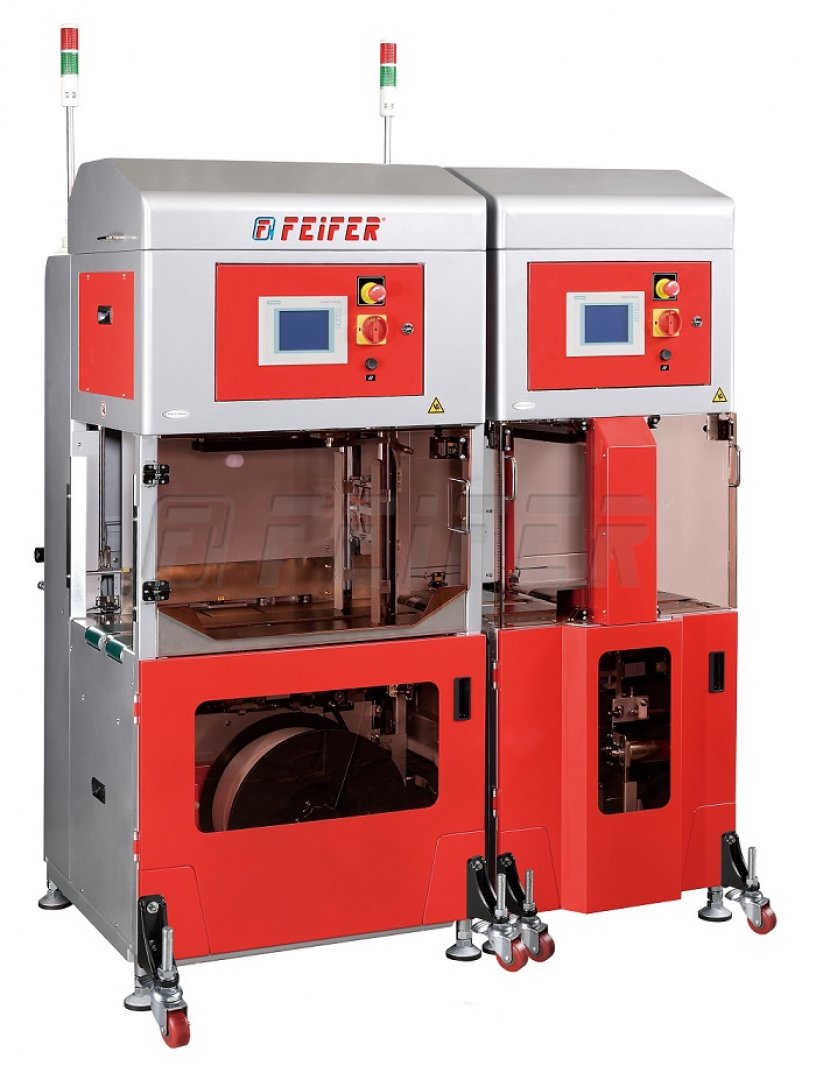

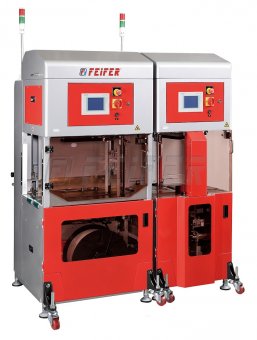

TP-702NIL TANDEMS - fully-automatic PP strapping machine

Fully-automatic strapping machine TP-702NIL TANDEMS offers in-line cross strapping system without bundle turning. Automatically adjusted tightening power according to dimensions of packaged item.



Among main advantages of this strapping machine belong:

  • robust and compact mechanical strapping head
  • Siemens PLC control and touch panel
  • patented system of strap feeding to the machine
  • loop-eject clears unwanted strap automatically, if the machine is strapped without any package
  • automatic opening of arch in case of malfunction
  • automatic tension control for various bundle dimensions (patents registered)
  • light tree alarm (dual lamp)
  • adjustable dual pneumatic press
  • adjustable table height between 800 mm and 900 mm and quick coil change
  • freely available srapping mechanism
  • easy access to strapping head



The machine is intended for polygraphic industry



Options:

  • energy saving transit with auto-sleep mode
  • low feeding strap sensor (triple lamp)
  • soft press for packages of irregular shape
  • lower adjustable table height with movable casters (730 mm – 830 mm)
  • automatic side squaring and reverse bundle flow
  • package reversion
  • movable casters (picture shown with this option)
Technical parameters
Modification
Accessories
Packing material
Inquiry

Technical parameters

ordering code 700 008315
supply voltage 230V/50Hz
power input 2 kW
strap - material PP
strap width 5 - 6 (8 - 9) mm
strap thickness 0,5 mm
weight 880 kg
compressed air 6 bar
air consumption/cycle 2,5 l/cyklus
inner diameter of roll 200 mm
packing rate 20 - 30 straps/min.
min. size of wrapped object 120 x 210 x 10 mm
max. size of wrapped object 450 x 500 x 400 mm
machine length 1230 mm
machine width 1545 mm
machine height 2400 mm

Standard modifications

TP-702NS SINGLE - fully-automatic PP strapping machine

TP-702NS SINGLE - fully-automatic PP strapping machine
  • strap width - 5 - 6 or 8 - 9 mm
  • max. packing rate 42 straps/min.
  • single and parallel strapping
  • intended for polygraphic industry

Recommended accessories

Driven belt conveyor 4000x400 mm

Driven belt conveyor 4000x400 mm
  • fluent speed regulation
  • track width - 400 mm
  • conveyor length - 4 m

Driven roller conveyor 2000x400 mm

Driven roller conveyor 2000x400 mm
  • motor driven with soft slip of rollers
  • track width - 400 mm
  • conveyor length - 2 m
  • standardly with plastic rollers

Driven roller conveyor 5000x400 mm

Driven roller conveyor 5000x400 mm
  • motor driven with soft slip of rollers
  • track width - 400 mm
  • conveyor length - 5 m
  • standardly with plastic rollers

DH - driven extensible roller conveyor 500mm, track 1050-2200 mm

DH - driven extensible roller conveyor 500mm, track 1050-2200 mm
  • track width - 500 mm
  • extensible, track -1050-2200 mm
  • 20 rollers

DH - driven extensible roller conveyor 500mm, track 1650-3570 mm

DH - driven extensible roller conveyor 500mm, track 1650-3570 mm
  • track width - 500 mm
  • extensible, track -1650-3570 mm
  • 32 rollers

DH - driven extensible roller conveyor 500mm, track 2250-4950 mm

DH - driven extensible roller conveyor 500mm, track 2250-4950 mm
  • track width - 500 mm
  • extensible, track -2250-4950 mm
  • 44 rollers

Binding and packaging materials

PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)

PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)
  • width 5,5 mm, thickness 0,50 mm
  • natural color (white)
  • strenght 700 N
  • tube 200 mm, roll 5000 m
