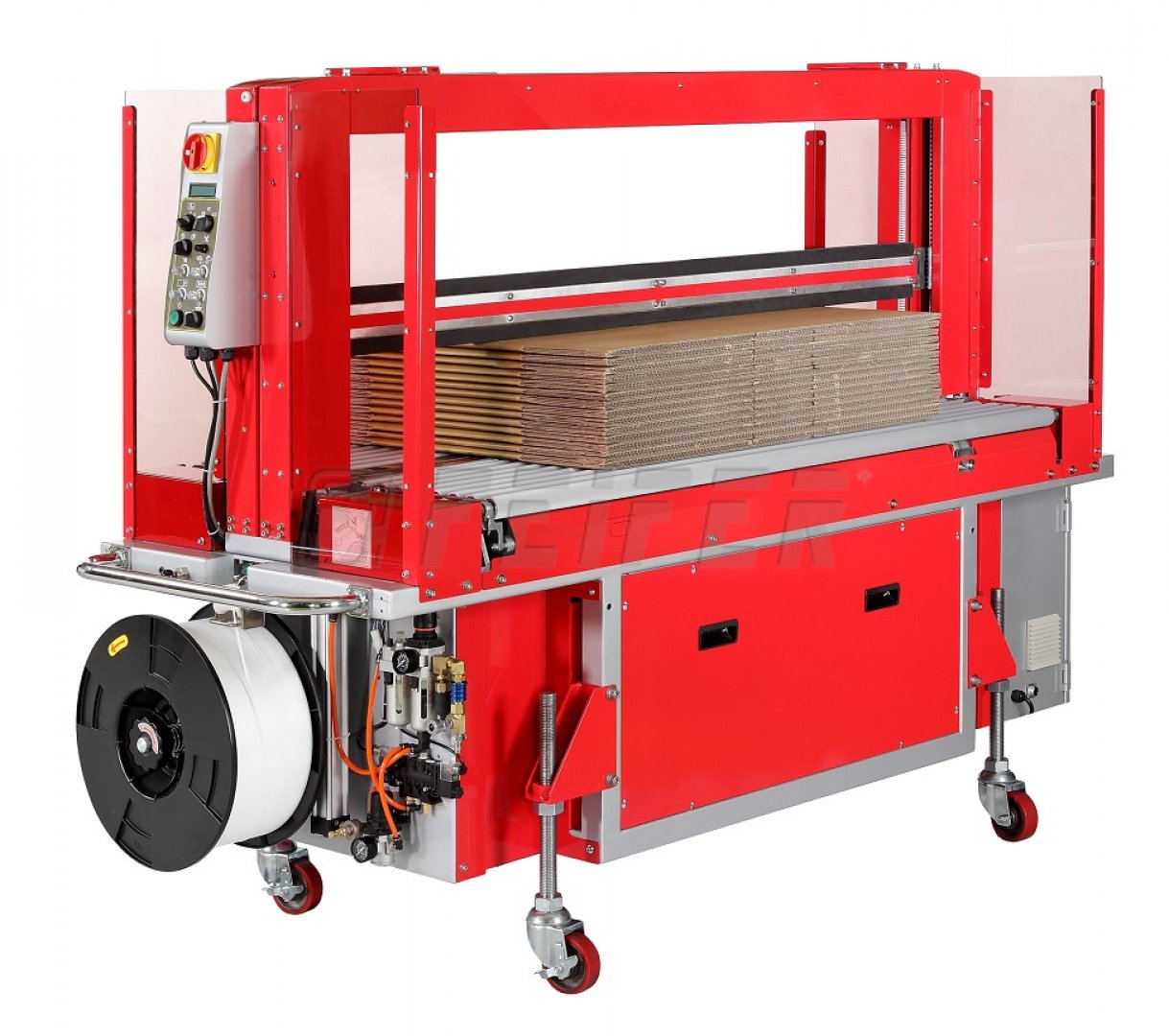

TP-702C Corrugated Strapper - fully-automatic PP strapping machine
This heavy duty machine TP-702C Corrugated Strapper is intended for strapping with PP strap for corrugated industry. The machine is able to work in semi-automatic and also in automatic working mode.
Among main advantages of this strapping machine belong:
- robust design
- high level of automatization
- easy operation and maintenance
- high reliability
- automatic strap feeding into the machine
- automatic loop-ejection of unwanted or wrong strap
- automatic opening of arch in case of malfunction
- pneumatic press
- hinged roller conveyor, etc.
- adjustable height of work desk
- fluently adjustable tightening power with high accuracy
The machine works with strap of the width of 5 – 6 or 8 – 9 mm with inner diameter of coil of 200 mm. Max. performance 33 straps/min. for single or parallel strapping and 20 straps/min. for dual strapping. The machine is delivered in three modifications according to arch size 1250 x 450 mm and 1650 x 450 mm and 2050 x 450 mm.
Technical parameters
Packing material
Inquiry
Technical parameters
| ordering code | 700 012191 |
| supply voltage | 230V/50Hz, 400V/50Hz |
| strap - material |
PP |
| strap width | 5 - 6 / 8 - 9 mm |
| tightening power | 350 N |
| working desk height | 880 - 970 mm |
| min. size of wrapped object | 200 x 20 x 300 mm |
Standard modifications
Binding and packaging materials
PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)
- width 5,5 mm, thickness 0,50 mm
- natural color (white)
- strength 700 N
- tube 200 mm, roll 5000 m
