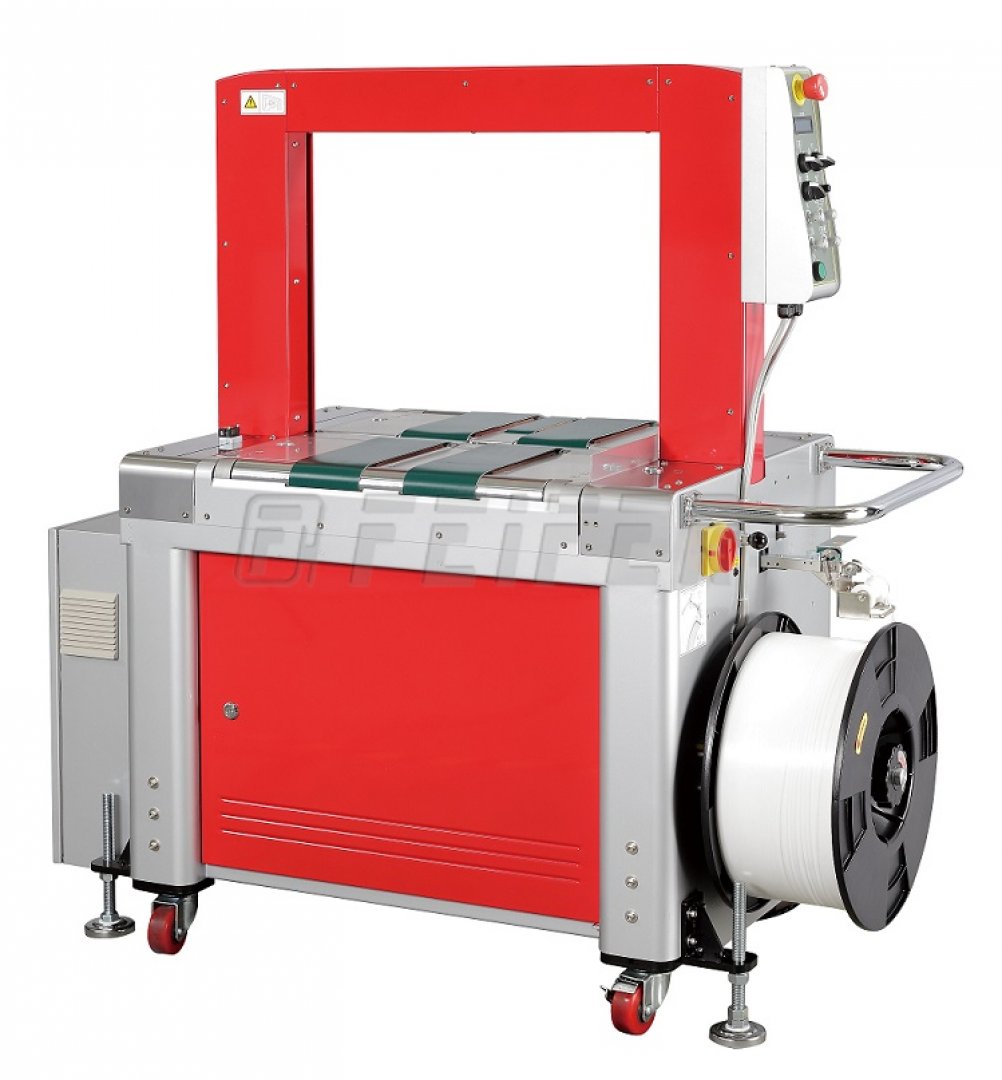

TP-702B MERCURY TRANSIT - fully-automatic PP strapping machine
Full-automatic strapping machine TP-702B MERCURY TRANSIT for PP straps is intended for strapping cartons, transport boxes, etc. There is used polypropylene strap (PP) of the width of 5 – 6 mm for strapping. The machine is equipped with motor driven belt conveyors. The machine is designed for automatic operations with high serial and high frequency strapping jobs (up to 65 straps/min.). Is equipped with belt conveyors. Automatic working mode (an operator handles with a package only) or fully automatic working mode (including movement of a package).
Among main advantages of this strapping machine belong:
- patented system of strap feeding to the machine
- loop-eject clears unwanted strap automatically, if the machine is strapped without any package
- automatic opening of arch in case of malfunction
- min. outer dimensions
- adjustable work desk height
- easy strap coil loading on strap decoiler
- fluently adjustable tightening power from 1 – 32 kg (for 5-9mm) or 1-45 kg (for 12 mm strap)
- high safety of the machine operator (control, motors and heater are „stepped down“ to 24 V)
- adjustable quantity of straps on the packaged item (1, 2, 3 or continuously)
The machine has unique one-piece arch made from sturdy material. Standard arch dimension is 650 x 500 mm and it's also max. dimension of packaged items, lenght of packaged items isn't limited. Good to strap small package with minimum size 120 mm in width and 10 mm in height.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 008312 |
| supply voltage | 230V/50Hz |
| strap - material |
PP |
| strap width | 5 - 12 mm |
| tightening power | 320 (5-9 mm), 450 (12 mm) N |
| packing rate | 65 straps/min. |
| arch width | 650 mm |
| arch height | 500 mm |
| machine length | 1400 mm |
| machine width | 650 mm |
| machine height | 2050 mm |
| weight | 225 kg |
Standard modifications
TP-601B - fully-automatic PP strapping machine
- strap width - 8 - 12 mm
- max. packing rate 29 straps/min.
- motor driven belt conveyor
- programmable unit
Recommended accessories
DH - driven extensible roller conveyor 500mm, track 1050-2200 mm
- track width - 500 mm
- extensible, track -1050-2200 mm
- 20 rollers
DH - driven extensible roller conveyor 500mm, track 1650-3570 mm
- track width - 500 mm
- extensible, track -1650-3570 mm
- 32 rollers
DH - driven extensible roller conveyor 500mm, track 2250-4950 mm
- track width - 500 mm
- extensible, track -2250-4950 mm
- 44 rollers
Driven belt conveyor 4000x400 mm
- fluent speed regulation
- track width - 400 mm
- conveyor length - 4 m
Driven roller conveyor 2000x400 mm
- motor driven with soft slip of rollers
- track width - 400 mm
- conveyor length - 2 m
- standardly with plastic rollers
Driven roller conveyor 5000x400 mm
- motor driven with soft slip of rollers
- track width - 400 mm
- conveyor length - 5 m
- standardly with plastic rollers
DH - driven extensible roller conveyor 600mm, track 1050-2200 mm
- track width - 600 mm
- extensible, track -1050-2200 mm
- 20 rollers
DH - driven extensible roller conveyor 600mm, track 1650-3570 mm
- track width - 600 mm
- extensible, track -1650-3570 mm
- 32 rollers
DH - driven extensible roller conveyor 600mm, track 2250-4950 mm
- track width - 600 mm
- extensible, track -2250-4950 mm
- 44 rollers
Binding and packaging materials
PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)
- width 5,5 mm, thickness 0,50 mm
- natural color (white)
- strength 700 N
- tube 200 mm, roll 5000 m
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
- width 12 mm, thickness 0,55 mm
- black color
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
- width 12 mm, thickness 0,55 mm
- natural color (white)
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2200 N
- tube 200 mm, roll 2500 m
