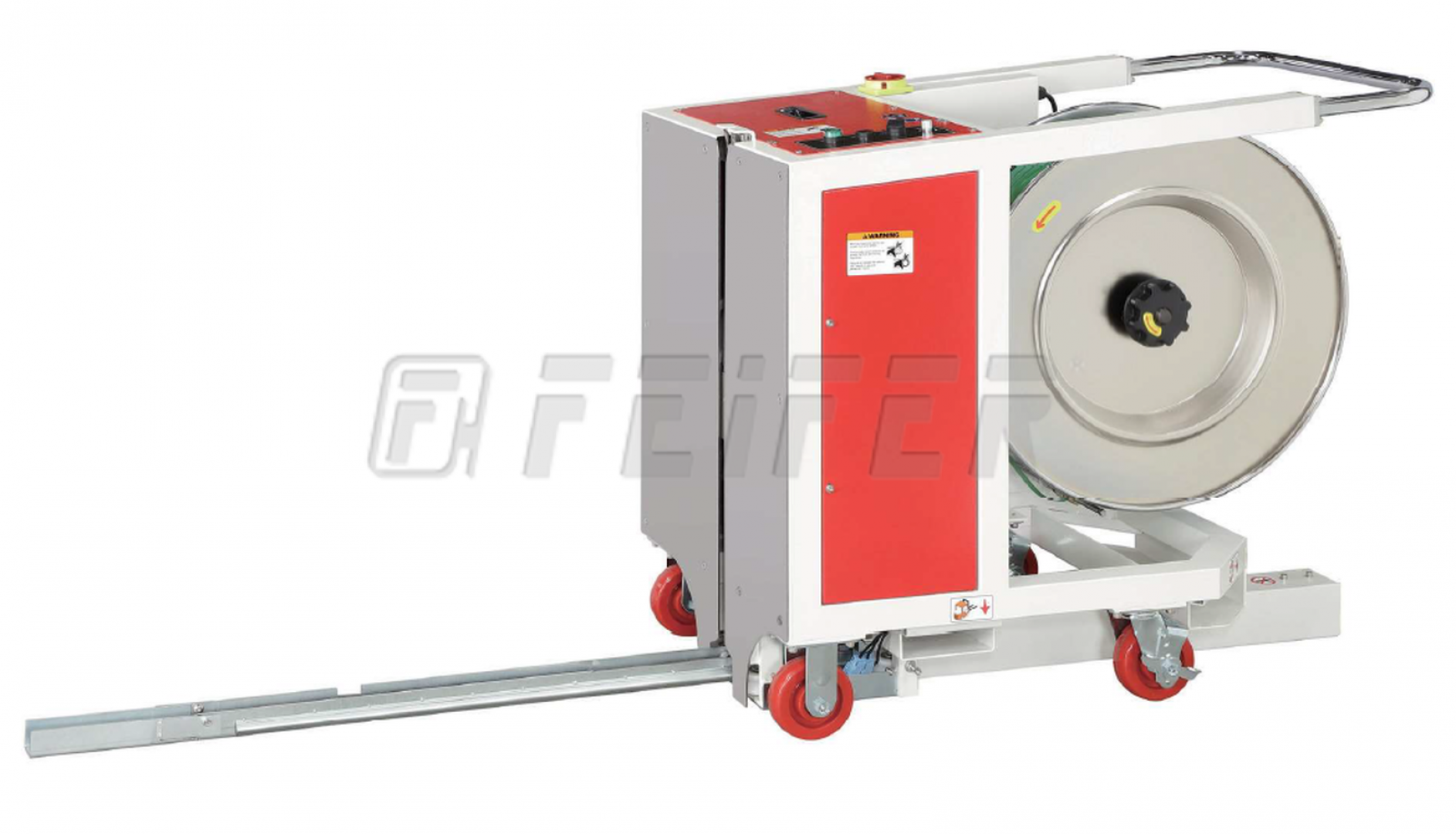

TP-602MV Magic II - semi-automatic PP strapping machine
The TP-602MV series provides an ergonomic and cost-effective solution for vertical pallet strapping applications.
-
Suitable for operations with low to medium packaging capacity
-
Unique design with friction weld sealing head (odor-free sealing process)
-
Mobile use with connection to mains power required
-
Robust strapping head with minimal maintenance requirements
-
Integrated strap lance for easy and precise strap feeding under the pallet (standard length 1000 mm), automatic retraction into the machine body
-
Longer service life compared to battery-powered hand tools
-
Smooth electronic tension control
-
Adjustable cooling time for improved seal efficiency at higher tension levels
-
Upgraded machine electronics
-
Low machine maintenance requirements
-
Excellent performance-to-cost ratio
The machine works with PP strap, 9, 12, or 15.5 mm wide, on coils with a 200 mm core diameter.
The minimum height of the palletized product (including the pallet) is 485 mm.
Technical parameters
ordering code | 700 024833 |
strap - material |
PP PET |
strap width | 9, 12, 15,5 mm |
power input | 0,50 kW |
supply voltage | 230V/50Hz |
packing rate | 3 straps/min. |
tightening power | 1500 N |
inner diameter of roll | 200 mm |
min. packing height (incl. pallet) | 485 mm |
Battery powered | no |

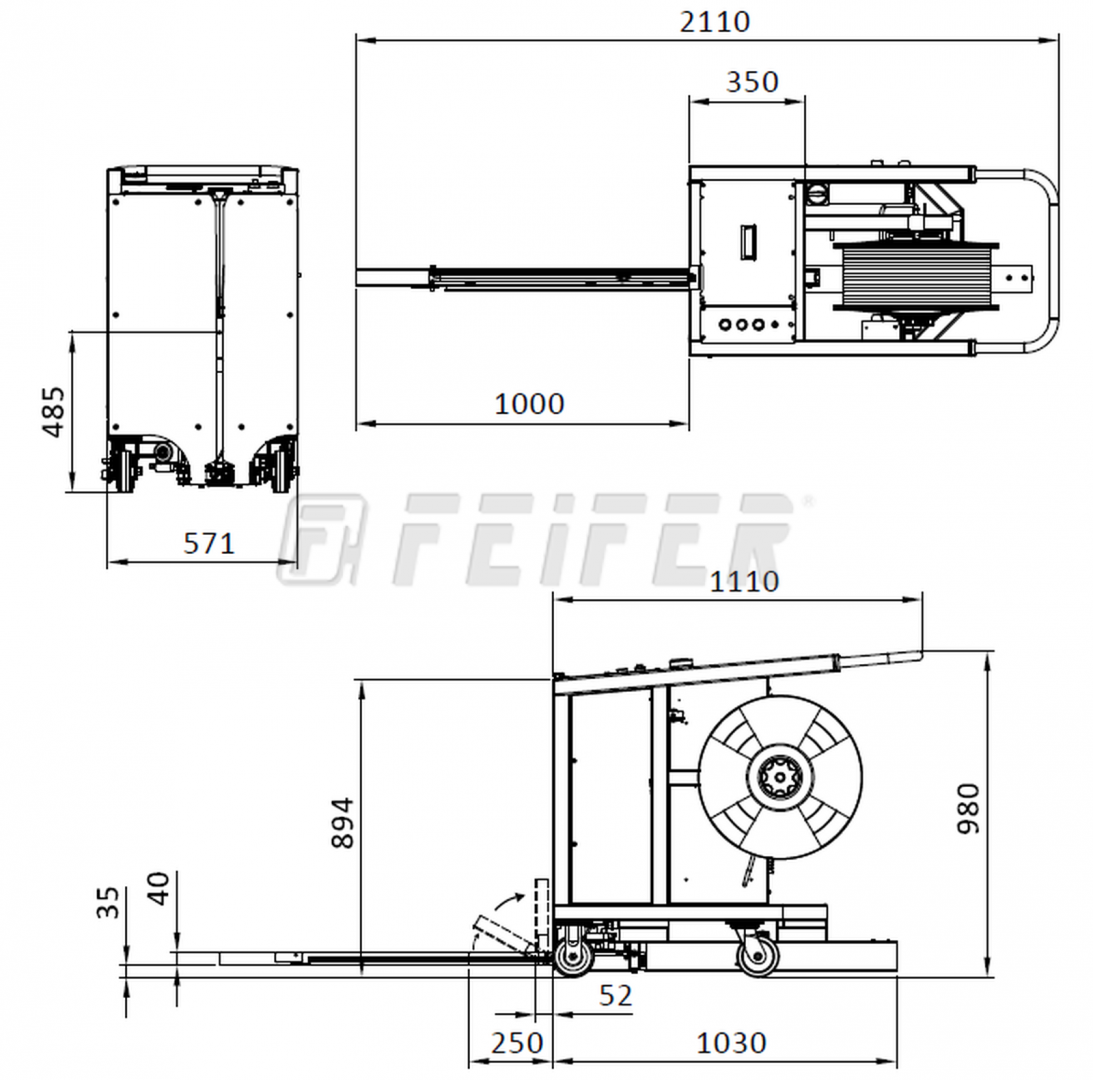

dimension (l x w x h) | 571 x 2110 x 980 mm |
weight | 100 kg |
