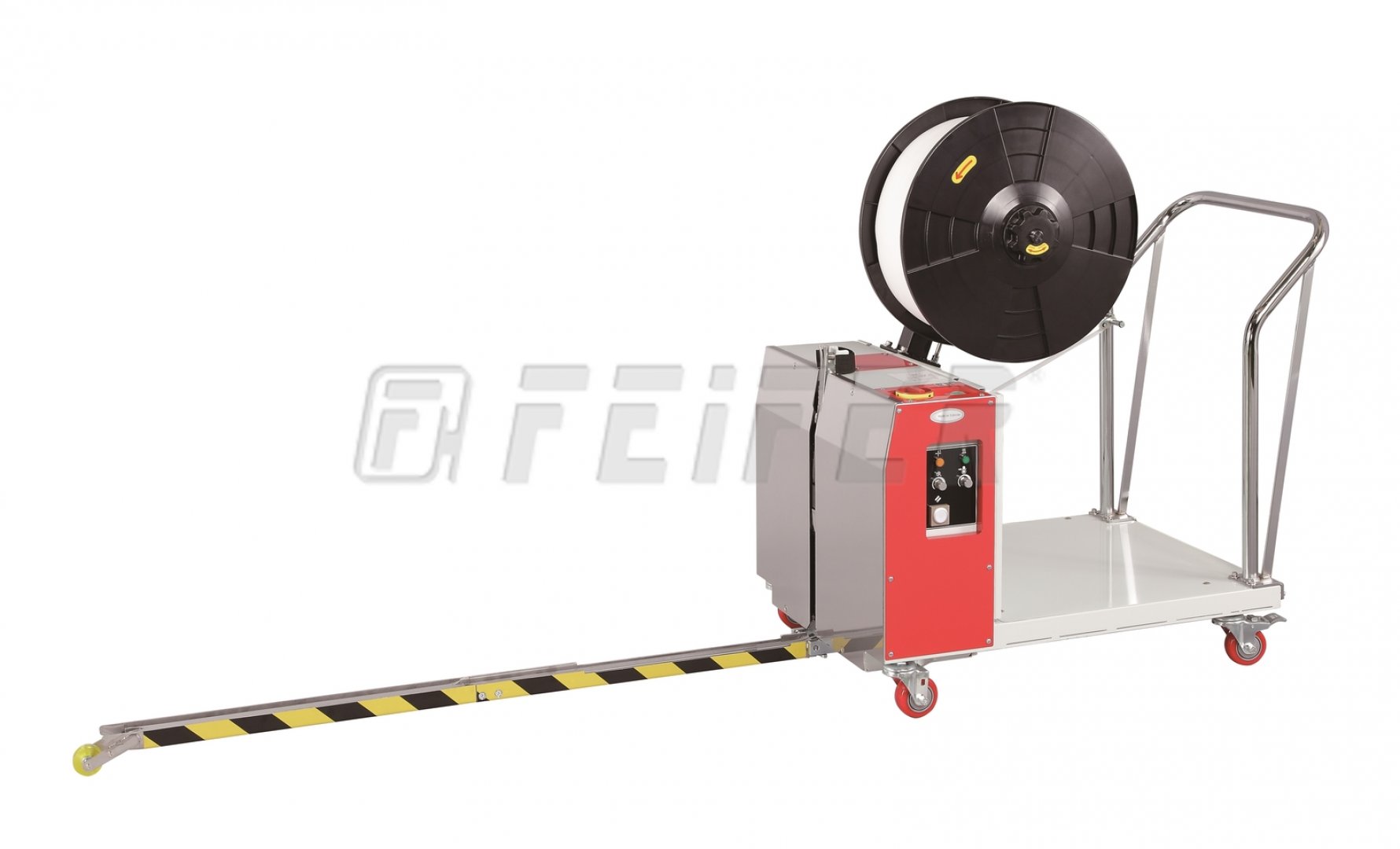

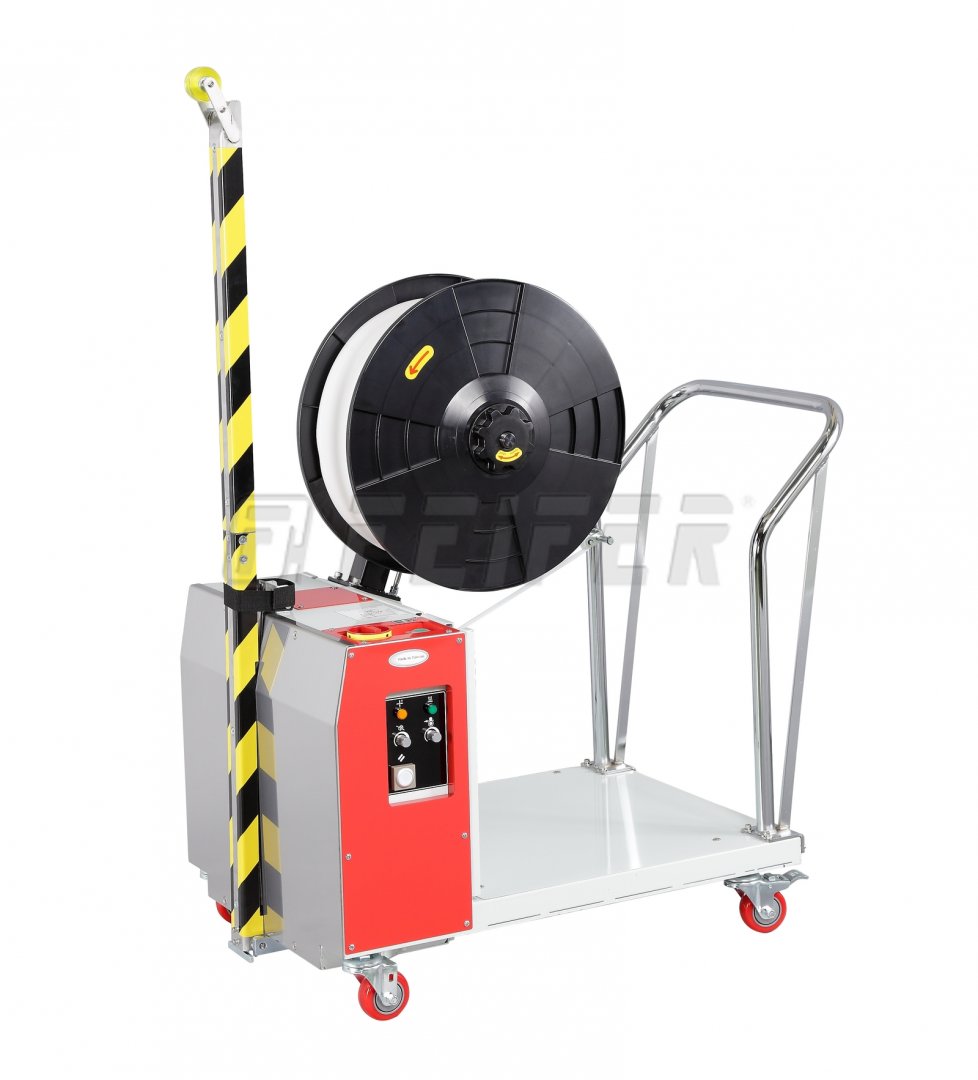

TP-502MV GENESIS VERTI - semi-automatic PP strapping machine

 The TP-502MV series machines provide an ergonomic and cost-effective solution for vertical pallet strapping applications for lower packing frequency operations.

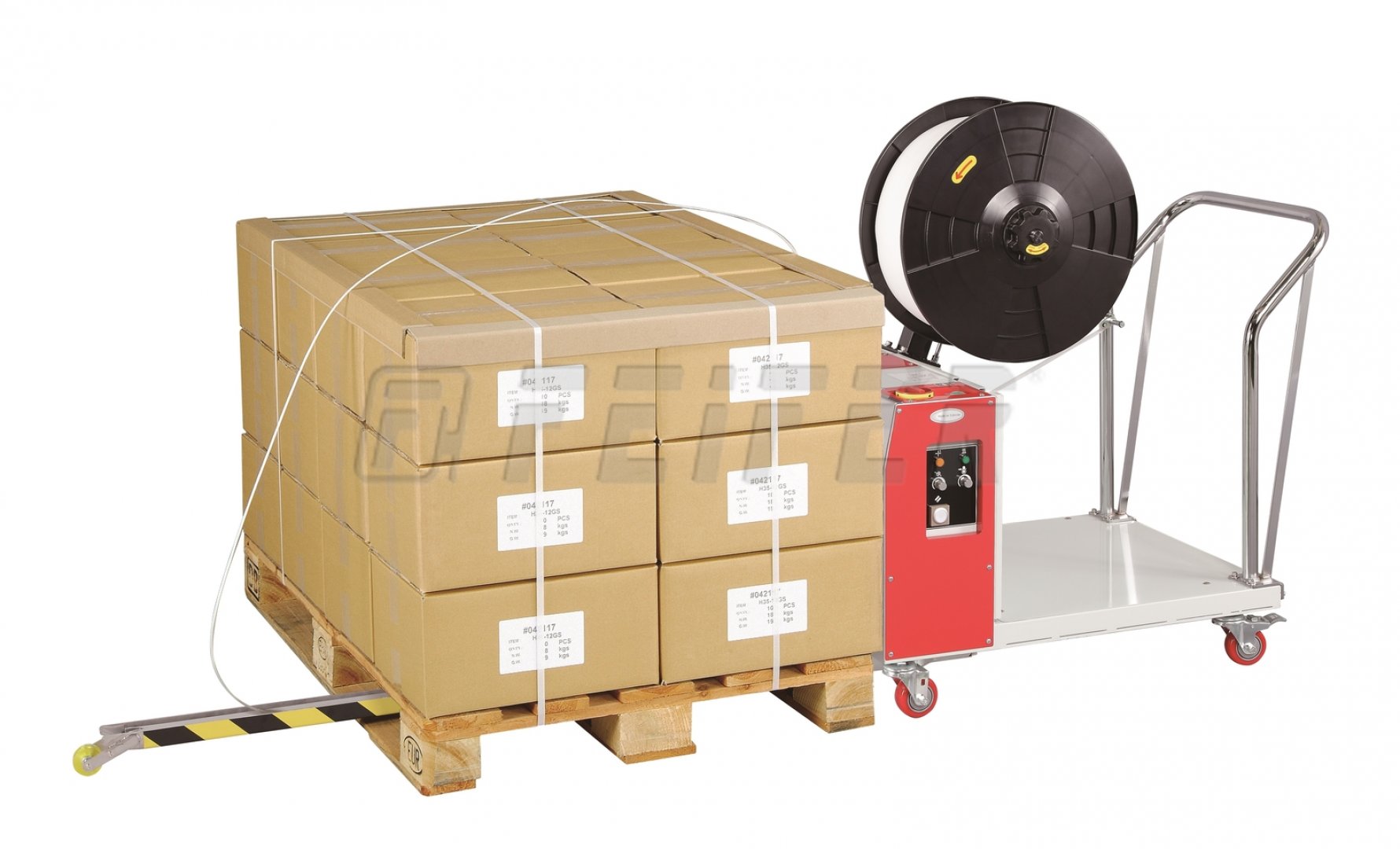

  • machine is designed for strapping goods on pallets
  • suitable for operations with lower to medium packaging capacity
  • light and compact machine, easy to move next to the pallet
  • mobile use with the need to connect to the mains (TP-502MV GENESIS VERTI) or using a battery module (TP-502MVB GENESIS VERTI)
  • compact mechanical strapping head with extremely low noise
  • channel for easy and accurate insertion of the strap under the pallet (standard length 1250 mm)
  • long service life compared to hand-held electric strapping machines
  • stepless electronic regulation of the tightening force
  • possibility of strapping a pallet with a height of at least 380 mm
  • the possibility of extending the cooling time of the weld at a higher tightening force ensures high joint efficiency
  • innovative machine electronics
  • low maintenance requirements of the machine
  • excellent value for money
  • the simplest solution for machine strapping of pallets

The machine works with PP strap 9, 12 or 15.5 mm wide on a roll with a core with an inner diameter of 200 mm. The minimum height of the packaged item, including the pallet, is 380 mm.

Technical parameters
Modification
Inquiry

Technical parameters

ordering code 700 024329
strap - material PP
strap width 9, 12, 15,5 mm
strap thickness 0,6 - 0,8 mm
inner diameter of roll 200 mm
packing rate 3 straps/min.
tightening power 700 N
supply voltage 230V/50/60Hz
power input 0,33 kW
min. packing height (incl. pallet) 380 mm
Battery powered no
dimension (l x w x h) 585 x 2315 x 1074 mm
weight 93 kg

Standard modifications

New

TP-502MVB GENESIS VERTI- semi-automatic PP strapping machine with battery modul

TP-502MVB GENESIS VERTI- semi-automatic PP strapping machine with battery modul
  • strap width - 9, 12 or 15,5 mm
  • for PP strap
  • innovated electronics of the machine
  • for pallet strapping, mobile using
