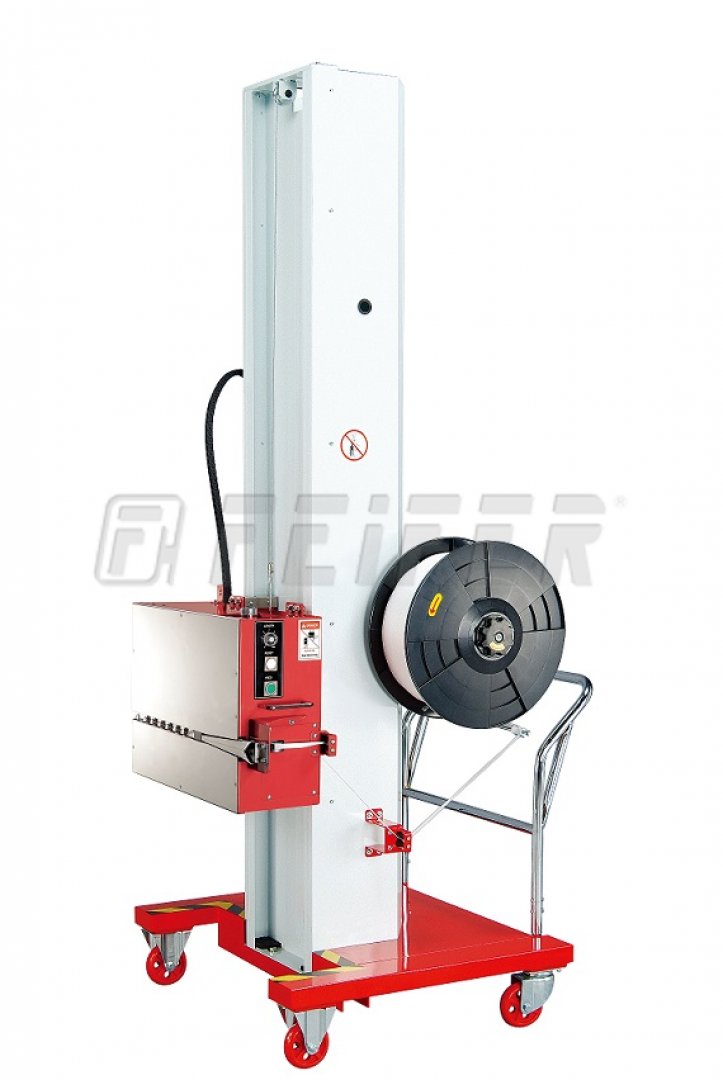

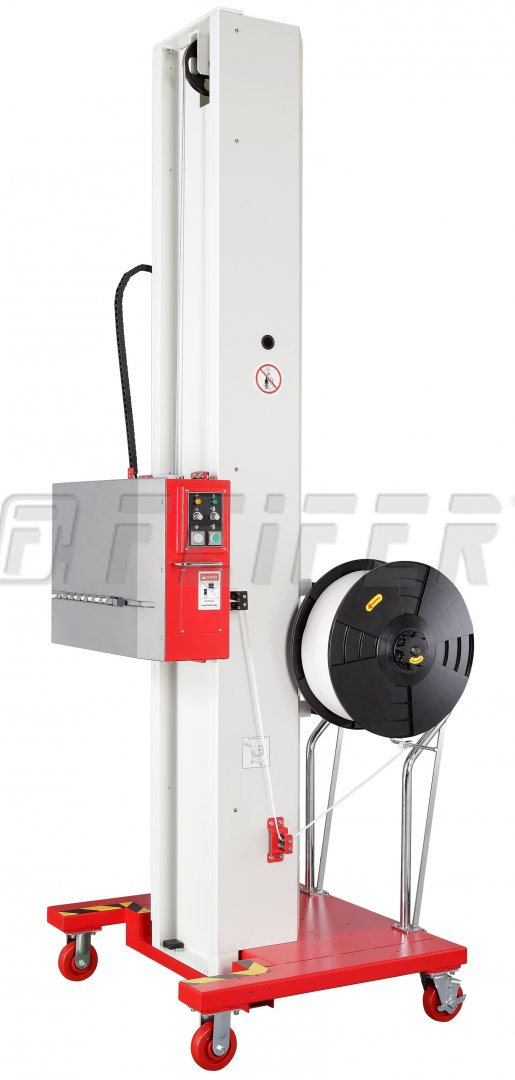

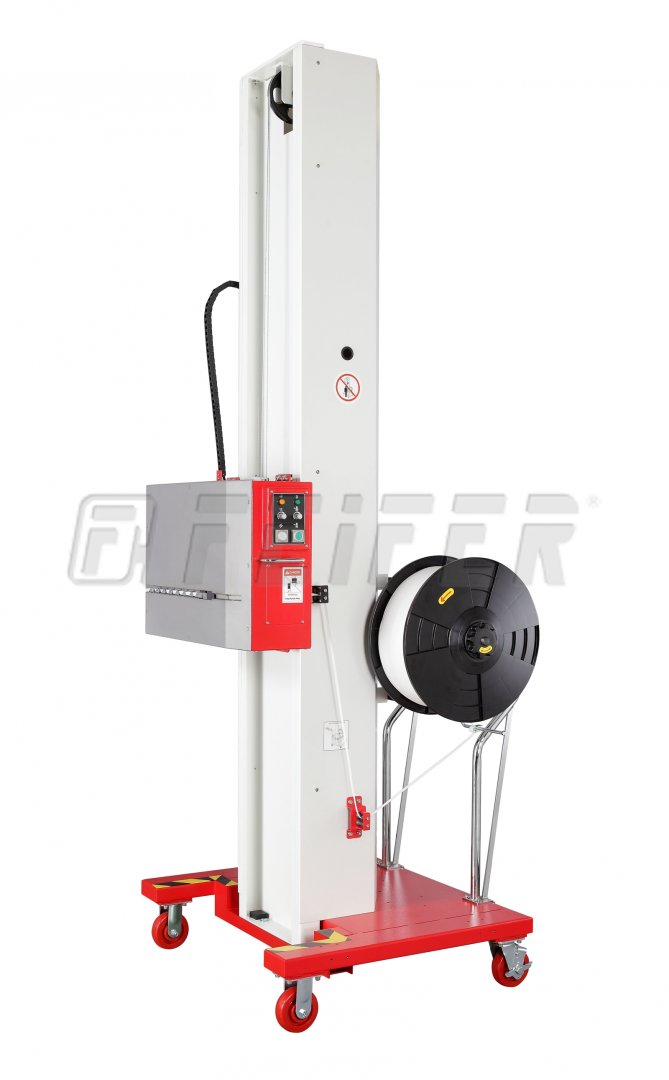

TP-502MH MINI HORI - semi-automatic strapping machine

The machine works with polypropylene strap (PP). It has wide application, can be used for strapping of crates of fruit and vegetables, different kinds of panels, pallets of cardboard boxes, etc.



Among main advantages of this strapping machine belong:

  • speed
  • ergonomic design
  • economical working
  • adjustable height of strapping from 190 to 2000 mm (from the floor)
  • the control panel is on both sides of the machine - easy use and easy, comfortable and facilitating replacing of the strap
  • big wheels for better moving

Cooling time can be extended for higher strenght of weld. This semi-automatic machine is suitable for low and medium frequency strapping jobs.

Technical parameters
Modification
Packing material
Inquiry

Technical parameters

ordering code 700 008319
supply voltage 230V/50Hz
strap - material PP
strap width 9 - 15,5 mm
strap thickness 0,6 - 0,8 mm
tightening power 80-700 N
inner diameter of roll 200 mm
packing rate 4 straps/min.
min. size of wrapped object 80 x 175 mm
machine length 1130 mm
machine width 891 mm
machine height 2822 mm
weight 292 kg

Standard modifications

TP-502MHB MINI HORI - semi-automatic strapping machine

TP-502MHB MINI HORI - semi-automatic strapping machine
  • strap width - 9 - 15,5 mm
  • battery-powered model
  • quick, ergonomic and economic
  • for low frequency jobs

Binding and packaging materials

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, black

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, black
  • width 10 mm, thickness 0,40 mm
  • black color
  • strenght 1160 N
  • tube 200 mm, roll 3500 m

PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black

PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
  • width 12 mm, thickness 0,50 mm
  • black color
  • strenght 1300 N
  • tube 200 mm, roll 3100 m

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
  • width 15 mm, thickness 0,65 mm
  • white, cross strapped
  • strenght 2200 N
  • tube 200, roll 2000 m

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
  • width 15 mm, thickness 0,65 mm
  • black color
  • strenght 2200 N
  • tube 200, roll 2000 m
