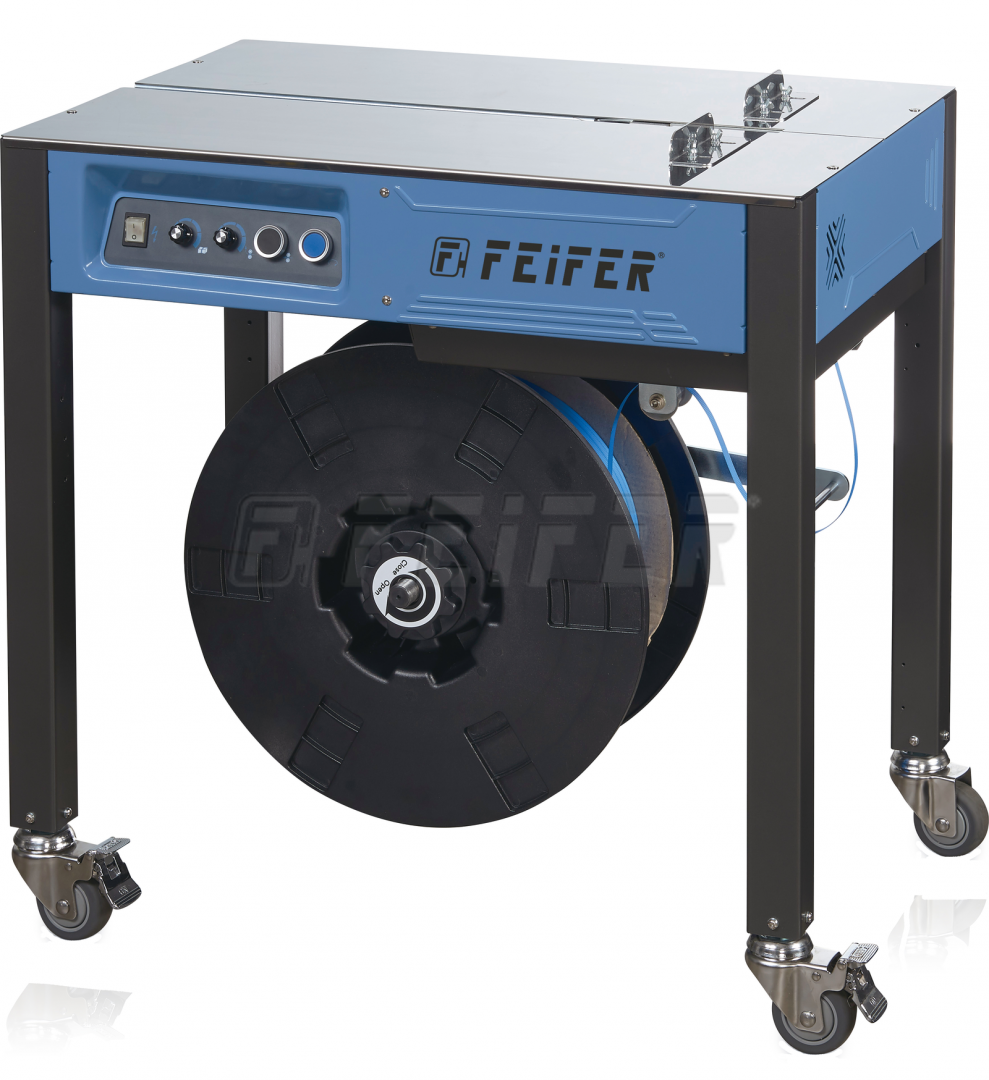

TP-303 - MINIPACK - semi-automatic strapping machine
The semi-automatic strapping machine TP-303 MINIPACK is designed for strapping newspapers, cartons, textile products, banknotes, but also large objects like furniture or circular things like tires, hoses and cables, etc. The machine works with PP straps width from 5 to 15.5 mm, coil inner diameter of 200 mm.
The main advantages of strapping machine are:
- compact, simple and failure - free mechanics
- easy operation and simple maintenance
- electromagnetic clutch for cycles stepping
- strapping rate 2 seconds/one strap
- extremely easy machine maintenance
- electronically adjustable tightening power
- time of motor run and time of cooling the strap weld are separately adjustable
- innovated electronics of the machine
- modern design
Technical parameters
Packing material
Product videos
Inquiry
Technical parameters
| ordering code | 700 023472 |
| strap - material |
PP |
| strap width | 5 - 15,5 mm |
| strap thickness | 0,45 - 0,7 mm |
| power input | 0,15 kW |
| supply voltage | 230V/50Hz |
| weight | 46 kg |

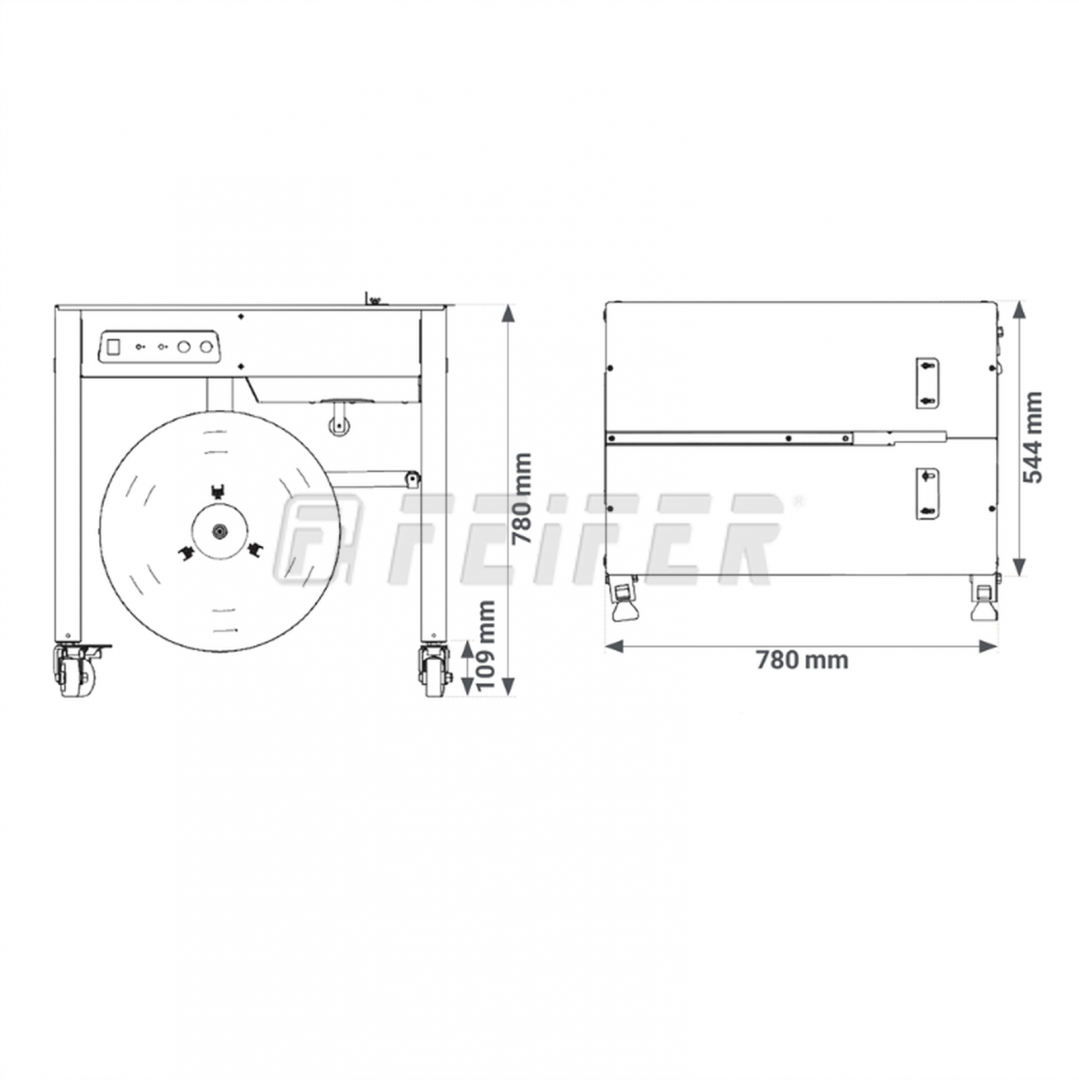

| machine length | 780 mm |
| machine width | 544 mm |
| machine height | 780 mm |
| tightening power | 600 N |
Standard modifications
Binding and packaging materials
PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)
- width 5,5 mm, thickness 0,50 mm
- natural color (white)
- strength 700 N
- tube 200 mm, roll 5000 m
Sale
PP strap 6 x 0,55 mm, 200/190 - 5500 m, 750 N, green
- width 6 mm, thickness 0,55 mm
- green color
- strength 750 N
- tube 200 mm, roll 5500 m
PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, white
- width 8 mm, thickness 0,55 mm
- white color
- strength 950 N
- tube 200 mm, roll 4500
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
- width 12 mm, thickness 0,55 mm
- black color
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
- width 12 mm, thickness 0,55 mm
- natural color (white)
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2200 N
- tube 200 mm, roll 2500 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
- width 15 mm, thickness 0,65 mm
- black color
- strength 2200 N
- tube 200, roll 2000 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
- width 15 mm, thickness 0,65 mm
- white, cross strapped
- strength 2200 N
- tube 200, roll 2000 m
